Abs/TCS Functional Check Charts

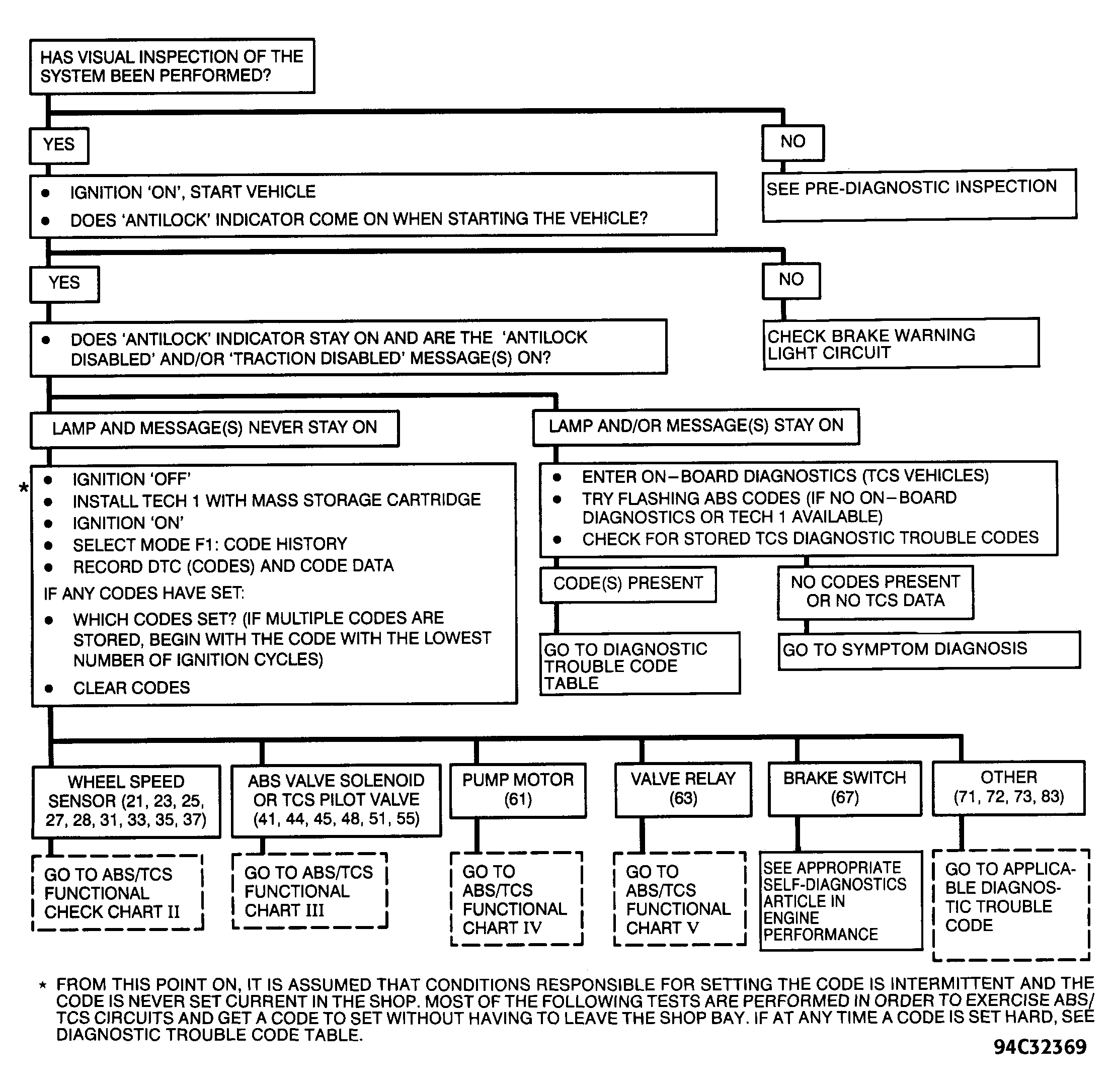

Fig 1: ABS/TCS FUNCTIONAL CHECK CHARTS #1

G94C32369

Courtesy of GENERAL MOTORS CORP.

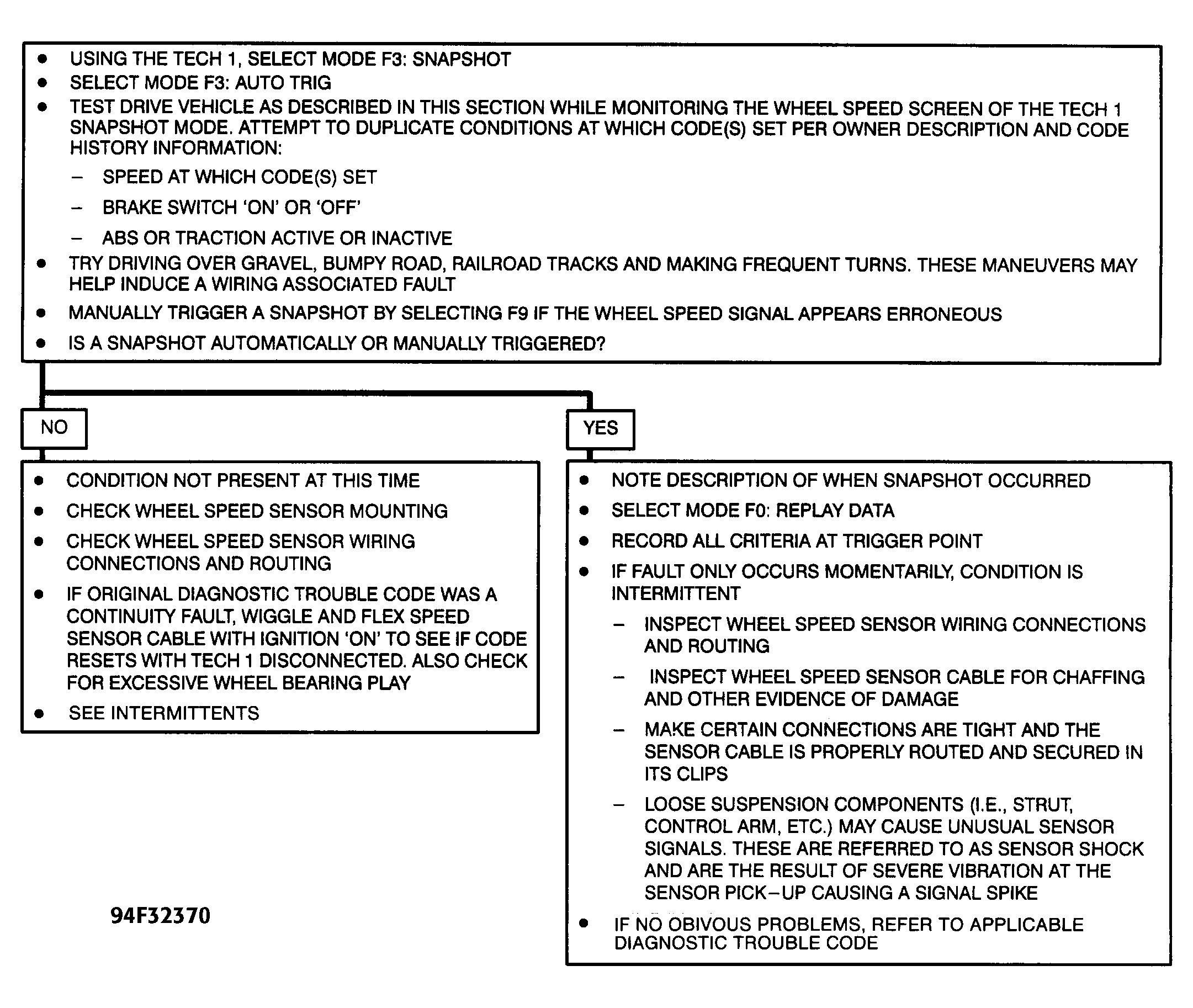

Fig 2: ABS/TCS FUNCTIONAL CHECK CHARTS #2

G94F32370

Courtesy of GENERAL MOTORS CORP.

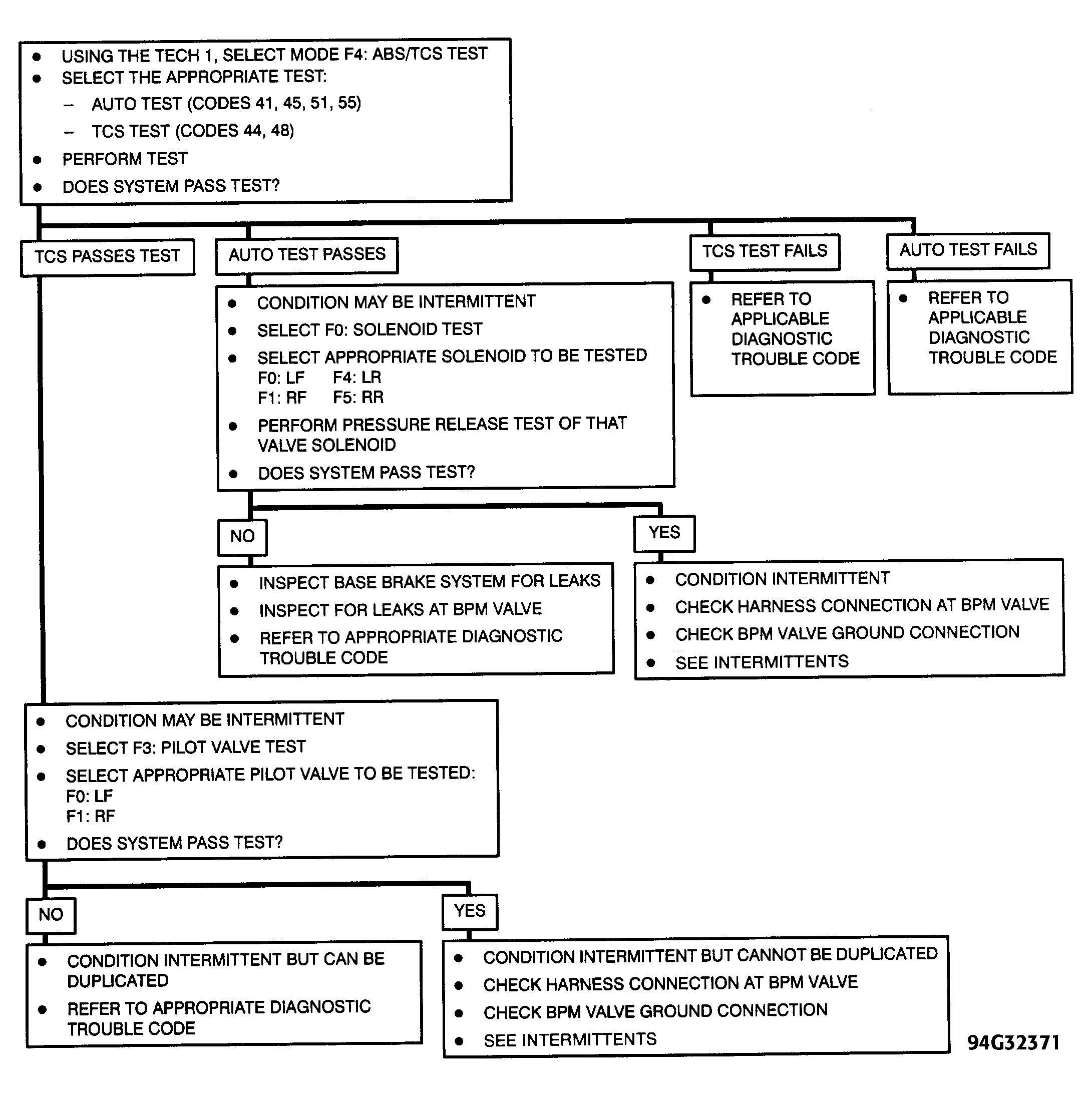

Fig 3: ABS/TCS FUNCTIONAL CHECK CHARTS #3

G94G32371

Courtesy of GENERAL MOTORS CORP.

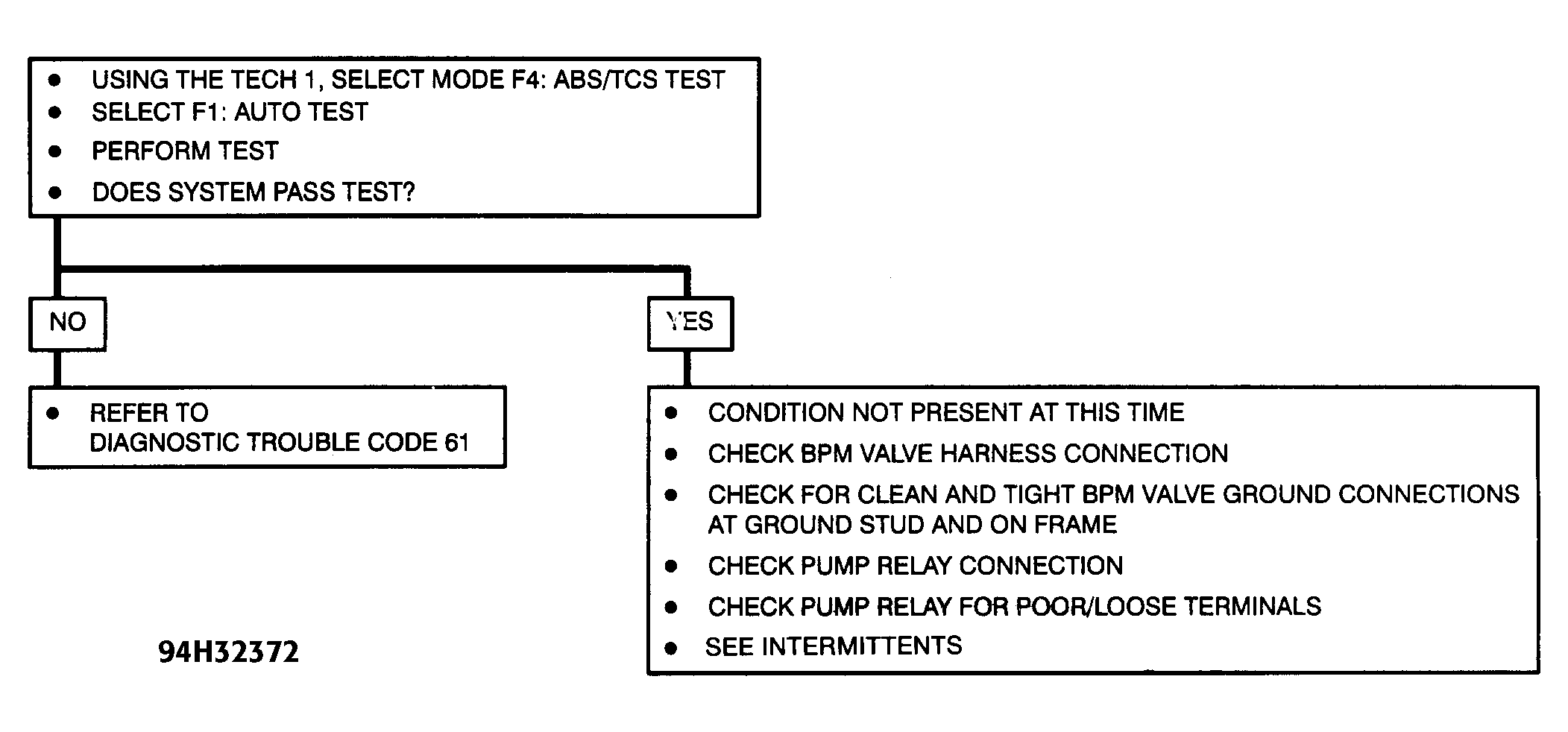

Fig 4: ABS/TCS FUNCTIONAL CHECK CHARTS #4

G94H32372

Courtesy of GENERAL MOTORS CORP.

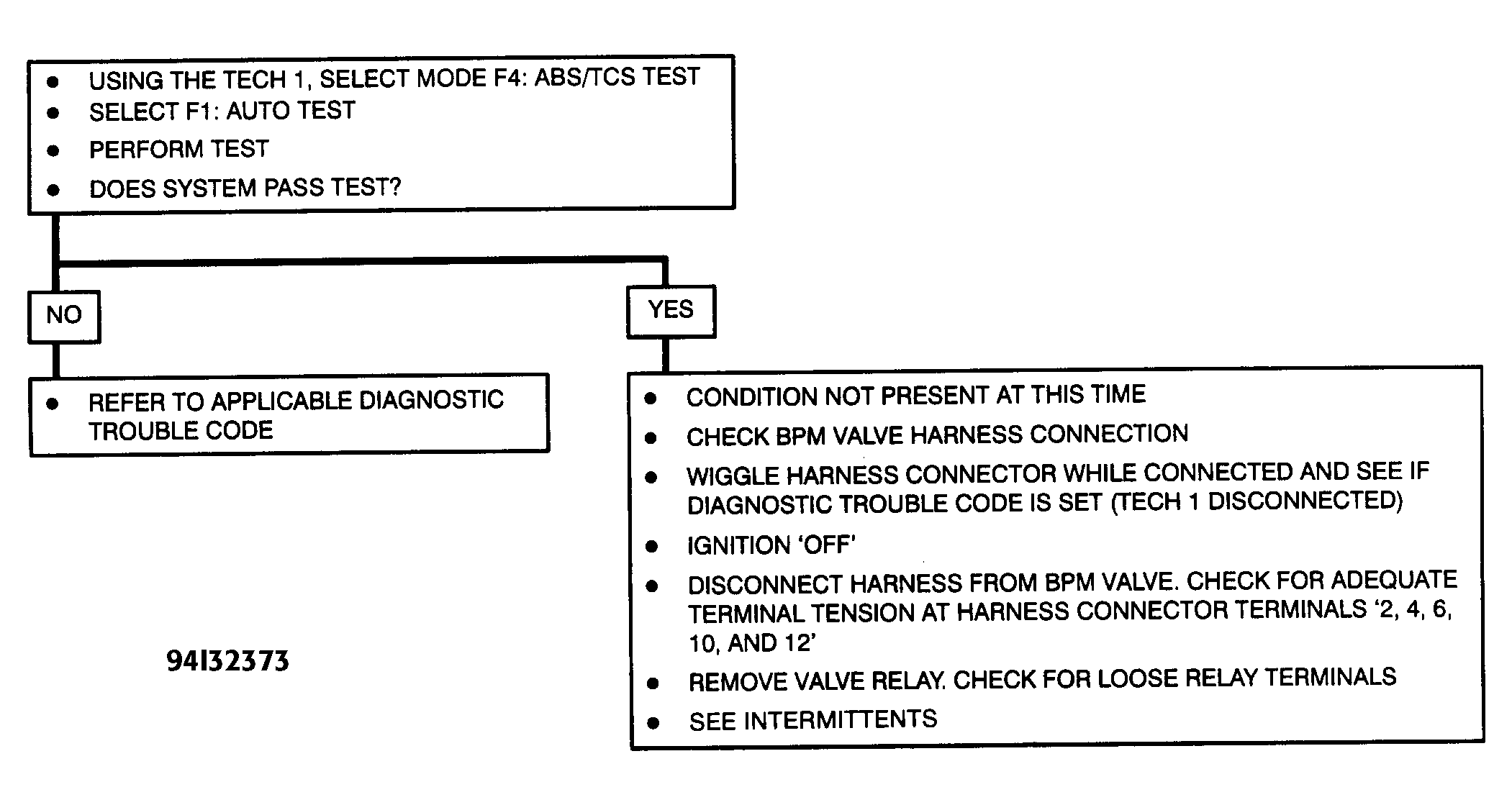

Fig 5: ABS/TCS FUNCTIONAL CHECK CHARTS #5

G94I32373

Courtesy of GENERAL MOTORS CORP.
