High-Current Fuse Panel Identification (1994-96): Notes

The Maxi-Fuse ("high-current") and Relay Panel is located next to the engine compartment fuse block.

WARNING: Always disconnect battery ground cable before servicing "high-current fuses. It is recommended that "high-current" fuses be replaced by a qualified technician.

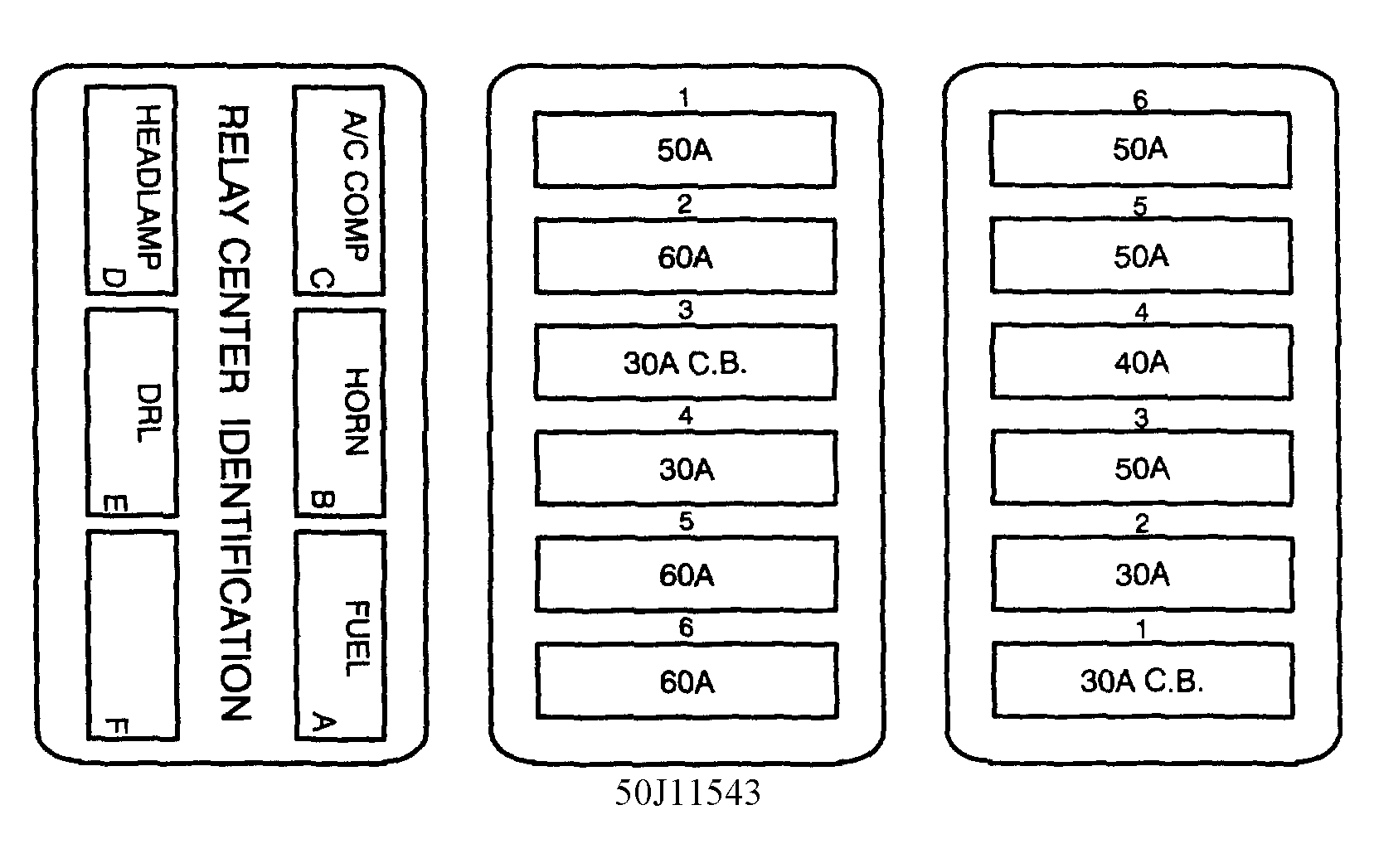

Fig 1: High-Current Fuse Panel Identification (1994-96)
G50J11543Courtesy of GENERAL MOTORS CORP.
