PI70: Cruise Control Brake Switch

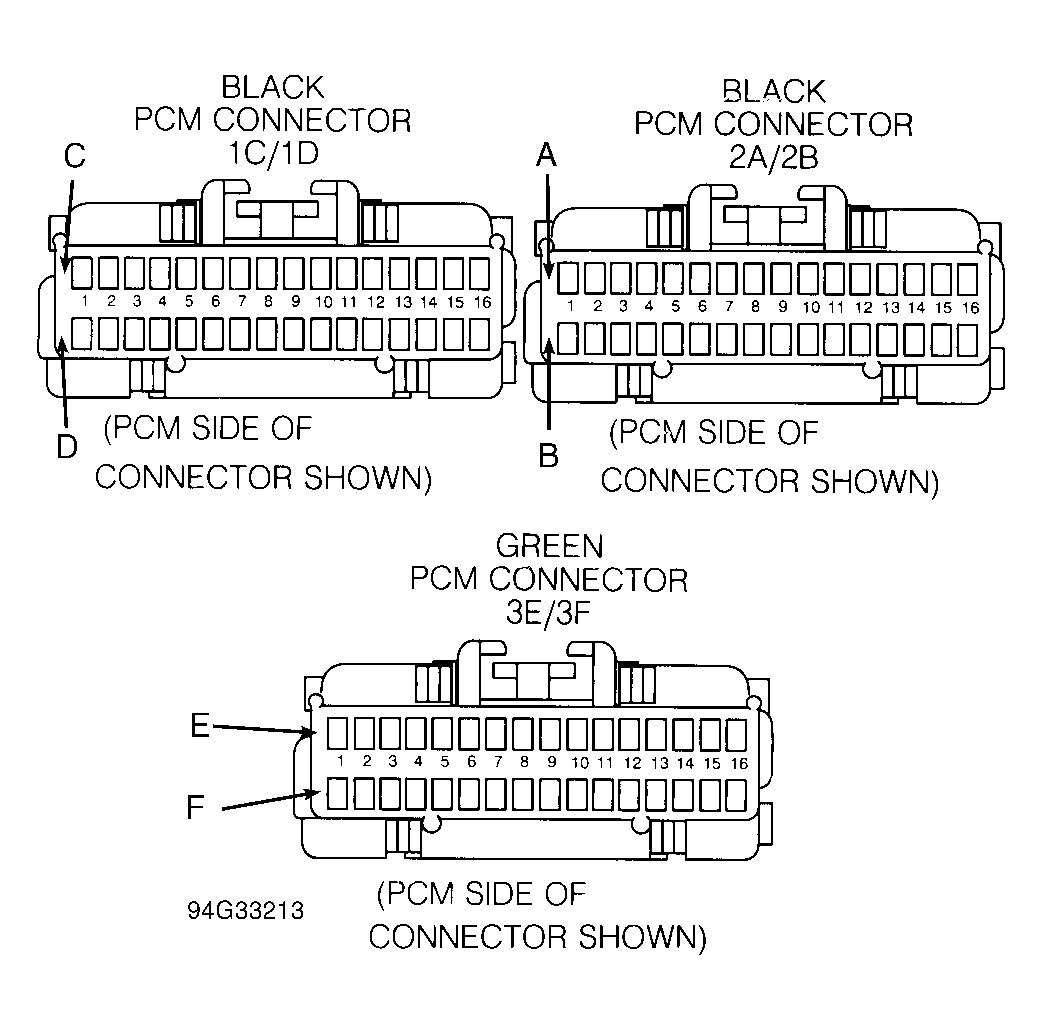

Cruise control switch must be in ON position. Test detects opening and closing of cruise control brake switch at PCM terminal 1C2. See Figure. PI70 should be HI with pedal released and LO with brake pedal depressed.
Cruise control switch must be in ON position. Test detects opening and closing of cruise control brake switch at PCM terminal 1C2. See Figure. PI70 should be HI with pedal released and LO with brake pedal depressed.
