Lower Transaxle Assembly

Remove bottom oil pan and oil scavenger screens. Disconnect manual valve link and wiring harness connectors. Remove control valve and accumulator cover assembly. See Fig 1 .

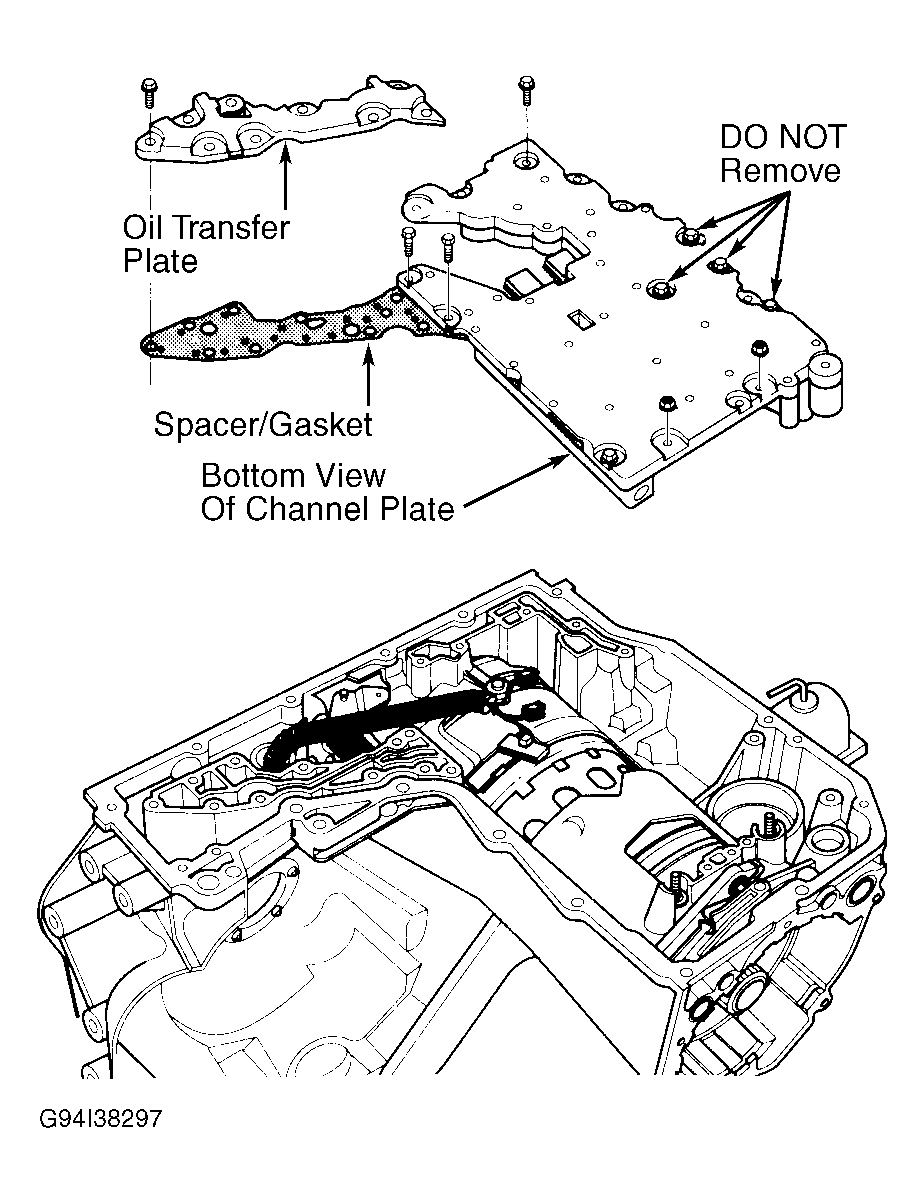

Fig 1: Removing Lower Control Valve & Accumulator Cover Assembly
G94I38297Courtesy of GENERAL MOTORS CORP.
