Drive Link Assembly
NOTE:
See COMPONENT DISASSEMBLY & REASSEMBLY
for exploded views of all internal components. See Figure
for thrust washer and bearing locations. See Figure
for lip seal locations.

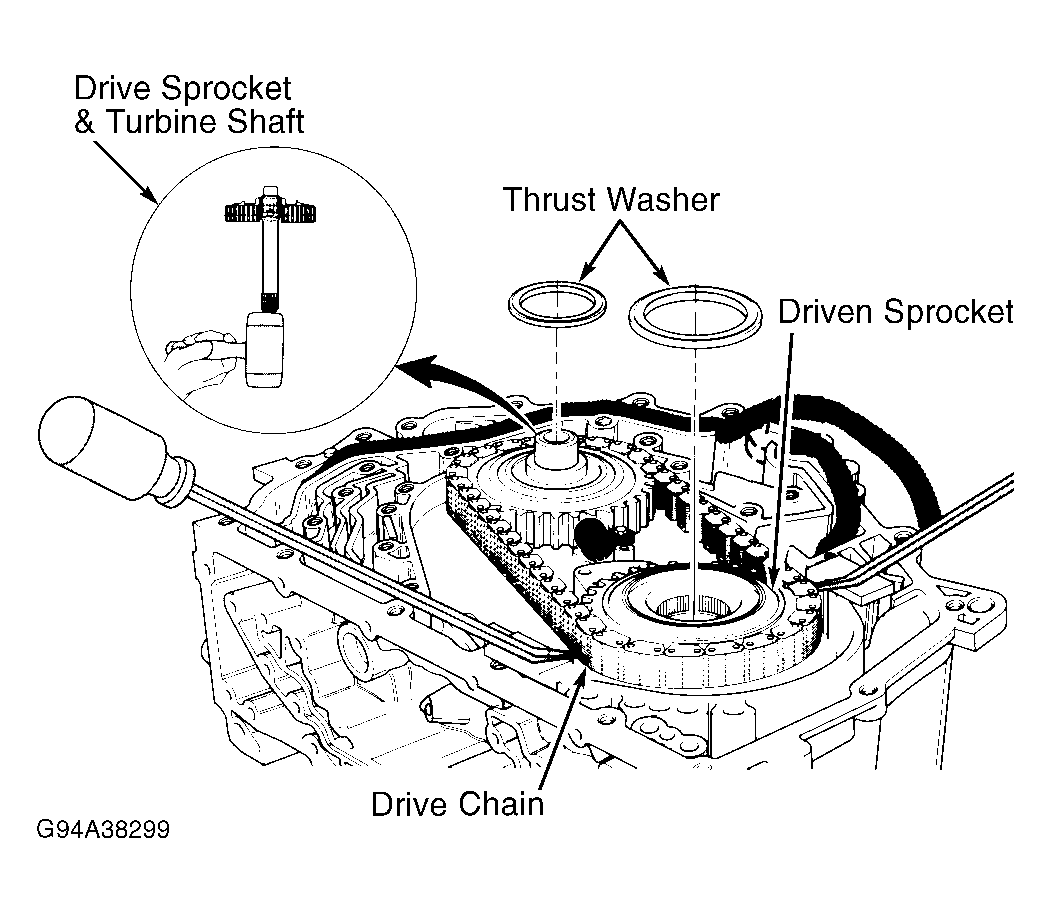

- Remove thrust washers. Mark position of link on drive link chain; it should be installed facing up. Pry up driven sprocket. Remove shaft drive sprocket, driven sprocket and drive link chain together as an assembly. See Fig 1 .
- Remove drive sprocket and driven sprocket supports from transaxle case. See Fig 1 and Fig 2 . Ensure scavenge tube seal stays in support. If not, check support for damage. Remove transaxle input speed sensor and wiring.
