Home >> Cadillac >> 1993 >> Seville Base >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Tests W/Codes - Pcm >> Pcm Code Charts >> Pcm Code P137 - Loss Of Abs/TCS Data

Pcm Code P137 - Loss Of Abs/TCS Data

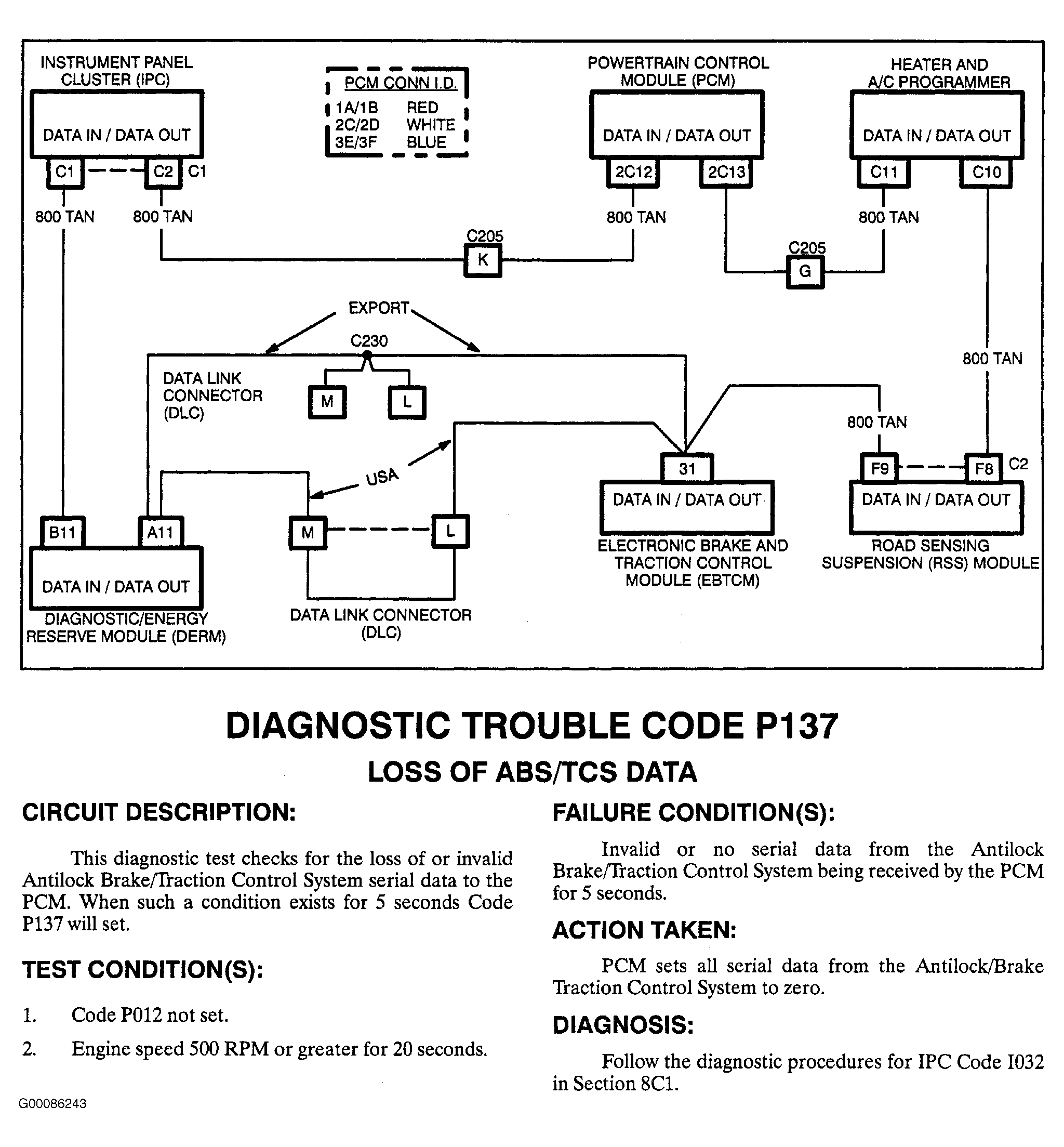

Fig 1: PCM Code P137 Schematic
G00086243Courtesy of GENERAL MOTORS CORP.
