Pcm Code P069 - Traction Control Active While In Cruise

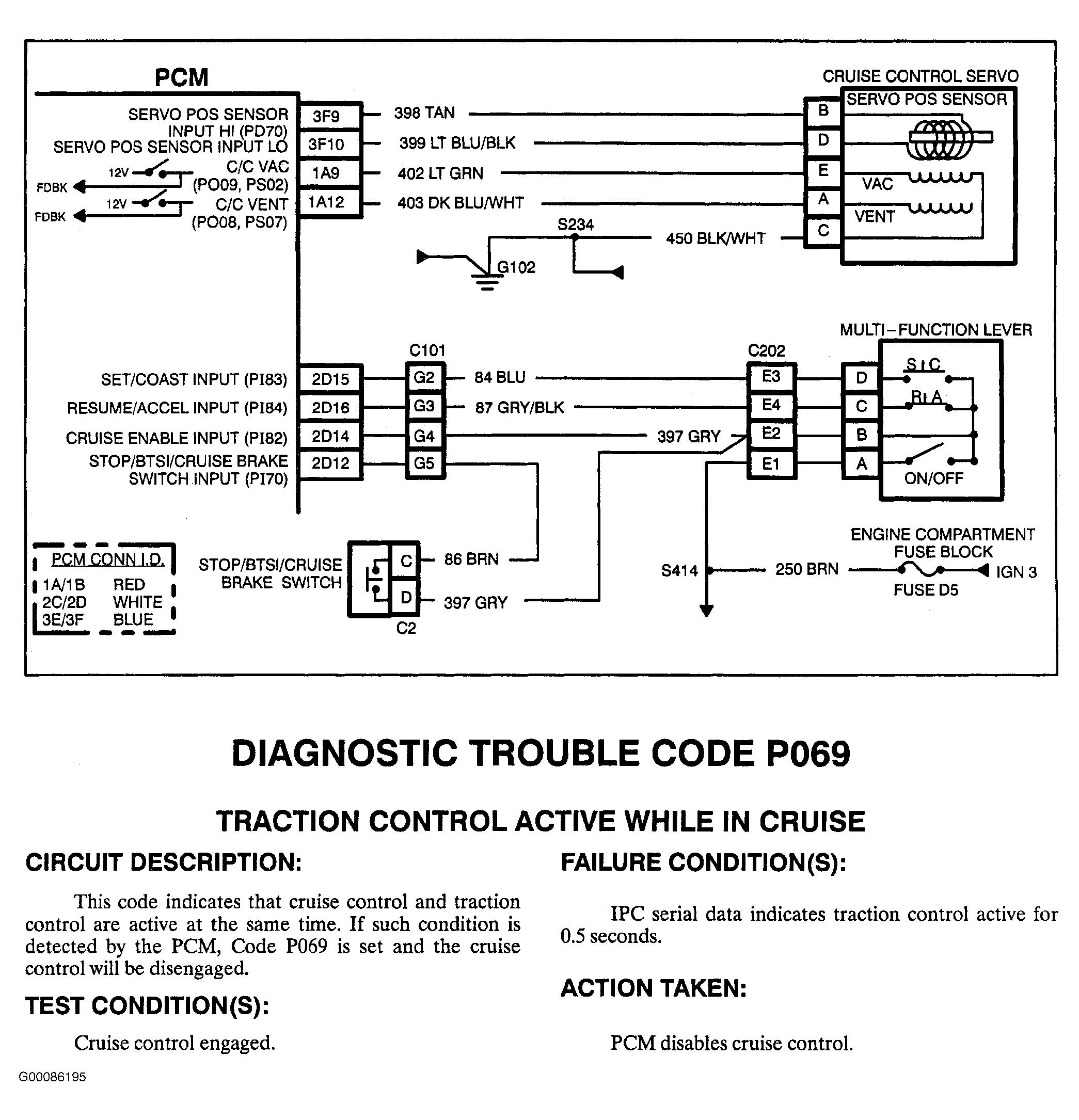

Fig 1: PCM Code P069 Schematic - (1 Of 2)

G00086195

Courtesy of GENERAL MOTORS CORP.

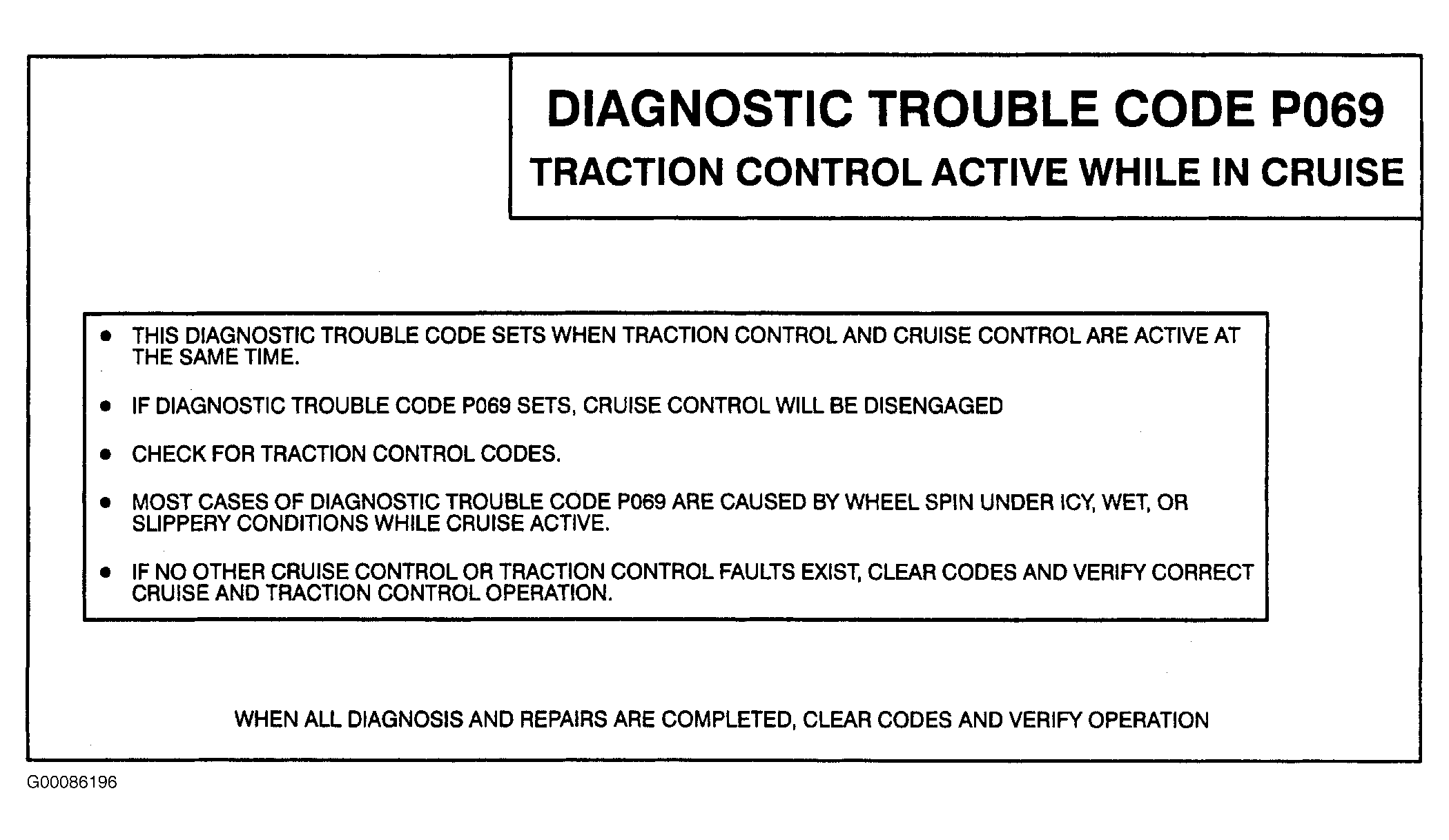

Fig 2: PCM Code P069 - (2 Of 2)

G00086196

Courtesy of GENERAL MOTORS CORP.
