Test H: Chime Module
Test H: Chime Module

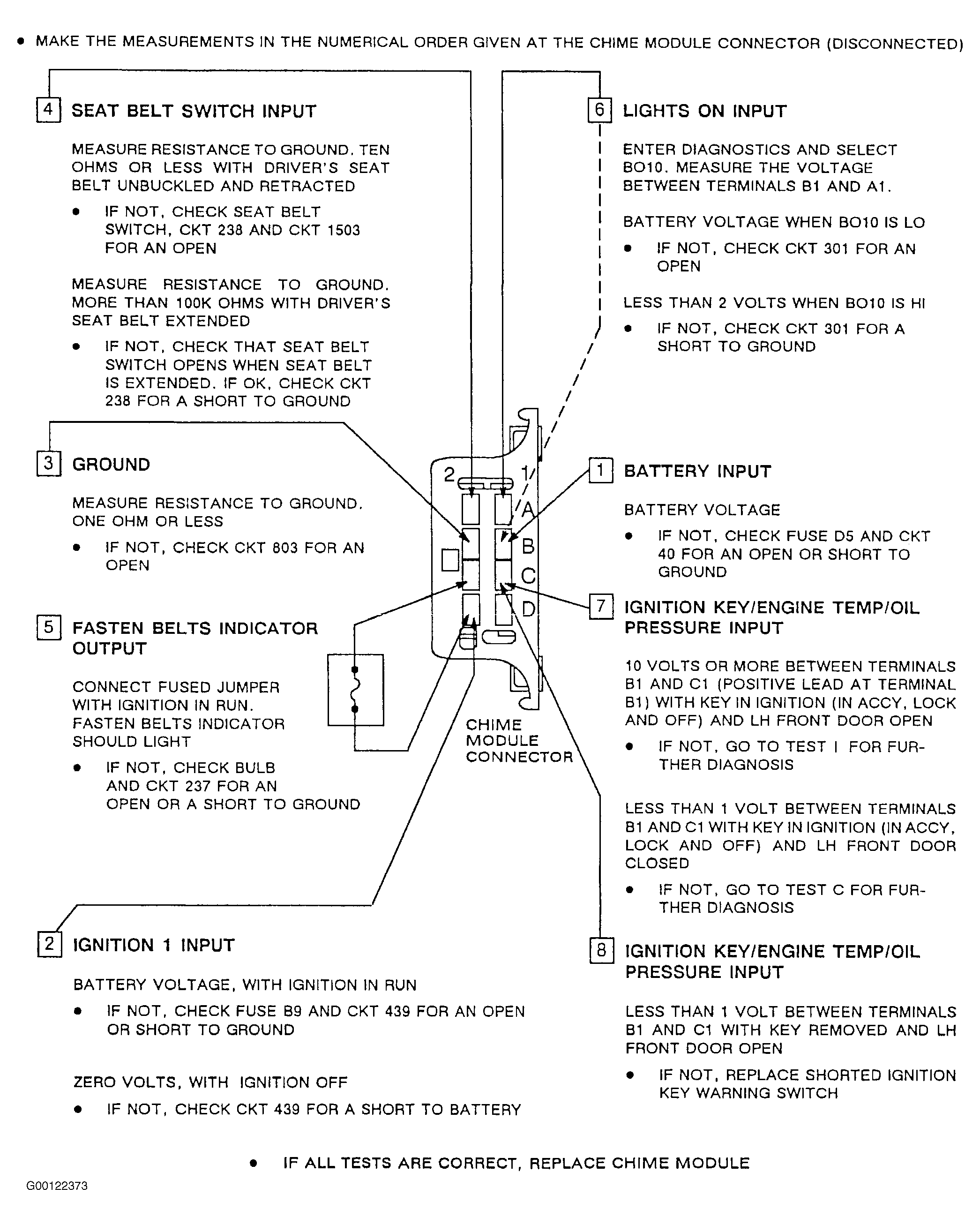

Fig 1: Test H: Chime Module
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
