Body Computer Module (BCM): Removal

  1. Disconnect negative battery cable.
  2. Remove combo-panel. See COMBO-PANEL (CLIMATE CONTROL DRIVER INFORMATION CENTER & SOUND SYSTEM)  .
  3. Remove retaining screw and pull BCM and mounting bracket out of cavity. See Fig 1 .
  4. Remove electrical connectors.
  5. Remove two nuts securing BCM to mounting bracket and remove mounting bracket from BCM.
  6. Remove bushings from bottom of BCM and remove BCM from vehicle.

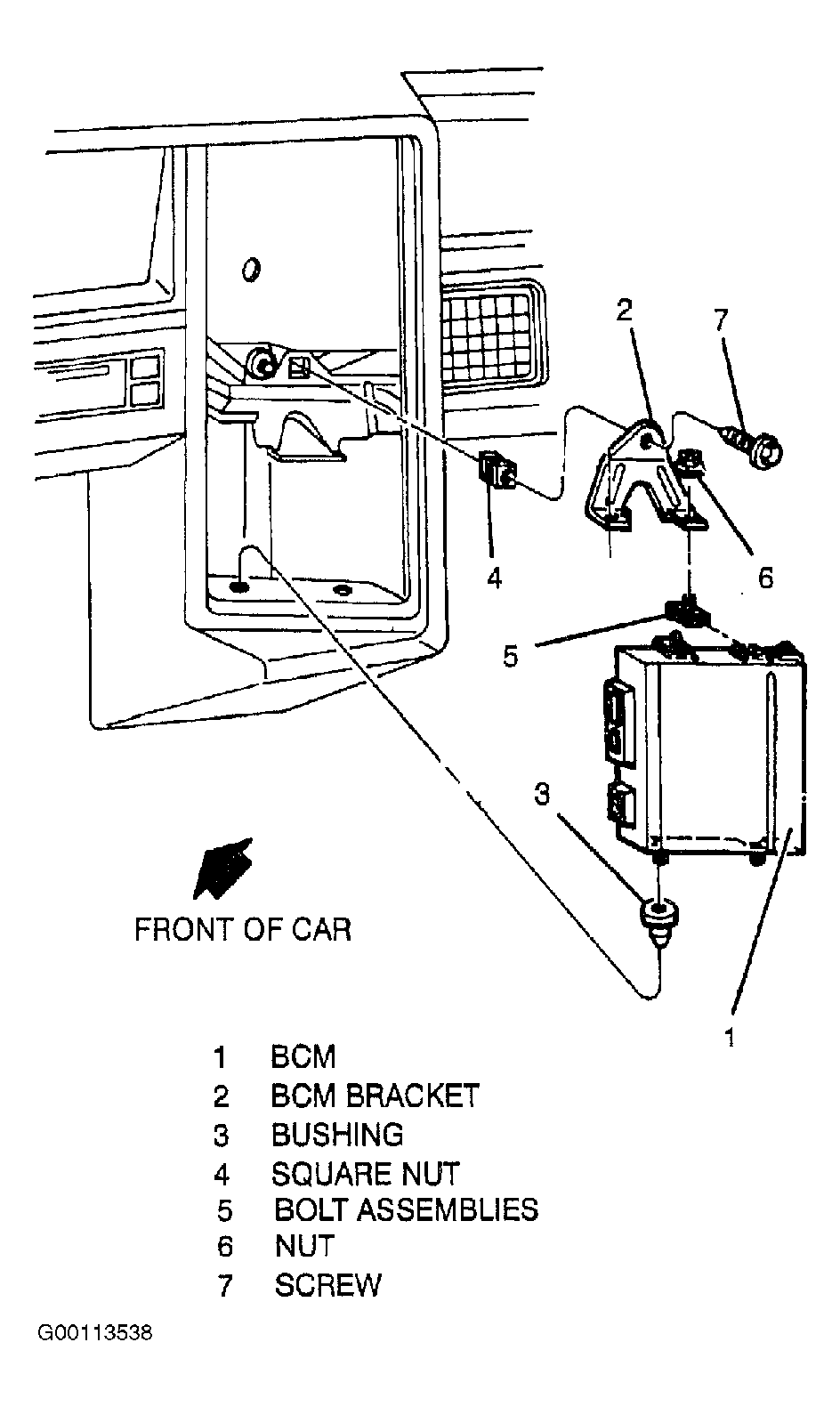

Fig 1: Removing Body Computer Module (BCM)
G00113538Courtesy of GENERAL MOTORS CORP.
