Chart B: Data Circuit Problem: Notes
You have been directed to this chart as a result of a total loss of communication on CKT 800. This could be due to a wiring or element problem.
NOTE:

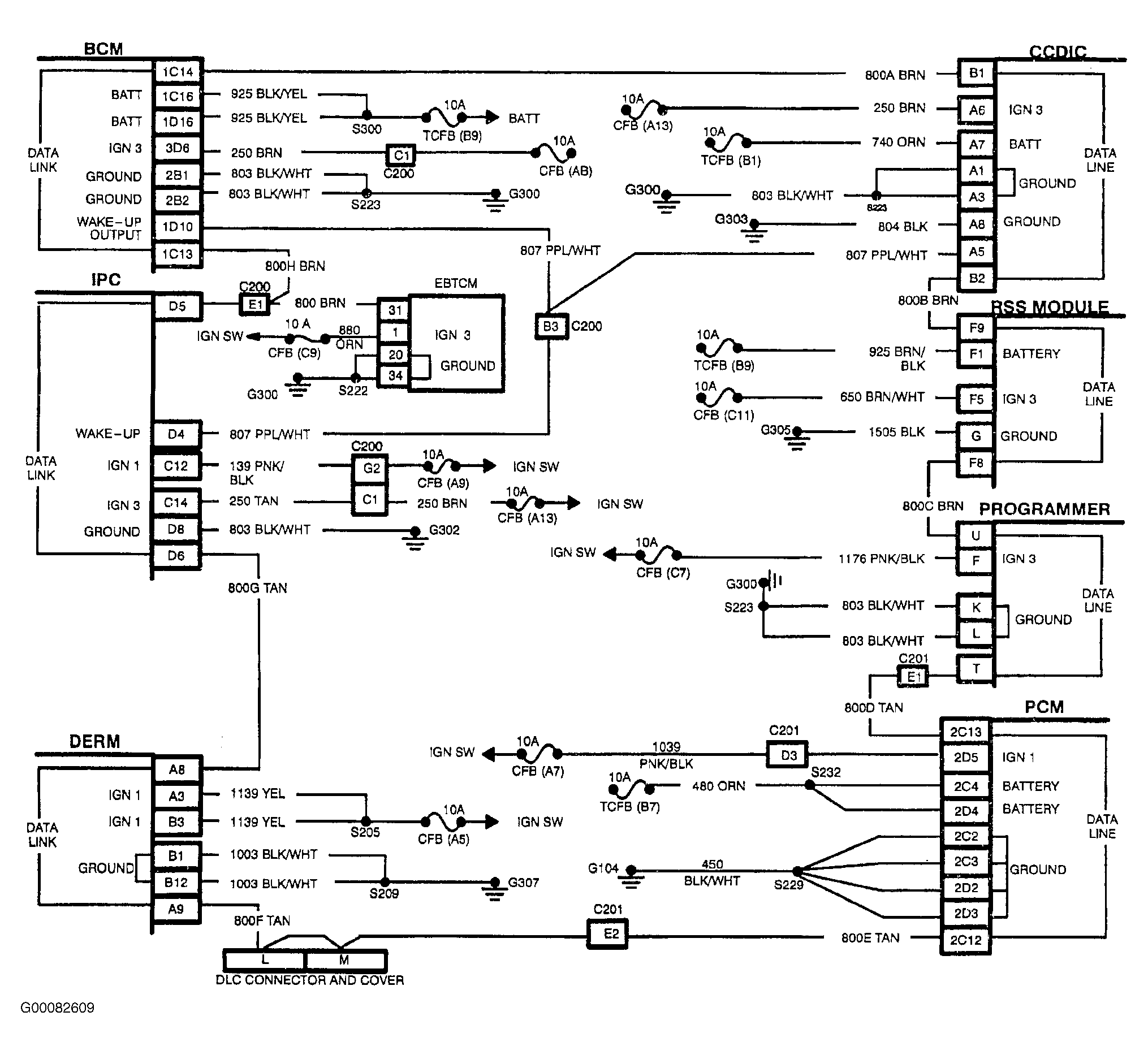

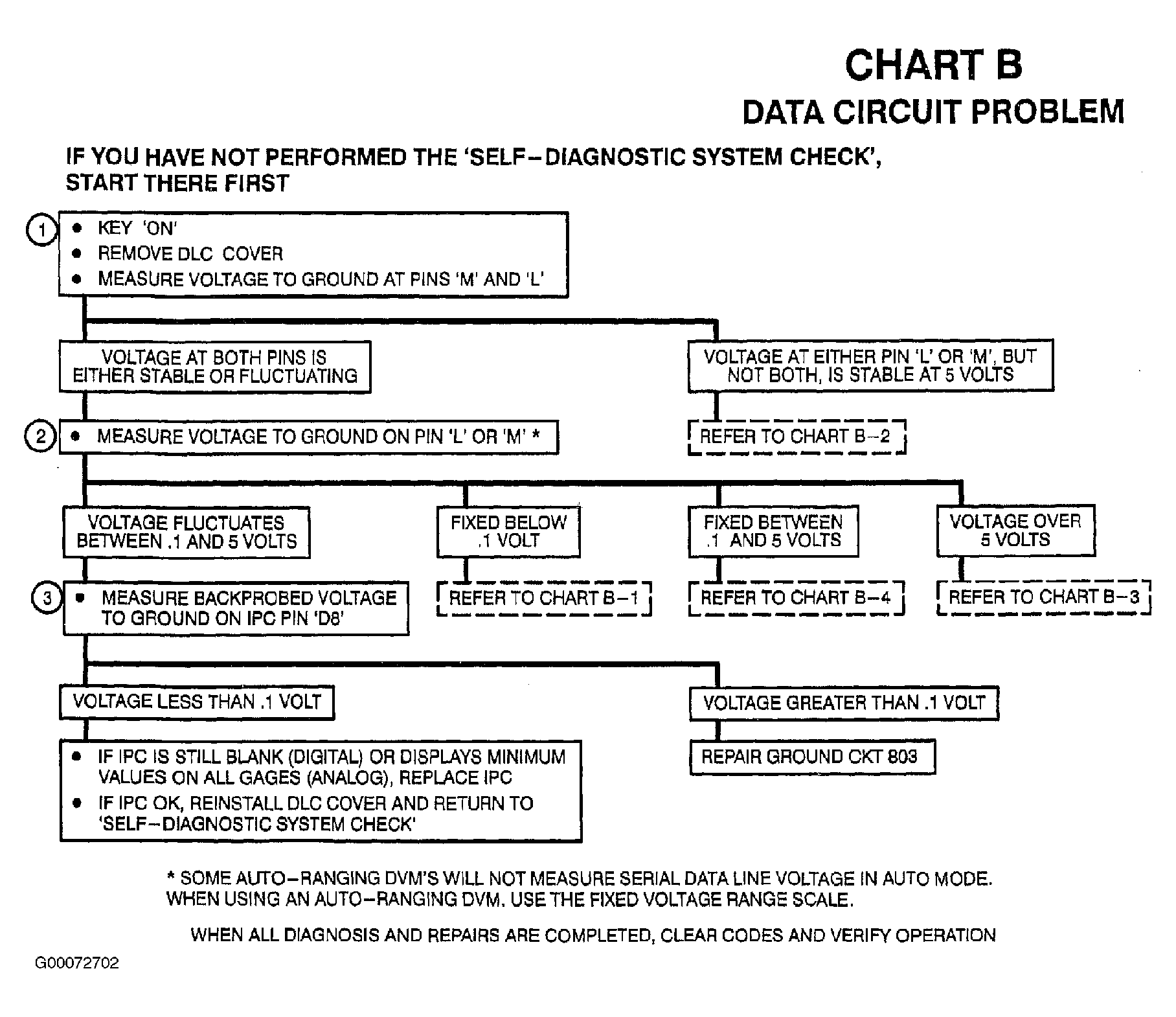

The following numbered steps refer to circled numbers on diagnostic chart. See Figure
. For circuit identification, see Figure
.
