Test G: Motor Position Sensor Pin-Out

To perform motor position sensor pin-out test, refer to illustration. See Fig 1 .

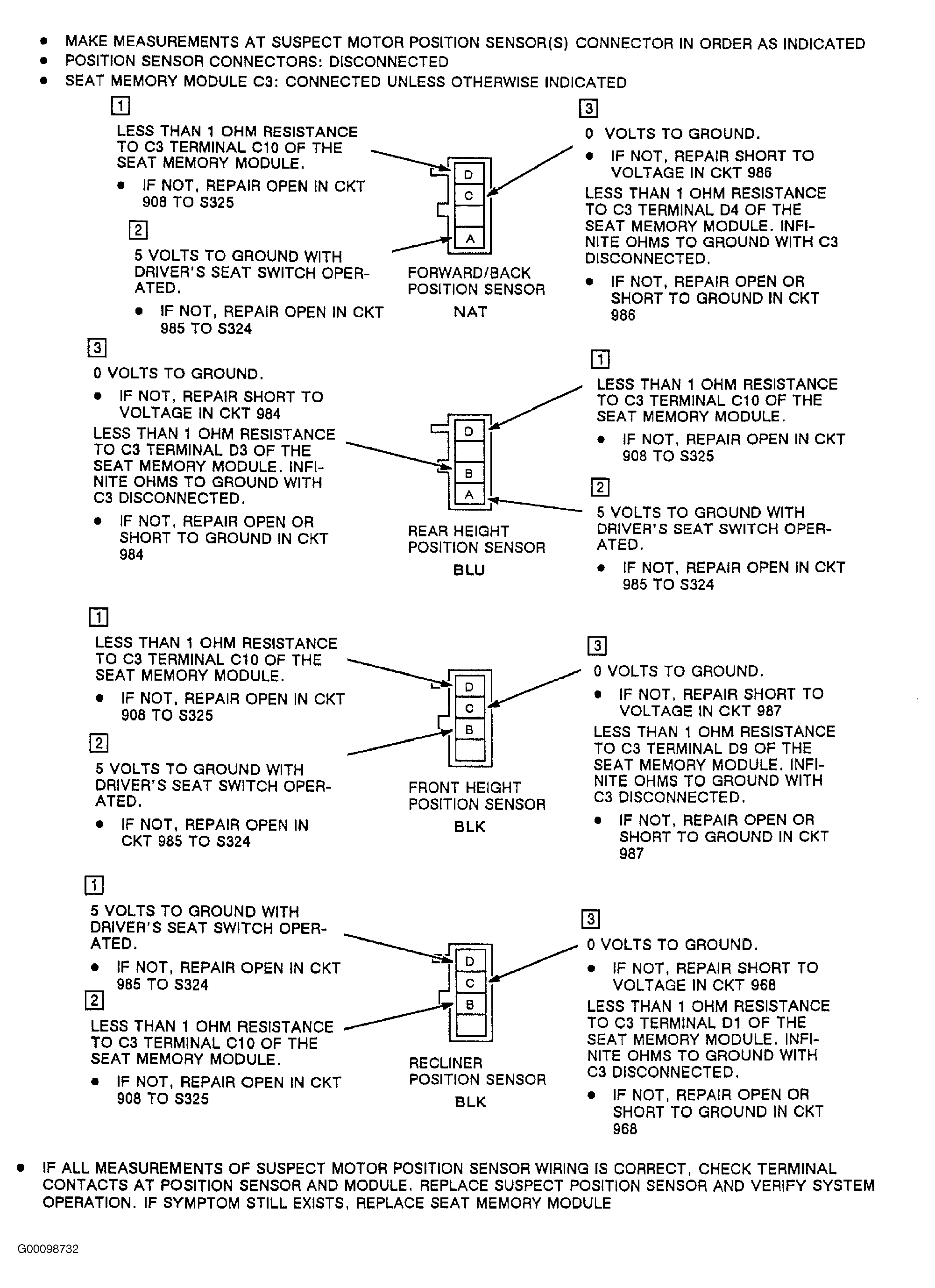

Fig 1: Motor Position Sensor Pin-Out Test Diagnostic Flow Chart

Courtesy of GENERAL MOTORS CORP.
