Test C: Seat Memory Module C3 Pin-Out Test

To perform seat memory module C3 pin-out test, refer to illustration. See Fig 1 .

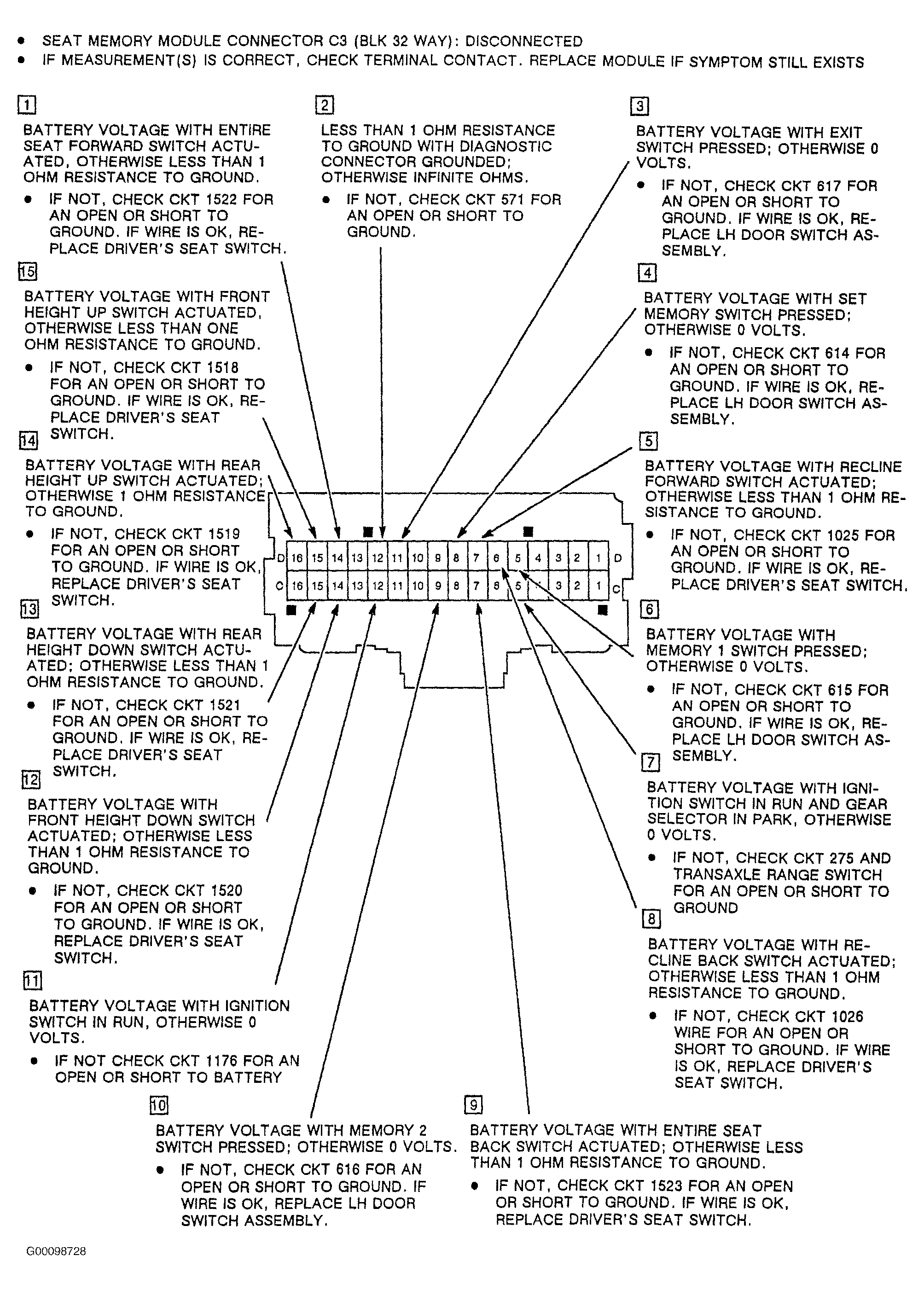

Fig 1: Seat Memory Module C3 Pin-Out Test Diagnostic Flow Chart

Courtesy of GENERAL MOTORS CORP.
