Test B: Power Mirror Switch Continuity Test

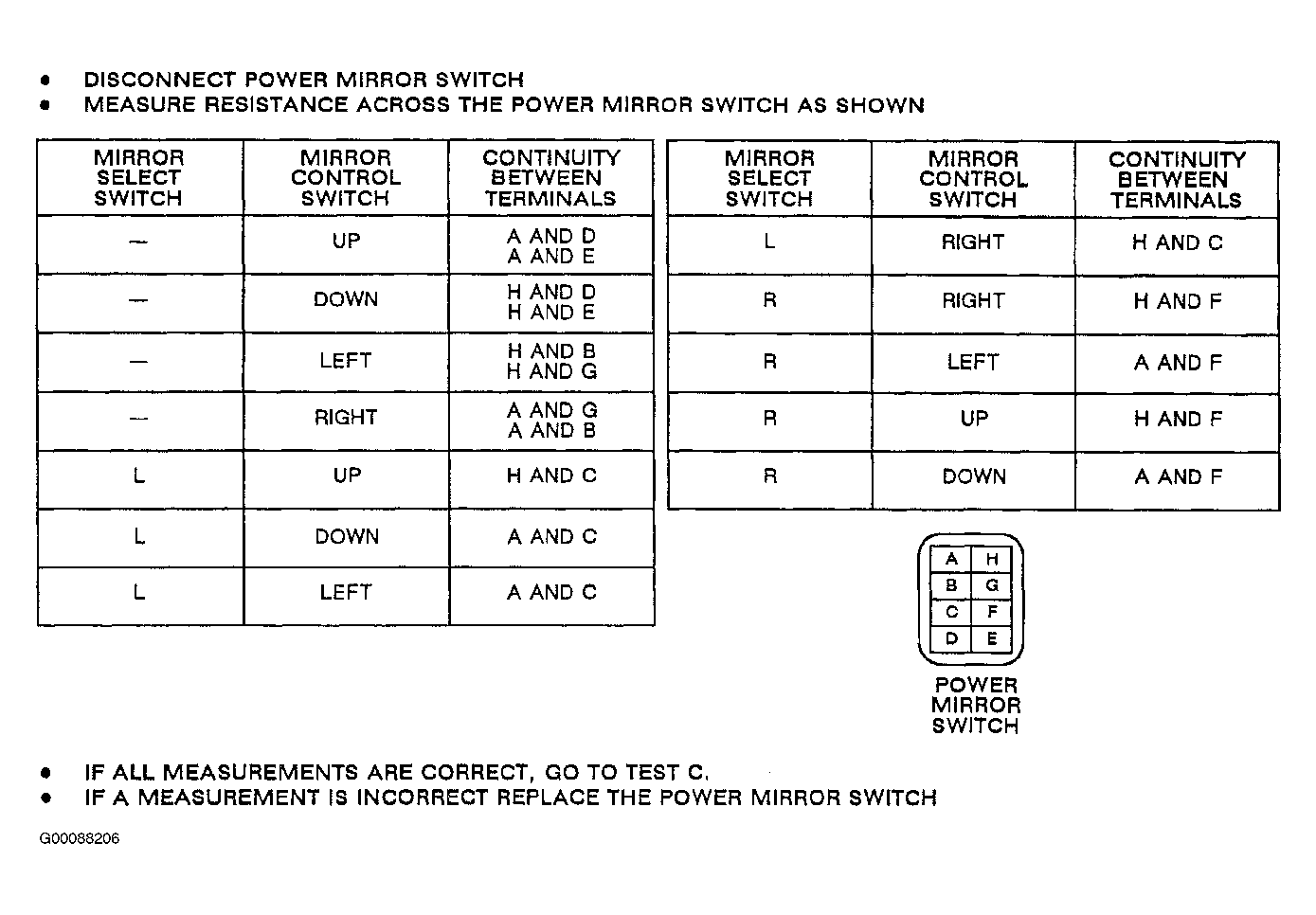

Fig 1: Power Mirror Switch Continuity Test

G00088206

Courtesy of GENERAL MOTORS CORP.
