Lower Transaxle Assembly

Remove bottom oil pan, oil filter, accumulator cover with 2-1 servo feed and return pipes. Remove modulator and modulator valve. Remove all retainers, gaskets, pipes and accumulator piston assemblies from bores (DO NOT interchange springs). See Fig 1 .

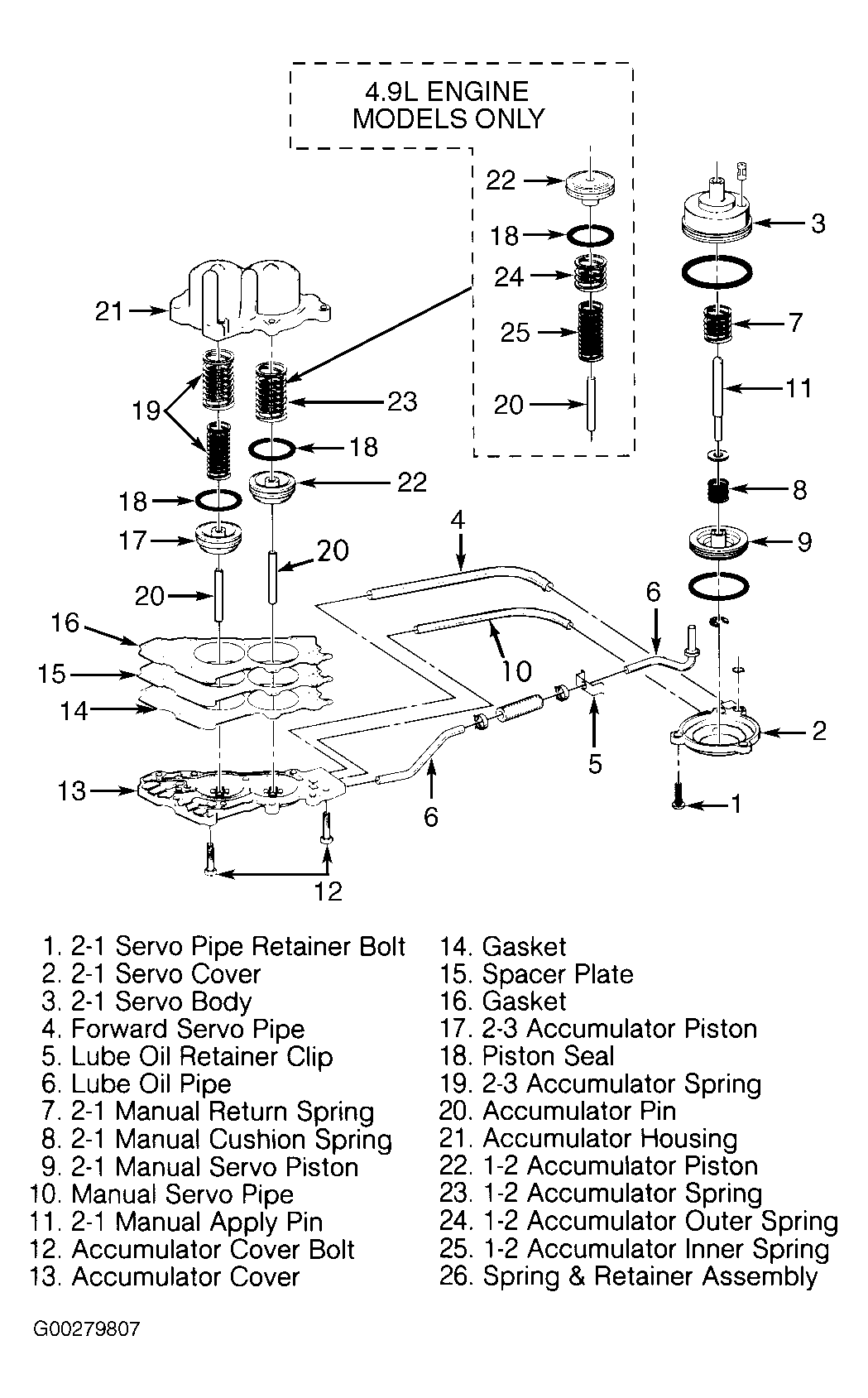

Fig 1: Exploded View Of Lower Transaxle Assembly

Courtesy of GENERAL MOTORS CORP.
