Wiring Diagrams

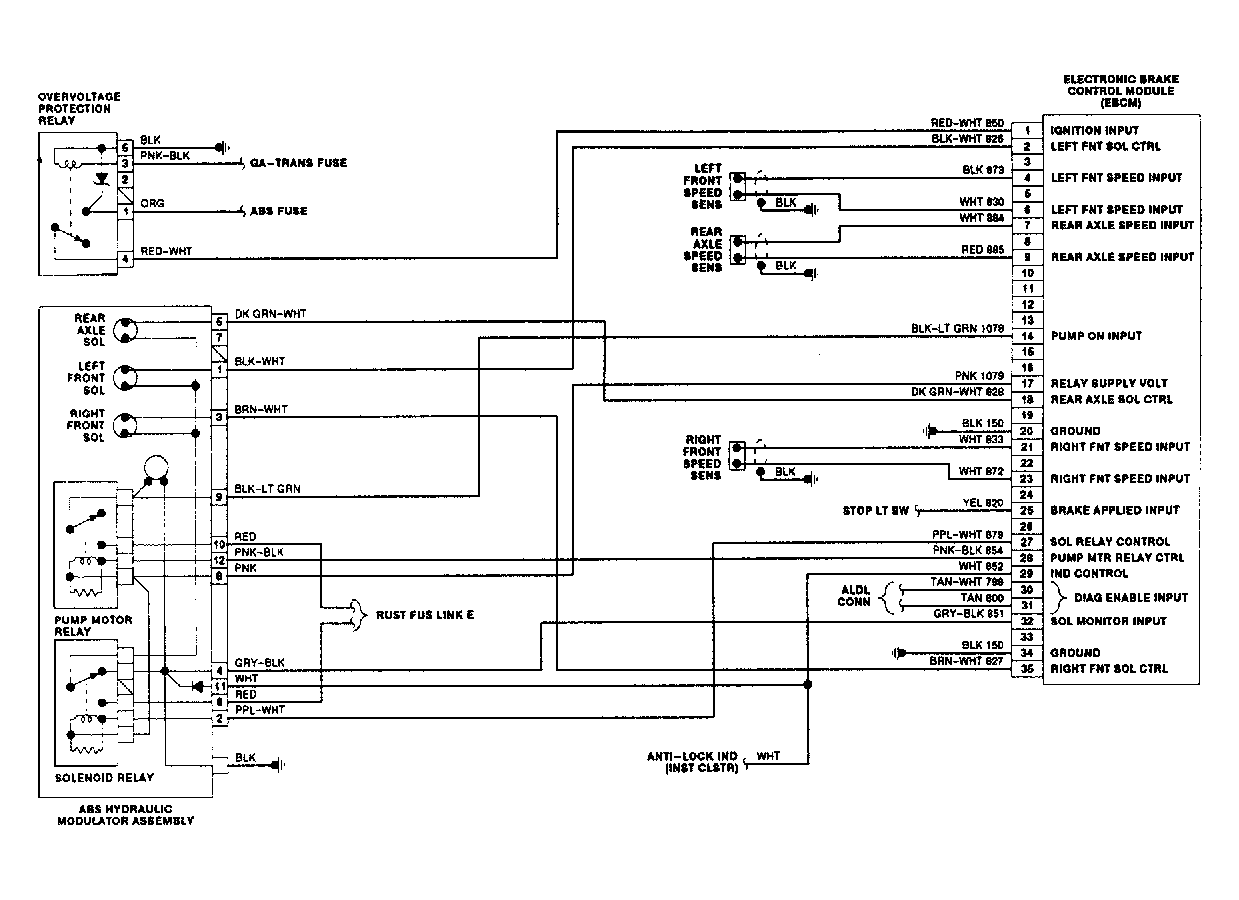

Fig 1: Anti-Lock Brake System Wiring Diagram (Brougham 1991)
G91I06609

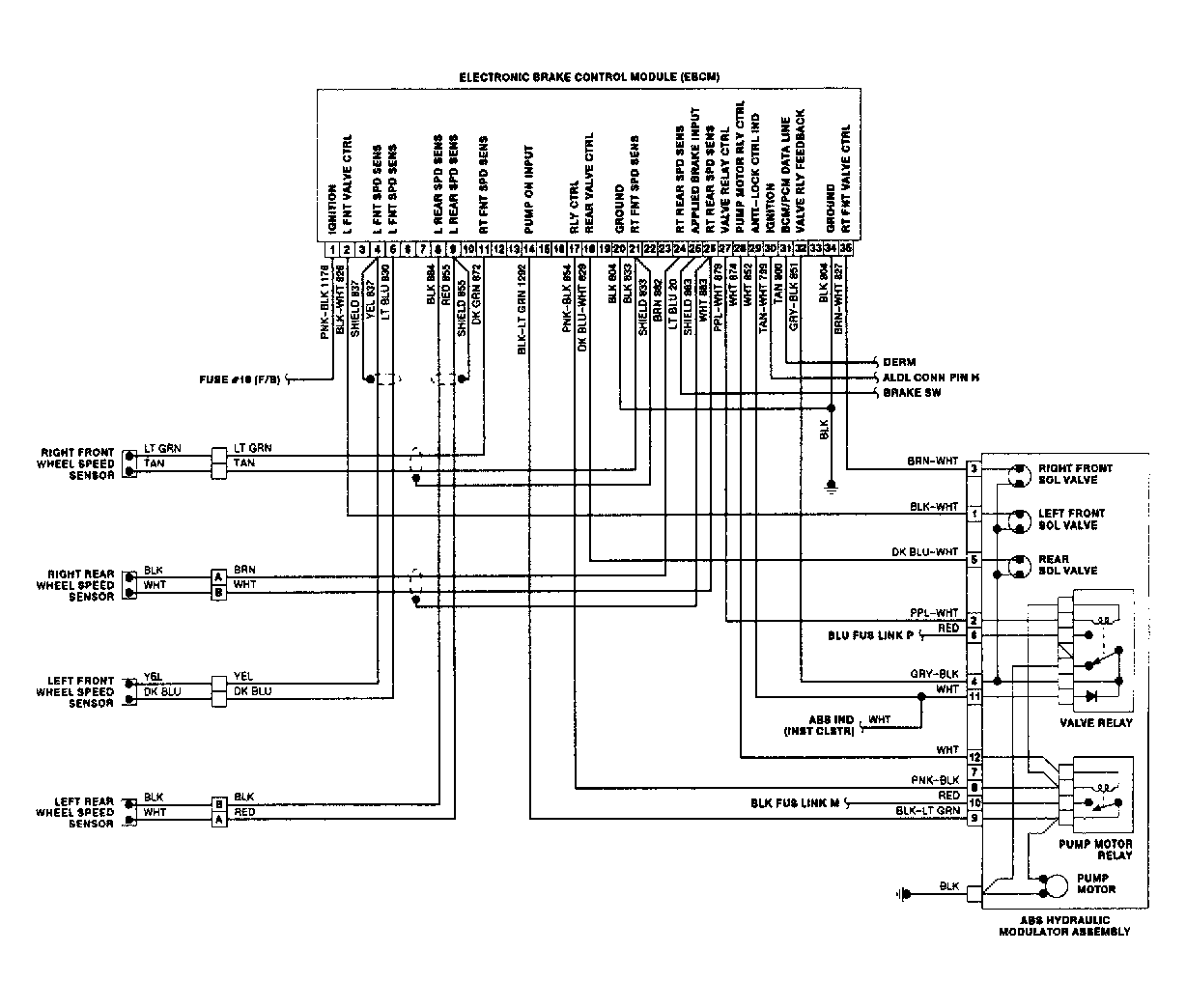

Fig 2: Anti-Lock Brake System Wiring Diagram (Reatta & Riviera)
G91C06611
Fig 3: Anti-Lock Brake System Wiring Diagram (Eldorado & Seville)
G91G06608

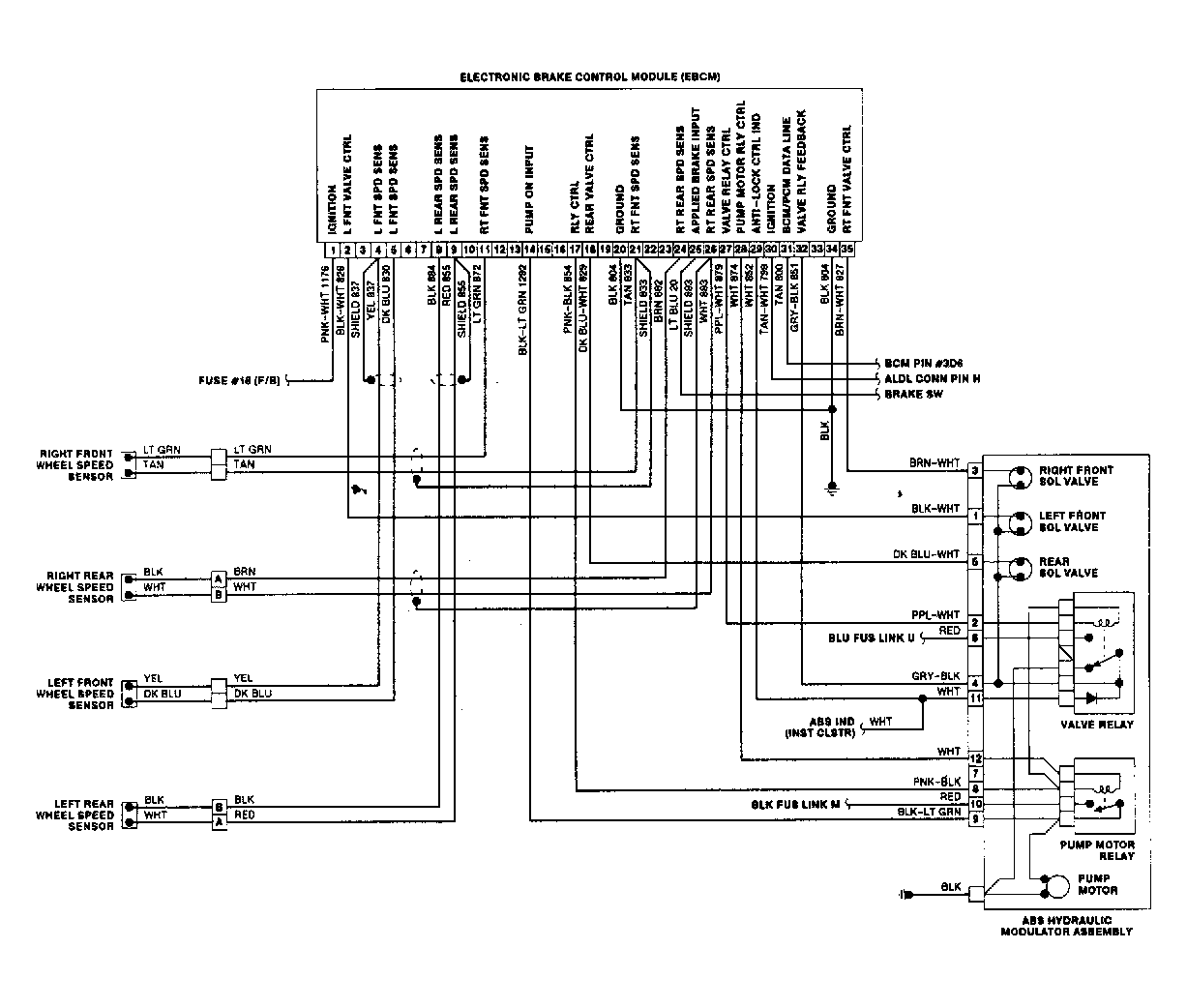

Fig 4: Anti-Lock Brake System Wiring Diagram (Toronado & Trofeo)
G91A06610
