THERMO Element Replacement: Disassembly

  1. Remove pin and washer assemblies. See Fig 1 .
  2. Remove thermo element.
  3. Remove thermo element plate.

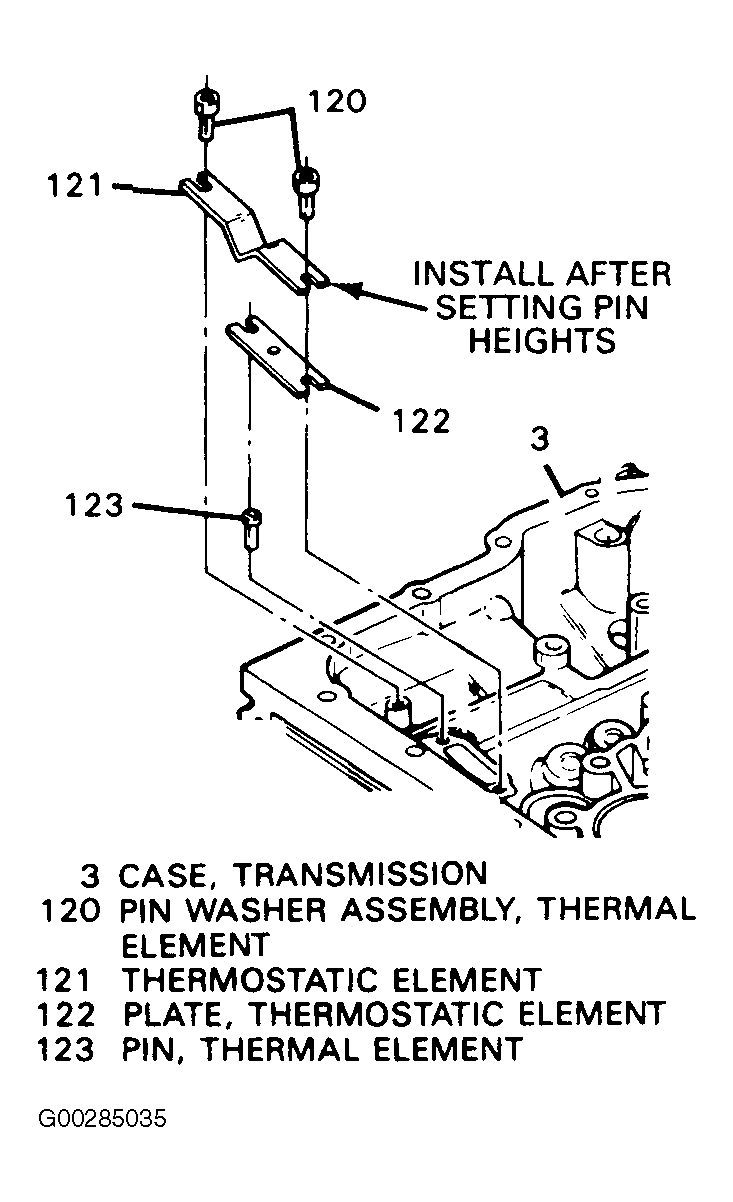

Fig 1: Exploded View Of Thermo Element
G00285035Courtesy of GENERAL MOTORS CORP.
