Forward Servo Assembly: Disassembly

  1. Remove servo return spring from forward servo piston. See Fig 1
  2. Remove internal retaining ring from forward band apply pin.
  3. Remove band apply pin from forward servo piston.
  4. Remove forward servo cushion spring and cushion spring retainer from forward piston.
    5. NOTE: DO NOT remove unless broken or damaged.
  5. Remove return spring retainer from forward servo piston.

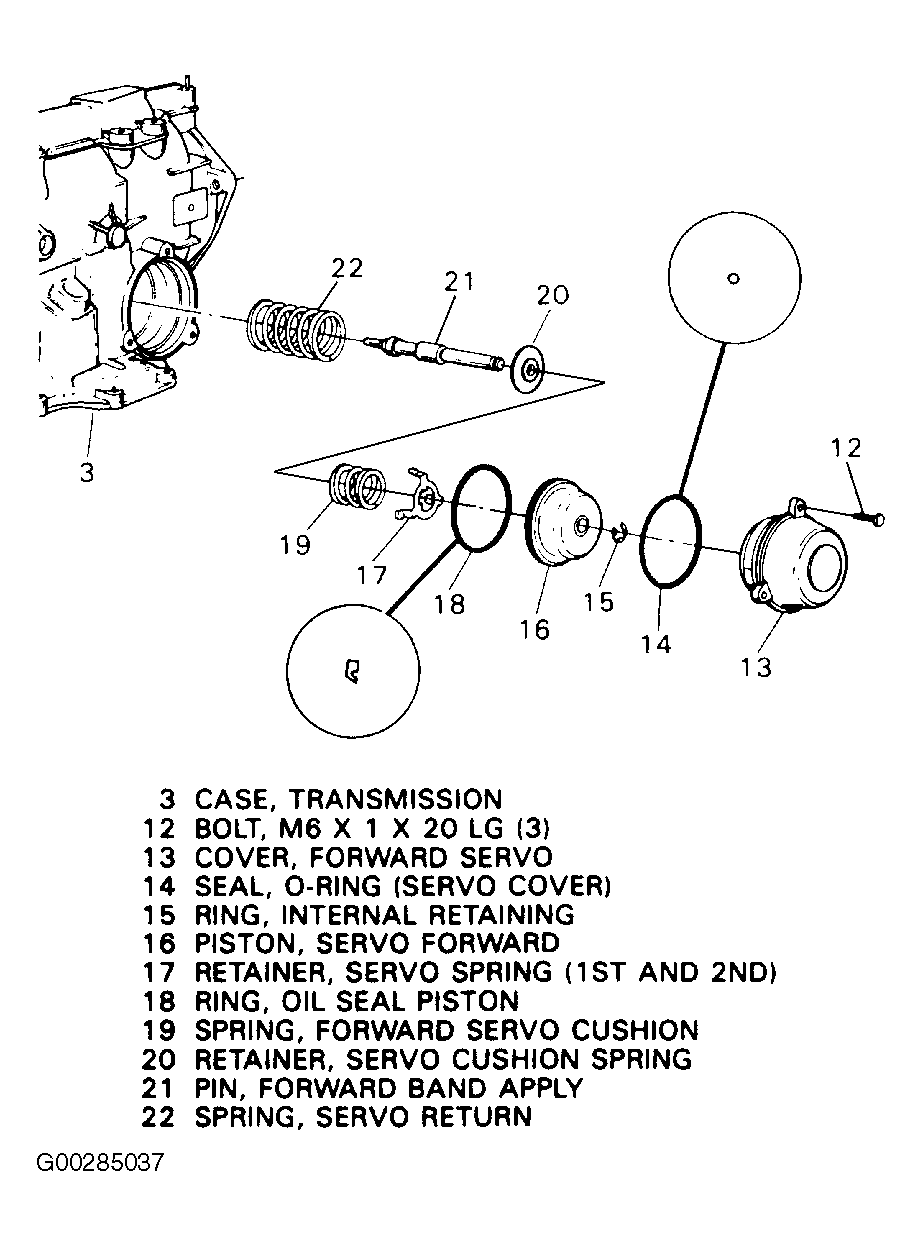

Fig 1: Exploded View Of Forward Servo Assembly
G00285037Courtesy of GENERAL MOTORS CORP.
