Final Drive Assembly: Inspection
Inspect final drive assembly for the following:
- Differential pinion gears for damage to teeth.
- Differential pinion gear end play. Inspect using a feeler gauge - 0.009-0.025" (0.24-0.63 mm).
- Speed sensor rotor for damaged teeth.
- Parking gear for damage to lugs or internal splines.
- Final drive sun gear for damage to teeth or internal splines.

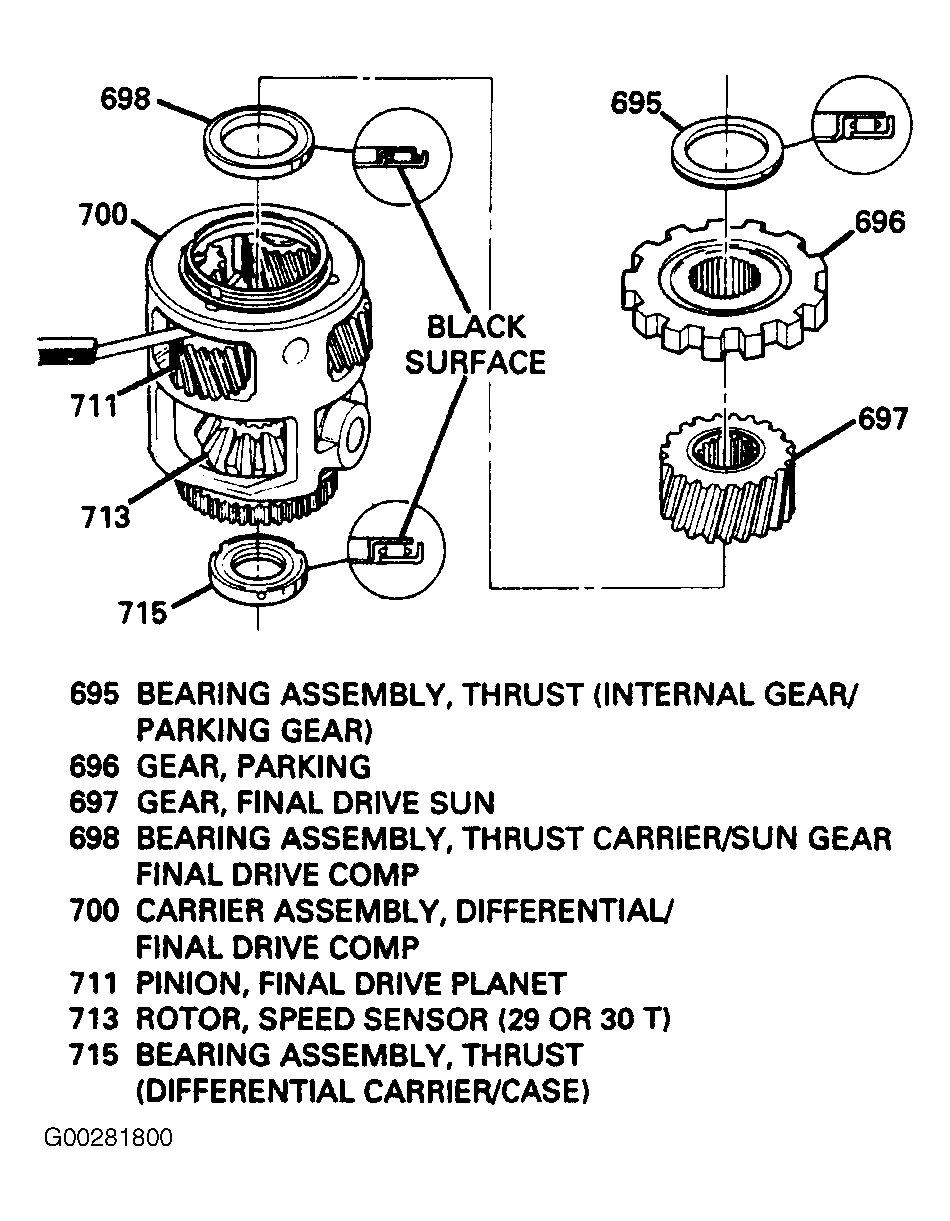

- Bearing assemblies and for damage. See Fig 1 .
