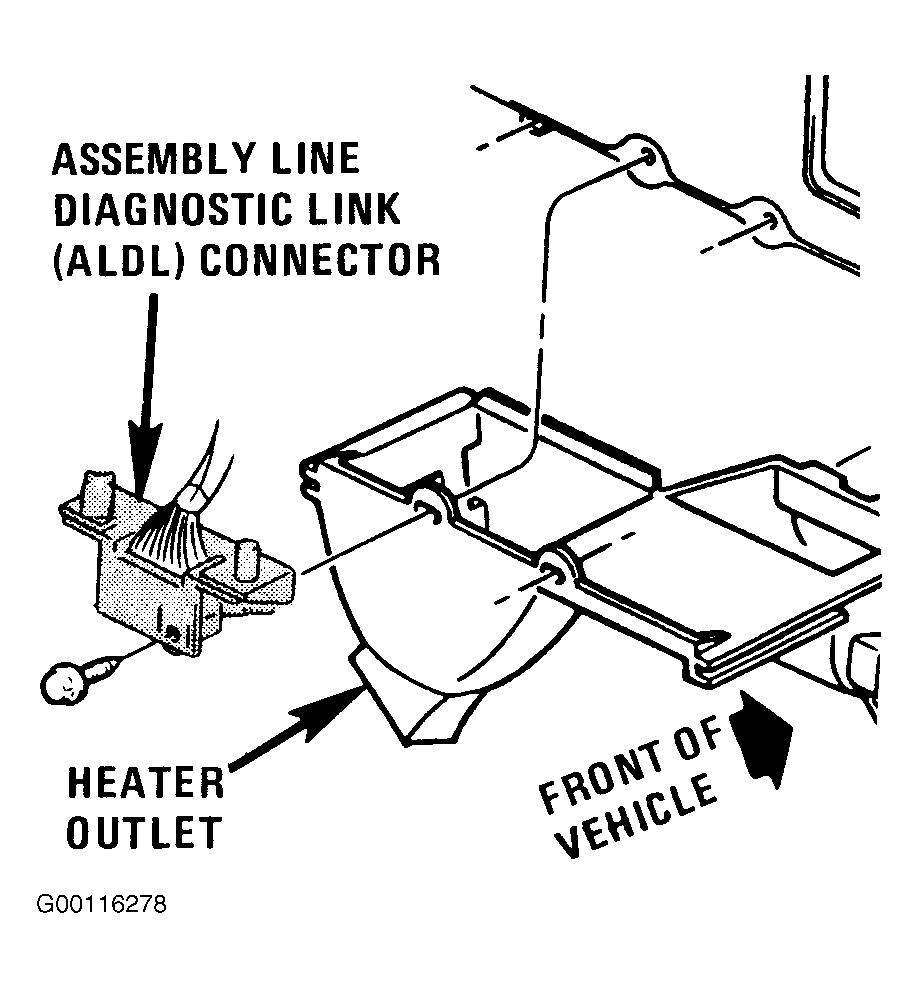

| Assembly Line Diagnostic Link (ALDL) Connector |
Behind Center Of Instrument Panel, Below Ashtray, See Fig 1 |

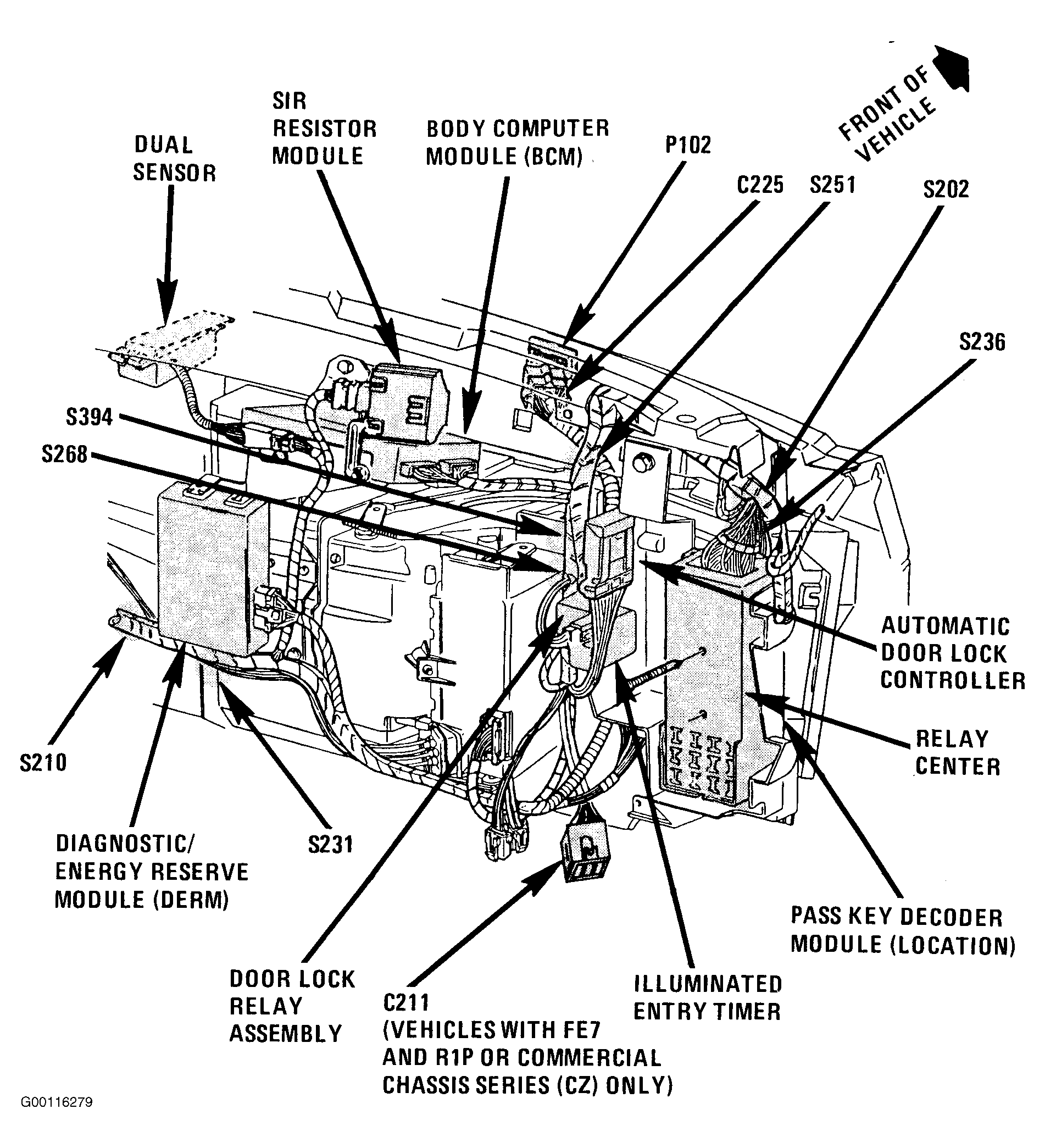

| Automatic Door Lock Controller |
Behind Right Hand Side Of Instrument Panel, On Relay Bracket, See Fig 2 |
| Door Lock Motors |
In Center Of Respective Doors, Behind Inside Lock Slide, See Fig 3 |

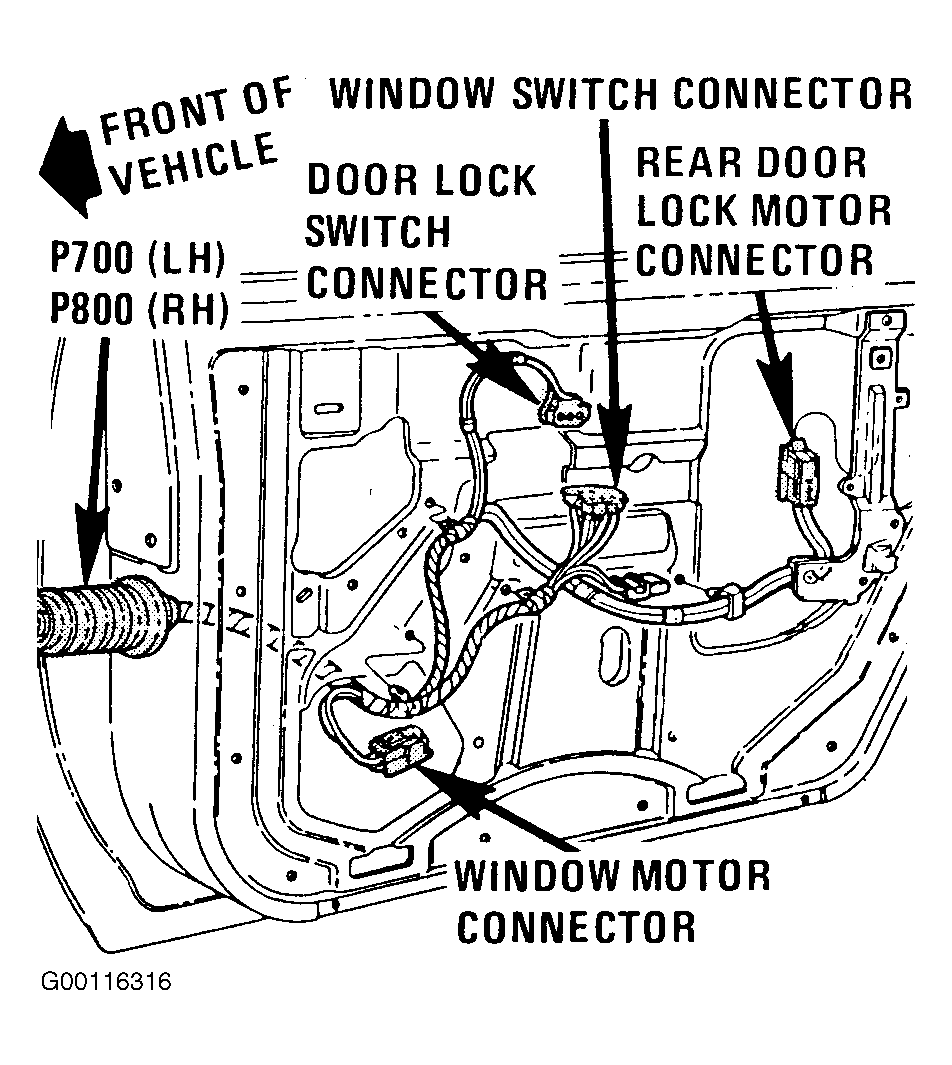

| Rear Door Lock Motors |
In Center Of Respective Rear Doors, Behind Inside Lock Slide, See Fig 4 |
| Door Lock Relay Assembly |
Behind Right Hand Side Of Instrument Panel, On Relay Center Bracket, See Fig 2 |

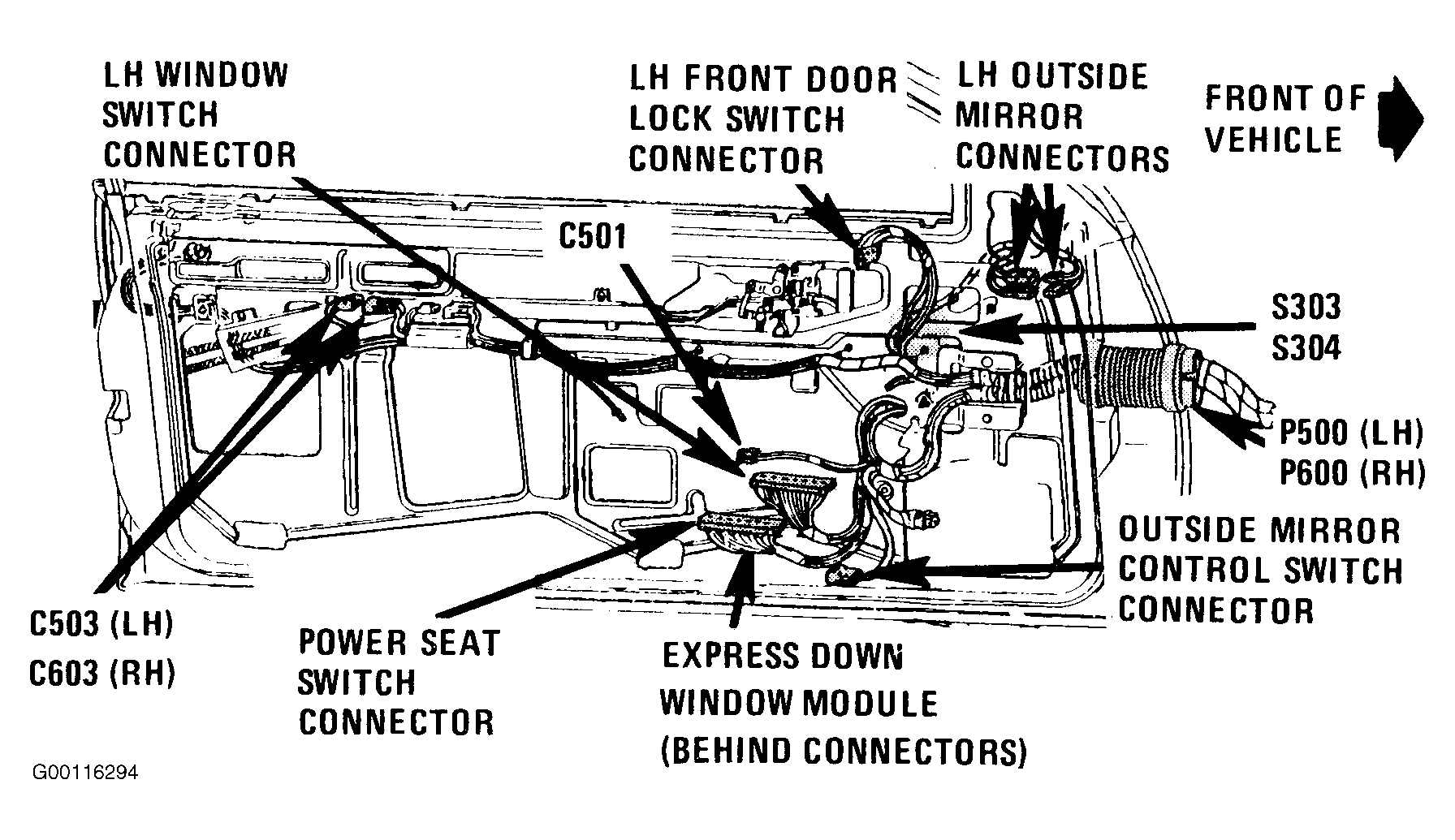

| Front Door Lock Cylinder Switches |

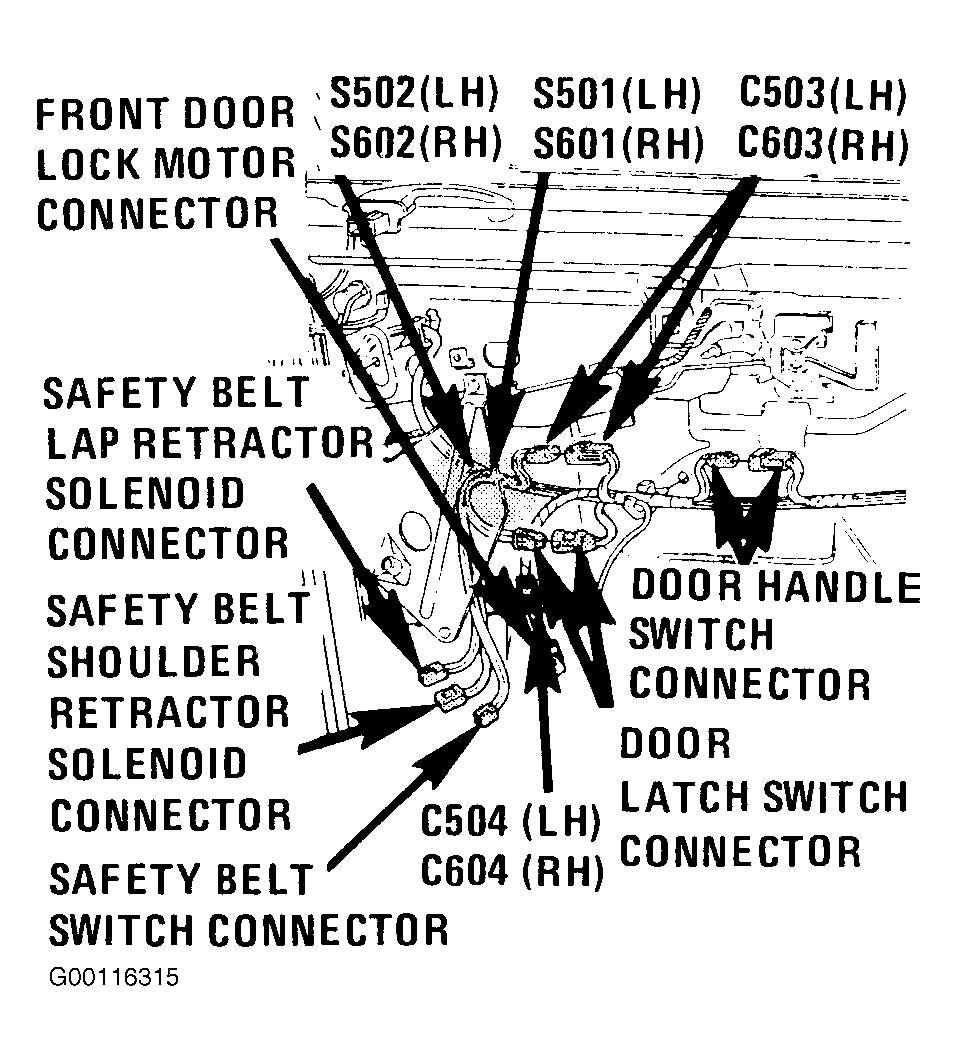

Rear Of Respective Front Doors, At Key Lock Assembly, See Fig 5 |
| Instrument Panel Fuse Block |
Left Hand Side Of Instrument Panel, Behind Access Door, See Fig 6 |
| Keyless Entry Module |

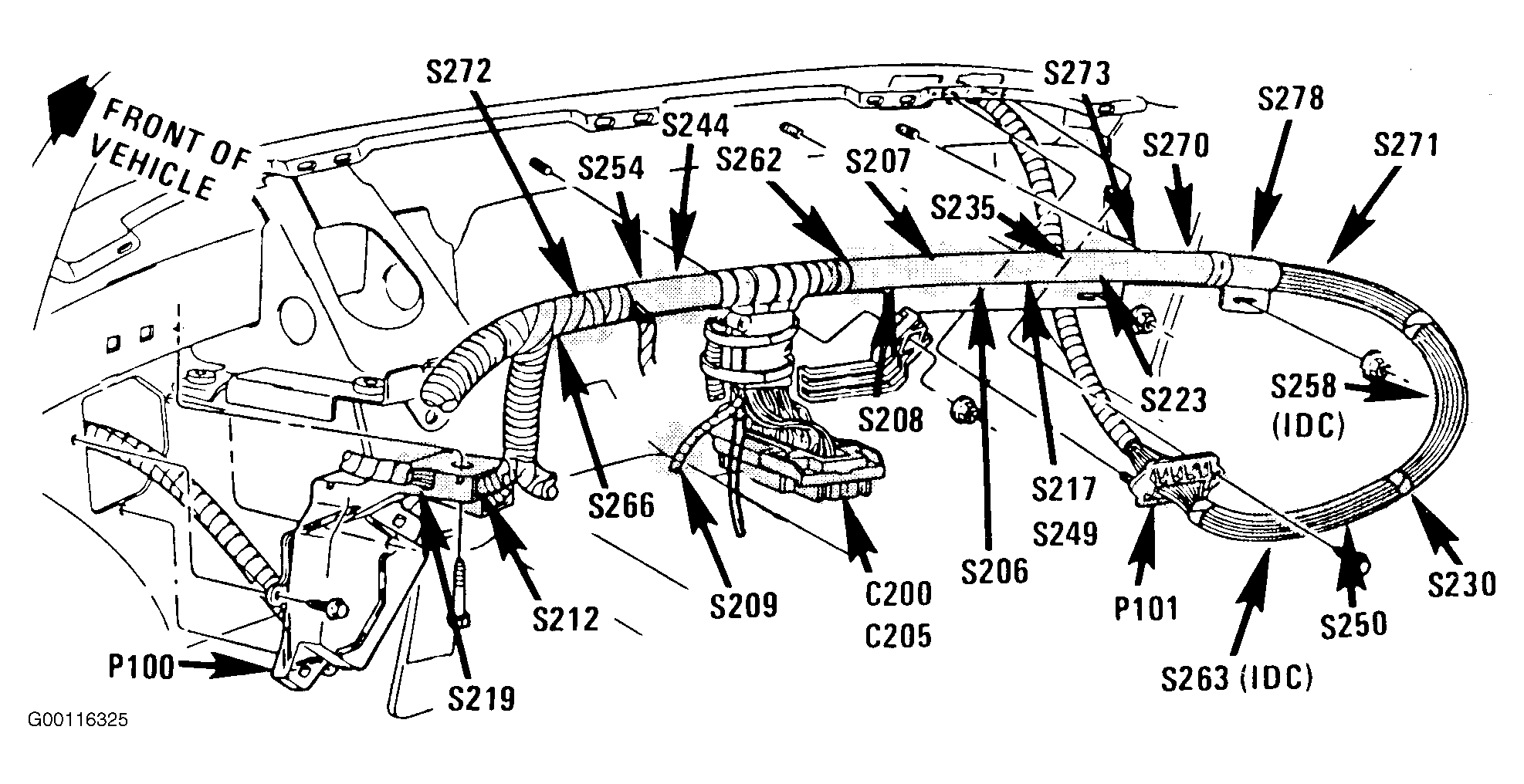

Behind Right Hand Side Of Instrument Panel, Above Glove Box, See Fig 7 |
| Keyless Entry Module |
Behind Right Hand Side Of Instrument Panel, Above Glove Box, See Fig 8 |

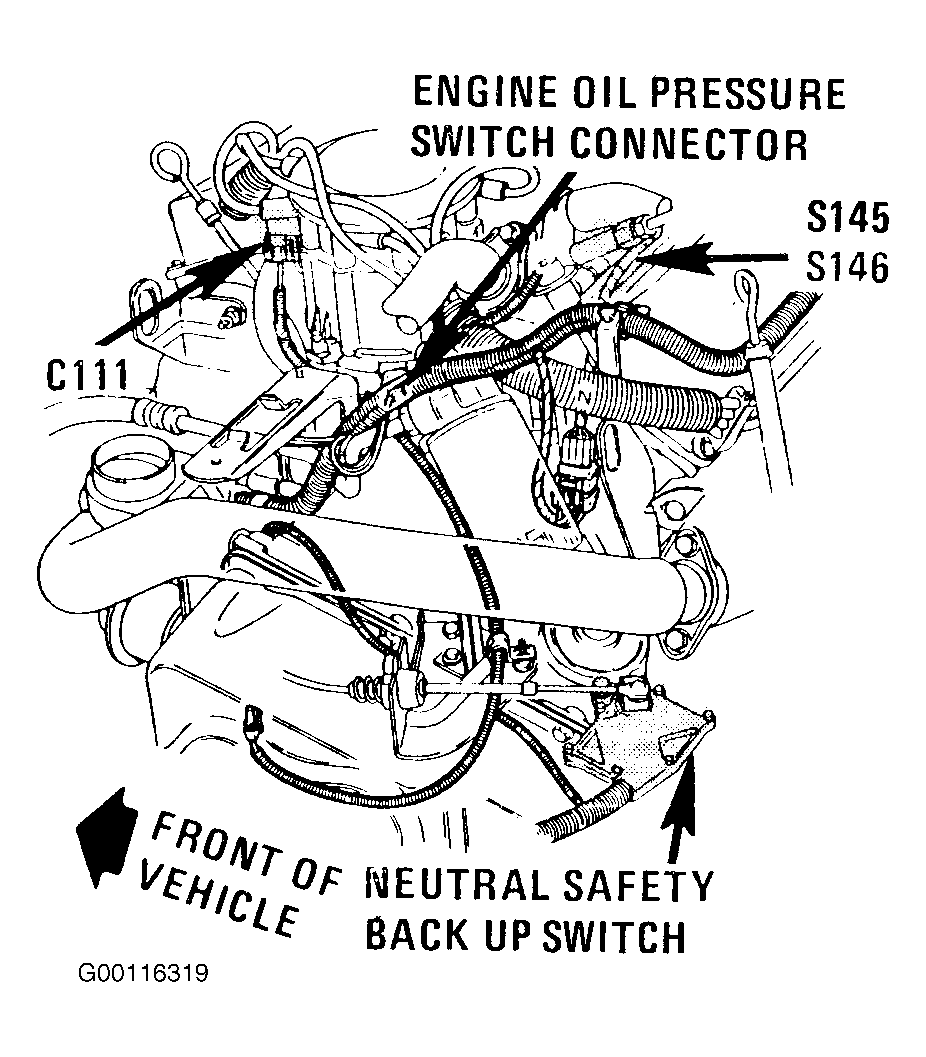

| Neutral Safety Back Up Switch |
Left Hand Rear Of Engine Compartment, Top Of Transaxle, See Fig 9 |

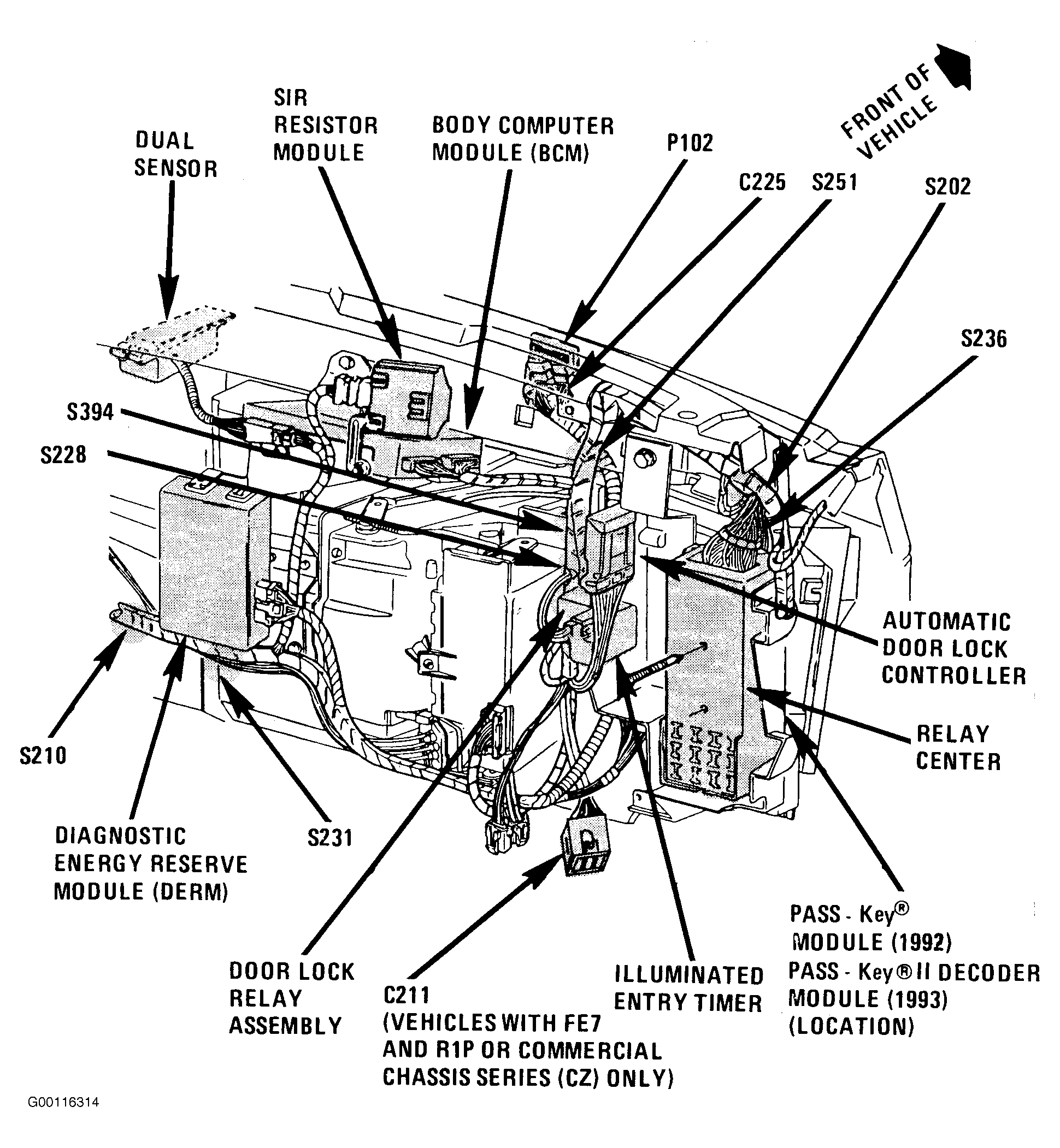

| Relay Center |
Behind Right Hand Side Of Instrument Panel, At Top Of Shroud, See Fig 2 |

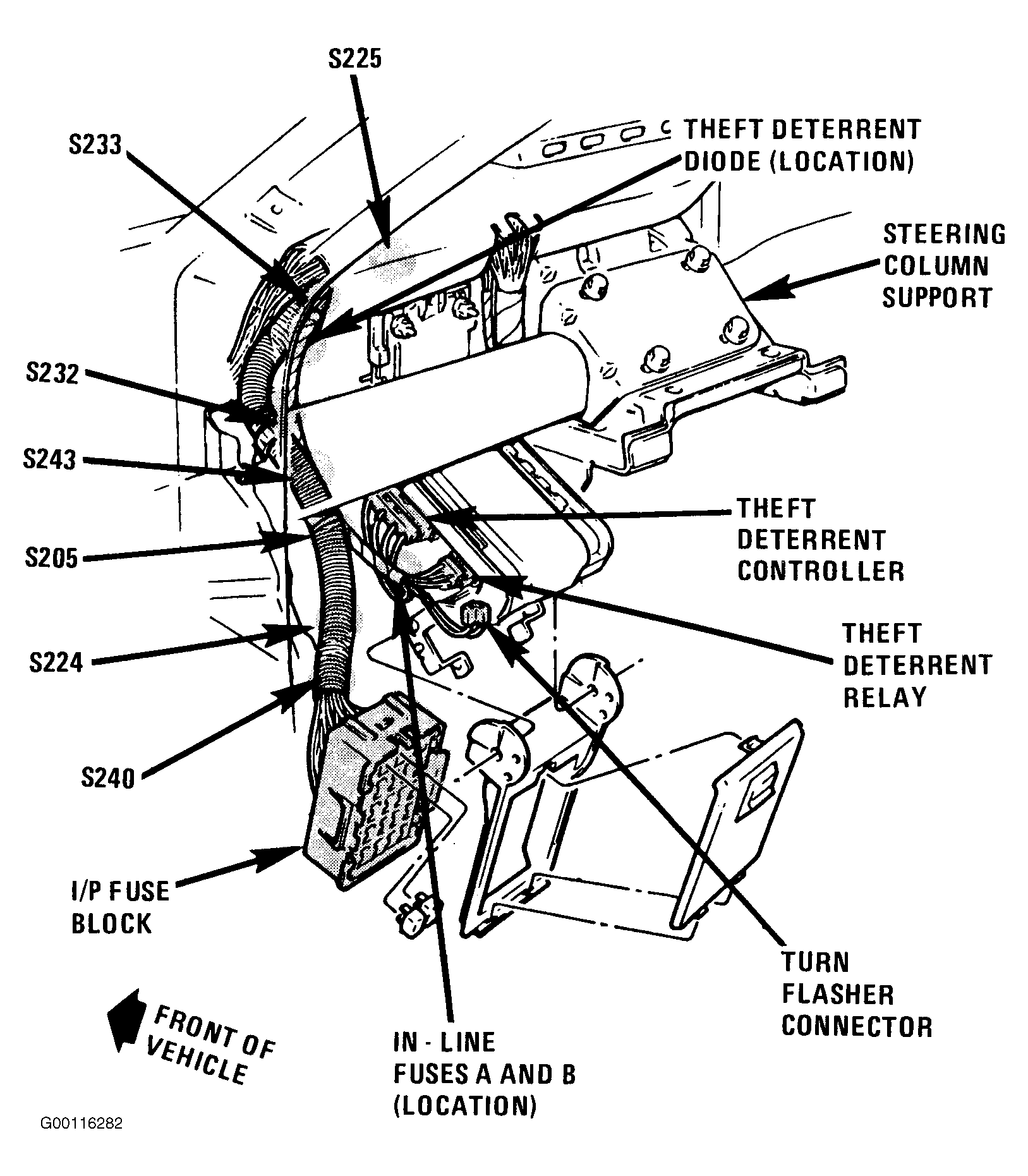

| Theft Deterrent Controller |

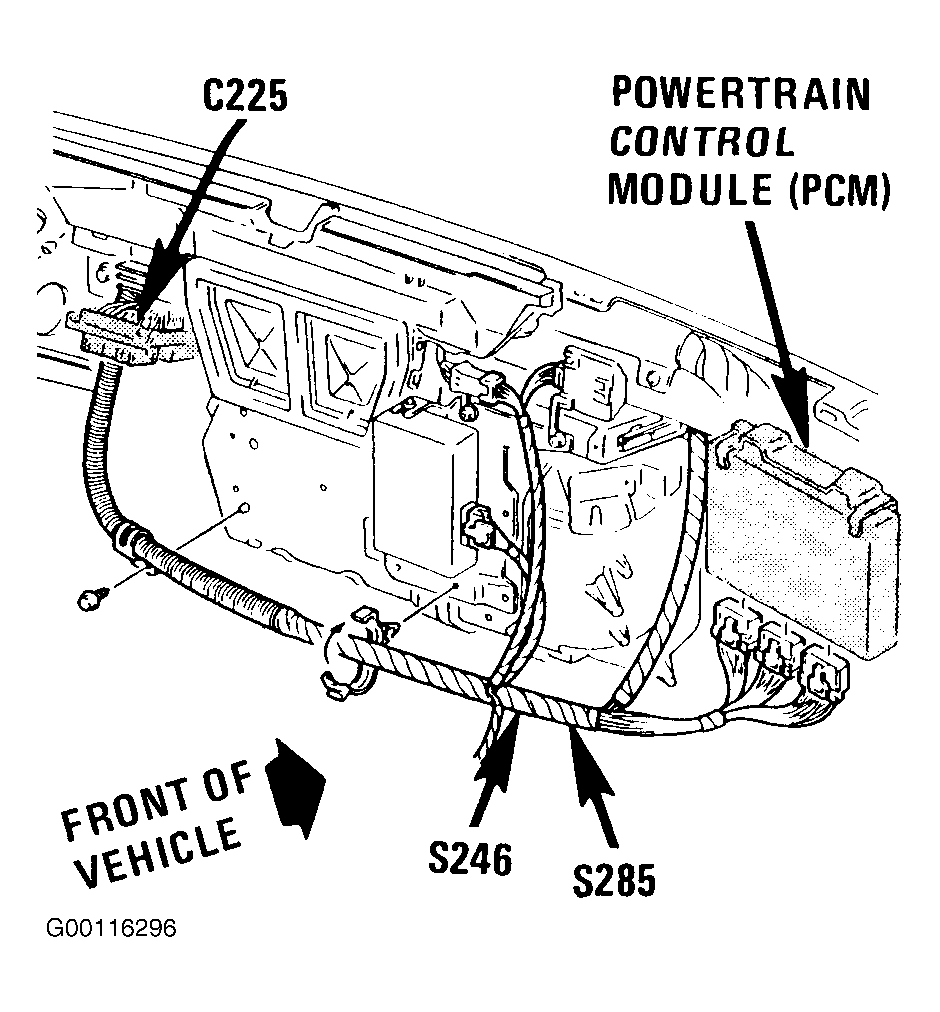

Behind Left Hand Side Of Instrument Panel, Left Of Steering Column Support, See Fig 6 |
| Theft Deterrent Diode |
Behind Left Hand Side Of Instrument Panel, Left Of Steering Column Support, Taped To Body Main Harness, See Fig 6 |
| Trunk Lid Release Actuator |

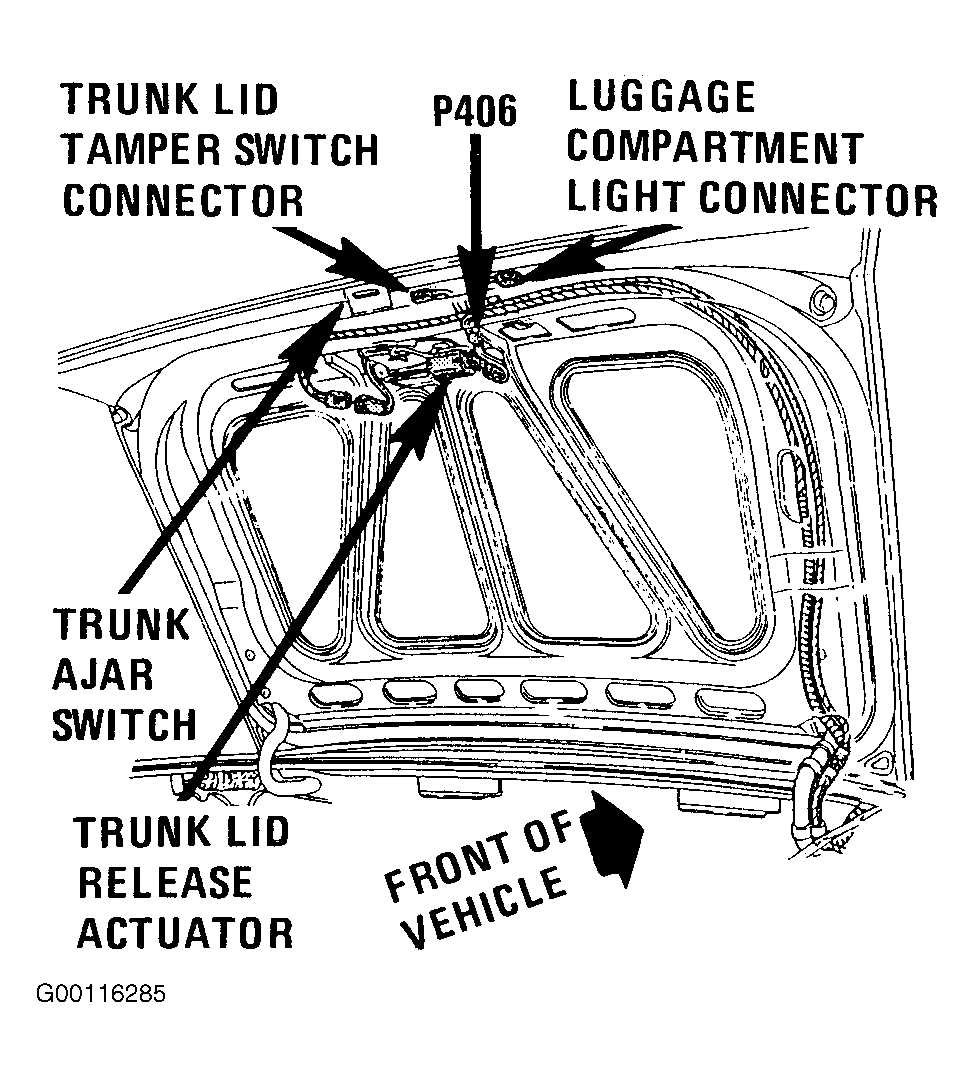

Center Rear Of Trunk Lid, Left Of Lock Assembly, See Fig 10 |
| Trunk Lid Tamper Switch |
Center Rear Of Trunk Lid, On Lock Assembly, See Fig 10 |

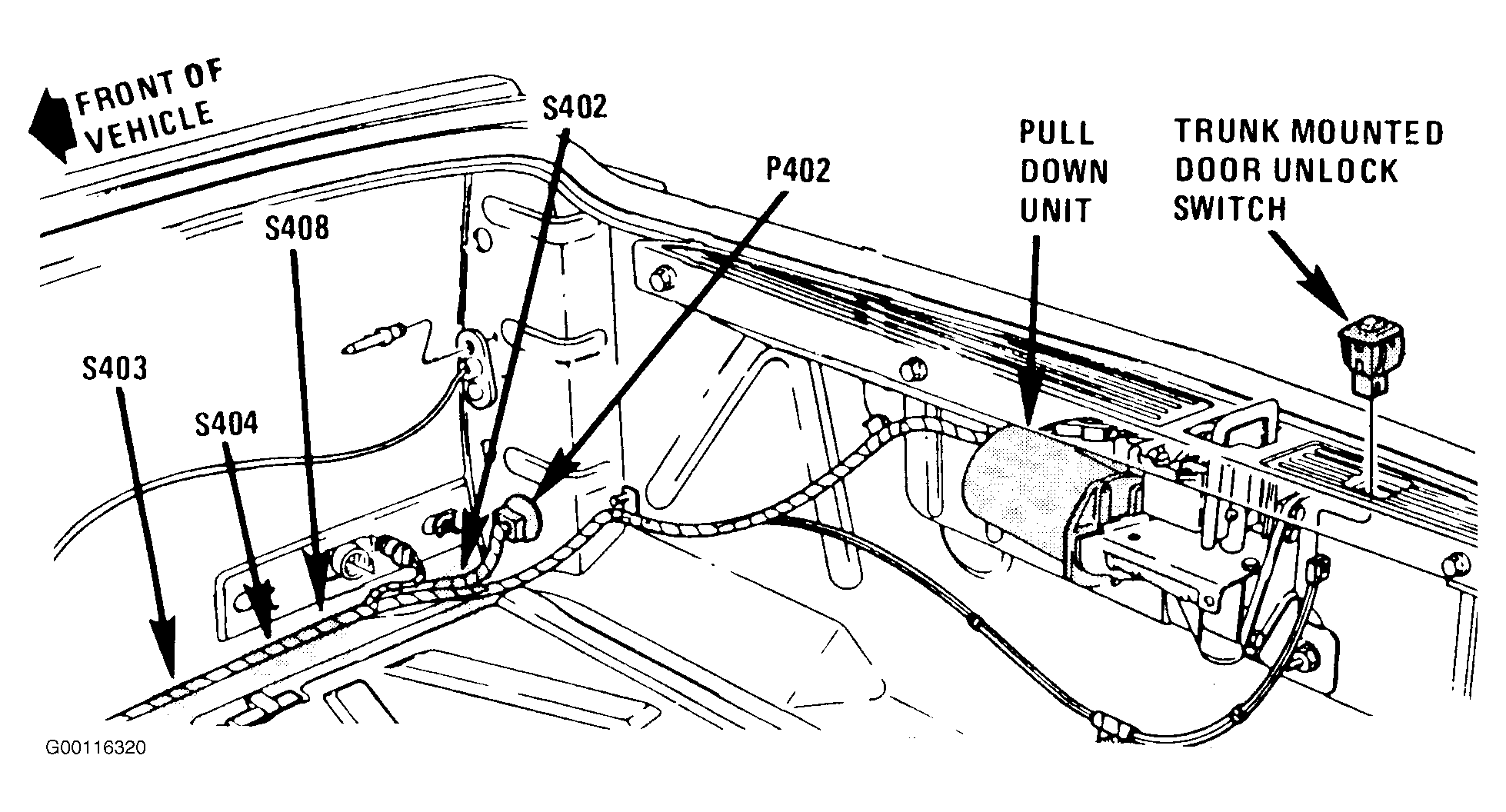

| Trunk Mounted Door Unlock Switch |
Center Rear Of Trunk, Beside Lock Striker, See Fig 11 |

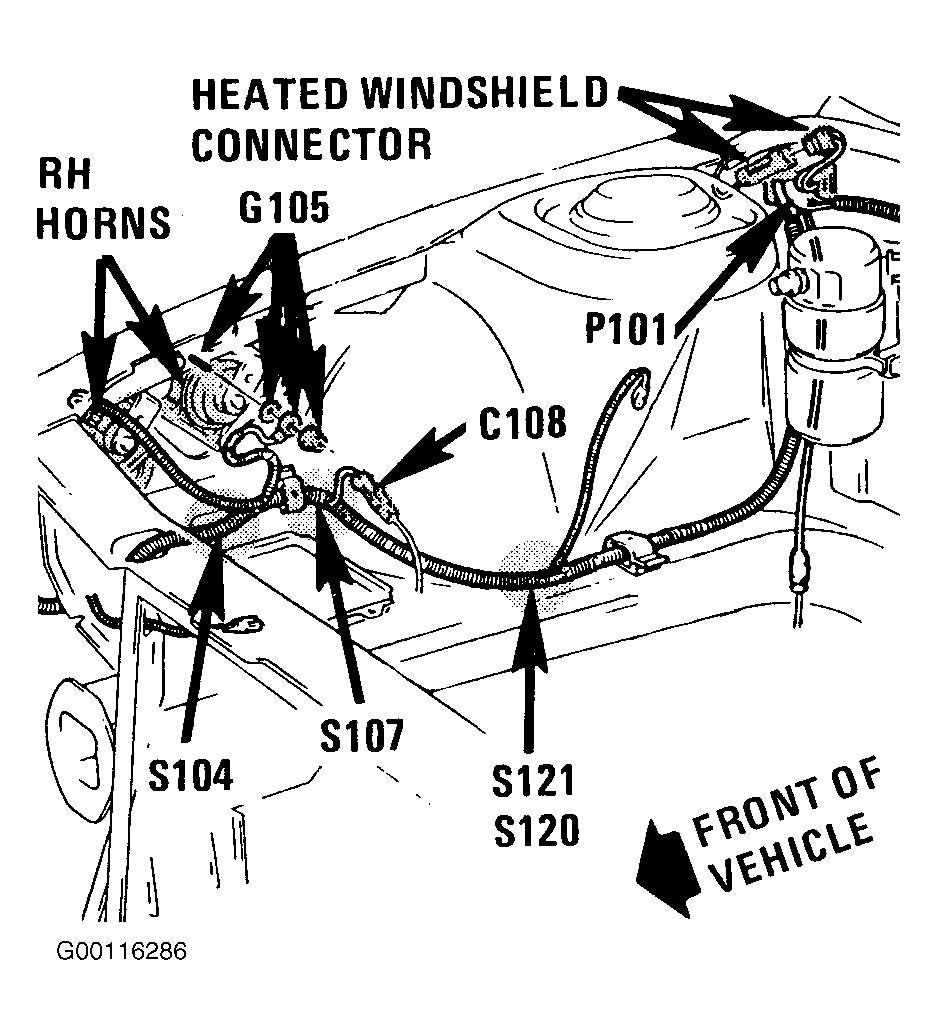

| C108 (1 cavity) |
Lower Right Hand Side Of Engine Compartment, Left Of Right Hand Horns, See Fig 12 |

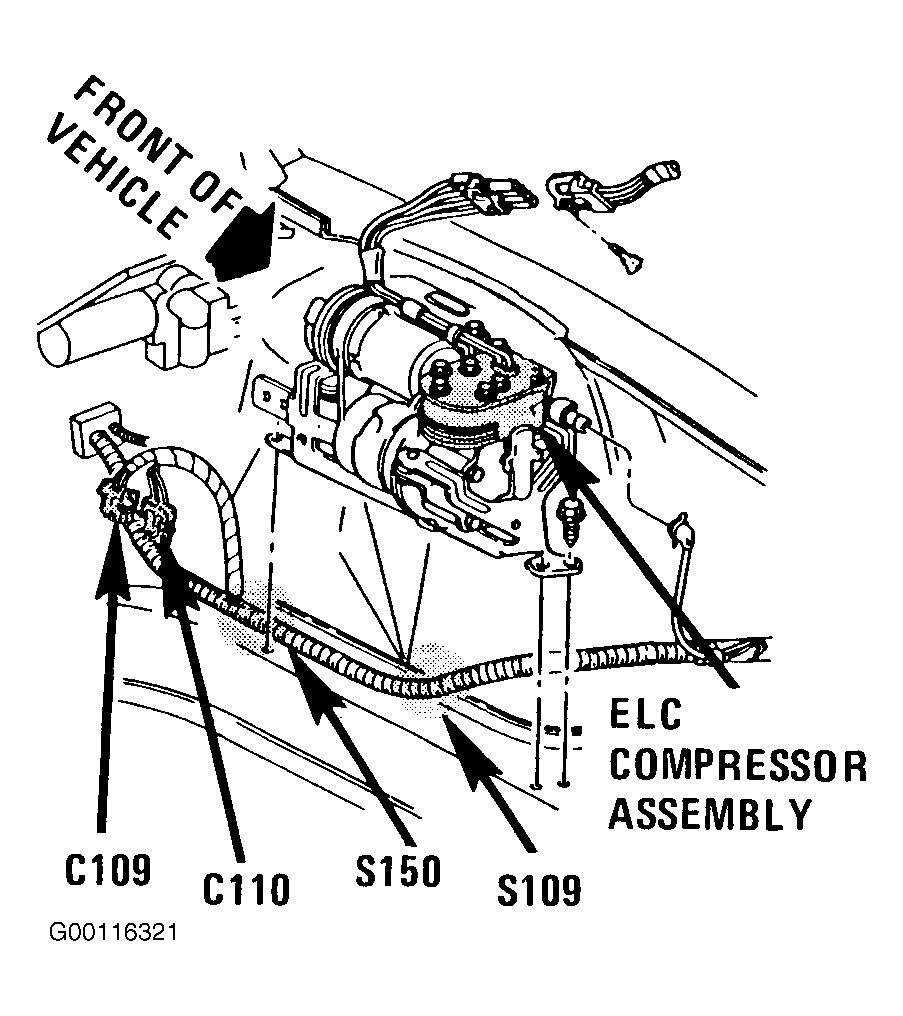

| C109 (7 cavities) |
Left Hand Side Of Engine Compartment, Left Of Transaxle, See Fig 13 |

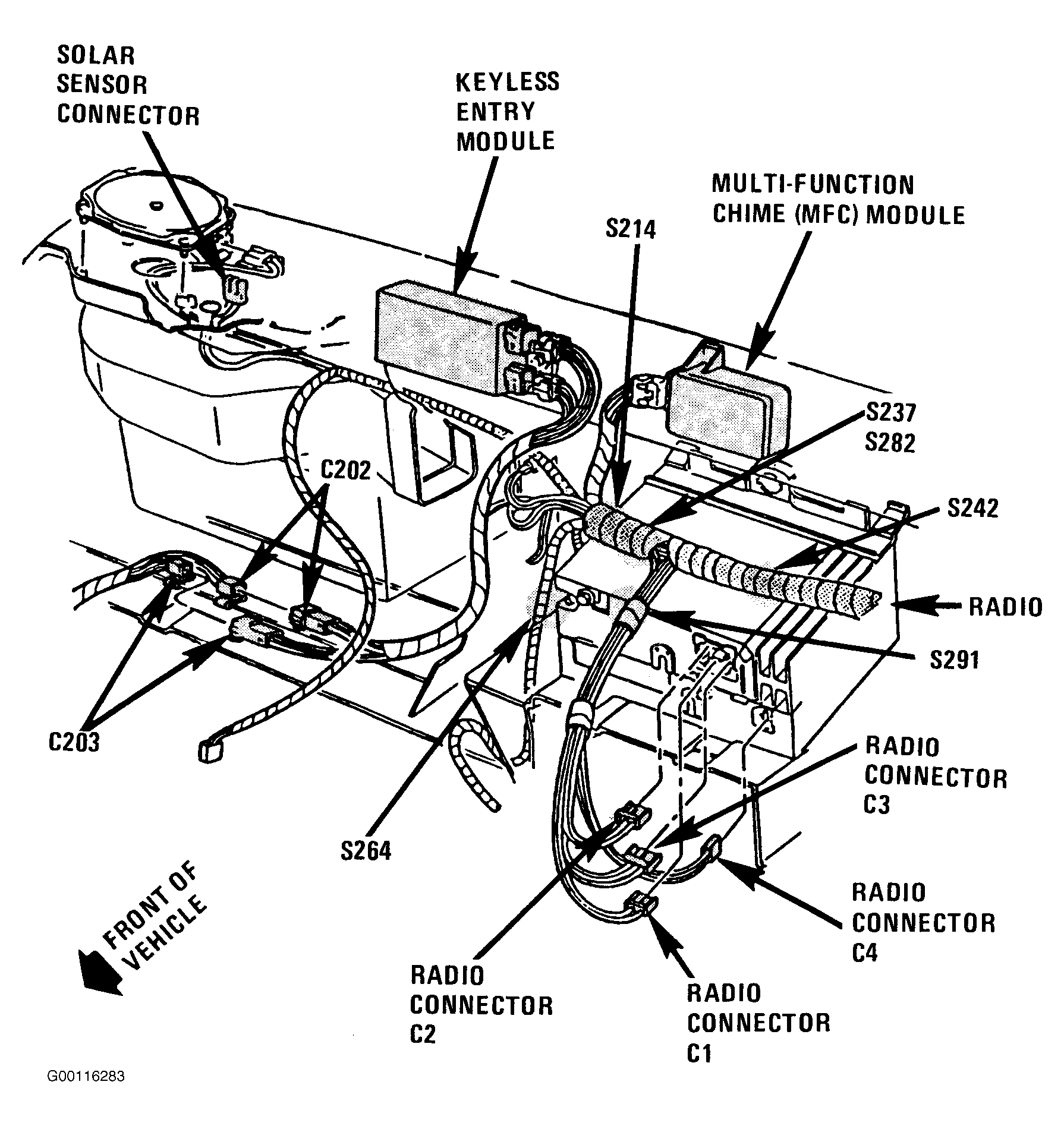

| C202 (8 cavities) |
Behind Right Hand Side Of Instrument Panel, Near Glove Box, See Fig 8 |
| C202 (8 cavities) |
Behind Right Hand Side Of Instrument Panel, Near Glove Box, See Fig 7 |

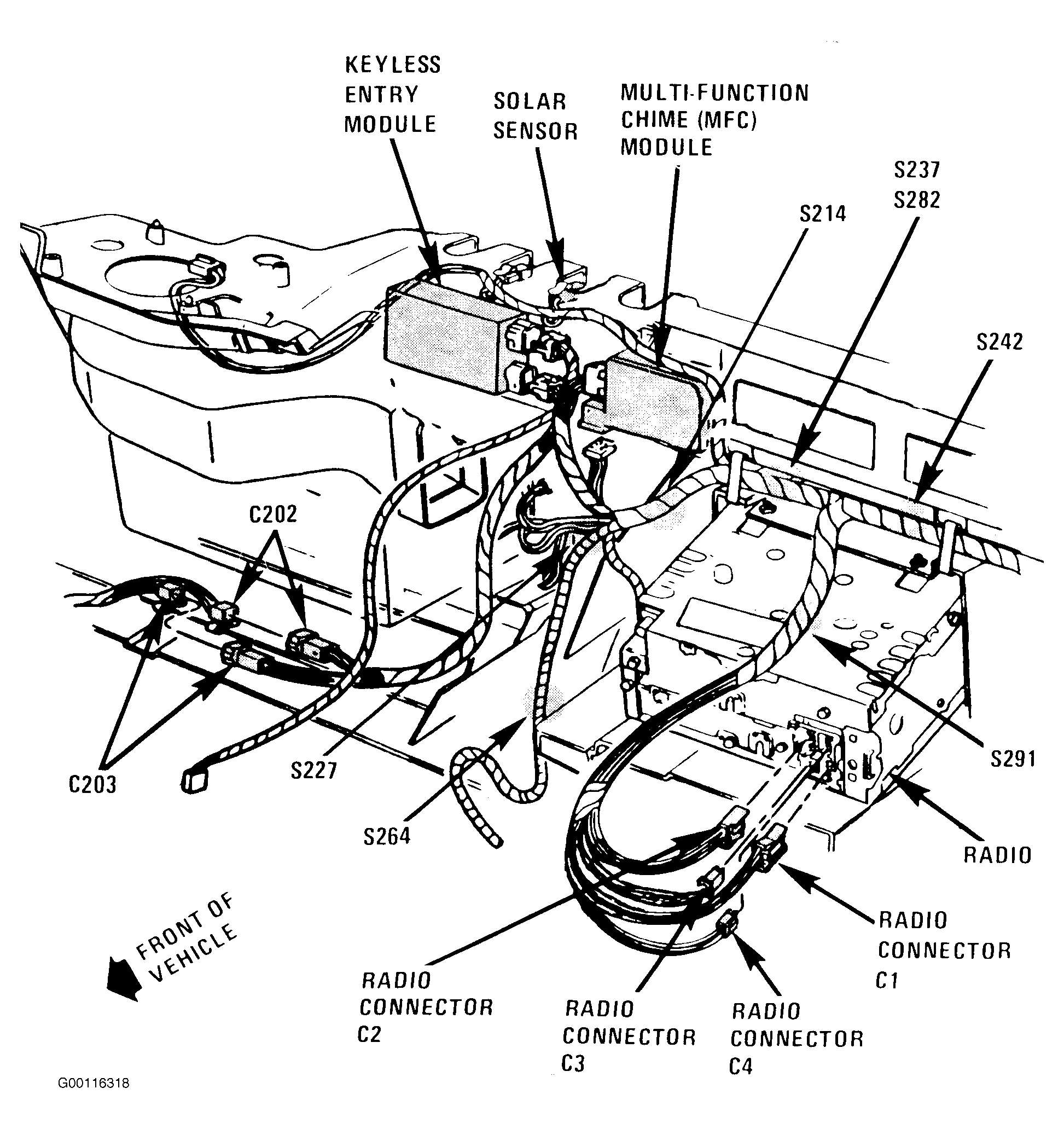

| C203 (8 cavities) |
Behind Right Hand Side Of Instrument Panel, Near Glove Box, See Fig 8 |
| C203 (8 cavities) |
Behind Right Hand Side Of Instrument Panel, Near Glove Box, See Fig 7 |
| C228 (10 cavities) |

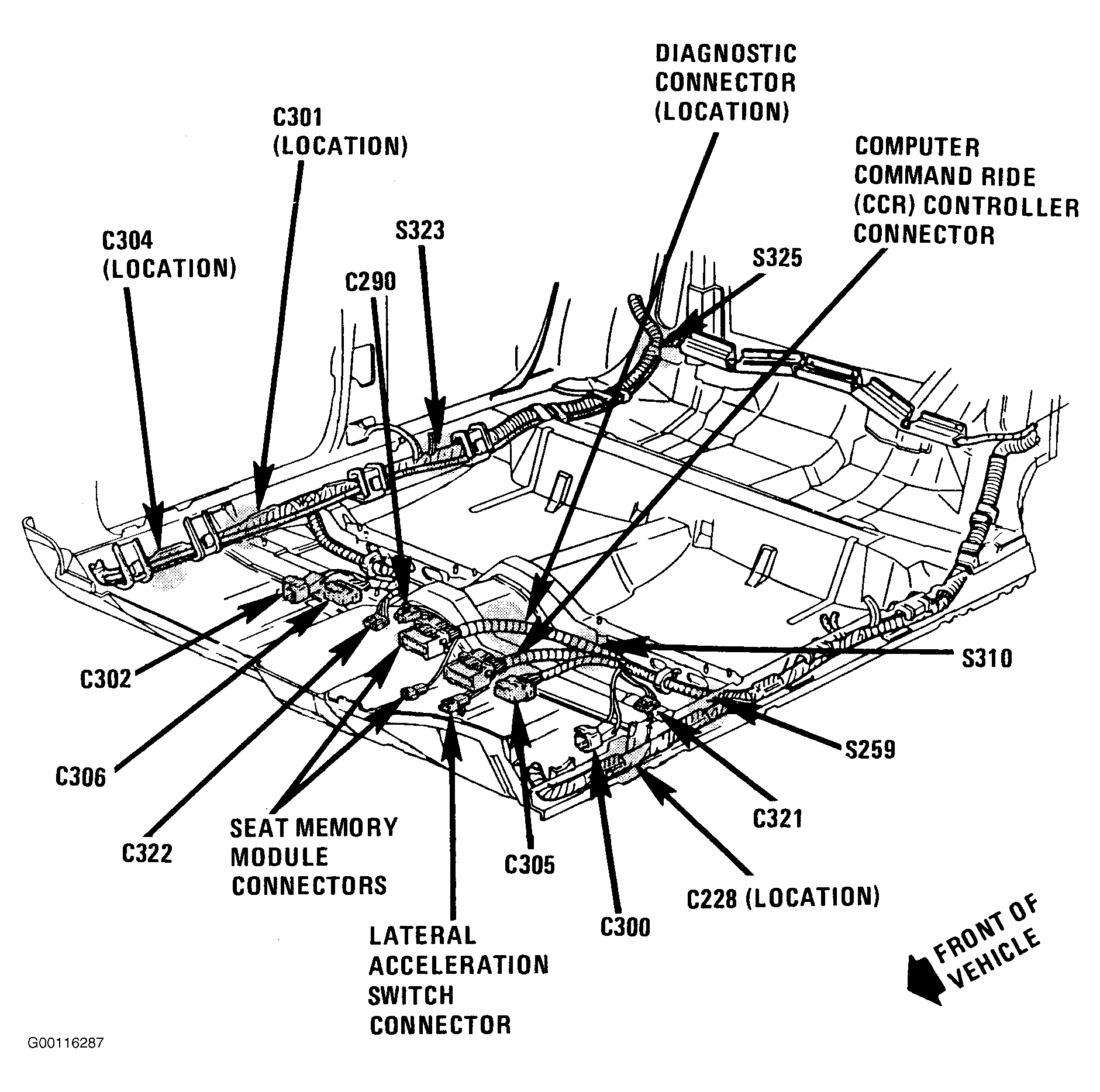

At Left Hand Front Door Sill, See Fig 14 |
| C301 (10 cavities) |
At Right Hand Front Door Sill, See Fig 14 |
| C304 (10 cavities) |
Bottom Of Right Hand Shroud, At Door Sill, See Fig 14 |
| C503 (4 cavities) |

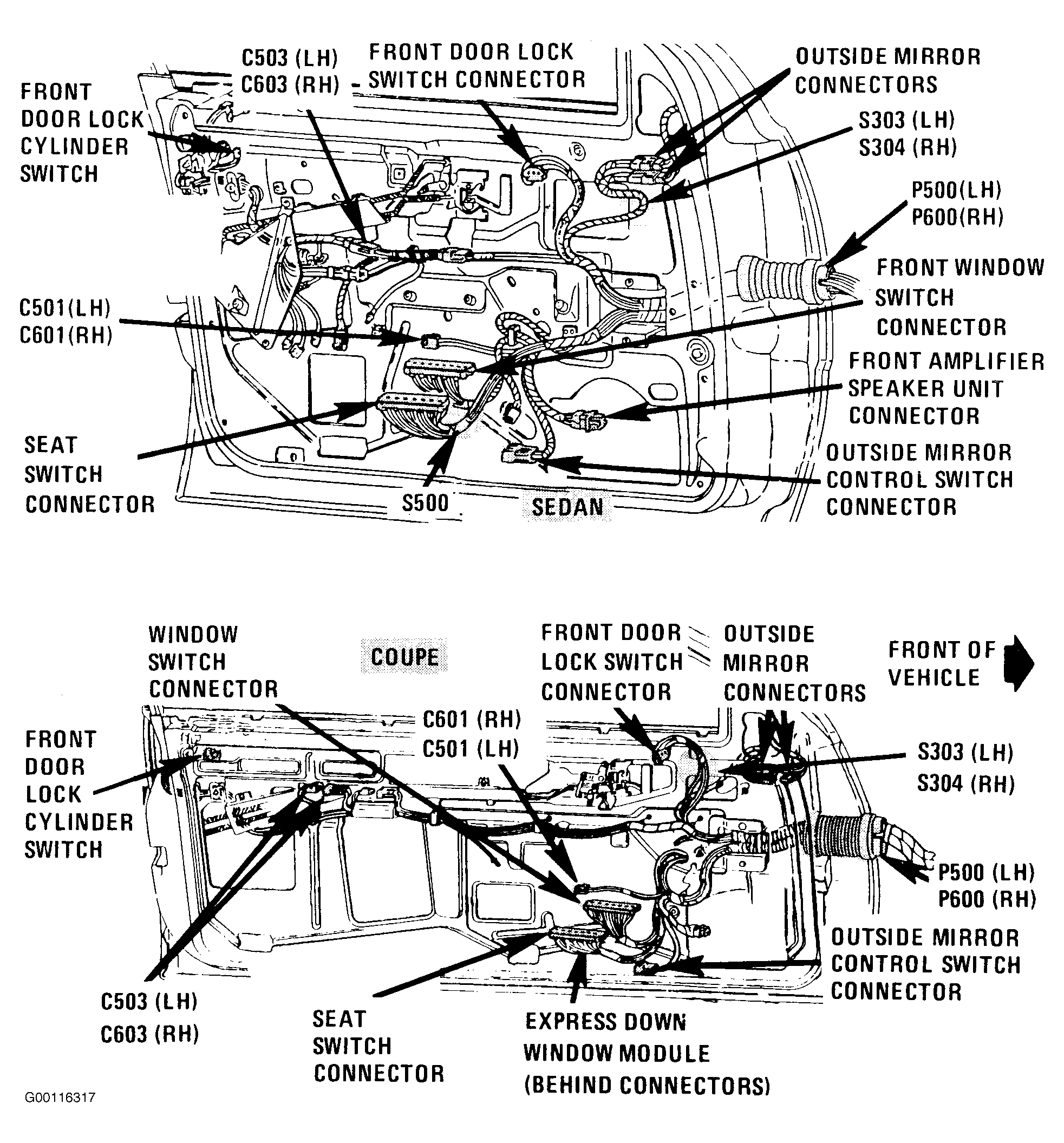

In Center Portion Of Left Hand Door, See Fig 5 |
| C603 (4 cavities) |
In Center Portion Of Right Hand Door, See Fig 5 |
| C701 (10 cavities) |

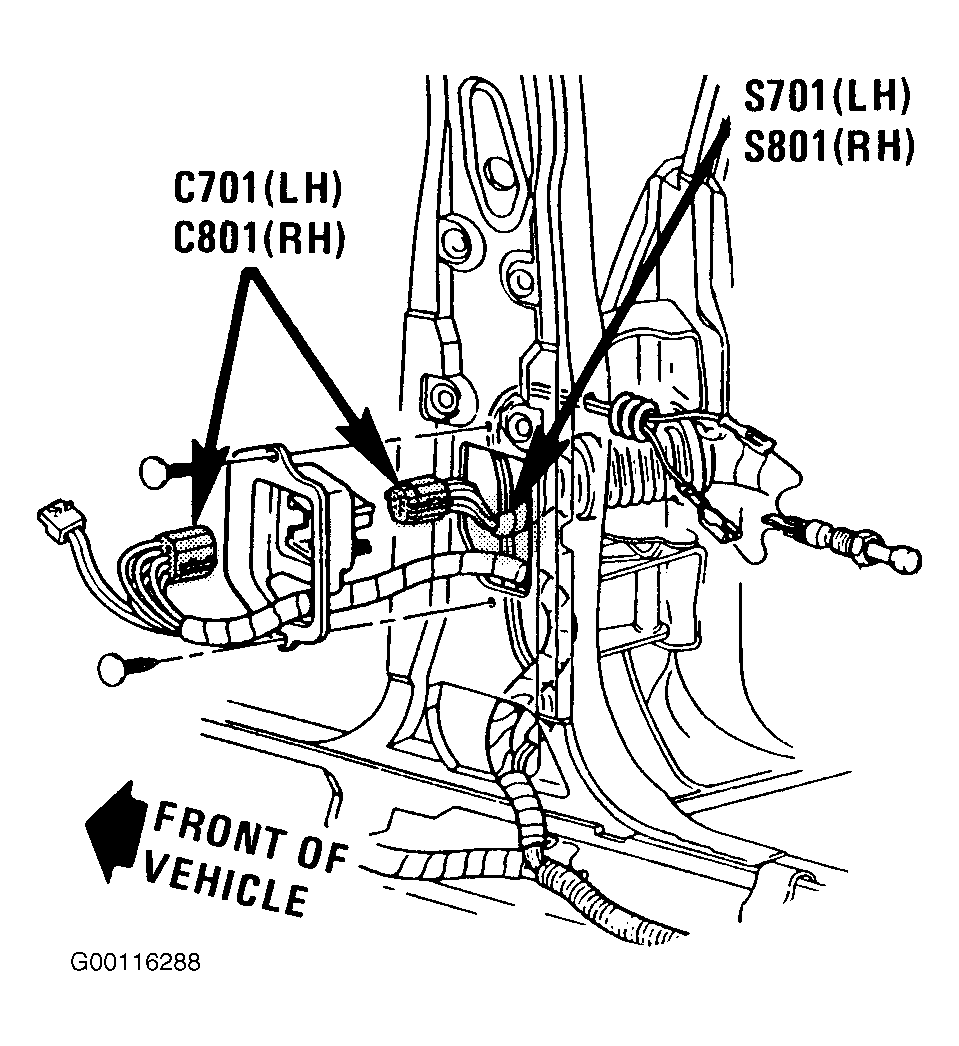

In Bottom Of Left Hand Center Pillar, See Fig 15 |
| C801 (10 cavities) |
In Bottom Of Right Hand Center Pillar, See Fig 15 |
| G100 |

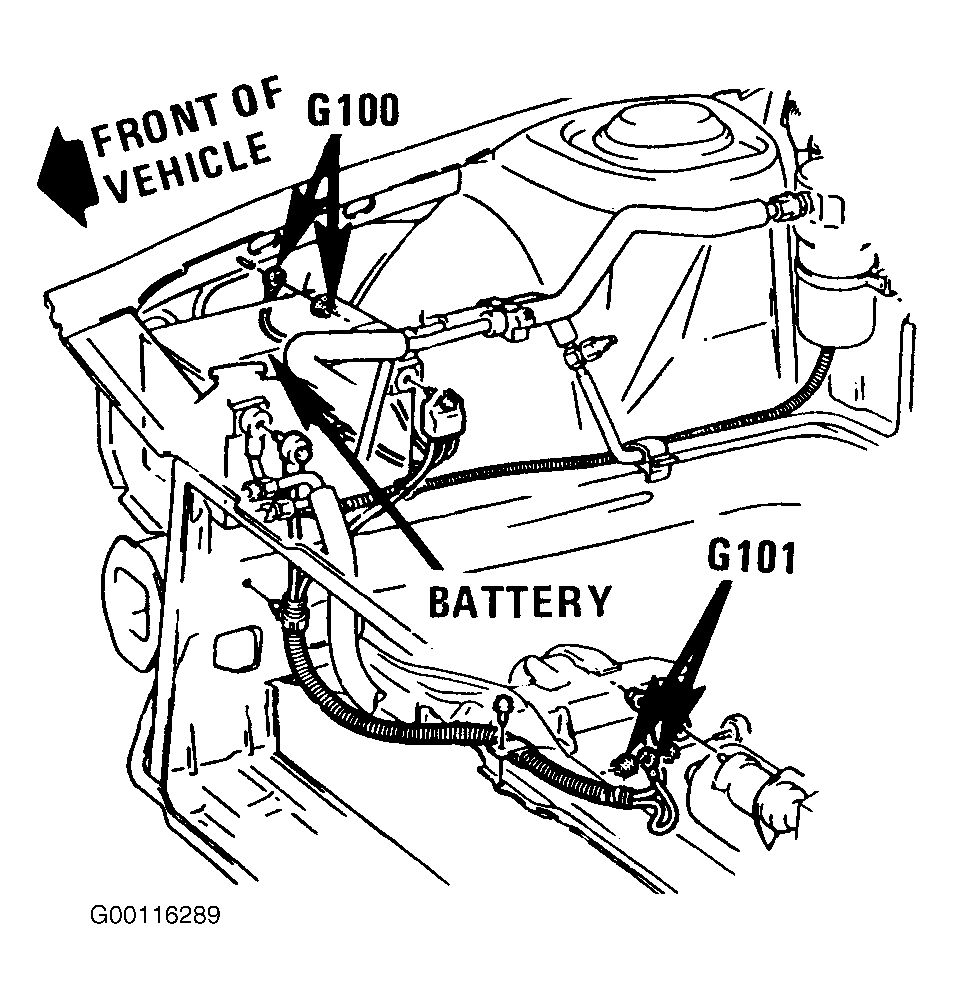

Right Hand Side Of Engine Compartment, Right Of Battery, See Fig 16 |
| G101 |
Lower Front Of Engine, Left Of Starter Solenoid, See Fig 16 |
| G200 |
Behind Left Hand Side Of Instrument Panel, Top Of Shroud, See Fig 17 |
| G201 |
Behind Right Hand Side Of Instrument Panel, Top Of Shroud, See Fig 18 |
| P100 |
Left Hand Rear Of Engine Compartment, Front Of Dash, See Fig 19 |

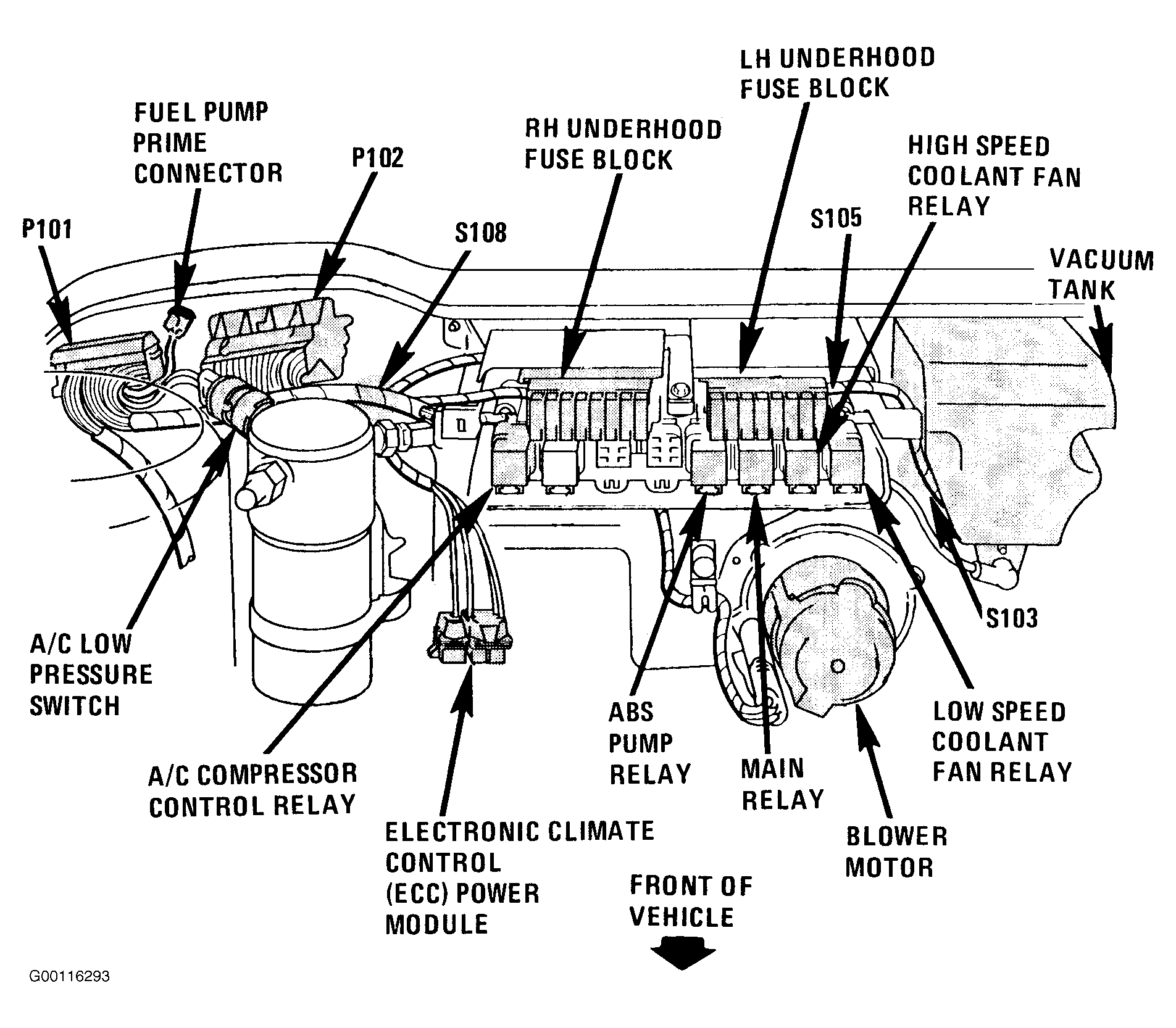

| P101 |
Right Hand Rear Of Engine Compartment, Front Of Dash, See Fig 20 |

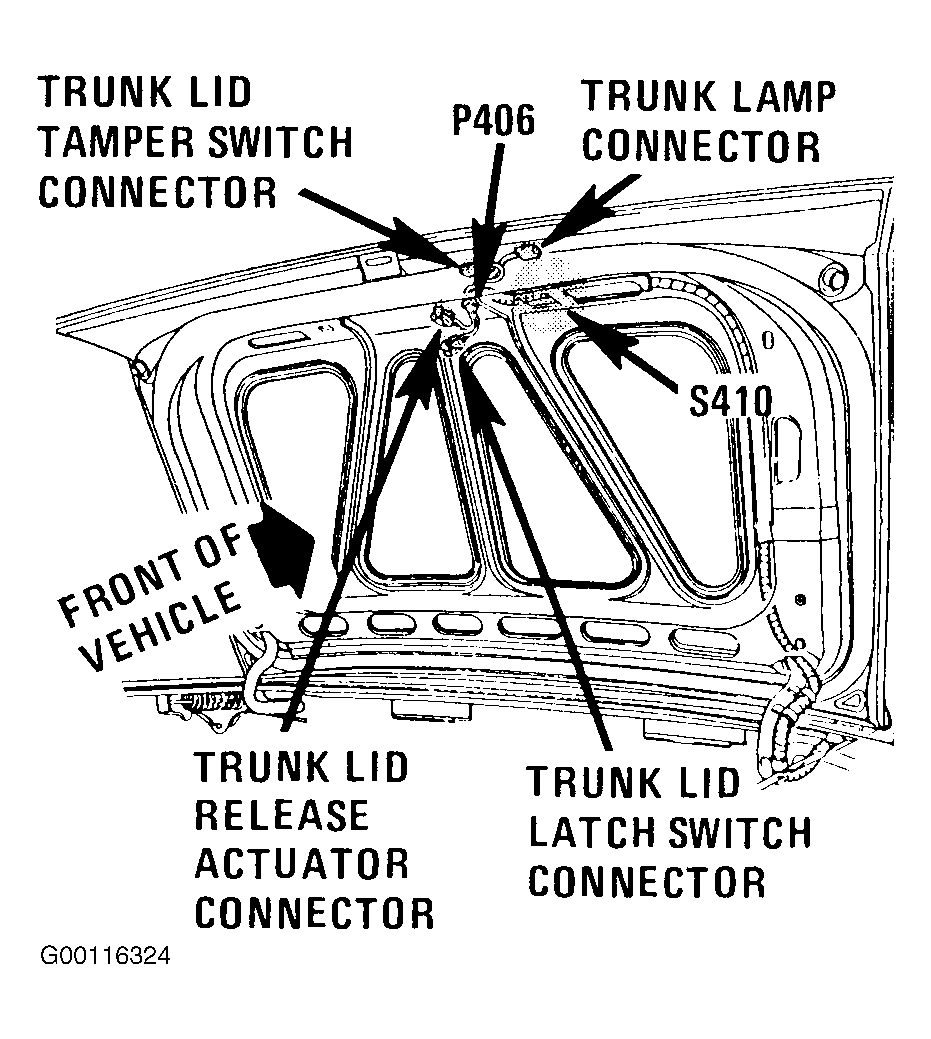

| P406 |
Left Hand Rear Of Trunk Lid, At Trunk Lid Release Actuator, See Fig 10 |
| P500 |
Front Of Left Hand Front Door, Near Shroud, See Fig 21 |
| P600 |
Front Of Right Hand Front Door, Near Shroud, See Fig 21 |

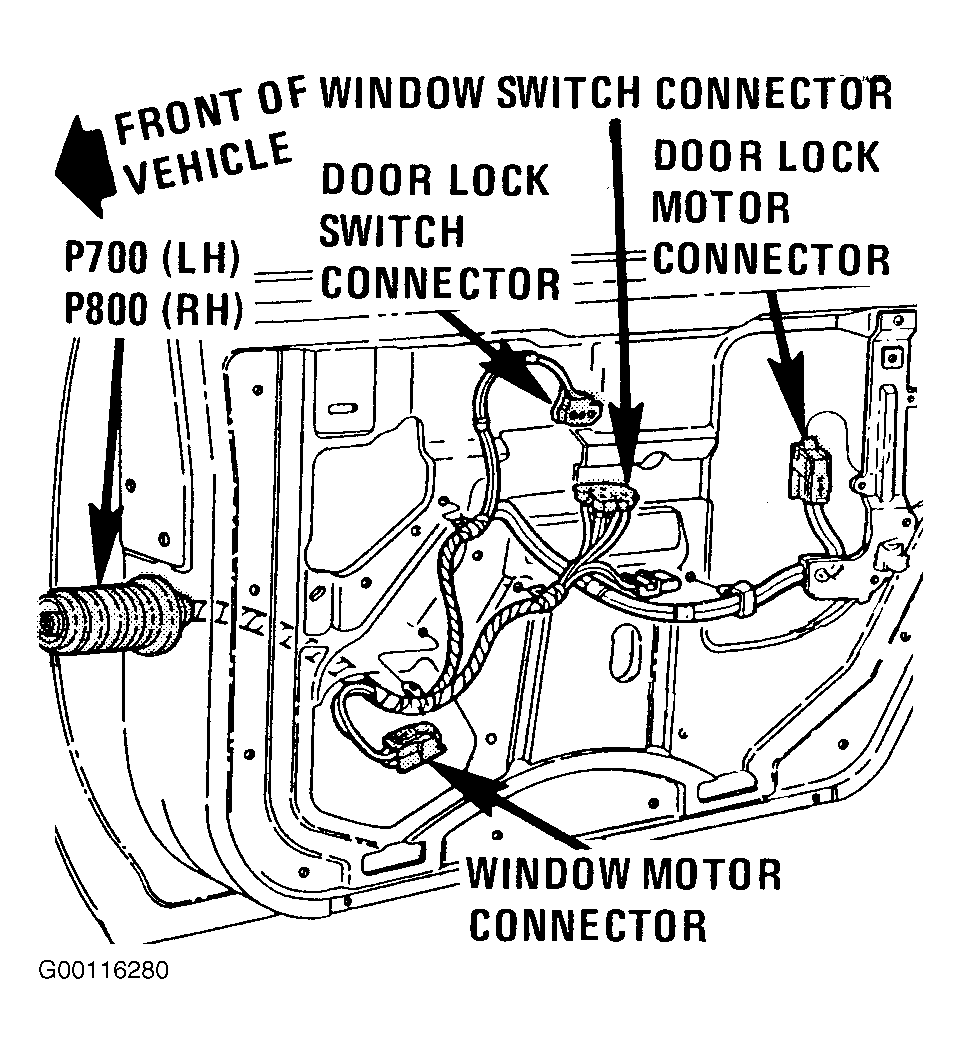

| P700 |
Front Of Left Hand Rear Door, Near Center Pillar, See Fig 22 |
| P800 |
Front Of Right Hand Rear Door, Near Center Pillar, See Fig 22 |
| S120 |
Body Main Harness, Lower Right Hand Side Of Engine Compartment, See Fig 12 |
| S208 |

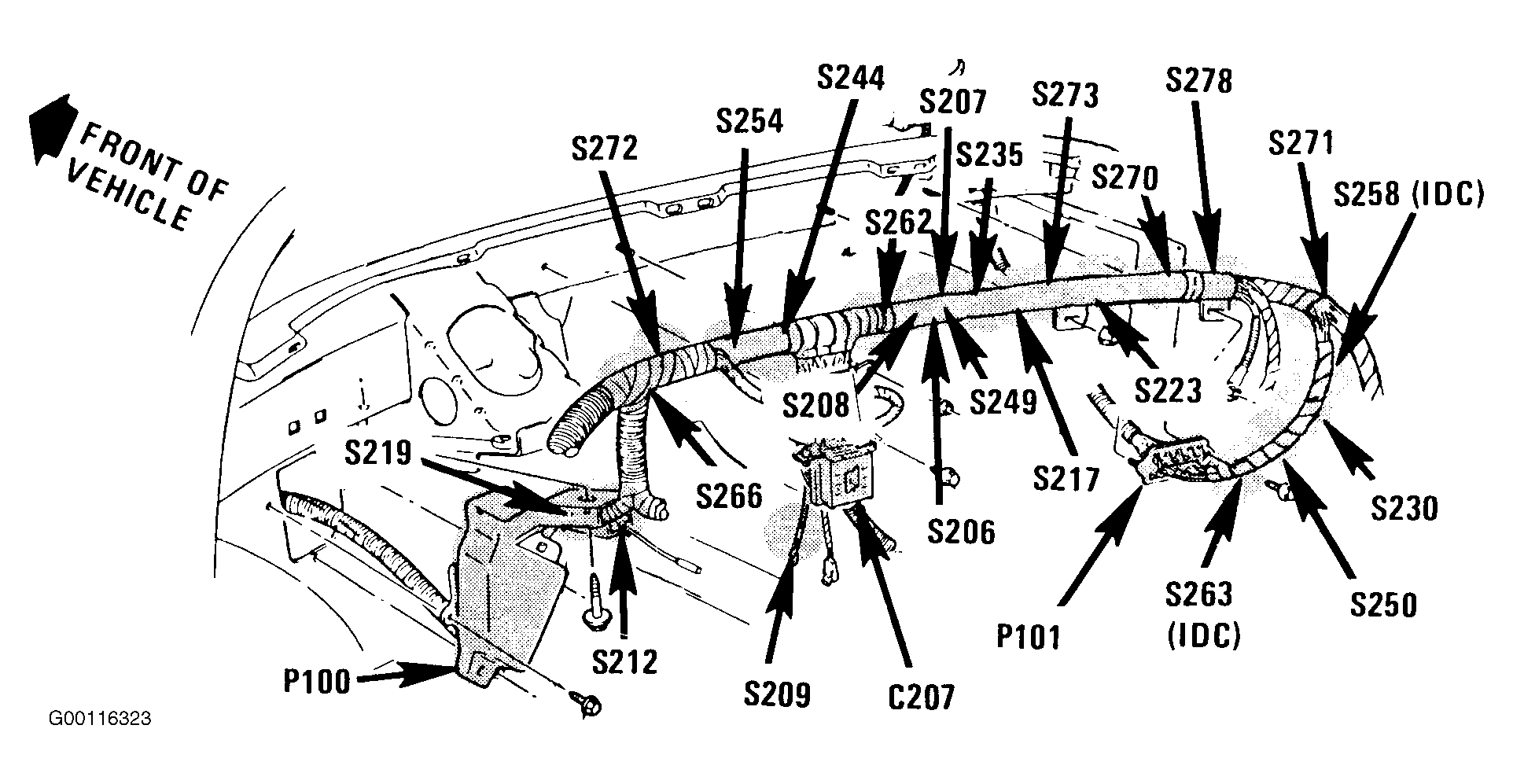

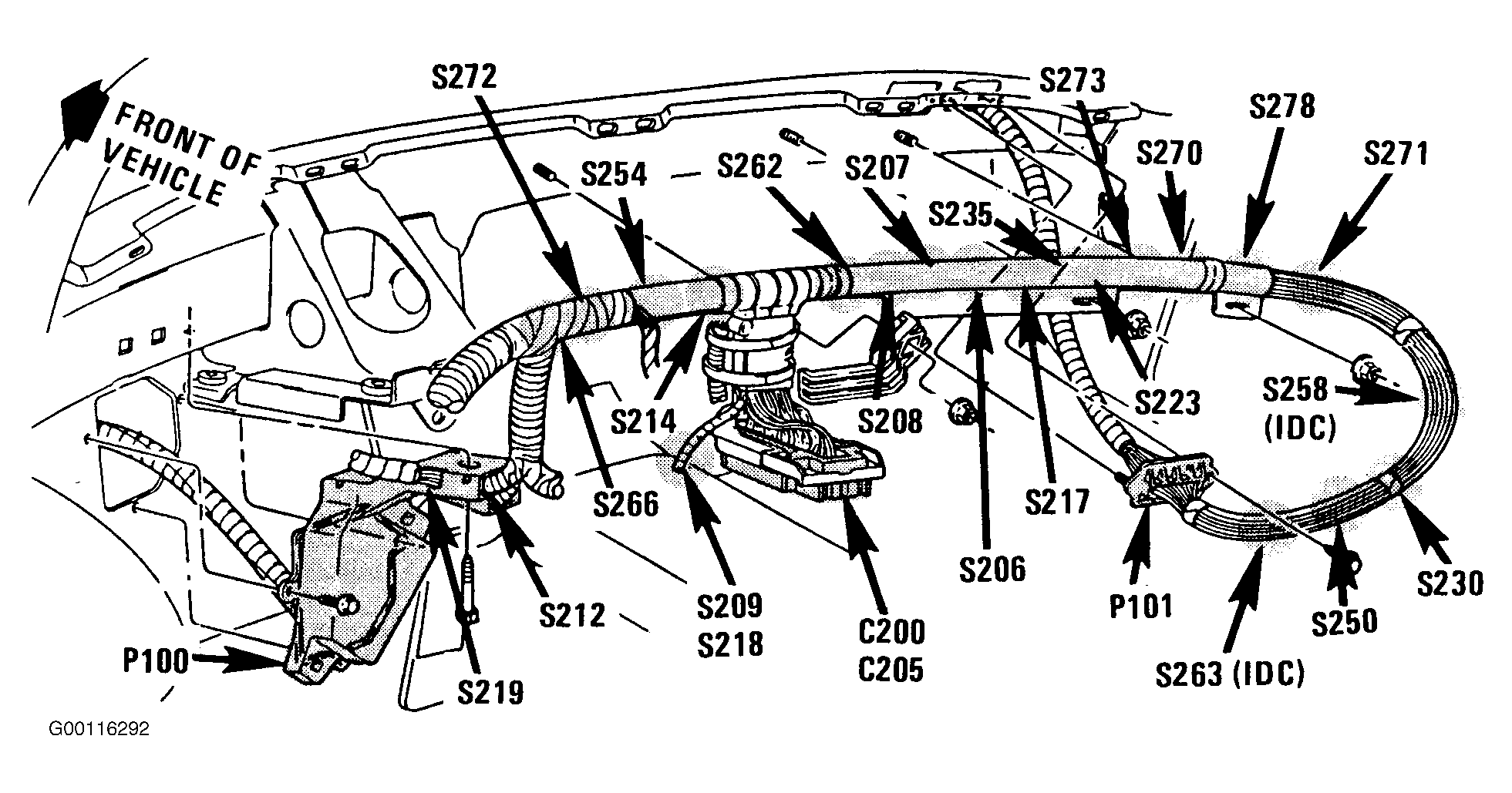

Body Main Harness, Behind Center Of Instrument Panel, See Fig 23 |
| S208 |
Body Main Harness, Behind Center Of Instrument Panel, See Fig 19 |
| S224 |
Body Main Harness, Behind Instrument Panel, Left Of Steering Column, See Fig 6 |
| S225 |
Body Main Harness, Behind Instrument Panel, Left Of Steering Column, See Fig 6 |

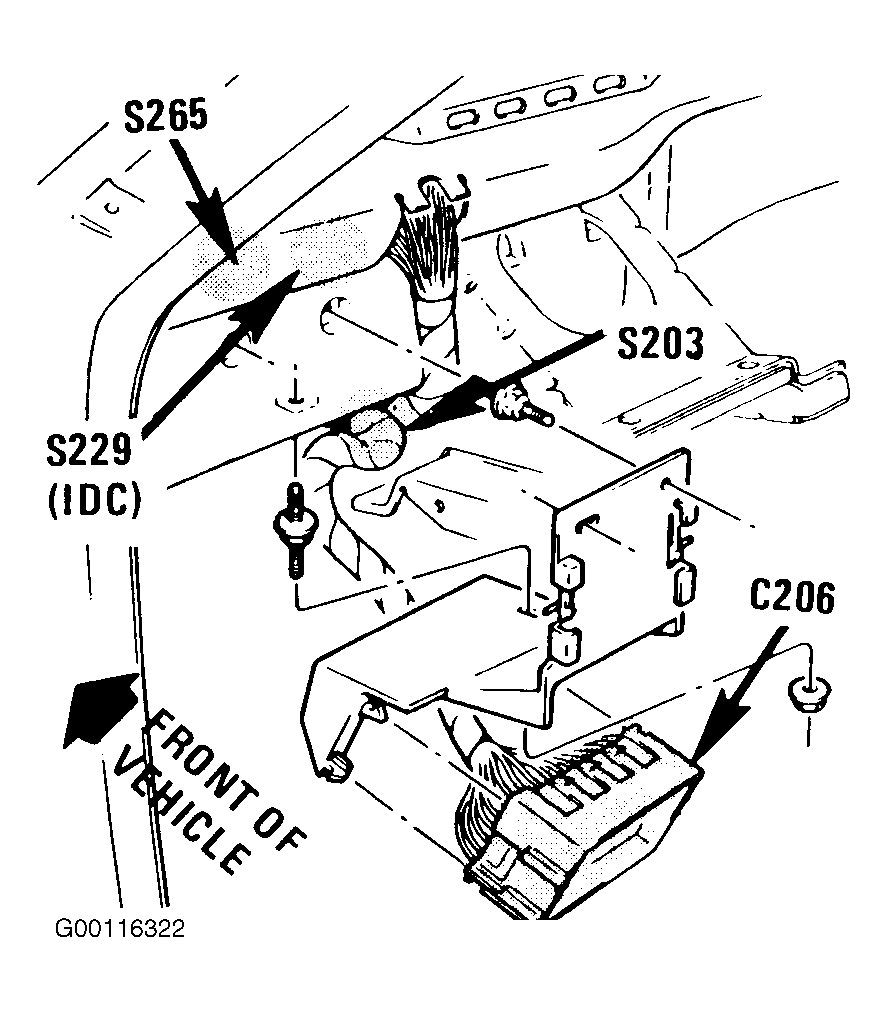

| S229 (IDC) |
Body Main Harness, Behind Left Hand Side Of Instrument Panel, In Dash Channel Near Top Of Shroud, See Fig 24 |
| S232 |
Body Main Harness, Behind Instrument Panel, Left Of Steering Column, See Fig 6 |
| S233 |
Body Main Harness, Behind Instrument Panel, Left Of Steering Column, See Fig 6 |
| S238 |

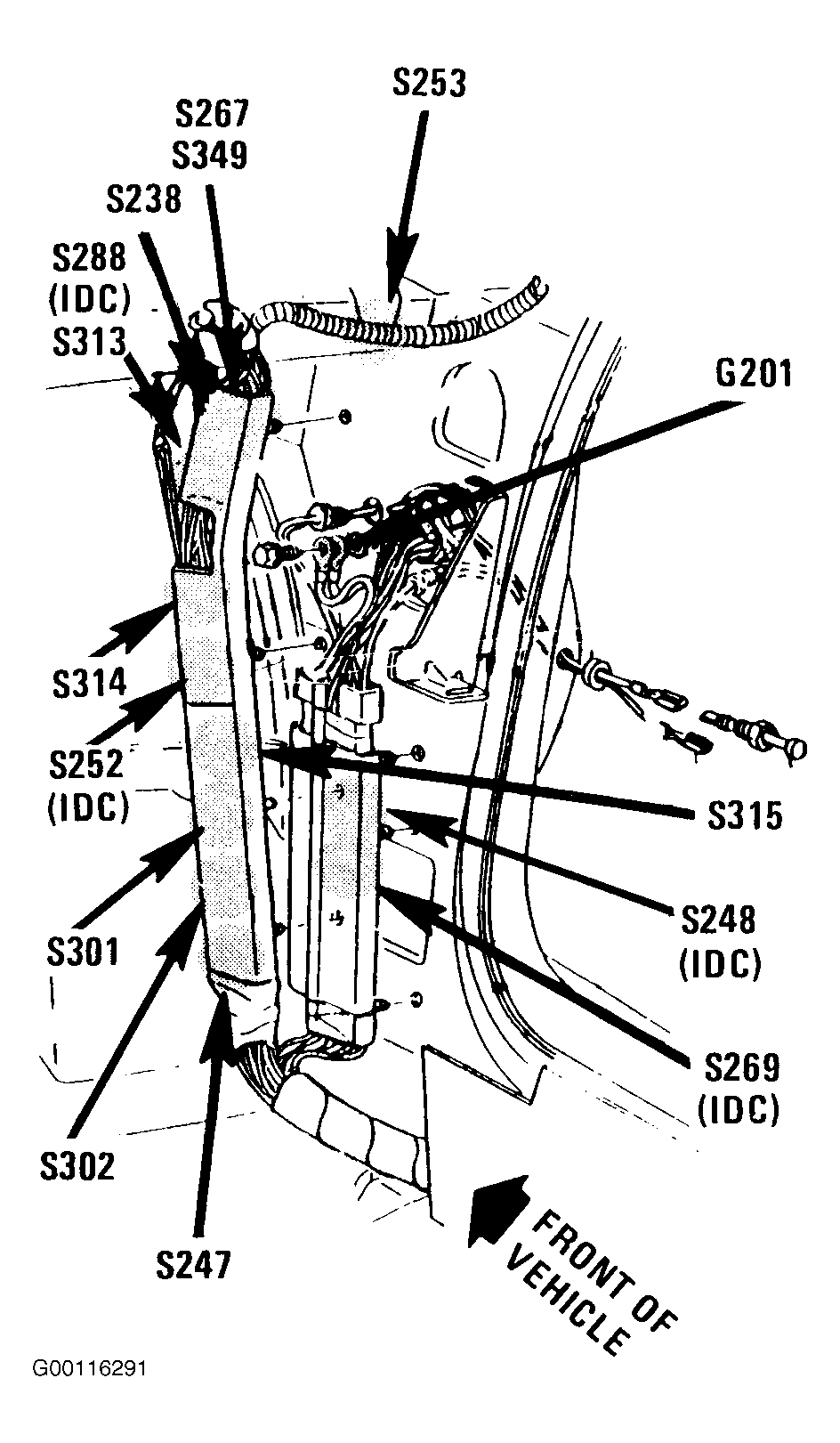

Body Main Harness, Top Of Right Hand Shroud, See Fig 18 |
| S246 |
Body Main Harness, Behind Right Hand Side Of Instrument Panel, See Fig 25 |
| S248 (Idc) |
Body Main Harness, Middle Of Right Hand Shroud, See Fig 18 |
| S251 |
Body Main Harness, Behind Right Hand Side Of Instrument Panel, See Fig 26 |
| S253 |
Body Main Harness, Above Right Hand Shroud, See Fig 18 |
| S254 |
Body Main Harness, Behind Instrument Panel, Right Of Steering Column, See Fig 27 |
| S254 |
Body Main Harness, Behind Instrument Panel, Right Of Steering Column, See Fig 19 |
| S266 |
Body Main Harness, Behind Left Hand Side Of Instrument Panel, See Fig 27 |
| S266 |
Body Main Harness, Behind Left Hand Side Of Instrument Panel, See Fig 19 |
| S267 |
Body Main Harness, Top Of Right Hand Shroud, See Fig 18 |
| S301 |
Body Main Harness, Middle Of Right Hand Shroud, See Fig 18 |
| S302 |
Body Main Harness, Bottom Of Right Hand Shroud, See Fig 18 |
| S313 |
Body Main Harness, Top Of Right Hand Shroud, See Fig 18 |
| S314 |
Body Main Harness, Middle Of Right Hand Shroud, See Fig 18 |
| S315 |
Body Main Harness, Middle Of Right Hand Shroud, See Fig 18 |

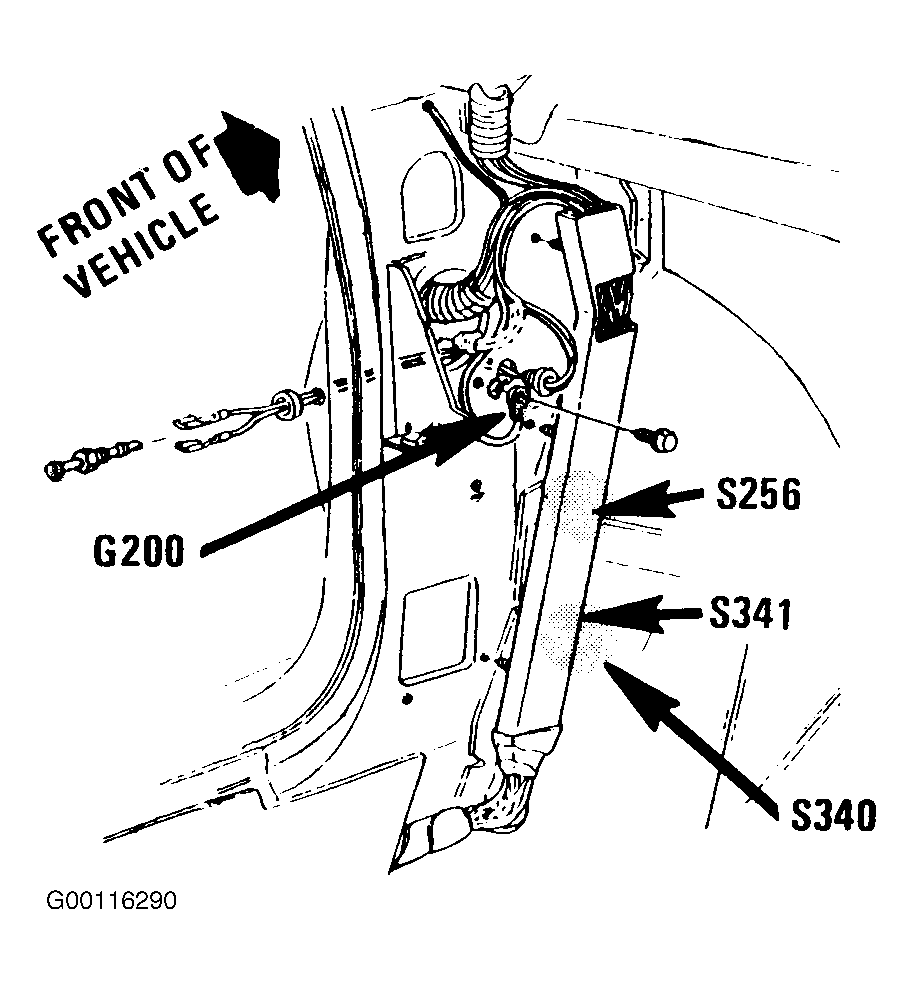

| S340 |
Body Main Harness, Bottom Of Left Hand Shroud, See Fig 17 |
| S394 |
Body Main Harness, Behind Right Hand Side Of Instrument Panel, See Fig 26 |
| S410 |
Body Main Harness, Center Rear Of Trunk Lid, See Fig 28 |
| S701 |
Left Hand Rear Door Harness, In Bottom Of Left Hand Center Pillar, See Fig 15 |
| S801 |
Right Hand Rear Door Harness, In Bottom Of Right Hand Center Pillar, See Fig 15 |
