Component Locations

COMPONENT LOCATIONS

Component Location
Fuse Block Behind Left Side Of Instrument Panel, Left Of Brake Pedal. See Fig 1 .
Window Motors In Front Portion Of Respective Door. See Fig 2 .
C203 (28 Cavities) Behind Left Side Of Instrument Panel, Left Of Steering Column Support. See Fig 1 .
C204 (28 Cavities) Behind Right Side Of Instrument Panel On Shroud. See Fig 1 .
C301 (4 Cavities) At Base Of Right Center Pillar. See Fig 3 .
C302 (4 Cavities) At Base Of Left Center Pillar. See Fig 3 .
C313 (4 Cavities) At Base Of Left Shroud. See Fig 4 .
G302 At Base Of Left Shroud. See Fig 4 .
P500 In Front Of Left Front Door. See Fig 5 .
P600 In Front Of Right Front Door. See Fig 6 .
P700 In Front Of Left Rear Door. See Fig 3 .
P800 In Front Of Right Rear Door. See Fig 3 .
S206 In Left Front Door Harness, Behind Left Side Of Instrument Panel, Near Top Of Shroud. See Fig 4 .
S300 In Left Body Harness At Left Shroud. See Fig 7 .
S305 In Left Front Door Harness, Near Grommet P500. See Fig 4 .

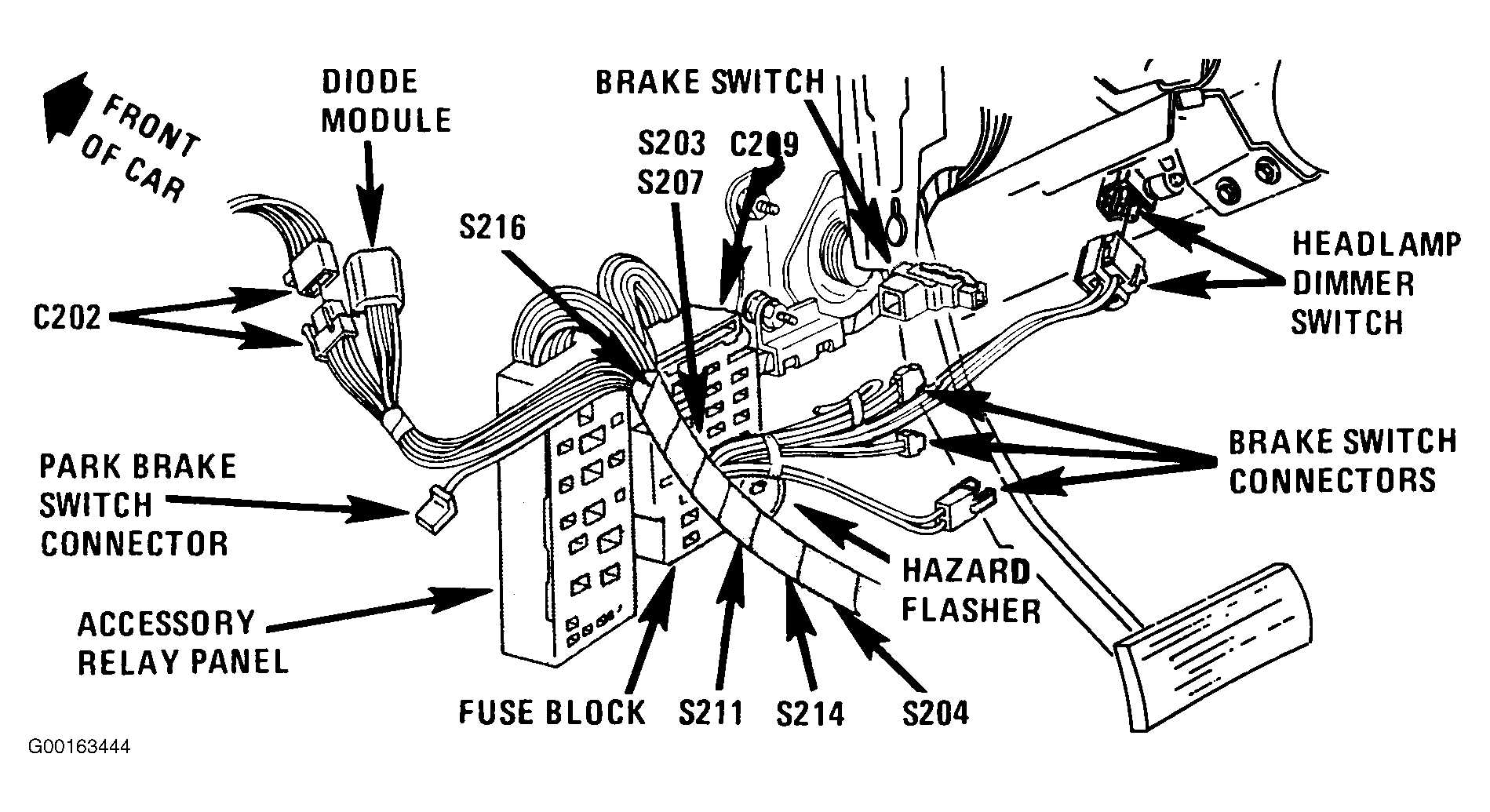

Fig 1: Locating Fuse Block & Connectors C203 & C204
G00163444Courtesy of GENERAL MOTORS CORP.
Fig 2: Locating Power Window Motors
G00163445Courtesy of GENERAL MOTORS CORP.

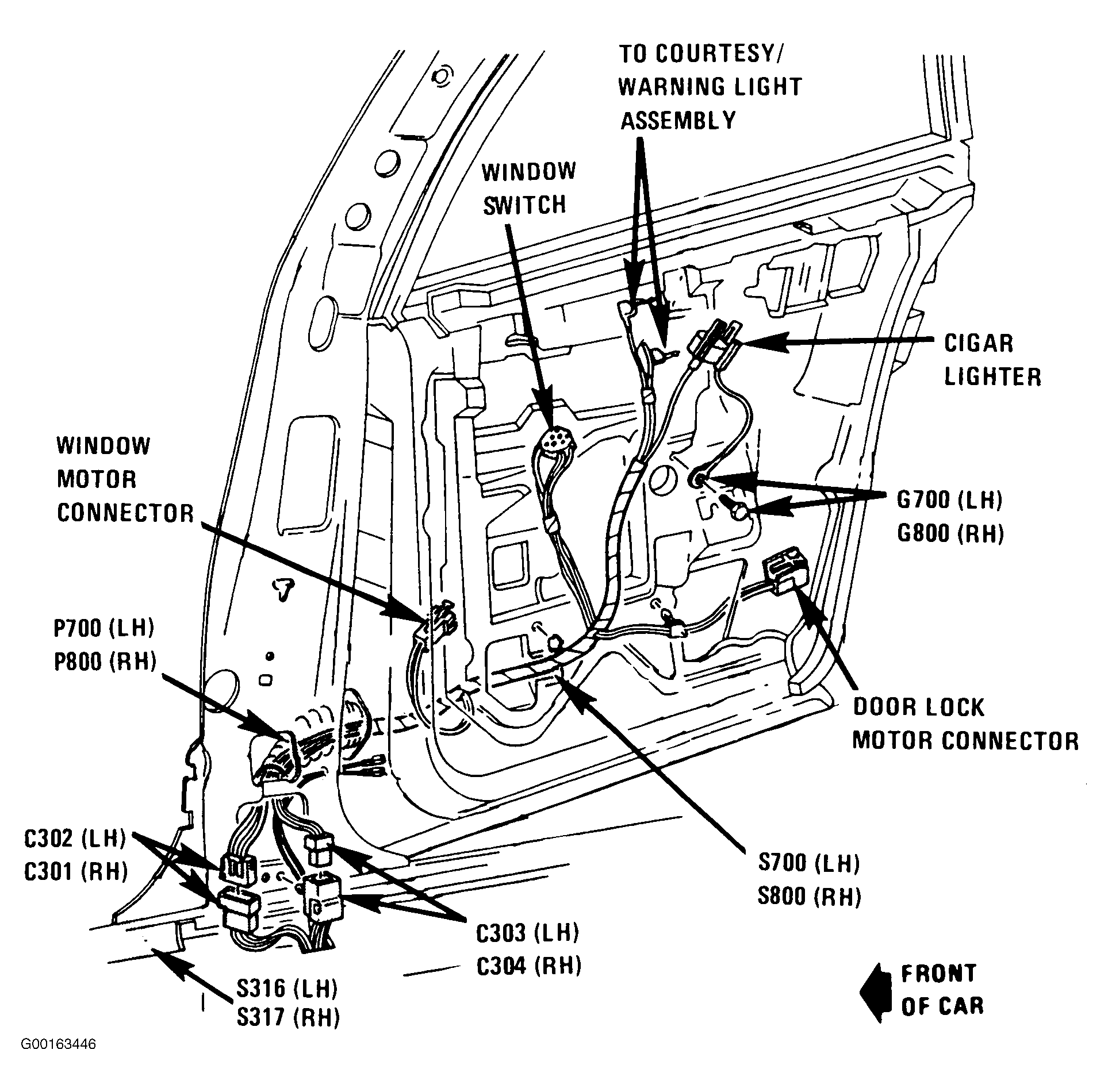

Fig 3: Locating Connectors C301 & C302, & Grommets P700 & P800
G00163446Courtesy of GENERAL MOTORS CORP.

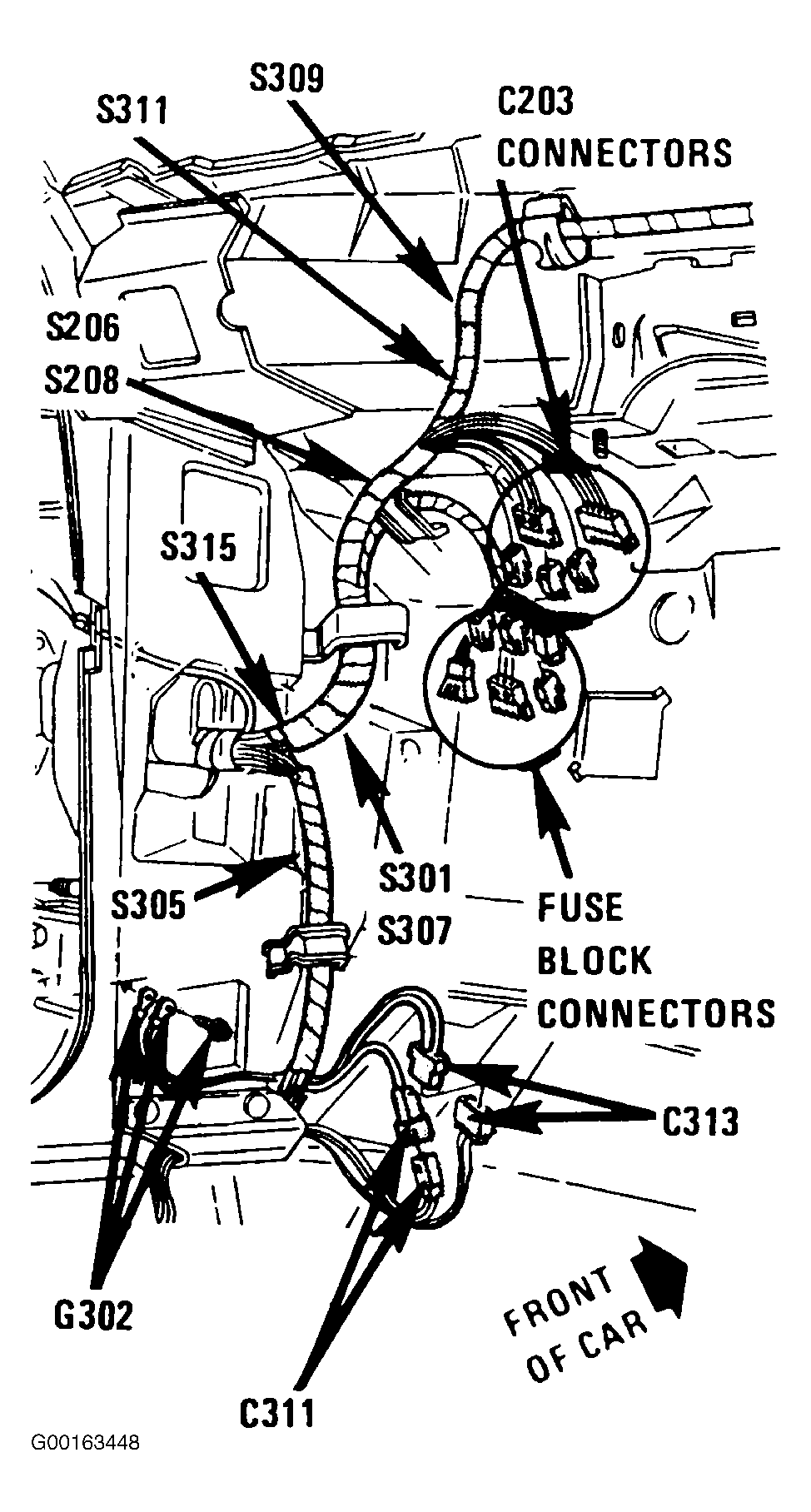

Fig 4: Locating Connector C313 & Ground G302
G00163448Courtesy of GENERAL MOTORS CORP.

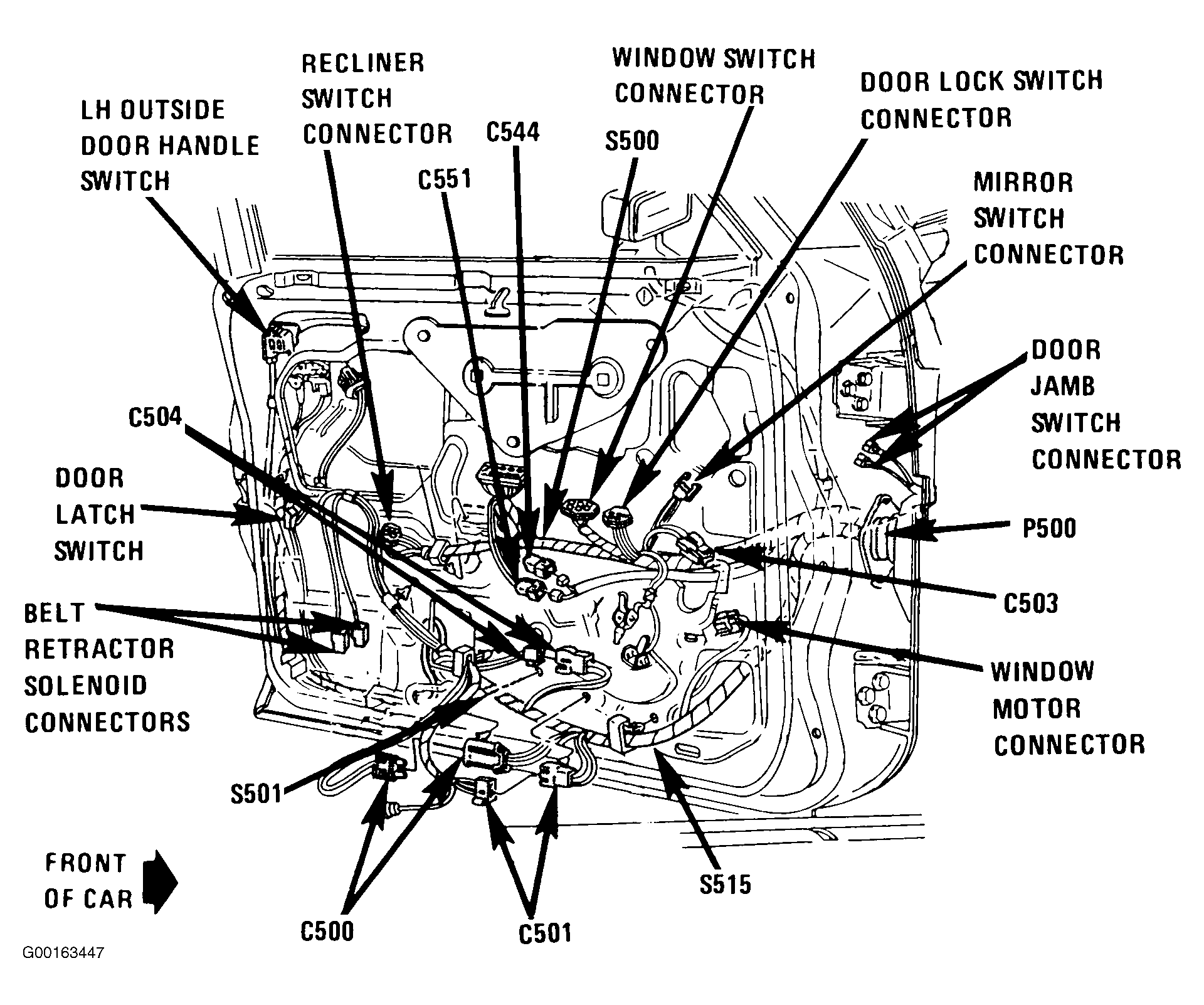

Fig 5: Locating Grommet P500
G00163447Courtesy of GENERAL MOTORS CORP.

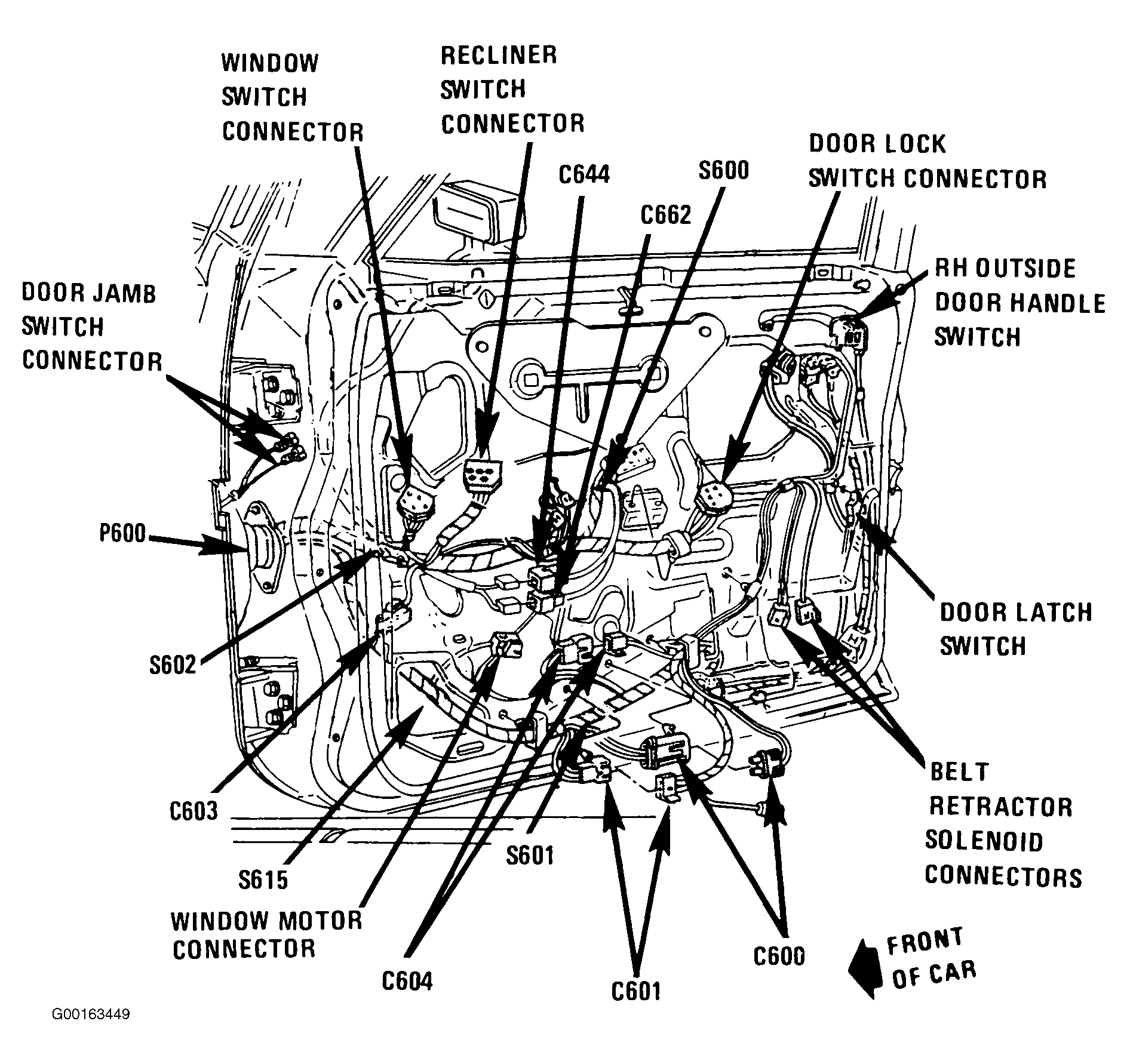

Fig 6: Locating Grommet P600
G00163449Courtesy of GENERAL MOTORS CORP.

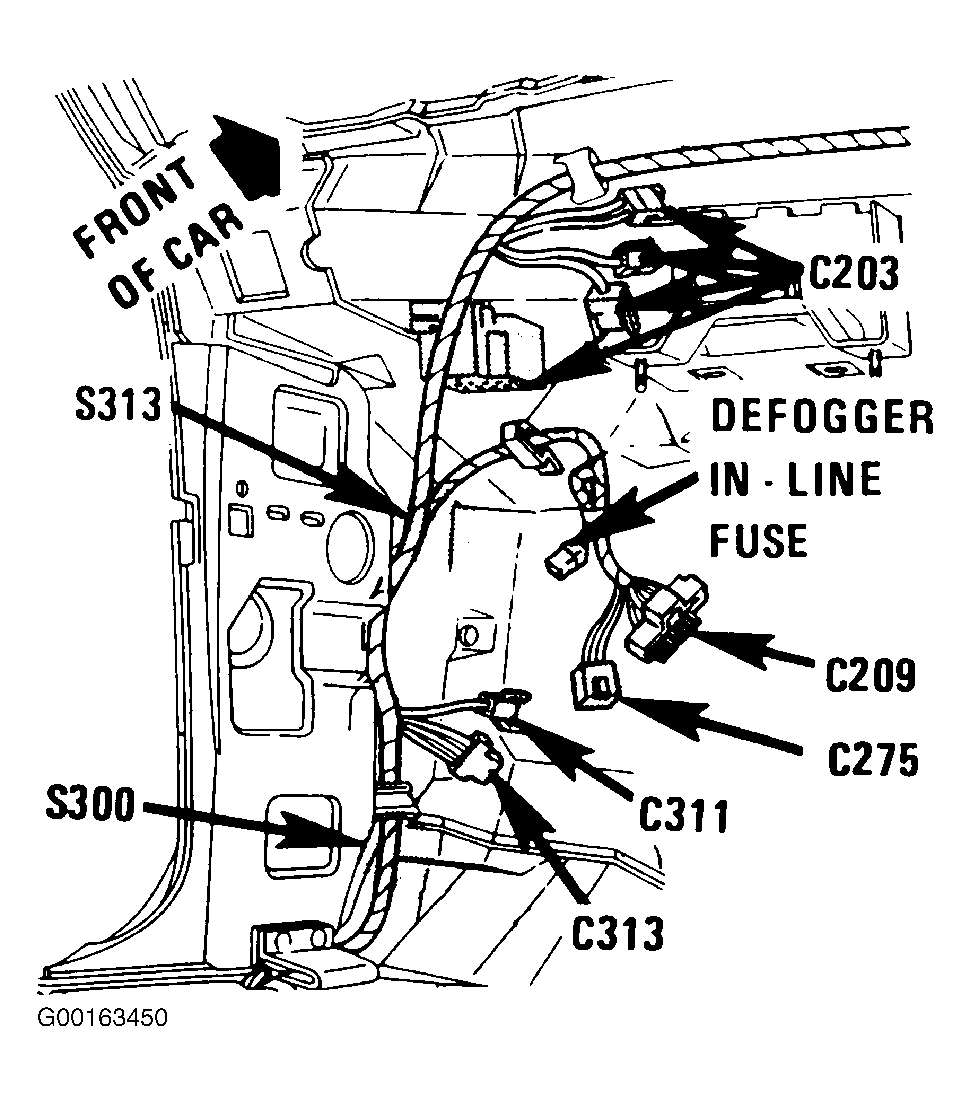

Fig 7: Locating Splice S300
G00163450Courtesy of GENERAL MOTORS CORP.
