Cadillac
>>
1992
>>
Allante F7/ME9
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - Self-Diagnostics
>>
Diagnostic Tests
>>
Pcm DTC EO98: P/N To D/R In ISC Range Problem
>>
Action
Pcm DTC EO98: P/N To D/R In ISC Range Problem: Action
Retard ignition timing, set code. No Service telltale.
NOTE:
For diagnostic flow chart, see
Fig 1

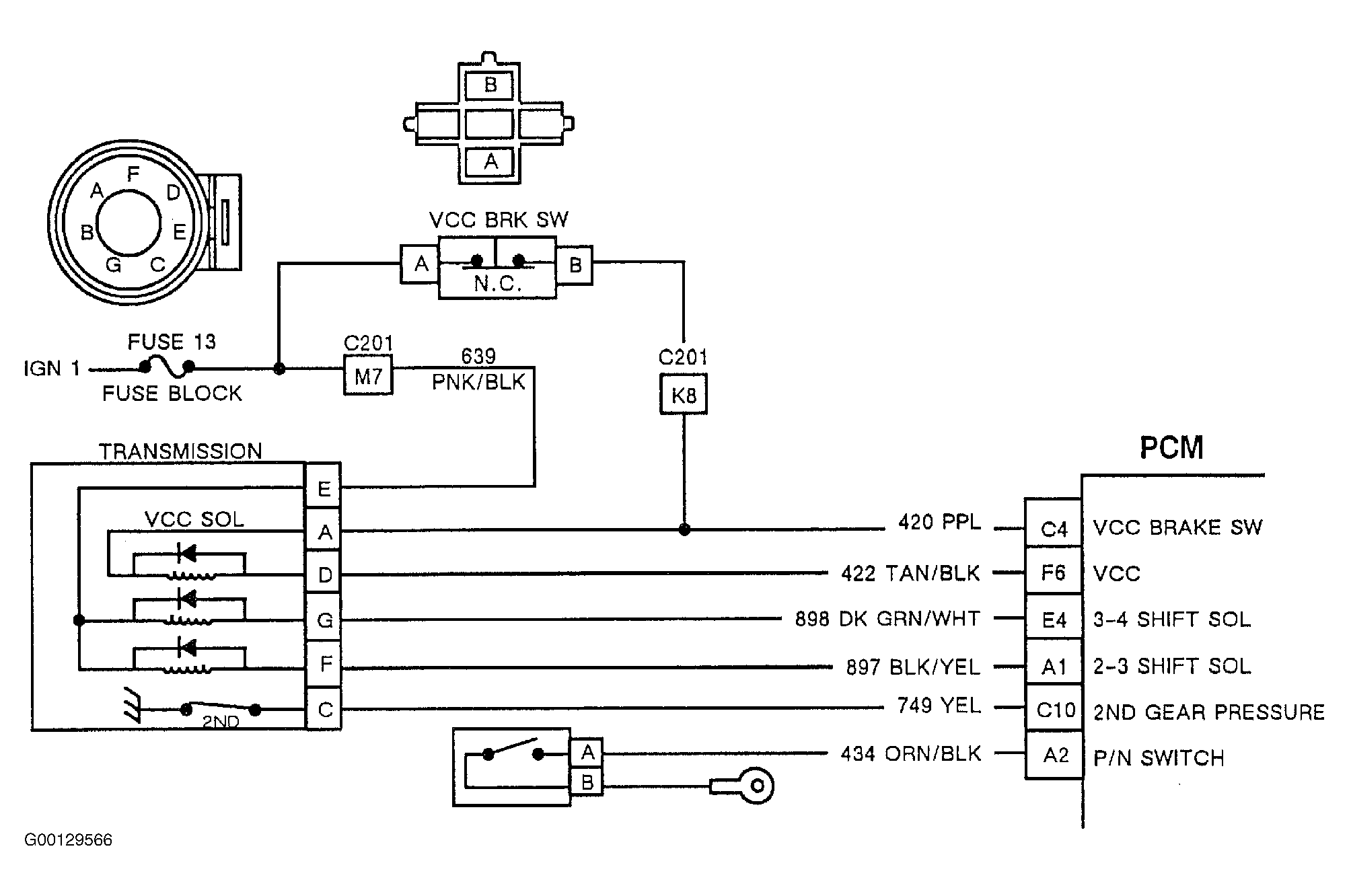

. For circuit identification, see
Figure
.

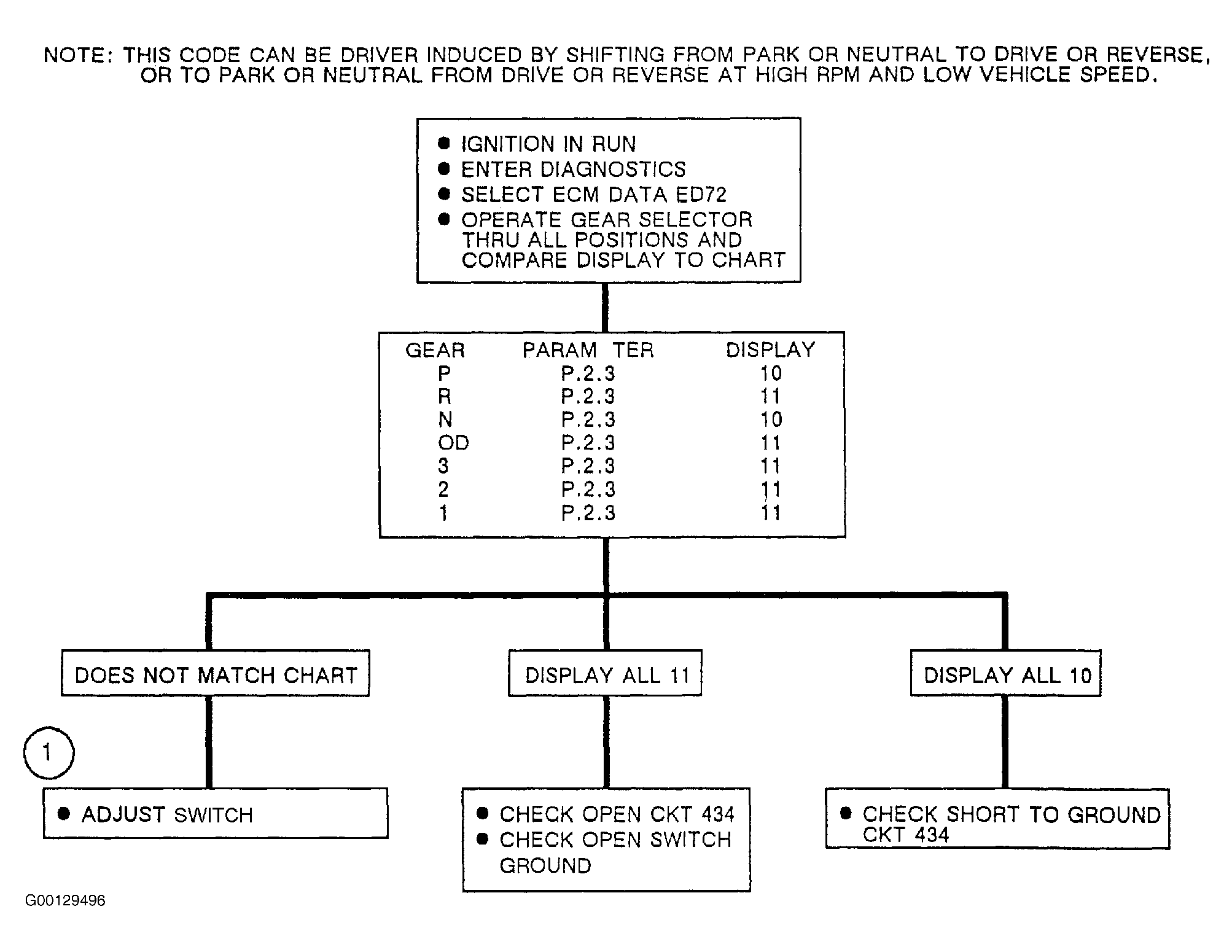

Fig 1: PCM DTC EO98: P/N To D/R In ISC Range Problem Flow Chart
Courtesy of GENERAL MOTORS CORP.
