Chart A-2: Control Pressure Switch
>>
Diagnostic Testing
Diagnostic Testing
For diagnostic procedures, see
Fig 1
.

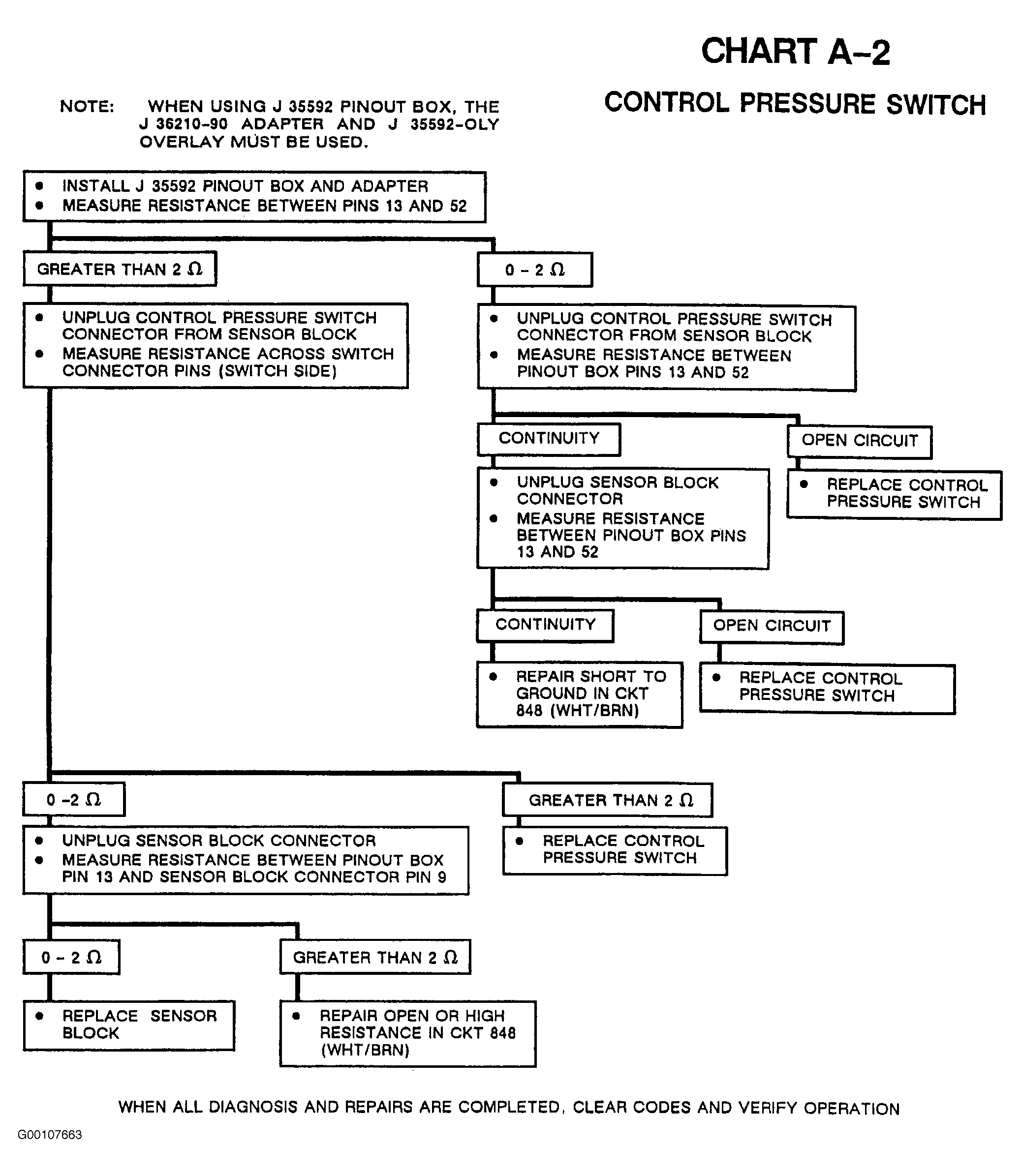

Fig 1: Chart A-2: Control Pressure Switch Diagnostic Flow Chart
Courtesy of GENERAL MOTORS CORP.
