Memory Seat Module: Removal

  1. Remove seat assembly. See SEAT ASSEMBLY .
  2. Remove nuts retaining module to seat assembly.
  3. Remove two Phillips screws and washers.
  4. Remove rubber boot from module to expose connectors.

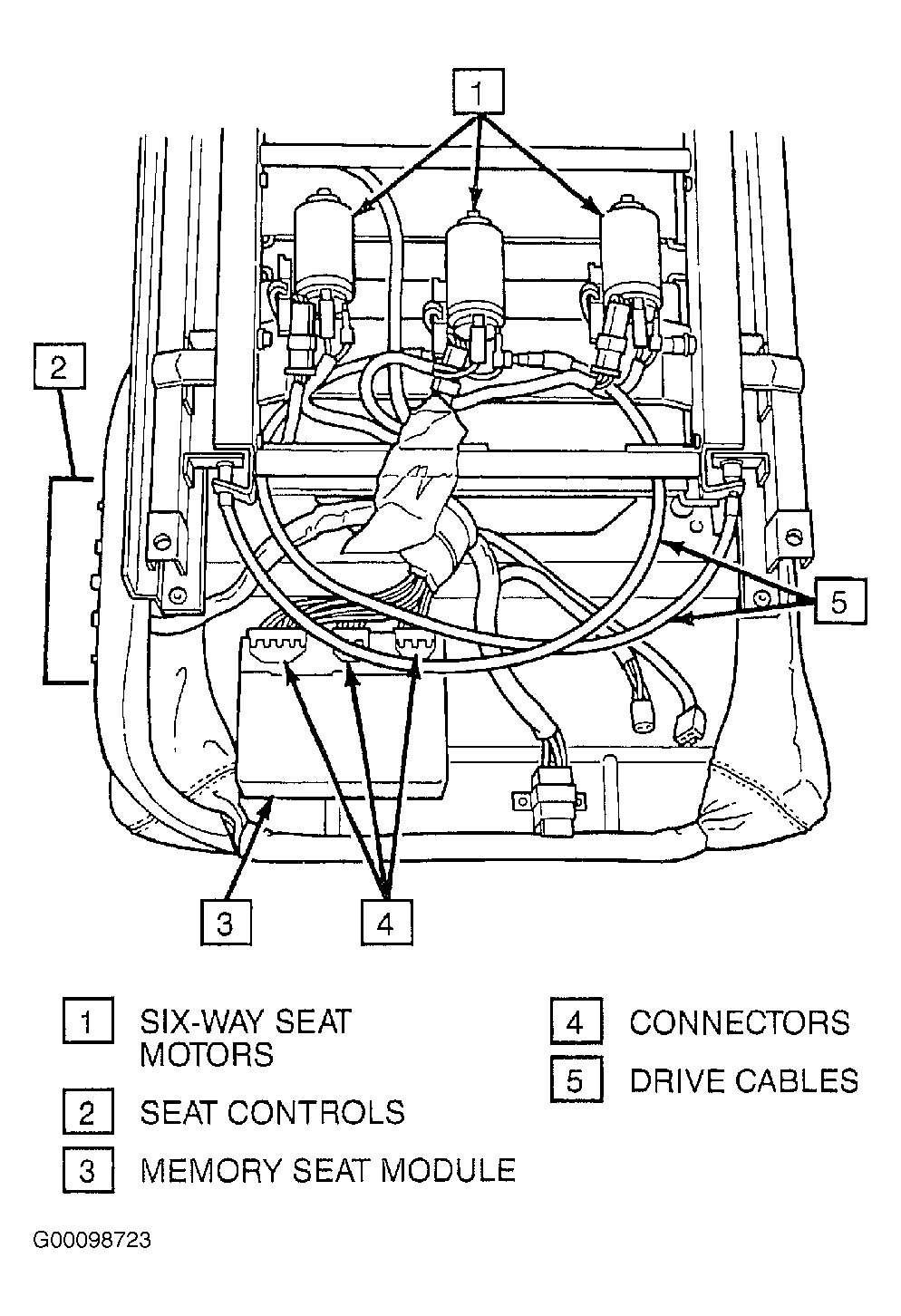

  5. Remove memory seat module. See Figure.
