Home >> Cadillac >> 1992 >> Allante F7/ME9 >> Repair and Diagnosis >> Body & Frame >> Body, Cab Control Systems >> Body Computer Module >> Diagnostic Tests >> DTC EO47, B333-B337: Serial Data Circuit Multiple Intermittent Codes >> Notes

DTC EO47, B333-B337: Serial Data Circuit Multiple Intermittent Codes: Notes

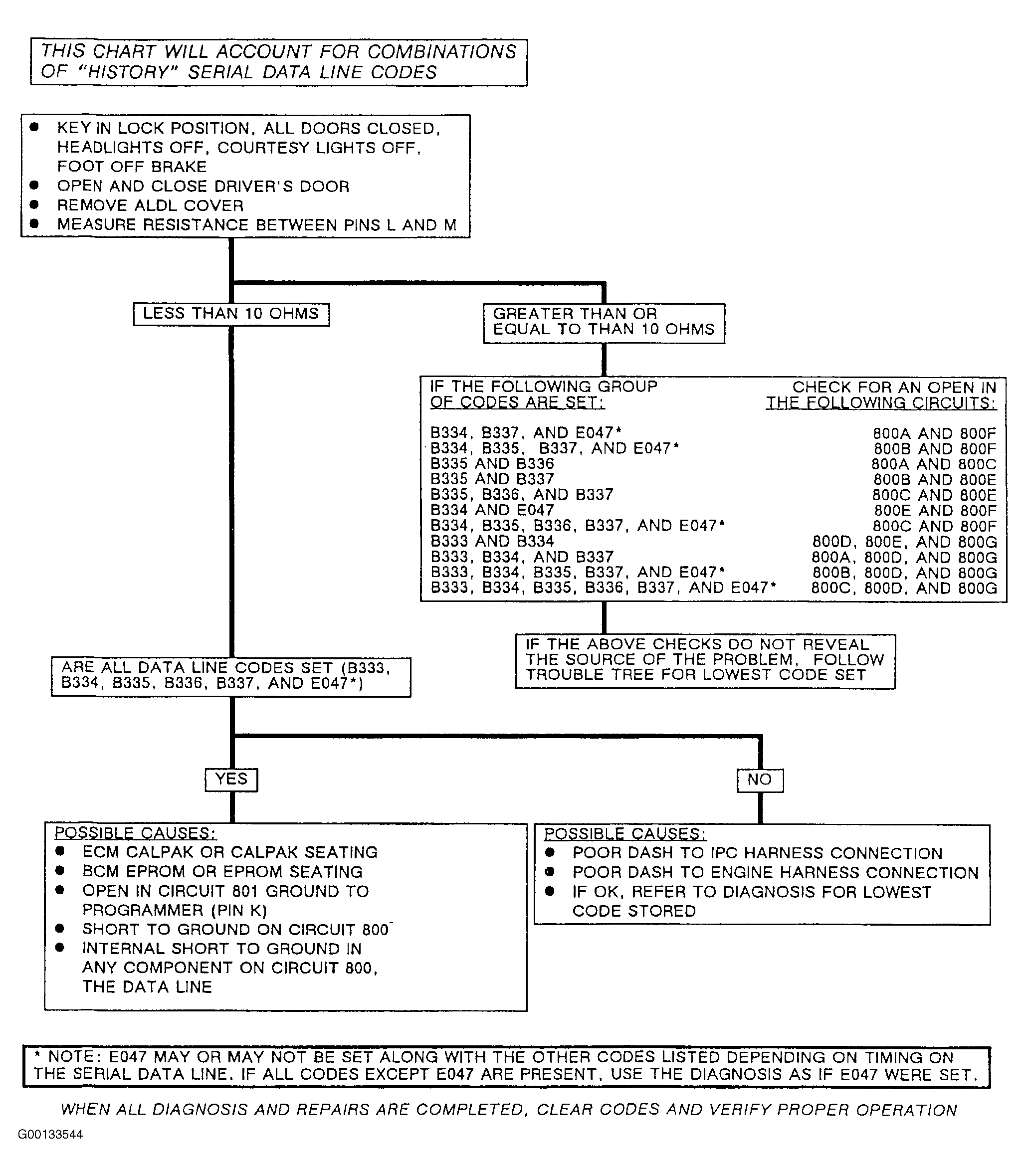

NOTE: For flow chart, see Figure . For circuit identification, see Figure .
