Test A: Keyless Entry Module Connectors Pin Out

To perform keyless entry module connectors pin out tests, see Fig 1 .

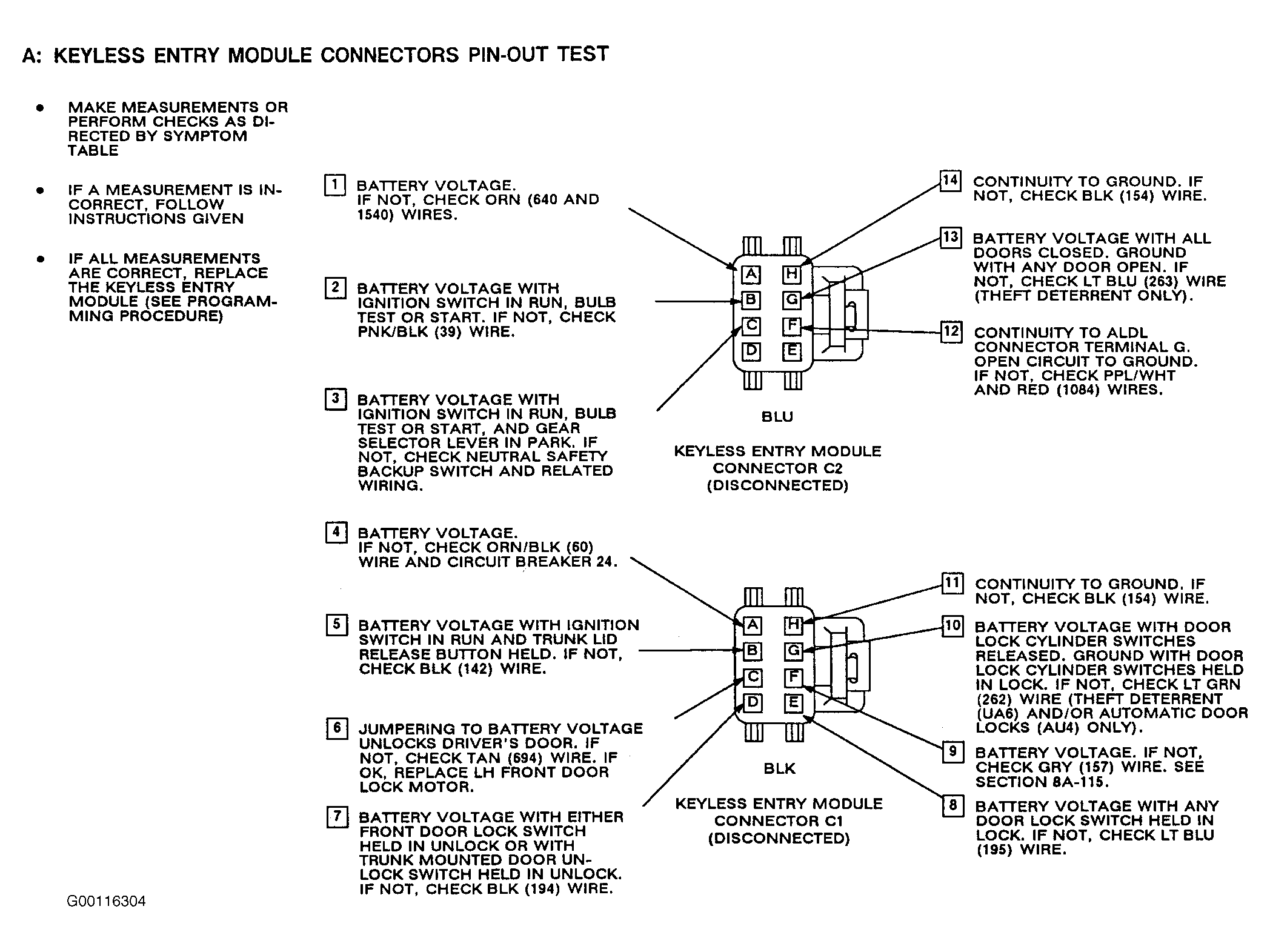

Fig 1: Keyless Entry Module Connectors Pin Out

G00116304

Courtesy of GENERAL MOTORS CORP.
