Component Location

COMPONENT LOCATION

Component Location
Assembly Line Diagnostic Link (ALDL) Connector Behind Center Of Instrument Panel, Below Ashtray. See Fig 1 .
Automatic Door Lock Controller Behind Right Hand Side Of Instrument Panel, On Relay Bracket. See Fig 2 .
Door Lock Motors In Center Of Respective Doors, Behind Inside Lock Slide. See Fig 3 .
Door Lock Relay Assembly Behind Right Hand Side Of Instrument Panel, On Relay Bracket. See Fig 2 .
Front Door Lock Cylinder Switches Rear Of Respective Front Doors, At Key Lock Assembly. See Fig 4 .
Instrument Panel Fuse Block Left Hand Side Of Instrument Panel, Behind Access Door. See Fig 5 .
Keyless Entry Module Behind Right Hand Side Of Instrument Panel, Above Glove Box. See Fig 6 .
Neutral Safety Back Up Switch Left Hand Rear Of Engine Compartment, Top Of Transaxle. See Fig 7 .
Relay Center Behind Right Hand Side Of Instrument Panel, At Top Of Shroud. See Fig 2 .
Theft Deterrent Controller Behind Left Hand Side Of Instrument Panel, Left Of Steering Column Support. See Fig 5 .
Theft Deterrent Diode Behind Left Hand Side Of Instrument Panel, Left Of Steering Column Support, Taped To Body Main Harness. See Fig 5 .
Trunk Lid Release Actuator Center Rear Of Trunk Lid, Left Of Lock Assembly. See Fig 8 .
Trunk Lid Tamper Switch Center Rear Of Trunk Lid, On Lock Assembly. See Fig 8 .
C108 (1 Cavity) Lower Right Hand Side Of Engine Compartment, Left Of Right Hand Horns. See Fig 9 .
C109 (7 Cavities) Left Hand Side Of Engine Compartment, Left Of Transaxle. See Fig 7 .
C202 (8 Cavities) Behind Right Hand Side Of Instrument Panel, Near Glove Box. See Fig 6 .
C203 (8 Cavities) Behind Right Hand Side Of Instrument Panel, Near Glove Box. See Fig 6 .
C228 (10 Cavities) At Left Hand Front Door Sill. See Fig 10 .
C301 (10 Cavities) At Right Hand Front Door Sill. See Fig 10 .
C304 (10 Cavities) Bottom Of Right Hand Shroud, At Door Sill. See Fig 10 .
C503 (4 Cavities) In Center Portion Of Left Hand Door. See Fig 4 .
C603 (4 Cavities) In Center Portion Of Right Hand Door. See Fig 4 .
C701 (10 Cavities) In Bottom Of Left Hand Center Pillar. See Fig 11 .
C801 (10 Cavities) In Bottom Of Right Hand Center Pillar. See Fig 11 .
G100 Right Hand Side Of Engine Compartment, Right Of Battery. See Fig 12 .
G101 Lower Front Of Engine, Left Of Starter Solenoid. See Fig 12 .
G200 Behind Left Hand Side Of Instrument Panel, Top Of Shroud. See Fig 13 .
G201 Behind Right Hand Side Of Instrument Panel, Top Of Shroud. See Fig 14 .
P100 Left Hand Rear Of Engine Compartment, Front Of Dash. See Fig 15 .
P101 Right Hand Rear Of Engine Compartment, Front Of Dash. See Fig 16 .
P406 Left Hand Rear Of Trunk Lid, At Trunk Lid Release Actuator. See Fig 8 .
P500 In Left Hand Shroud. See Fig 17 .
P600 In Right Hand Shroud. See Fig 17 .
P700 In Left Hand Center Pillar. See Fig 3 .
P800 In Right Hand Center Pillar Fig 3 .
S120 Body Main Harness, Lower Right Hand Side Of Engine Compartment. See Fig 9 .
S208 Body Main Harness, Behind Center Of Instrument Panel. See Fig 15 .
S224 Body Main Harness, Behind Instrument Panel, Left Of Steering Column. See Fig 5 .
S225 Body Main Harness, Behind Instrument Panel, Left Of Steering Column. See Fig 5 .
S229 (IDC) Body Main Harness, Behind Left Hand Side Of Instrument Panel, In Dash Channel Near Top Of Shroud. See Fig 18 .
S232 Body Main Harness, Behind Instrument Panel, Left Of Steering Column. See Fig 5 .
S238 Body Main Harness, Top Of Right Hand Shroud. See Fig 14 .
S248 (IDC) Body Main Harness, Middle Of Right Hand Shroud. See Fig 14 .
S251 Body Main Harness, Behind Right Hand Side Of Instrument Panel. See Fig 2 .
S253 Body Main Harness, Above Right Hand Shroud. See Fig 14 .
S254 Body Main Harness, Behind Instrument Panel, Right Of Steering Column. See Fig 15 .
S266 Body Main Harness, Behind Left Hand Side Of Instrument Panel. See Fig 15 .
S267 Body Main Harness, Top Of Right Hand Shroud. See Fig 14 .
S301 Body Main Harness, Middle Of Right Hand Shroud. See Fig 14 .
S302 Body Main Harness, Bottom Of Right Hand Shroud. See Fig 14 .
S313 Body Main Harness, Top Of Right Hand Shroud. See Fig 14 .
S314 Body Main Harness, Middle Of Right Hand Shroud. See Fig 14 .
S315 Body Main Harness, Middle Of Right Hand Shroud. See Fig 14 .
S340 Body Main Harness, Bottom Of Left Hand Shroud. See Fig 13 .
S394 Body Main Harness, Behind Right Hand Side Of Instrument Panel. See Fig 2 .
S701 Left Hand Rear Door Harness, In Bottom Of Left Hand Center Pillar. See Fig 11 .
S810 Right Hand Rear Door Harness, In Bottom Of Right Hand Center Pillar. See Fig 11 .
Fig 1: Identifying Behind Center Of Instrument Panel Components
G00116278Courtesy of GENERAL MOTORS CORP.
Fig 2: Locating Relay Center, S251 & S394
G00116279Courtesy of GENERAL MOTORS CORP.
Fig 3: Identifying Right Hand Rear Door Components
G00116280Courtesy of GENERAL MOTORS CORP.
Fig 4: Identifying Left Hand Front Door Components (Sedan)
G00116281Courtesy of GENERAL MOTORS CORP.
Fig 5: Identifying Behind Left Hand Side Of Instrument Panel
G00116282Courtesy of GENERAL MOTORS CORP.
Fig 6: Locating Keyless Entry Module, C202 & C203
G00116283Courtesy of GENERAL MOTORS CORP.

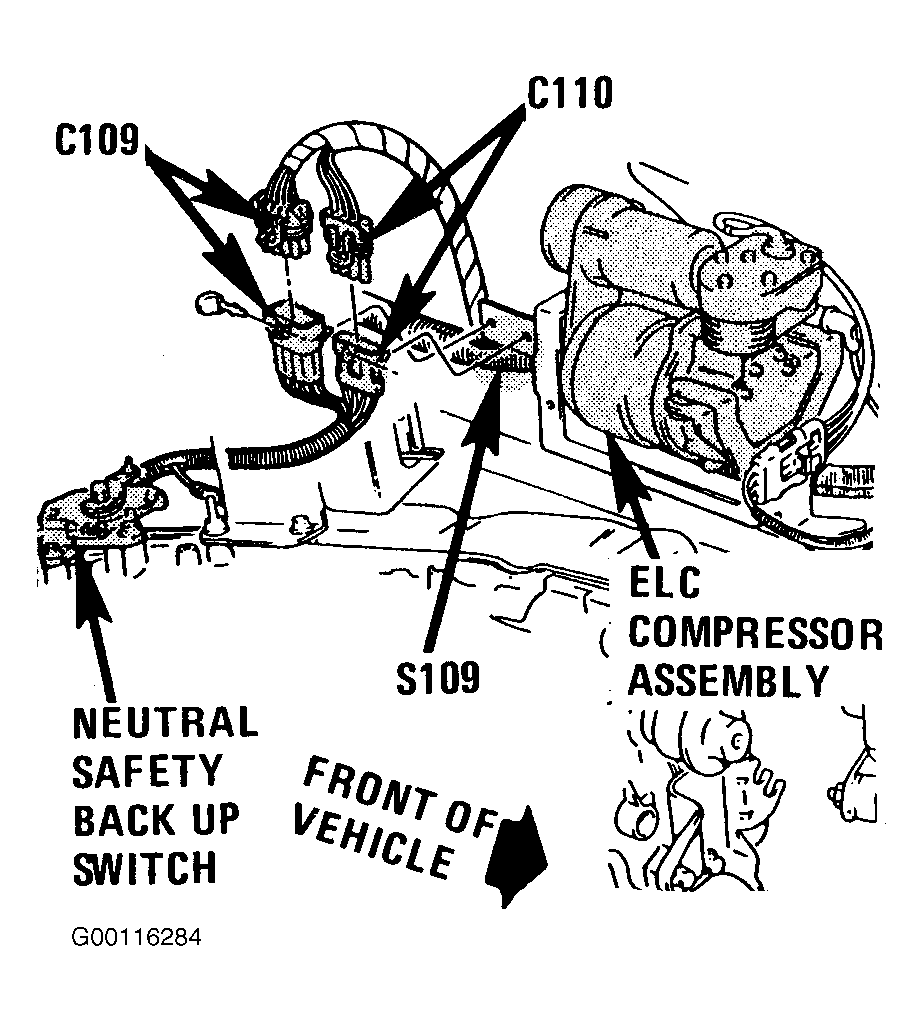

Fig 7: Identifying Left Hand Side Of Engine Compartment
G00116284Courtesy of GENERAL MOTORS CORP.
Fig 8: Identifying Underside Of Trunk Lid
G00116285Courtesy of GENERAL MOTORS CORP.
Fig 9: Identifying Right Hand Front Of Engine Compartment
G00116286Courtesy of GENERAL MOTORS CORP.
Fig 10: Identifying Front Floor Pan Components
G00116287Courtesy of GENERAL MOTORS CORP.
Fig 11: Identifying Right Hand Center PillarComponents
G00116288Courtesy of GENERAL MOTORS CORP.
Fig 12: Identifying Top Left Hand Side Of Engine
G00116289Courtesy of GENERAL MOTORS CORP.
Fig 13: Identifying Top Of Left Hand Shroud
G00116290Courtesy of GENERAL MOTORS CORP.
Fig 14: Identifying Right Hand Shroud
G00116291Courtesy of GENERAL MOTORS CORP.
Fig 15: Identifying Behind Center Of Instrument Panel
G00116292Courtesy of GENERAL MOTORS CORP.
Fig 16: Identifying Right Hand Front Of Dash
G00116293Courtesy of GENERAL MOTORS CORP.

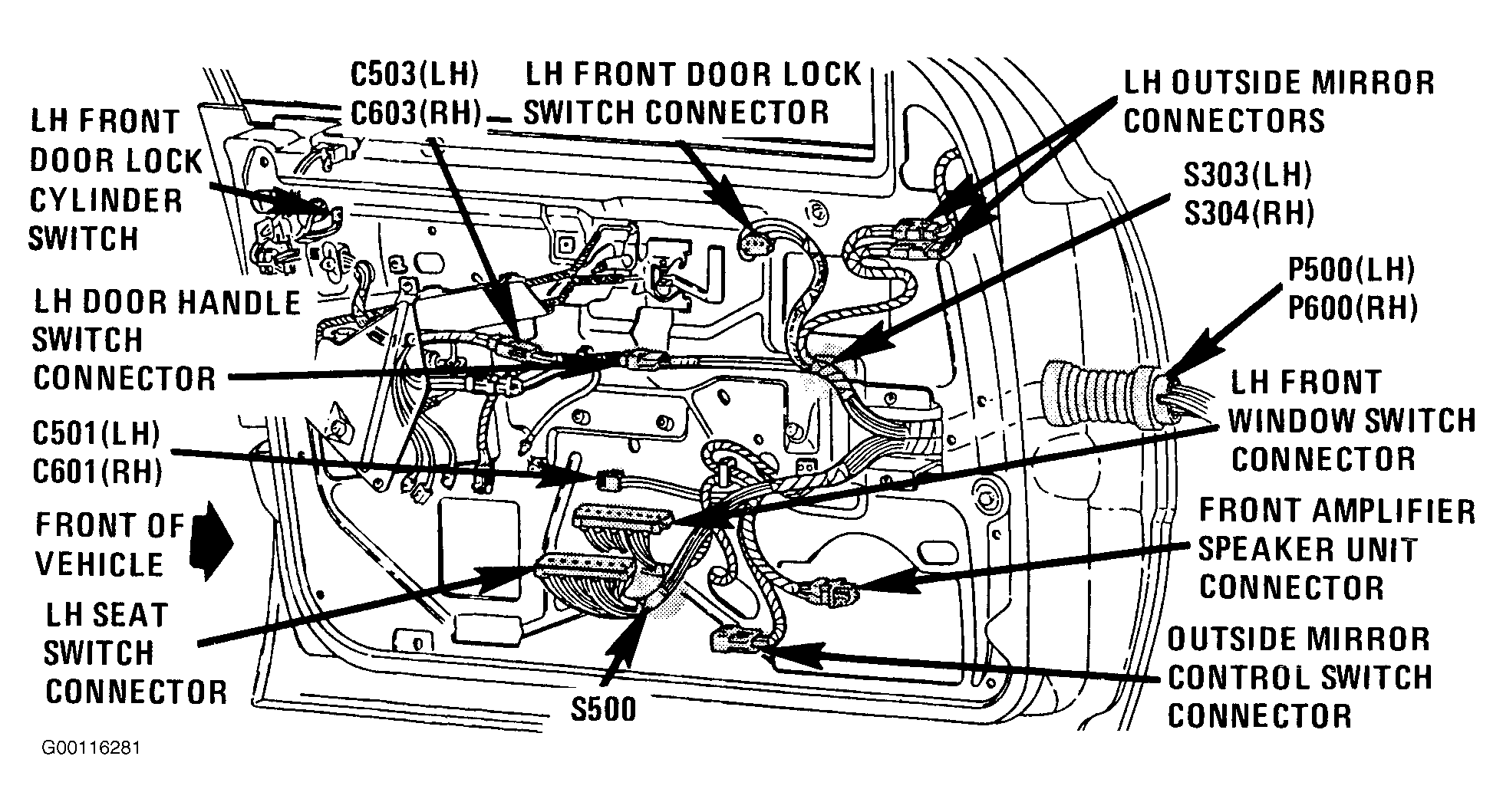

Fig 17: Identifying Left Hand Front Door Components
G00116294Courtesy of GENERAL MOTORS CORP.

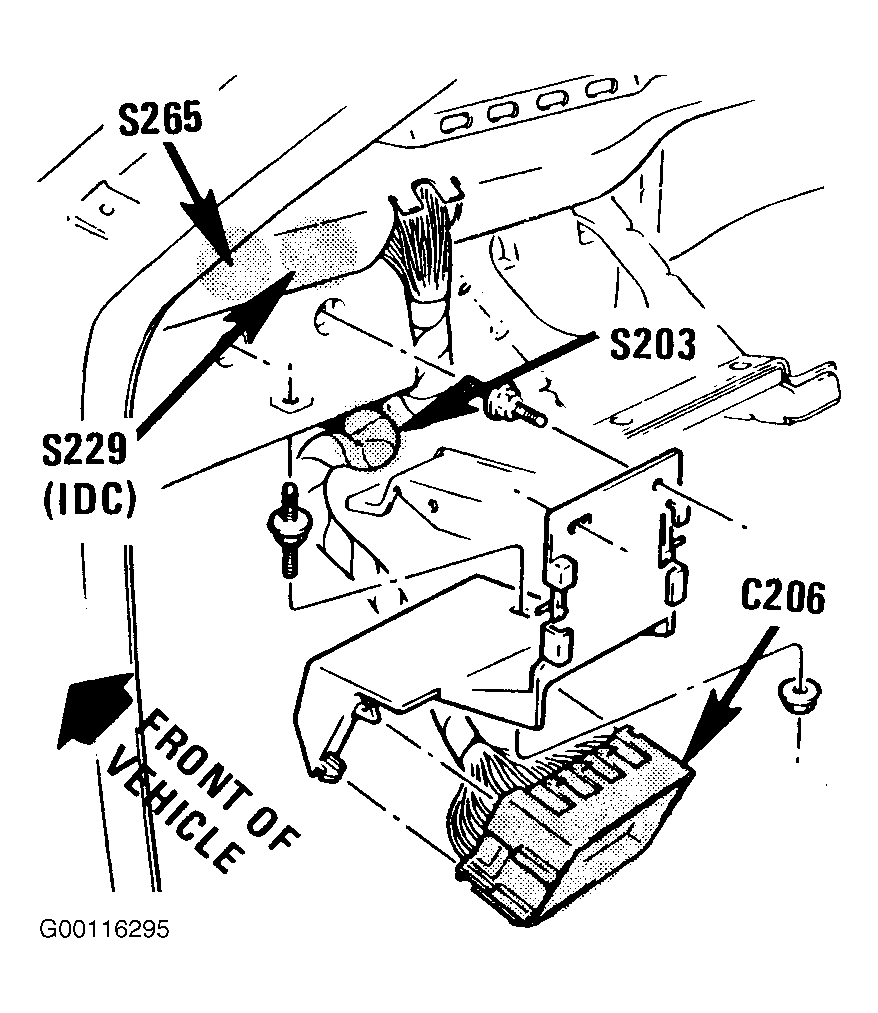

Fig 18: Identifying Behind Left Hand Side Of Instrument Panel
G00116295Courtesy of GENERAL MOTORS CORP.
