Spring Clips: Removal

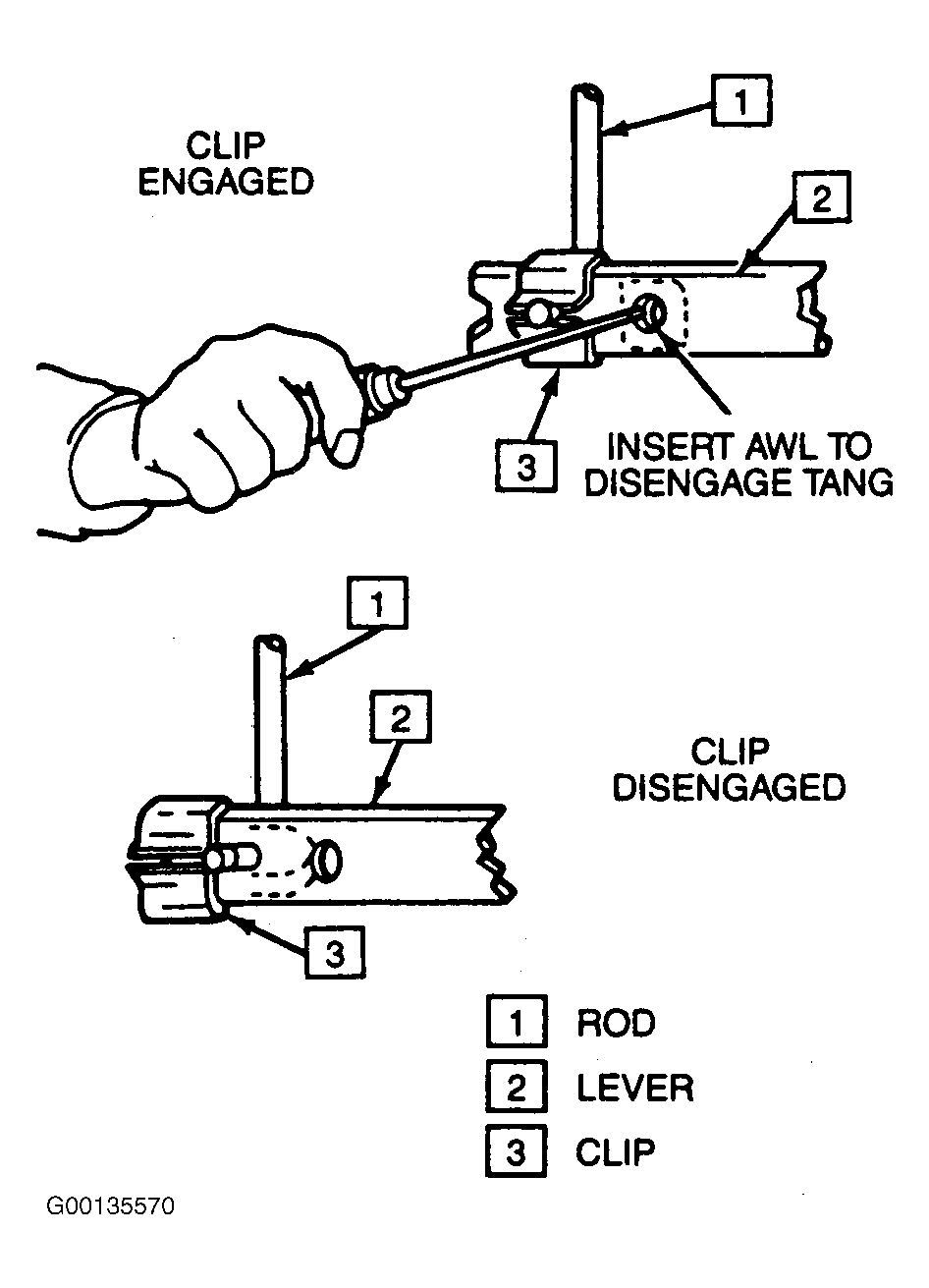

  1. Using a scratch awl, slide retaining clip out of engagement with connecting rod. See Figure .
  2. Remove connecting rod from lever.
