Note On Intermittents

If intermittent Code B123 is being set, manipulate circuit No. 685. When BCM input B101 change-of-state indicator displays an "X", check circuit at that location for intermittent fault.

Fig 1: BCM Code B123 Circuit Diagram

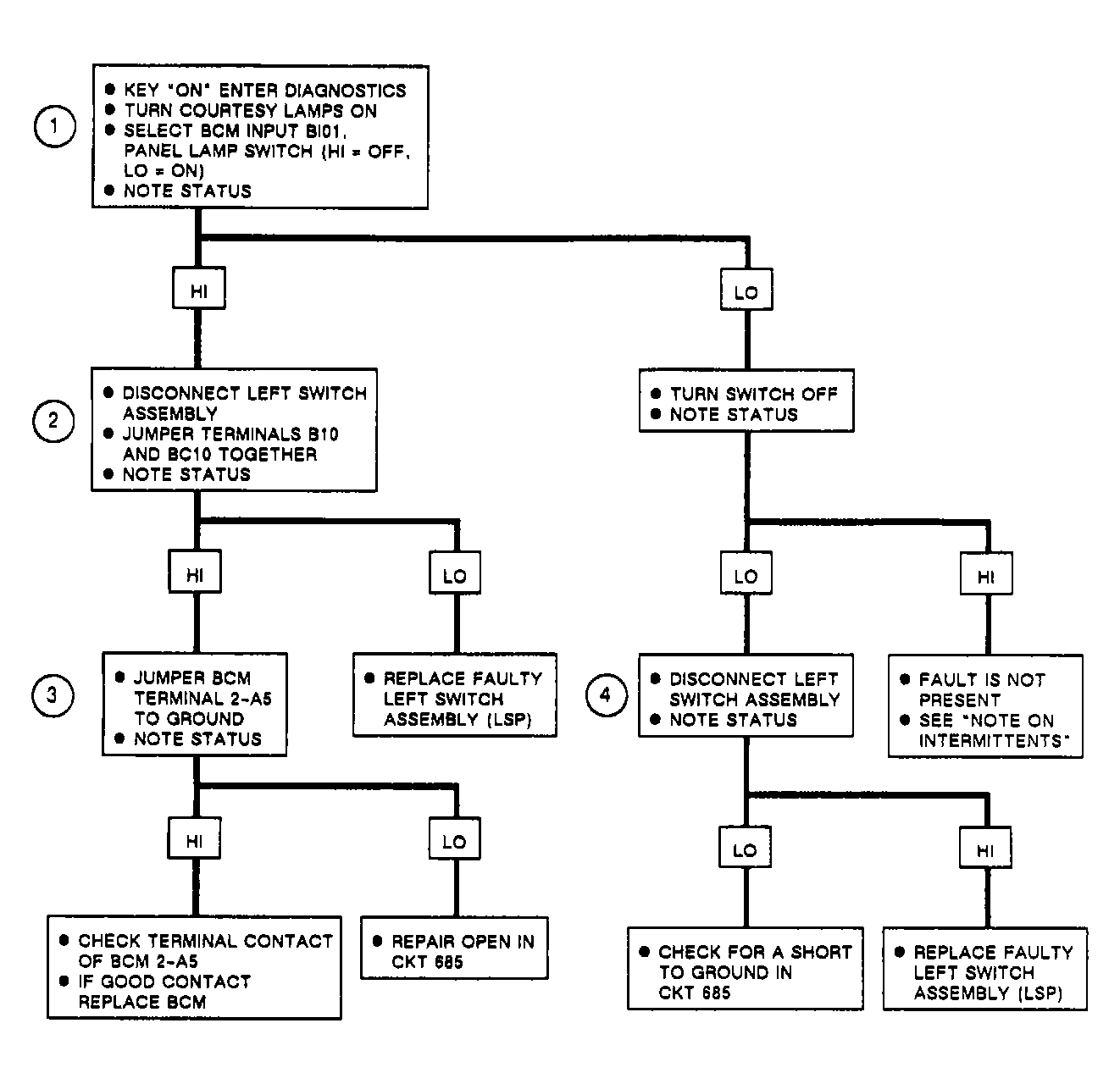

Fig 2: BCM Code B123 Flow Chart
