Home >> Cadillac >> 1990 >> Allante F7/ME9 >> Repair and Diagnosis >> Brakes >> Anti-Lock/Traction Control >> System Tests >> Test C: Hydraulic System Performance Check

Test C: Hydraulic System Performance Check

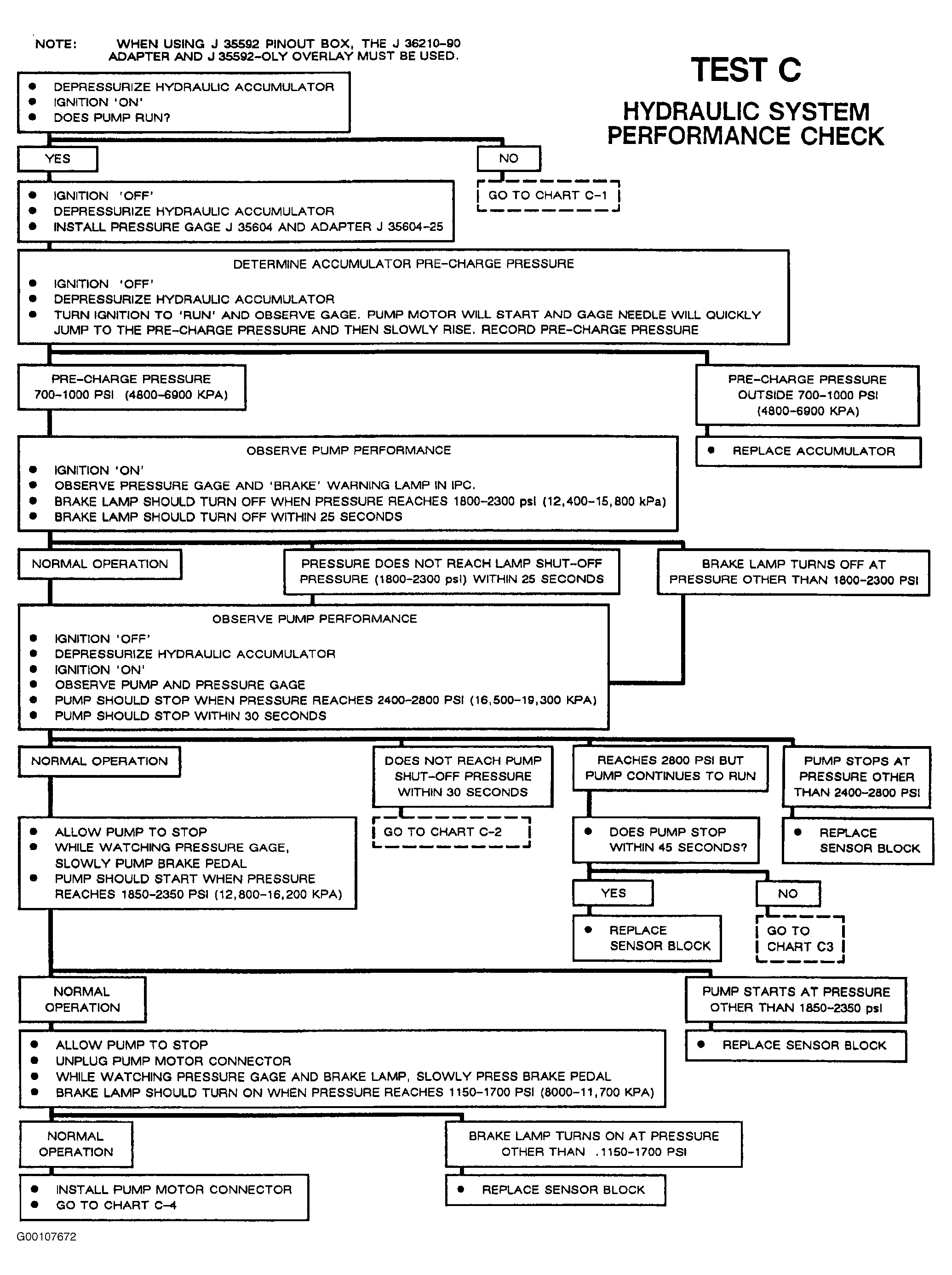

Fig 1: Test C: Hydraulic System Performance Chart

G00107672

Courtesy of GENERAL MOTORS CORP.
