Control Pressure Switch: Removal

  1. Depressurize hydraulic accumulator by pumping brake pedal a minimum of 25 times.
  2. Disconnect control pressure switch from booster/master cylinder assembly. See Fig 1 .

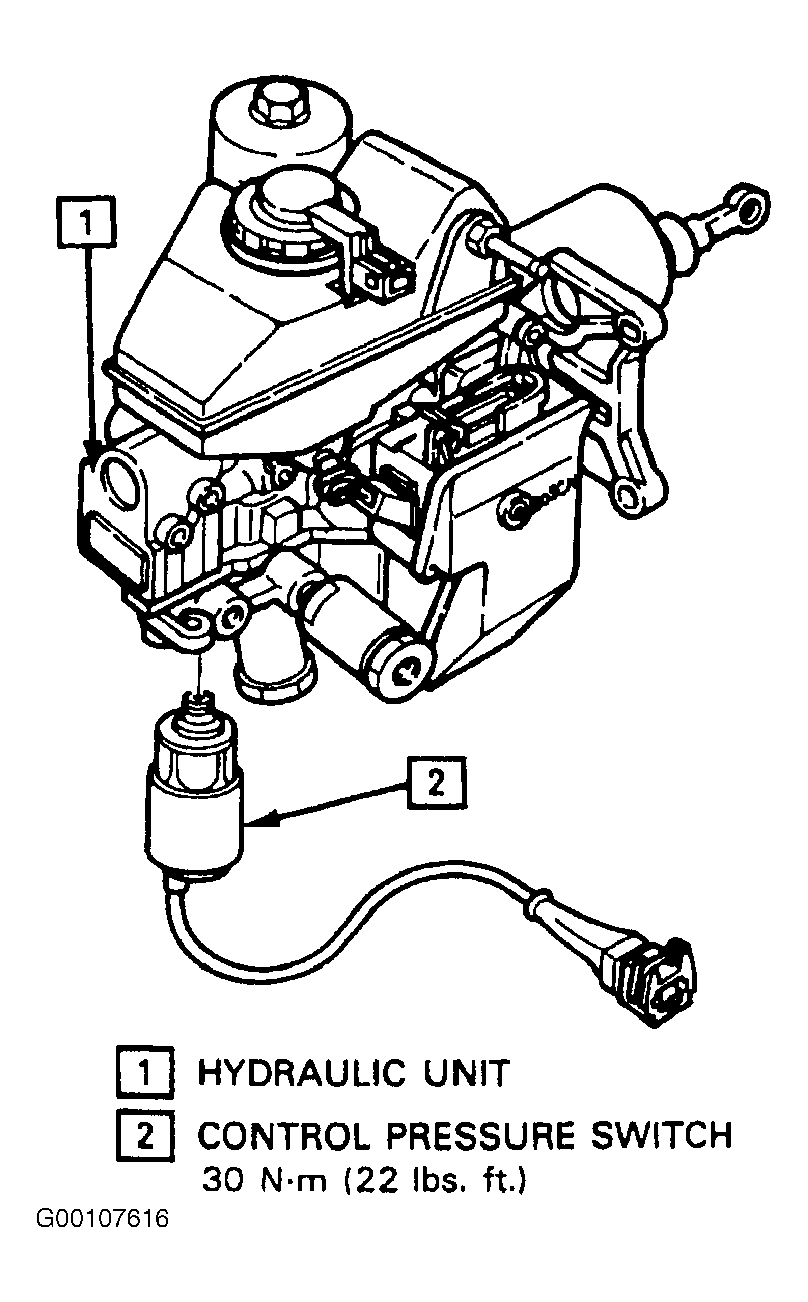

Fig 1: Identifying Control Pressure Switch
G00107616Courtesy of GENERAL MOTORS CORP.
