Test Description

For test description, see Fig 1 .

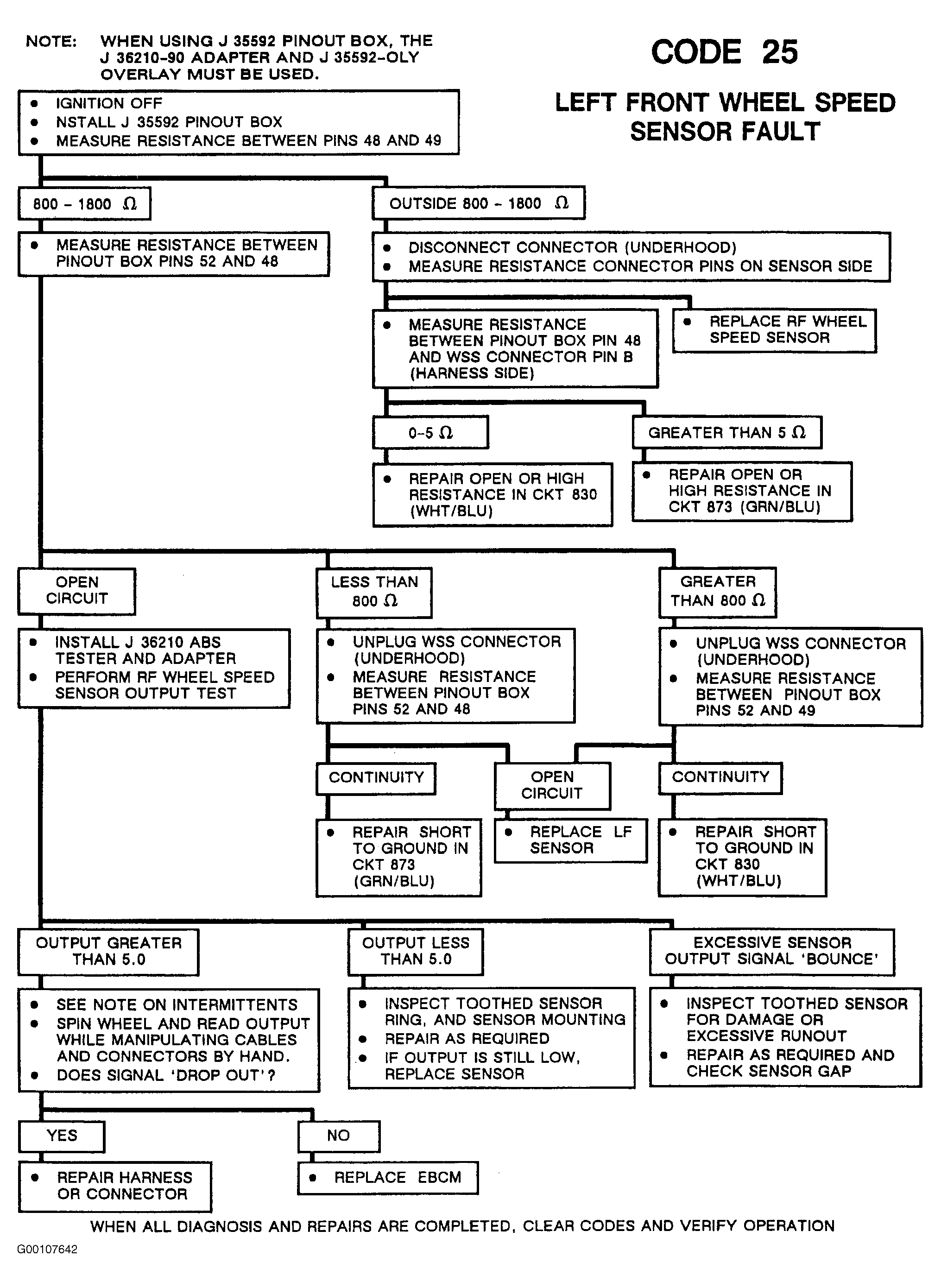

Fig 1: Code 25: Diagnostic Chart

G00107642

Courtesy of GENERAL MOTORS CORP.
