Home >> Cadillac >> 1990 >> Allante 4T60/ME9 >> Repair and Diagnosis >> Steering >> Steering Column >> Overhaul

Steering Column: Overhaul

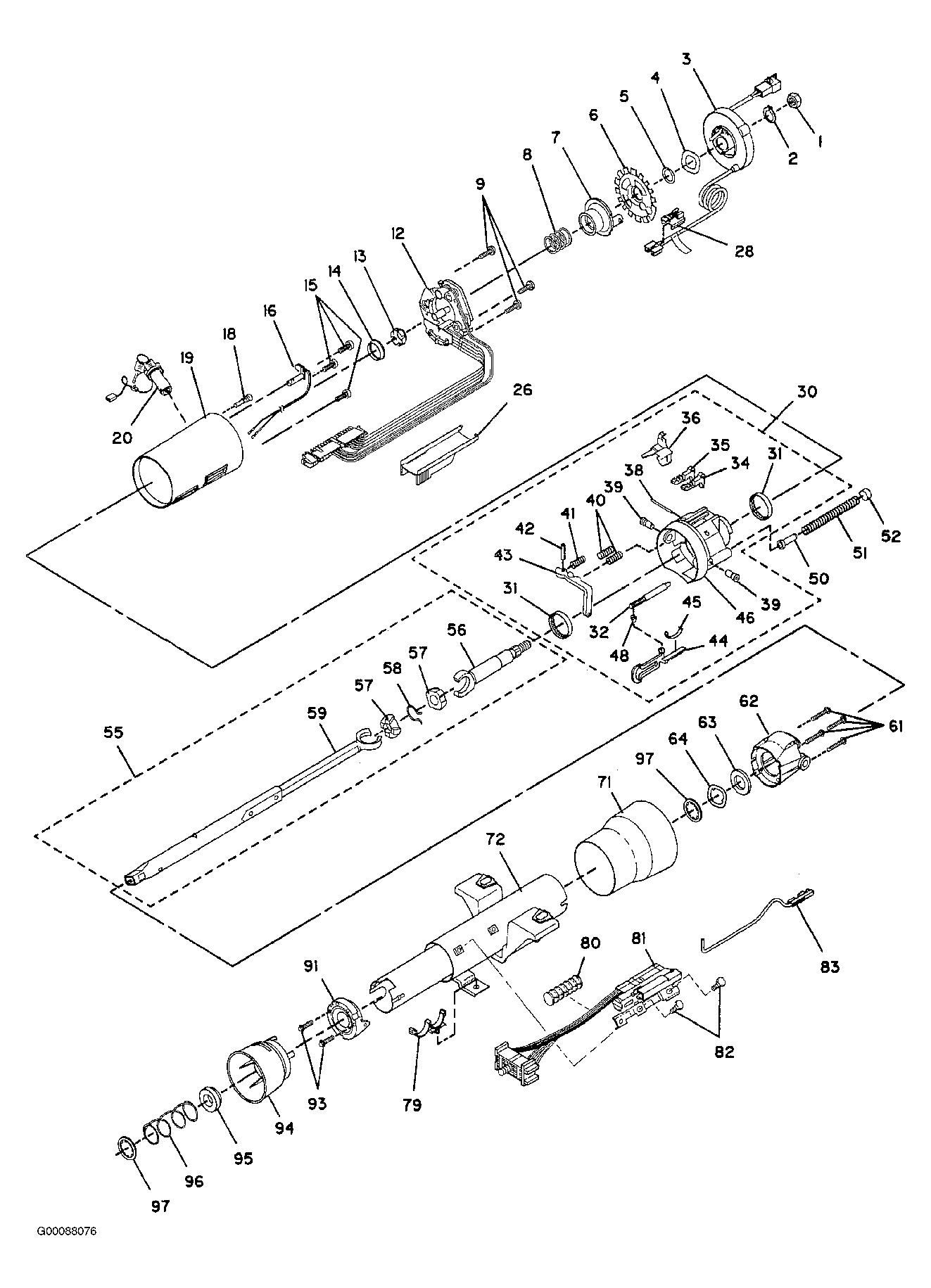

Fig 1: Exploded View Of Tilt Steering Column (1 Of 2)
G00088076Courtesy of GENERAL MOTORS CORP.

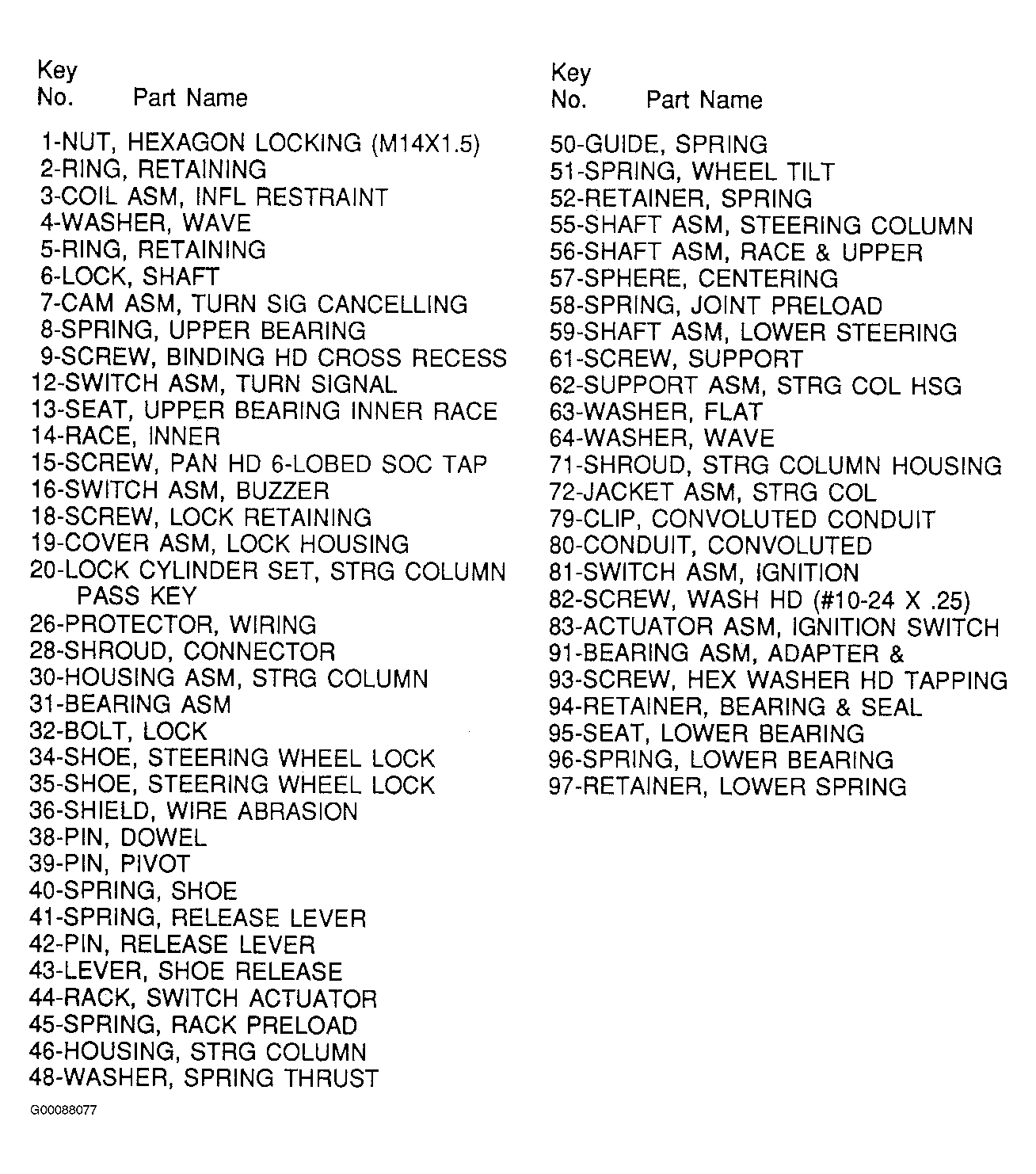

Fig 2: Exploded View Of Tilt Steering Column, Legend (2 Of 2)
G00088077Courtesy of GENERAL MOTORS CORP.
