Test Description

For test description, see Fig 1 .

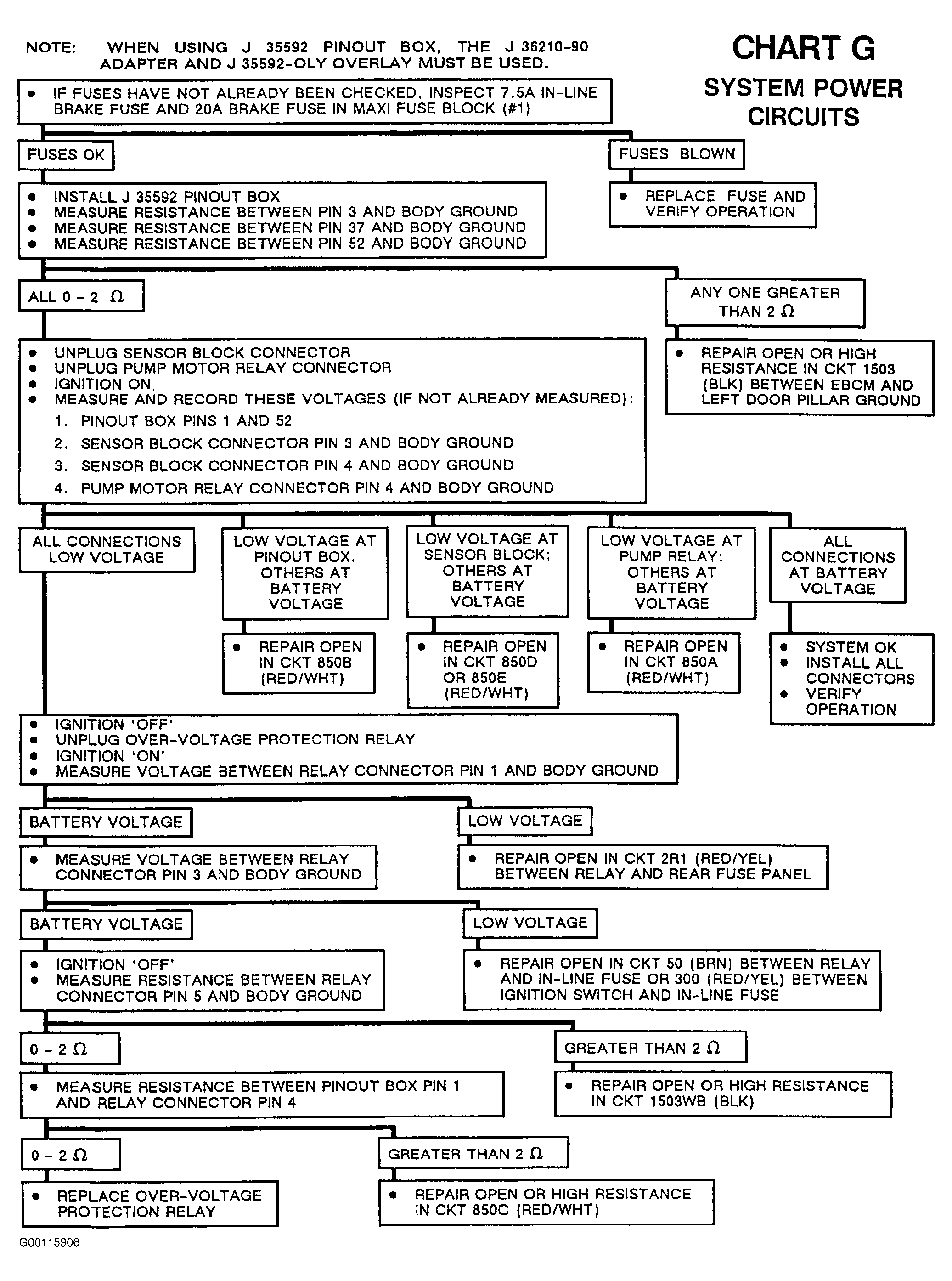

Fig 1: Chart G: Diagnostic Chart

G00115906

Courtesy of GENERAL MOTORS CORP.
