Connector Identification

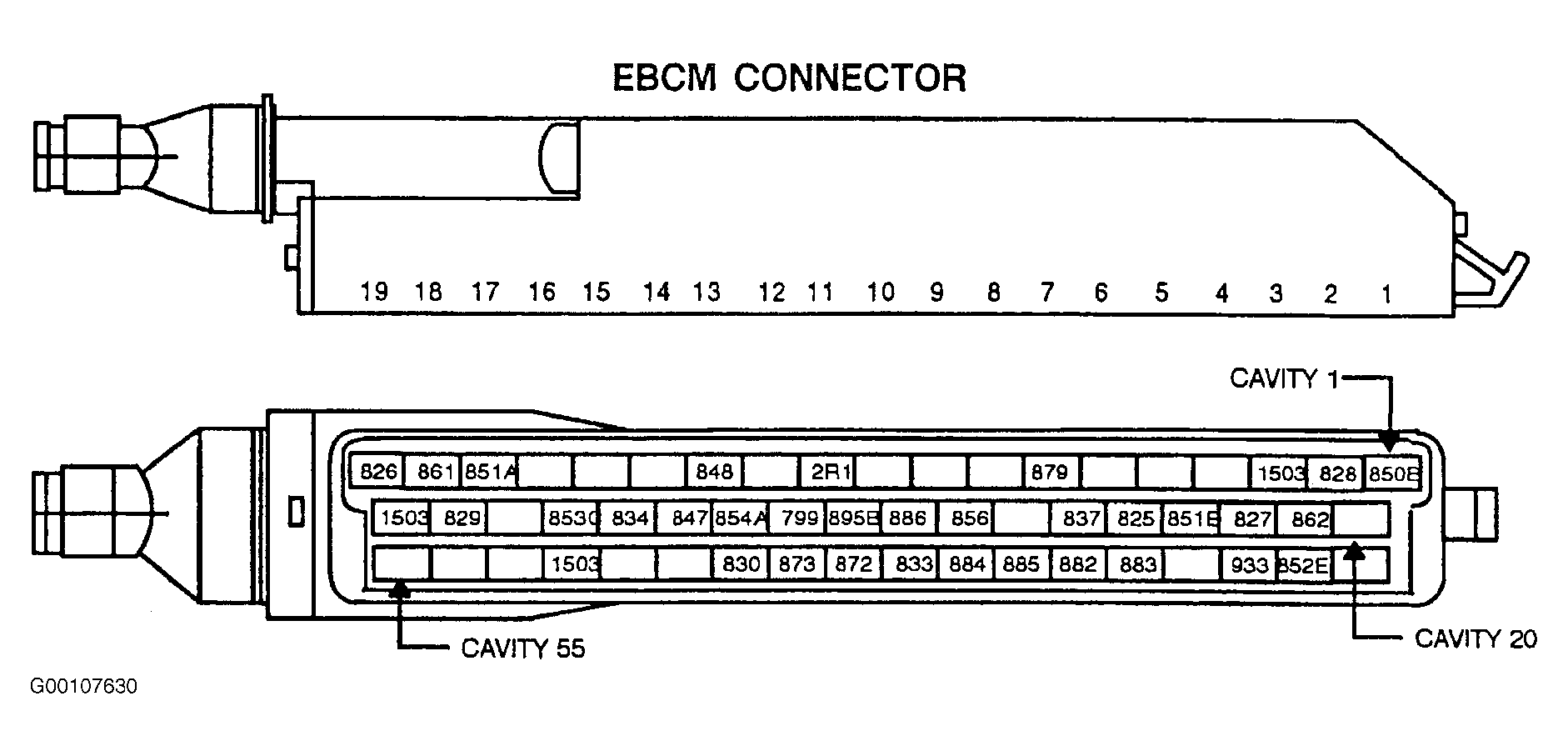

Fig 1: Identifying EBCM Connector

Courtesy of GENERAL MOTORS CORP.

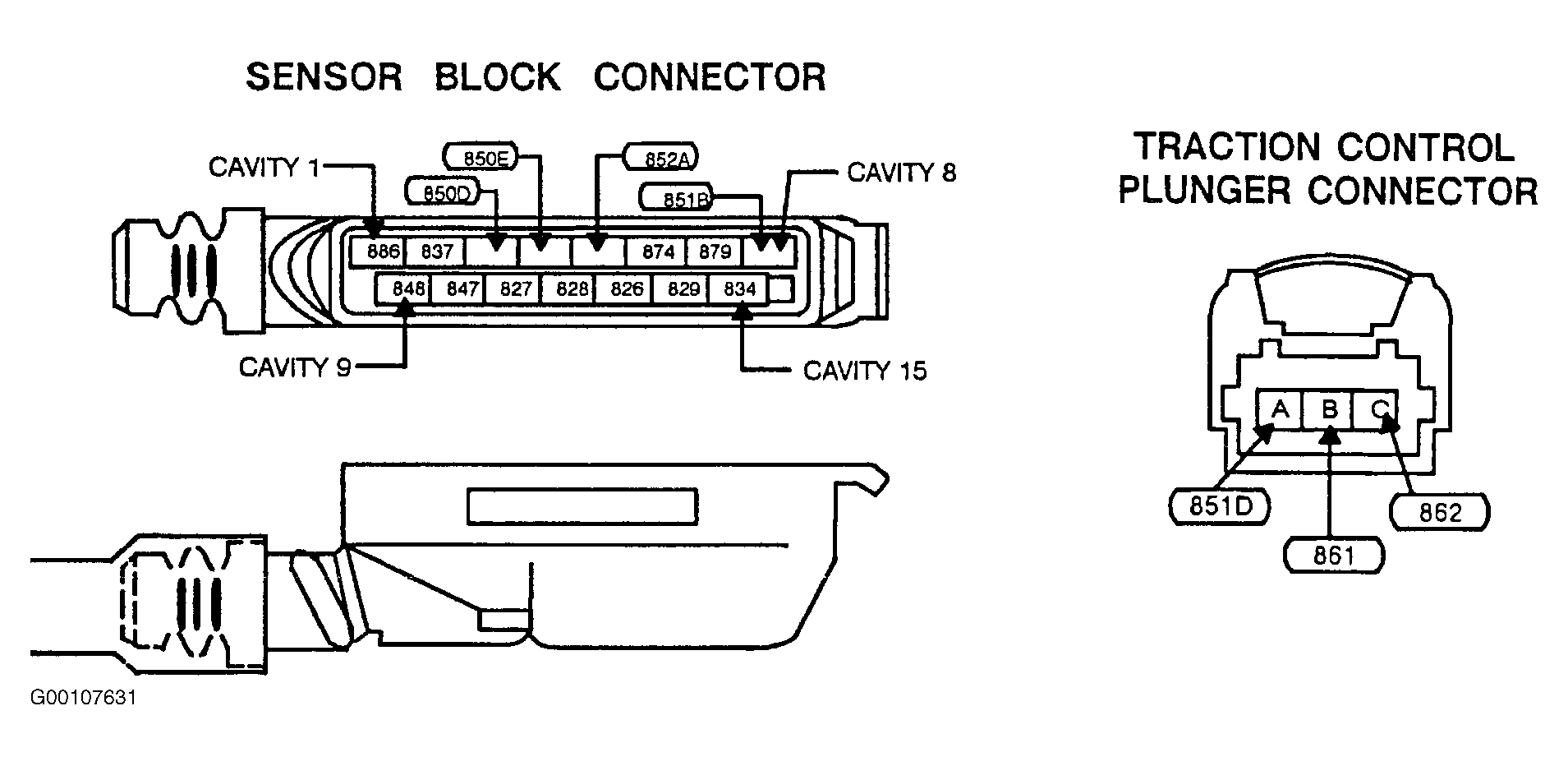

Fig 2: Identifying Sensor Block Connector & Traction Control Plunger Connector

Courtesy of GENERAL MOTORS CORP.

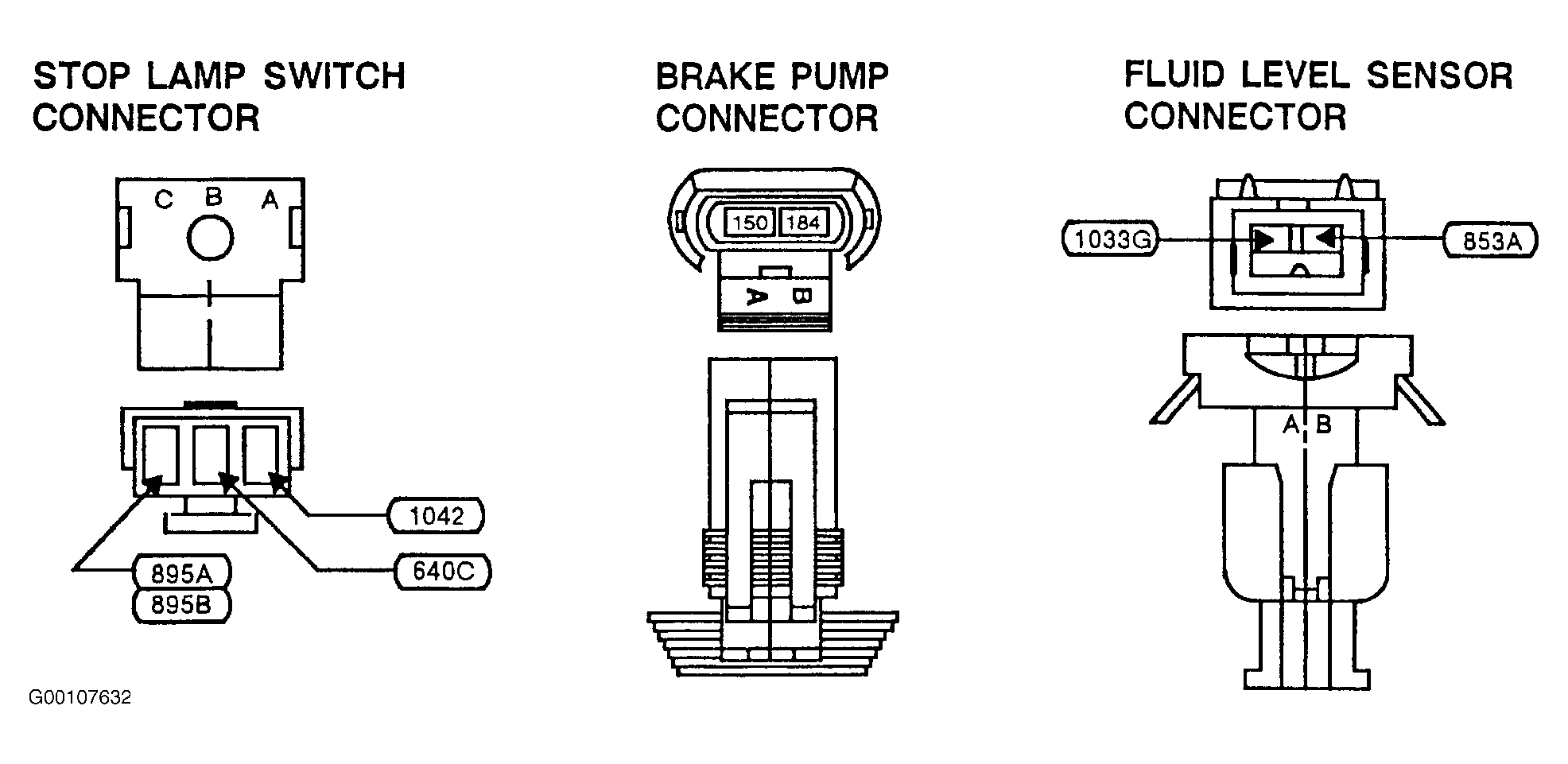

Fig 3: Identifying Stop Lamp Switch, Brake Pump & Fluid Level Sensor Connectors

Courtesy of GENERAL MOTORS CORP.

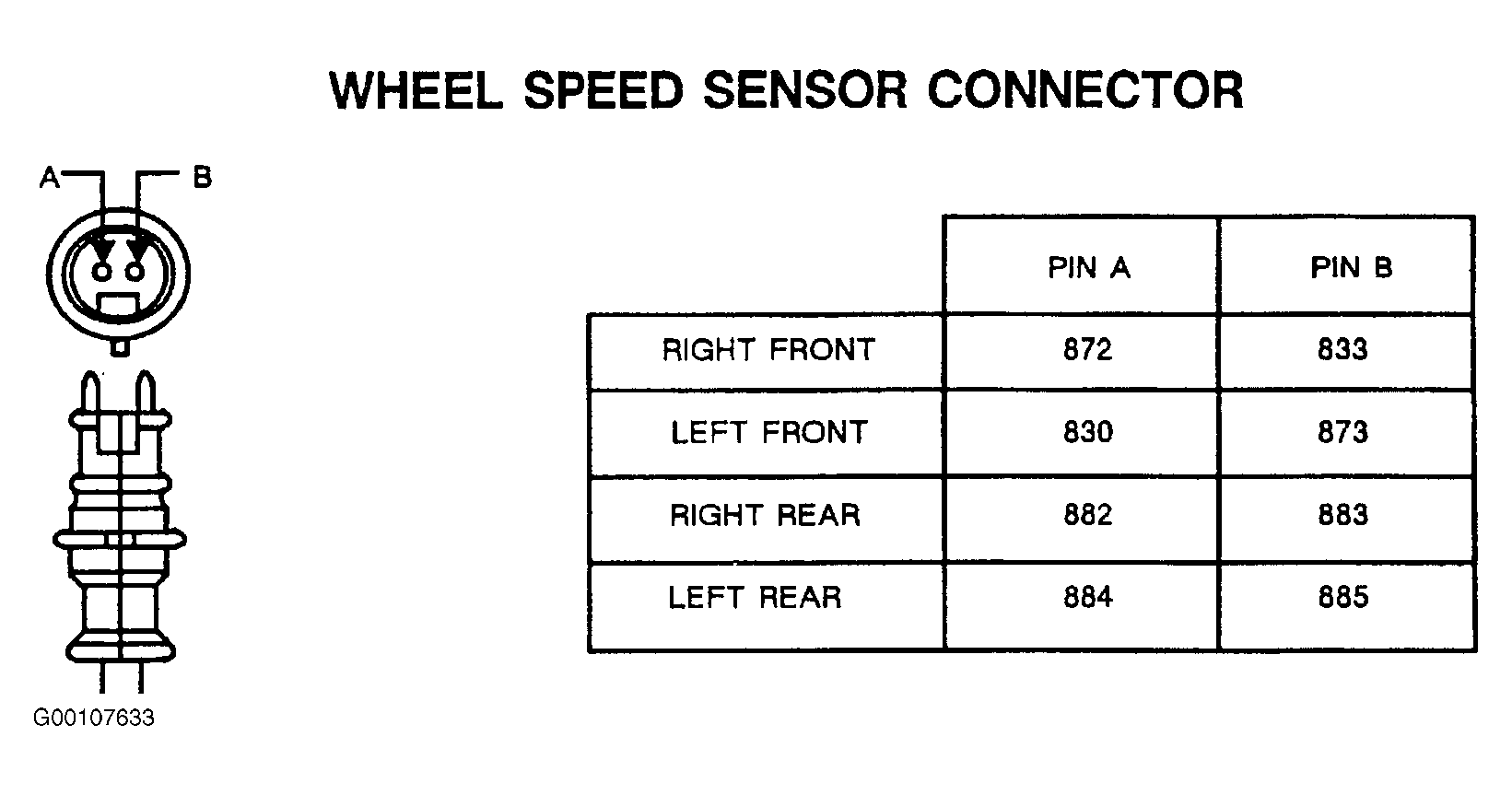

Fig 4: Identifying Wheel Speed Sensor Connector

Courtesy of GENERAL MOTORS CORP.

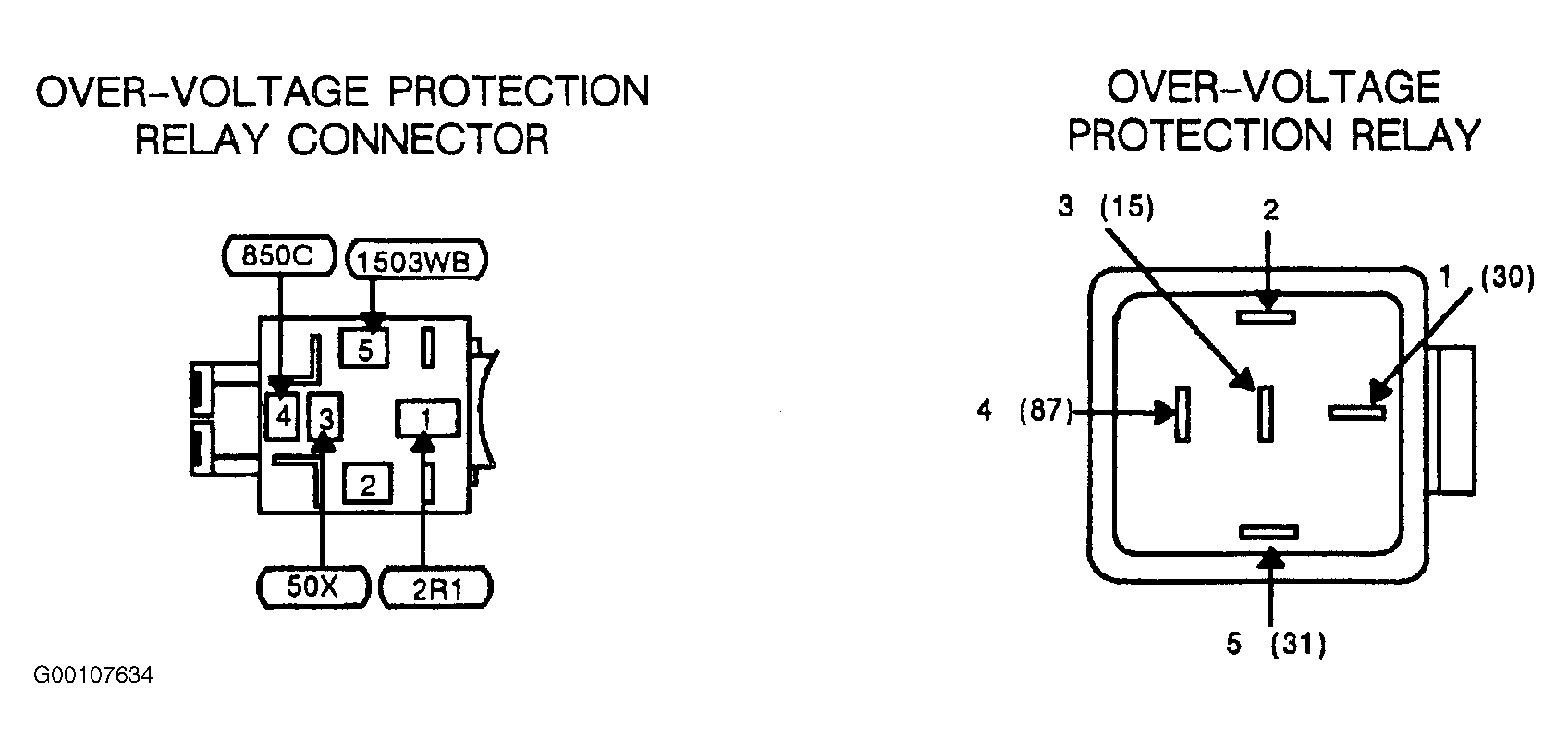

Fig 5: Identifying Over-Voltage Protection Relay & Connector

Courtesy of GENERAL MOTORS CORP.

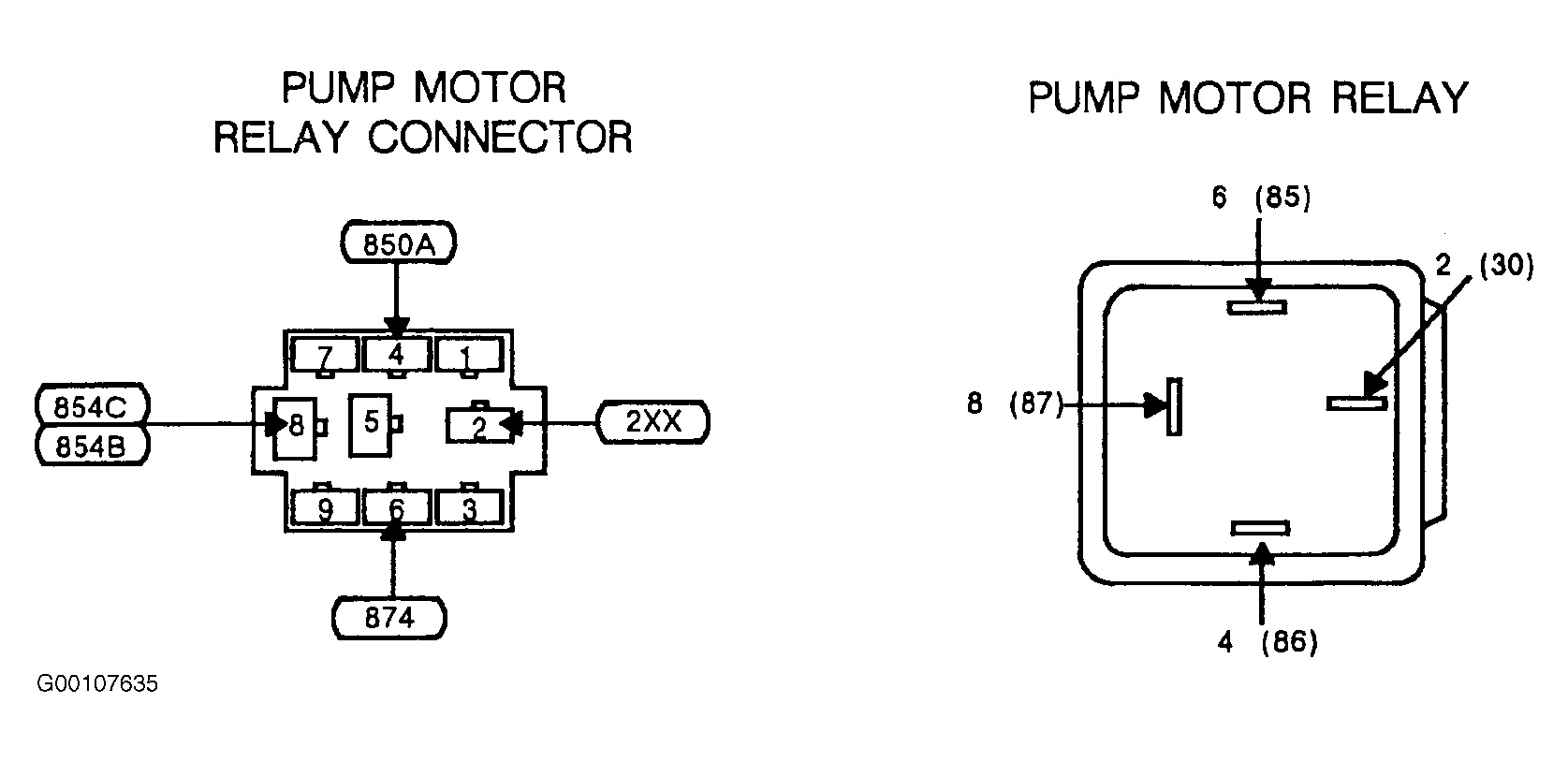

Fig 6: Identifying Pump Motor Relay & Connector

Courtesy of GENERAL MOTORS CORP.

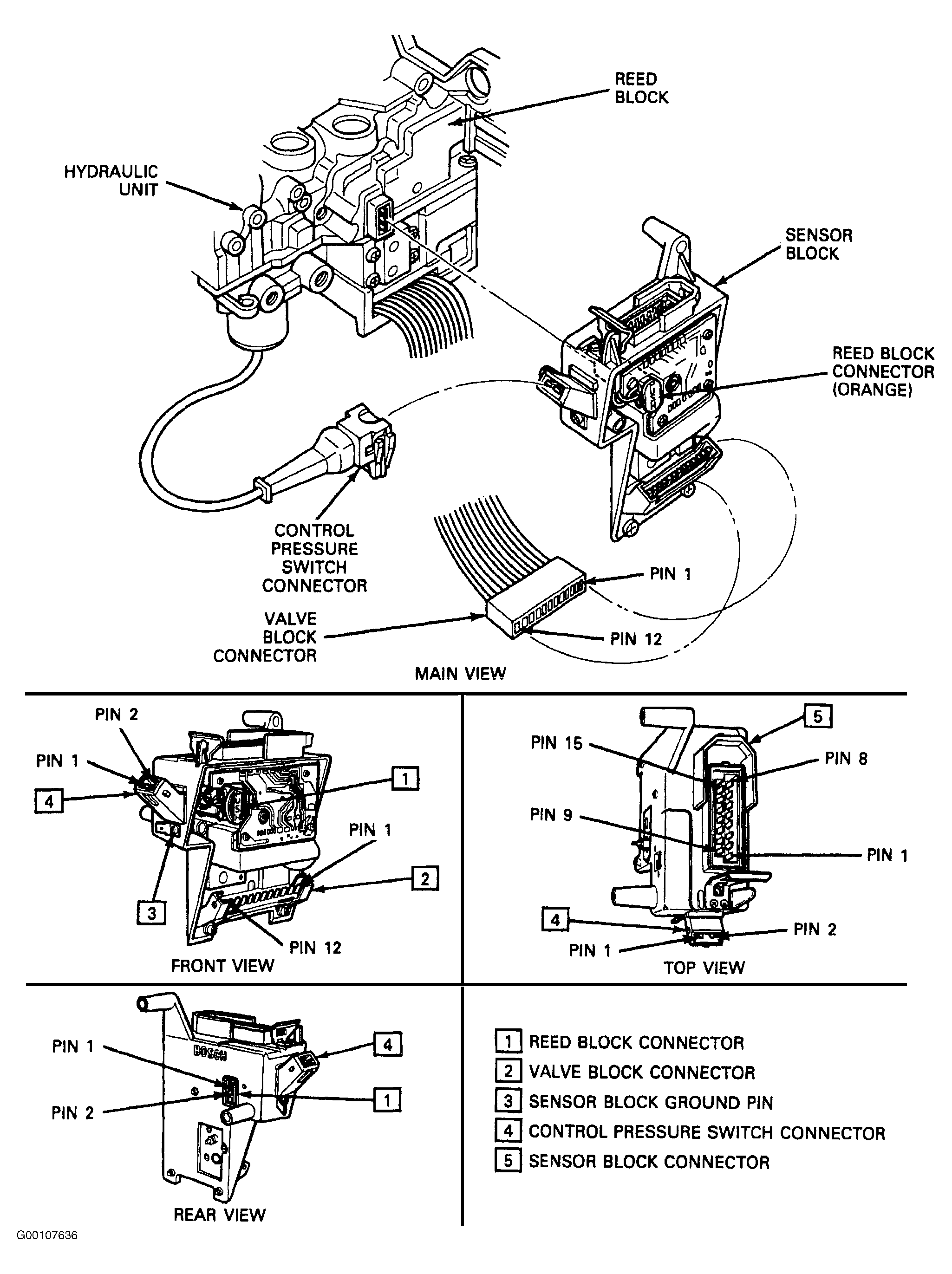

Fig 7: Identifying Sensor Block Pins

Courtesy of GENERAL MOTORS CORP.
