How to Perform Test

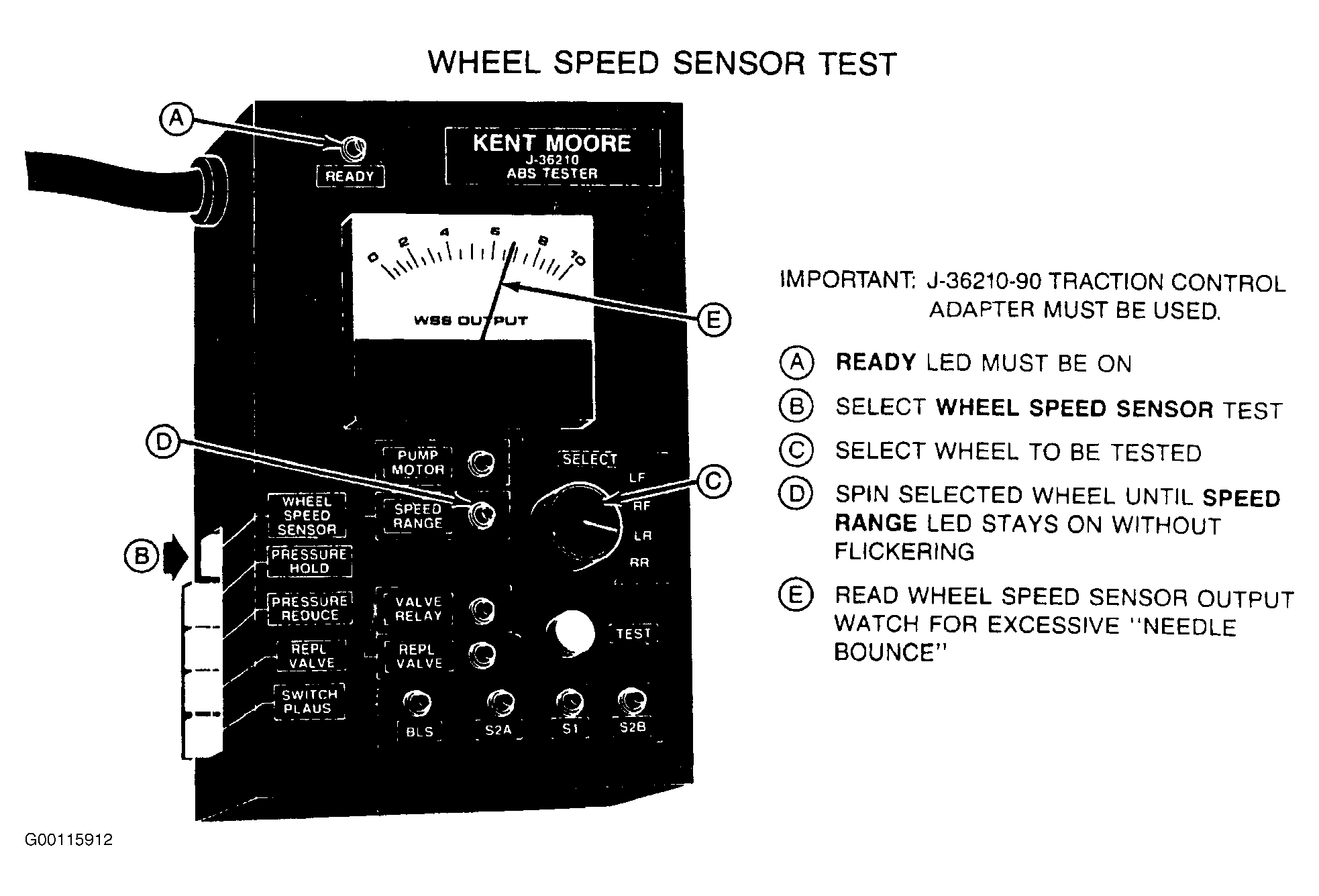

The test procedure for performing the Wheel Speed Sensor Output test is described below. See, Fig 1 .
- Ignition must be on when performing this and all other tests with the J 36210 tester.
- Raise car on a frame contact hoist so that the wheel to be tested is off of the ground. Install the J 36210 tester and J 36210-90 adapter; turn ignition on. The READY LED must be ON.
- Select WHEEL SPEED SENSOR test mode on the test selector buttons.
- Specify wheel to be tested with the SELECT switch.
- Have an assistant spin the selected wheel until the SPEED RANGE indicator (Red) remains on without flickering. The wheel should be turned at a constant speed.
- Read wheel speed sensor output on the WSS OUTPUT meter. As the wheel is turned, watch the meter needle and note any excessive 'bounce' or 'flutter' which would indicate variations in signal strength.
