Central Power Supply: Removal

  1. Remove lower left sound insulator. See LOWER LEFT SOUND INSULATOR in INSTALLATION & REMOVAL in INSTRUMENT PANEL & GAUGES article in ACCESSORIES & EQUIPMENT.
  2. Remove two nuts (8). See Fig 1 .
  3. Disconnect electrical connector.
  4. Pull central power supply (1) free from bracket (2).

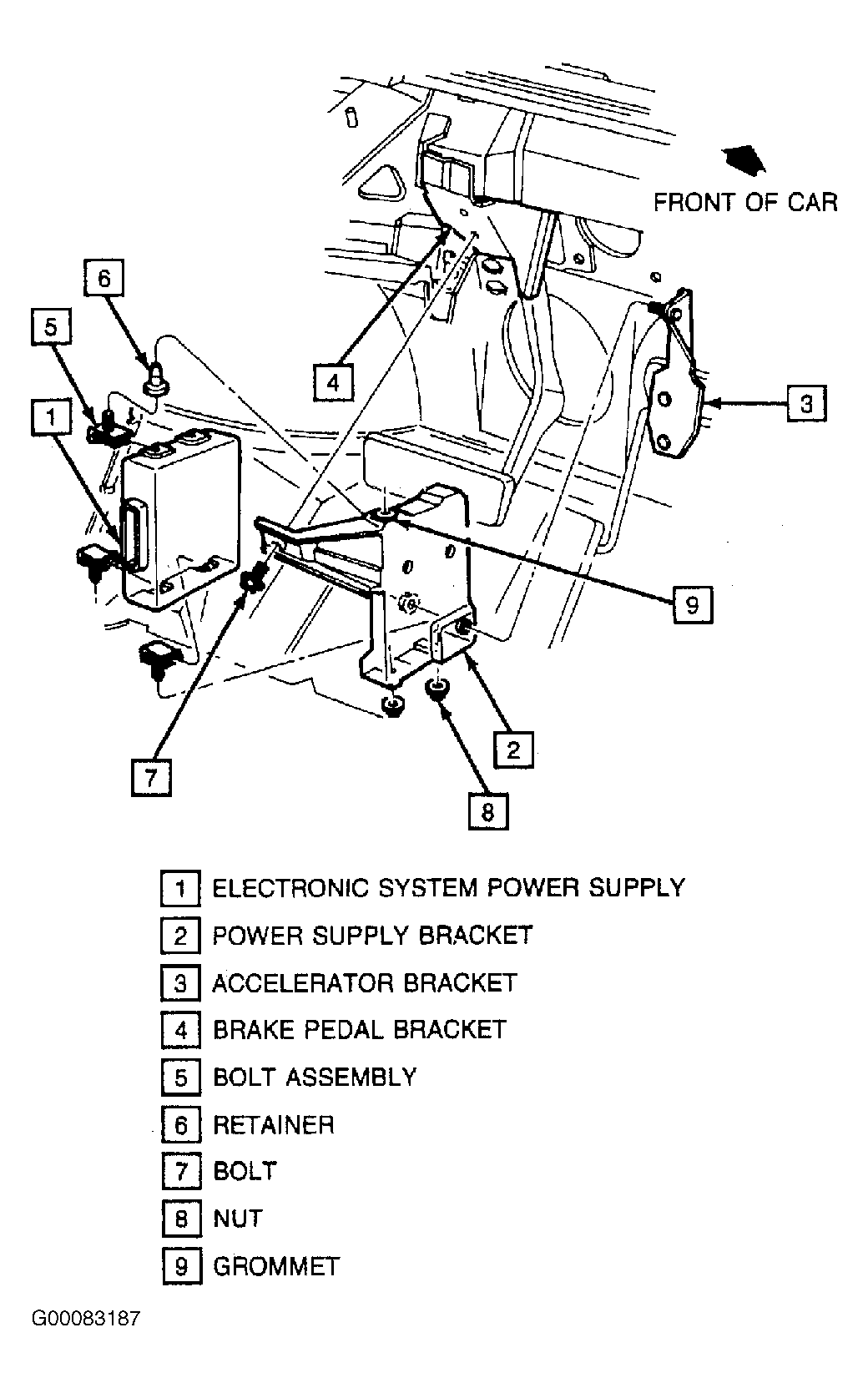

Fig 1: Removing Central Power Supply
G00083187Courtesy of GENERAL MOTORS CORP.
