Home >> Cadillac >> 1989 >> Seville STS >> Repair and Diagnosis >> Engine Performance >> System >> DFI SYS/Component Tests >> Wiring Diagram

DFI SYS/Component Tests: Wiring Diagram

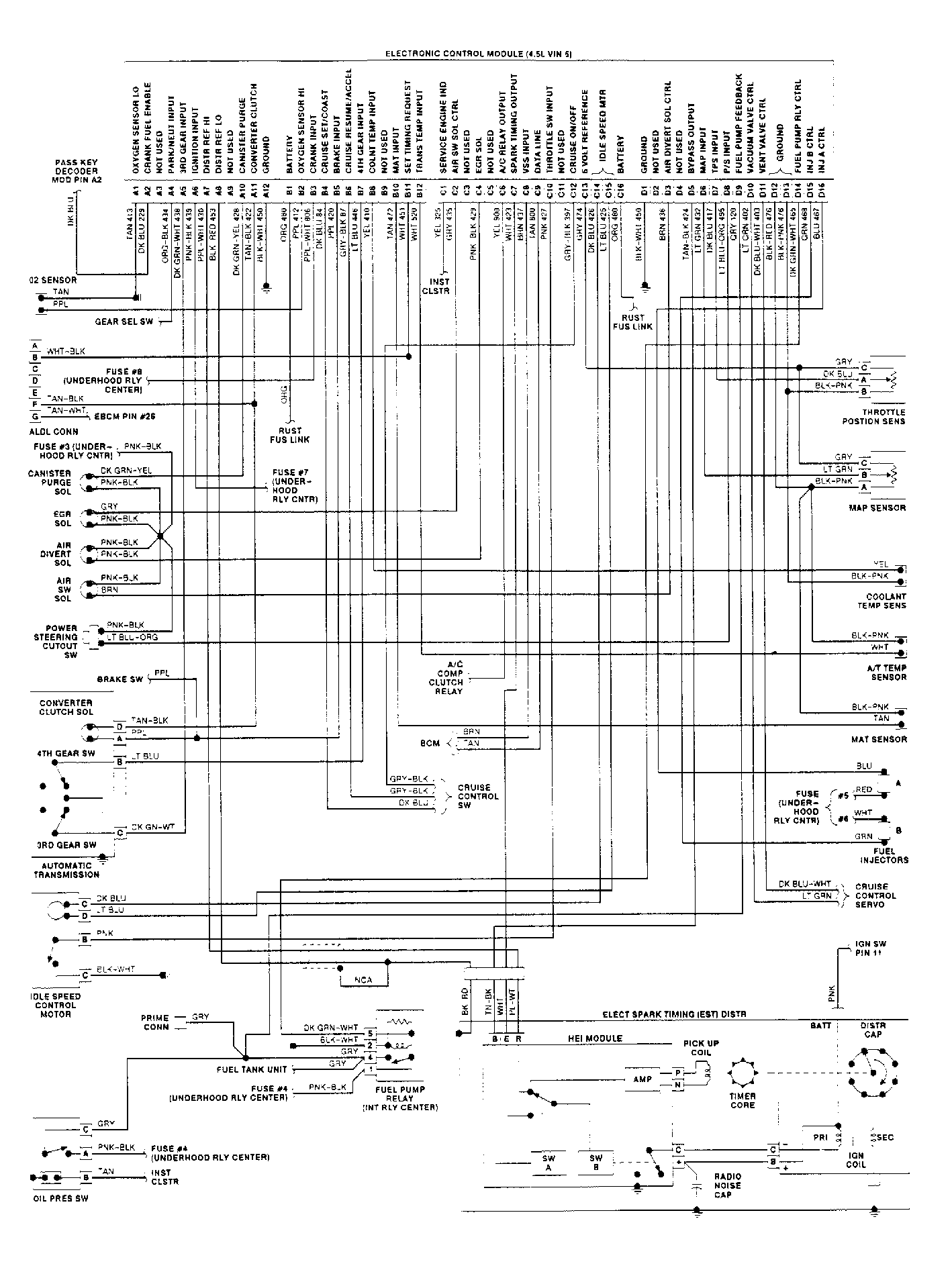

Fig 1: Eldorado & Seville DFI ECM Wiring Diagram

G111927
