Home >> Cadillac >> 1989 >> Allante F7/ME9 >> Repair and Diagnosis >> Steering >> Steering Columns >> Removal & Installation >> Ignition Switch >> Notes

Ignition Switch: Notes

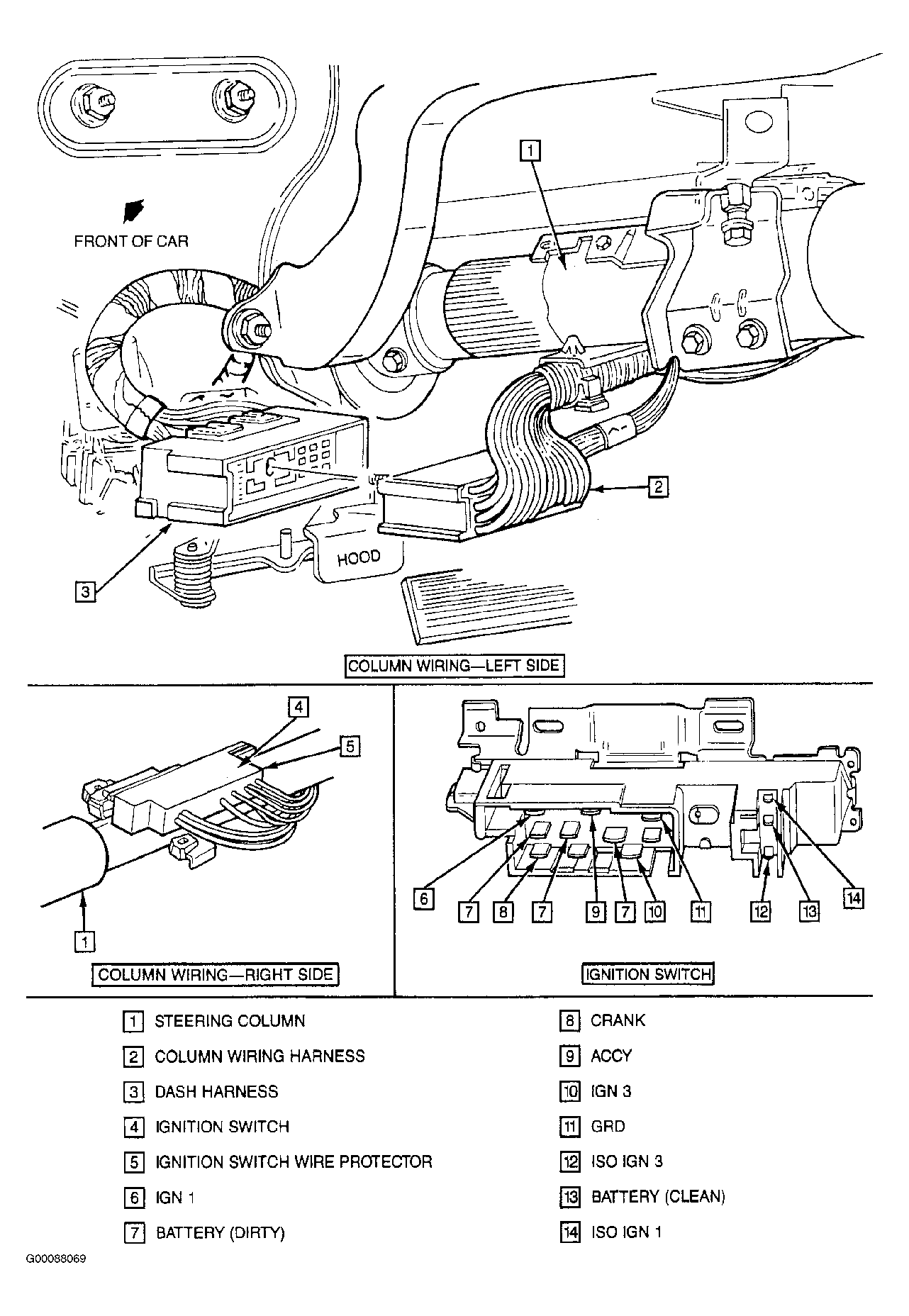

NOTE: The ignition switch is hardwired. The wiring harness with the column harness connector must be replaced with the ignition switch. DO NOT splice the new switch to the existing column wiring harness. See Figure .
