System Check Chart D-3: Data Circuit Shorted

You have been directed to this chart from chart D because one of the components on the dataline is shorting circuit 800 to ground. This chart will help you determine which component it is.

NOTE: The following step numbers refer to circled numbers on diagnostic chart. See Fig 1 . For circuit identification, see Figure .

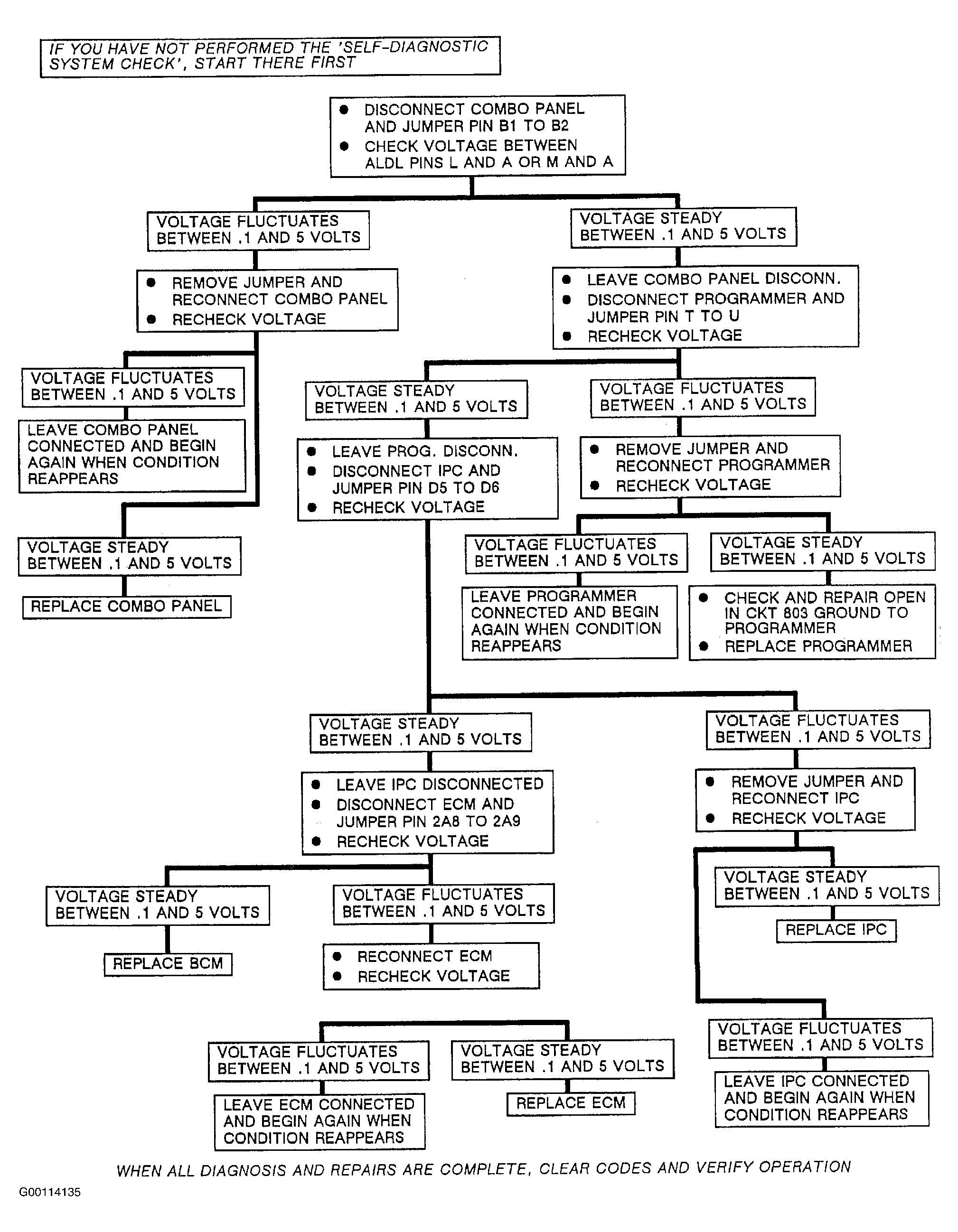

Fig 1: Identifying System Check Chart D-3: Data Circuit Shorted Flow Chart

Courtesy of GENERAL MOTORS CORP.
