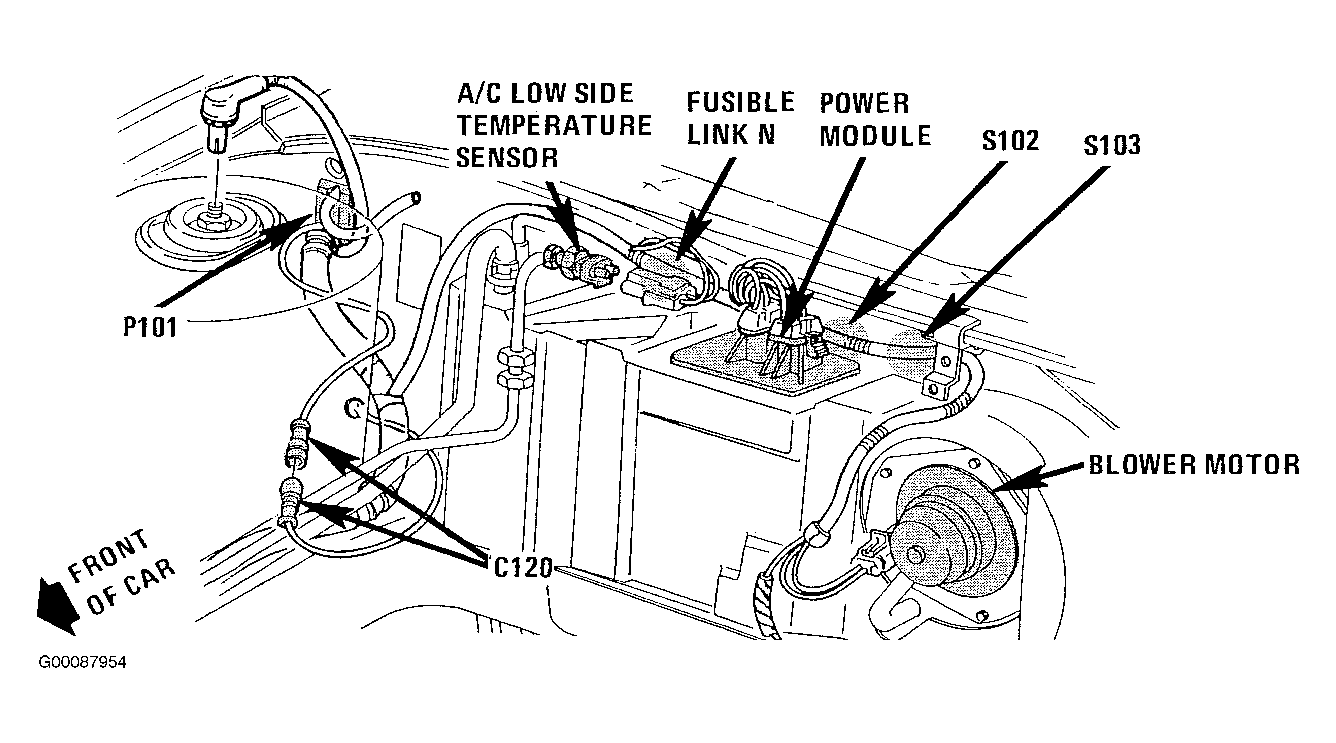

Repair and Diagnosis
>>
Electrical
>>
Component Locations
>>
Electrical Component Locations
>>
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

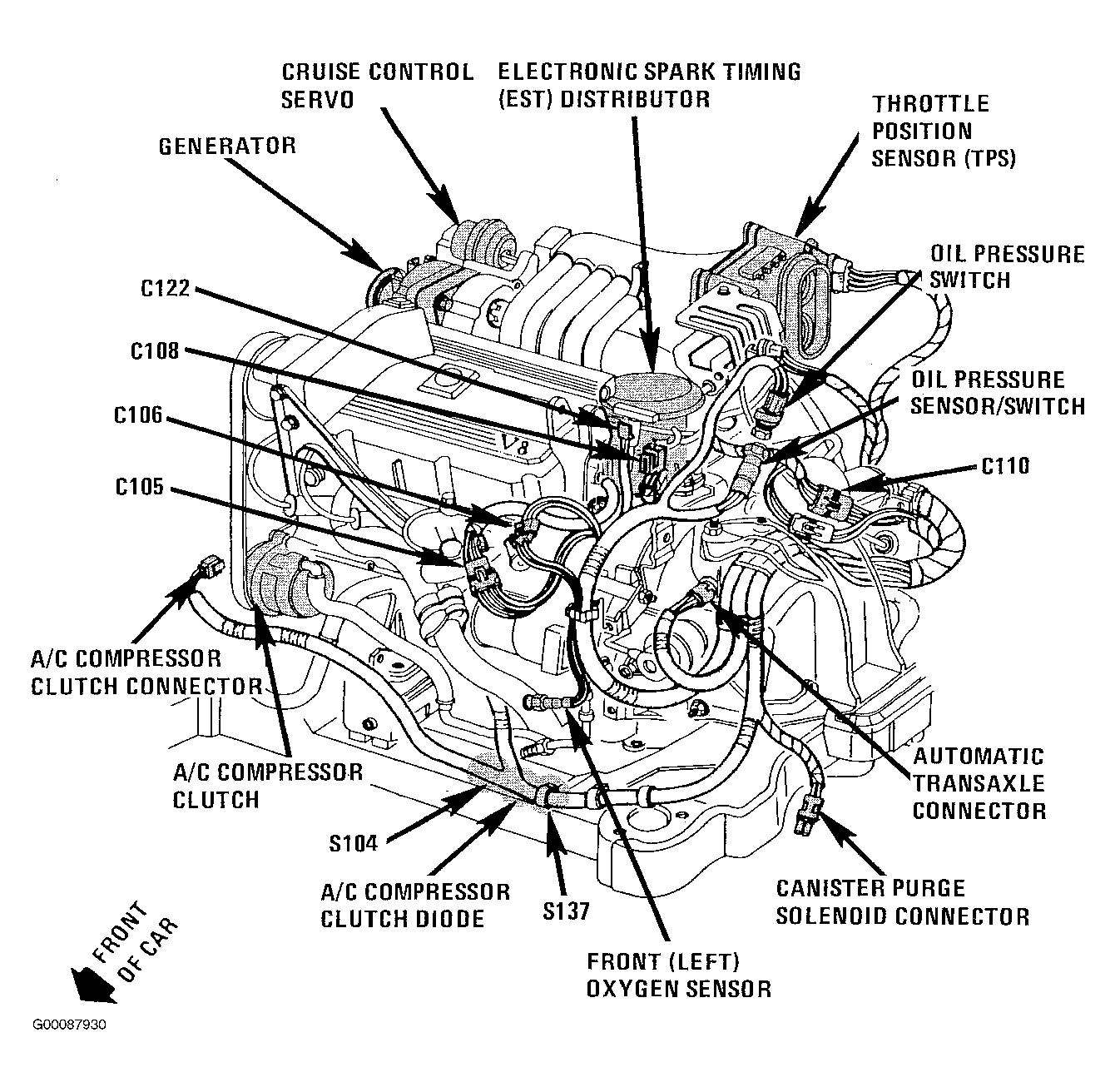

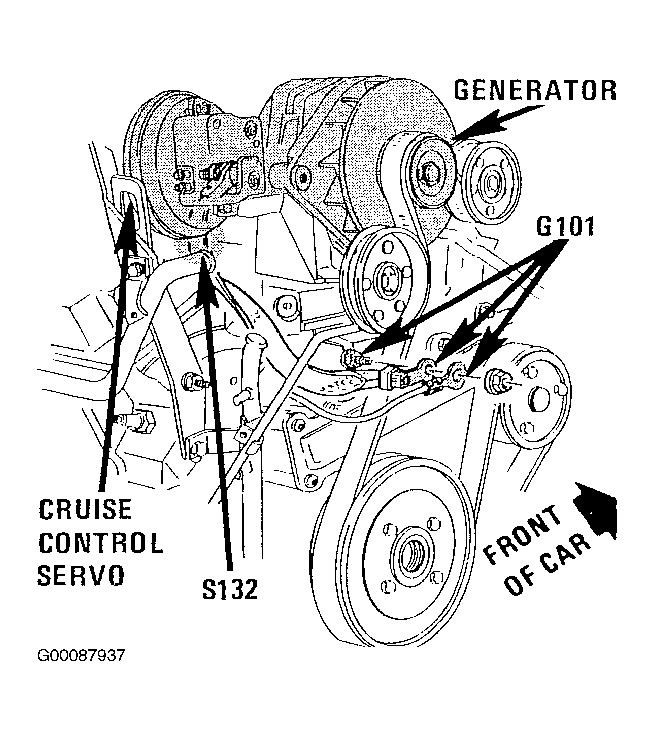

Fig 1: Front Of Engine
Courtesy of GENERAL MOTORS CORP.

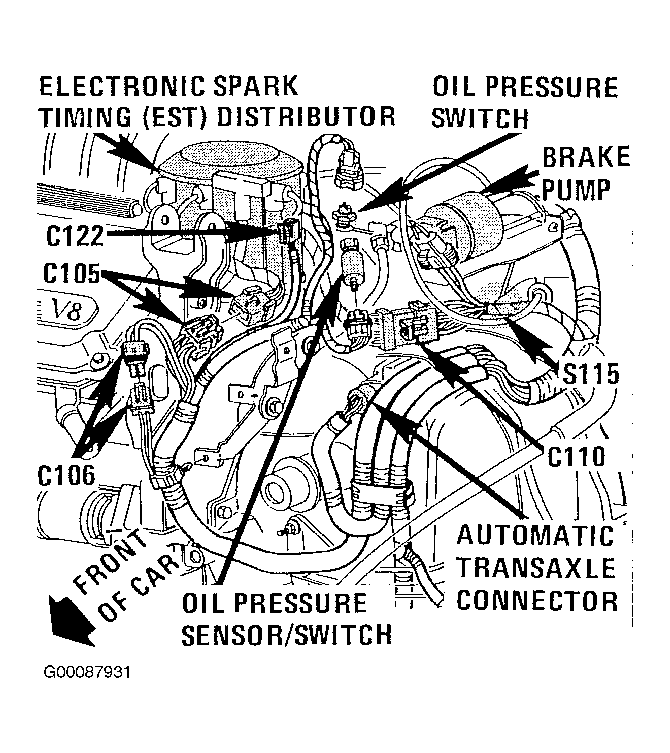

Fig 2: Left Front Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 3: Lower Left Front Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 4: Rear Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 5: Left Rear Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 6: Lower Left Rear Of Engine
Courtesy of GENERAL MOTORS CORP.

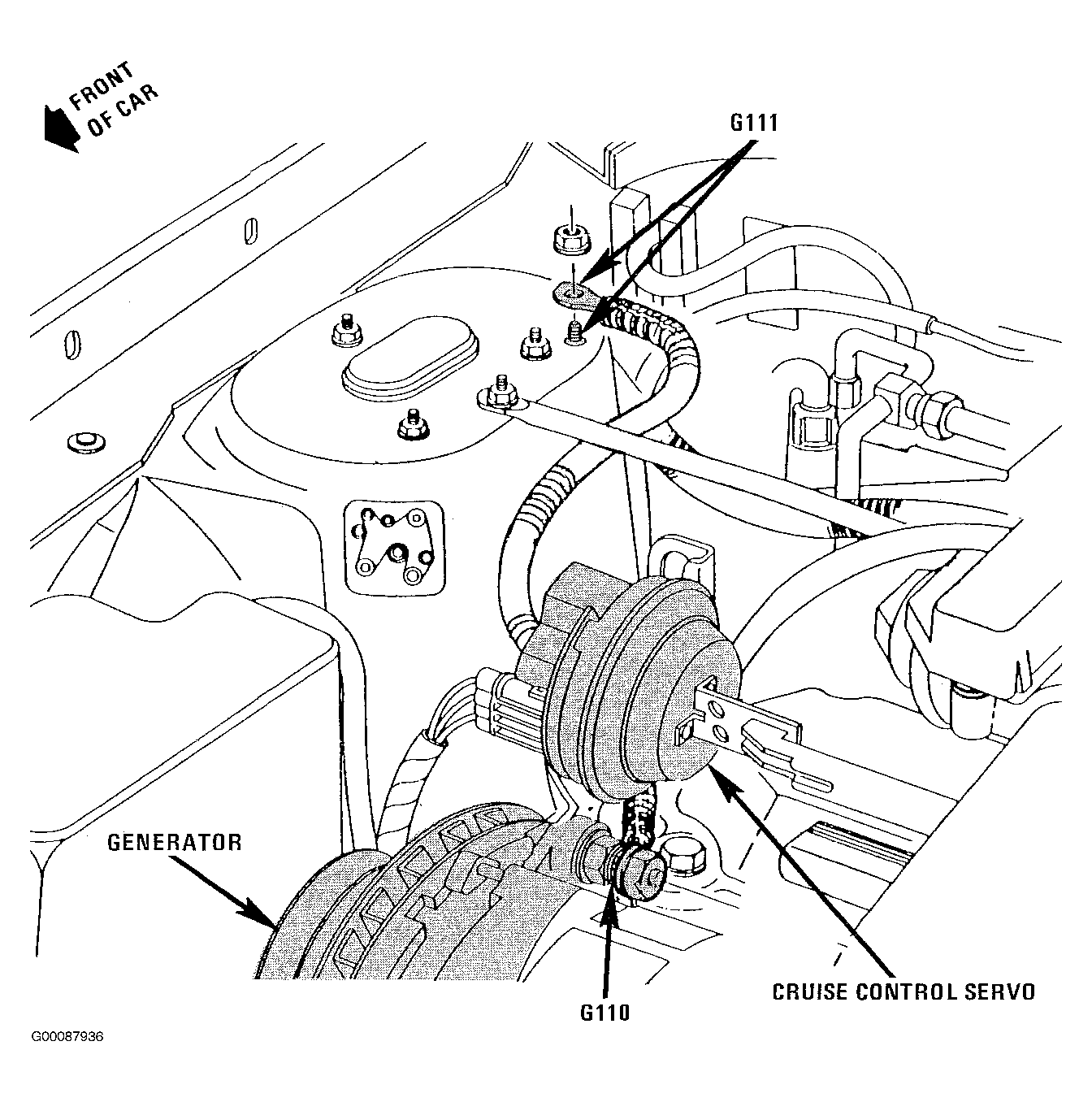

Fig 7: Right Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

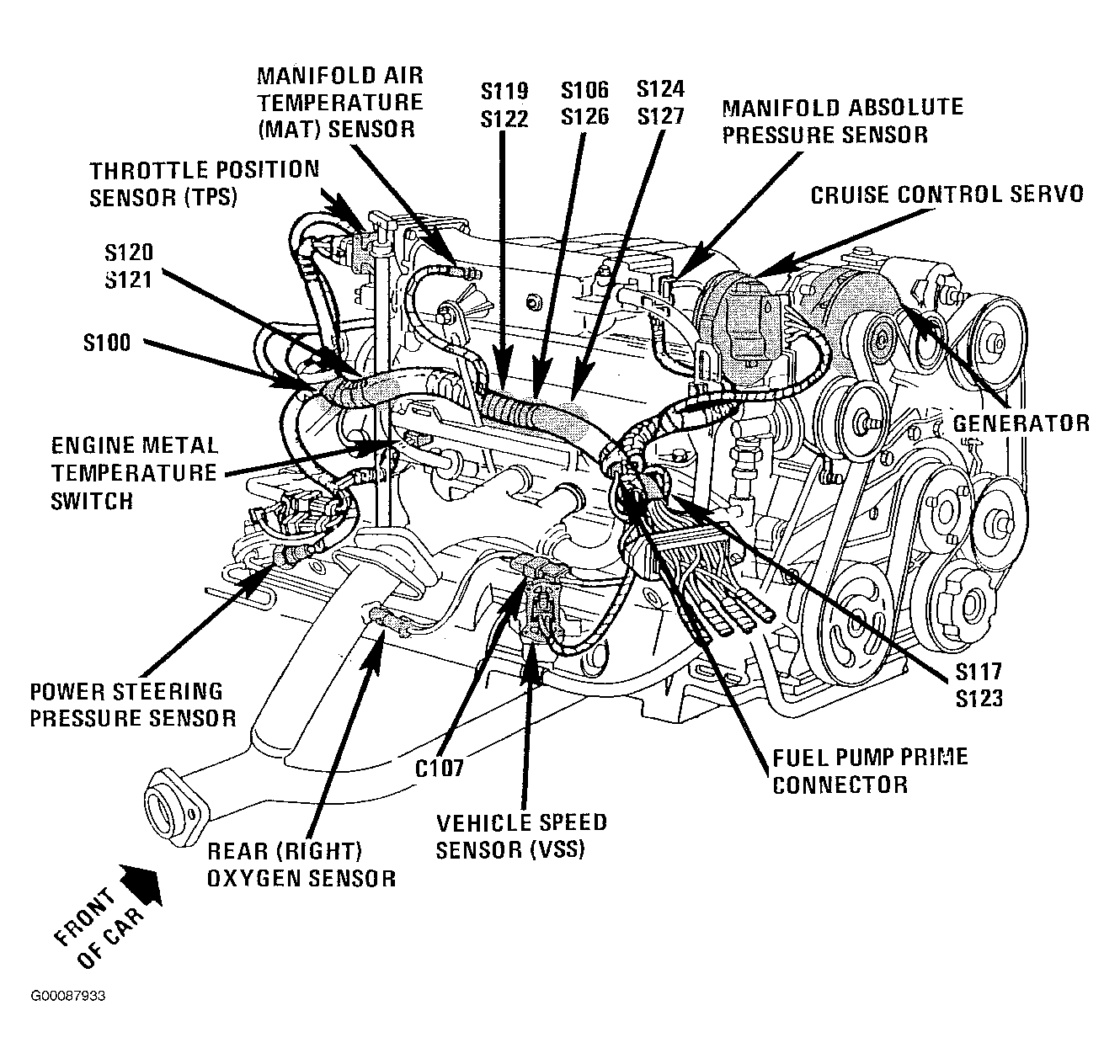

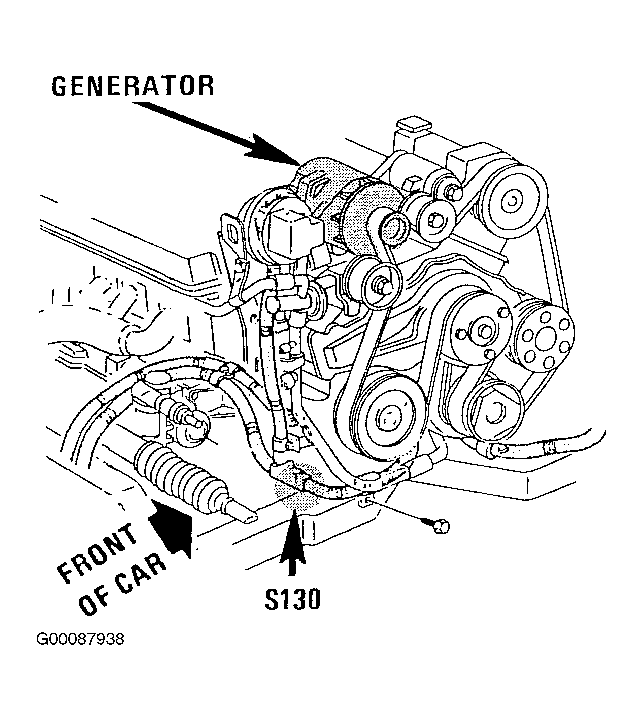

Fig 8: Right Side Of Engine (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 9: Right Side Of Engine (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

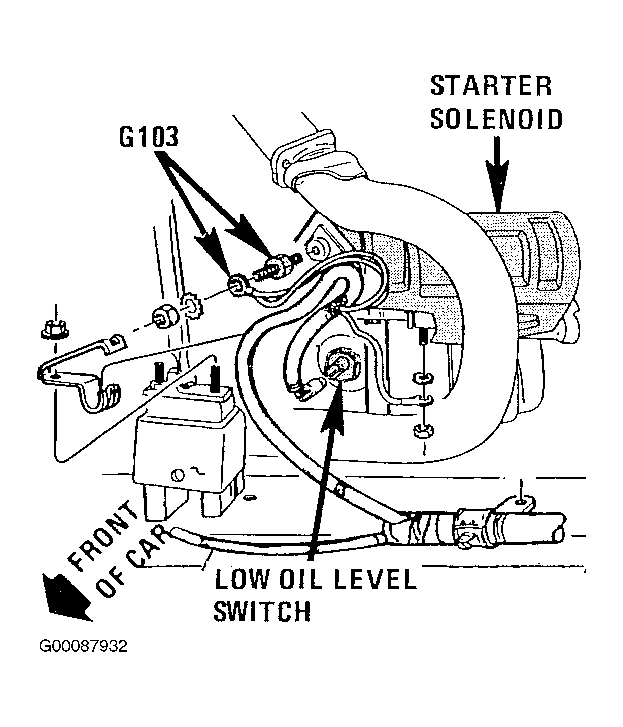

Fig 10: Lower Right Rear Of Engine
Courtesy of GENERAL MOTORS CORP.

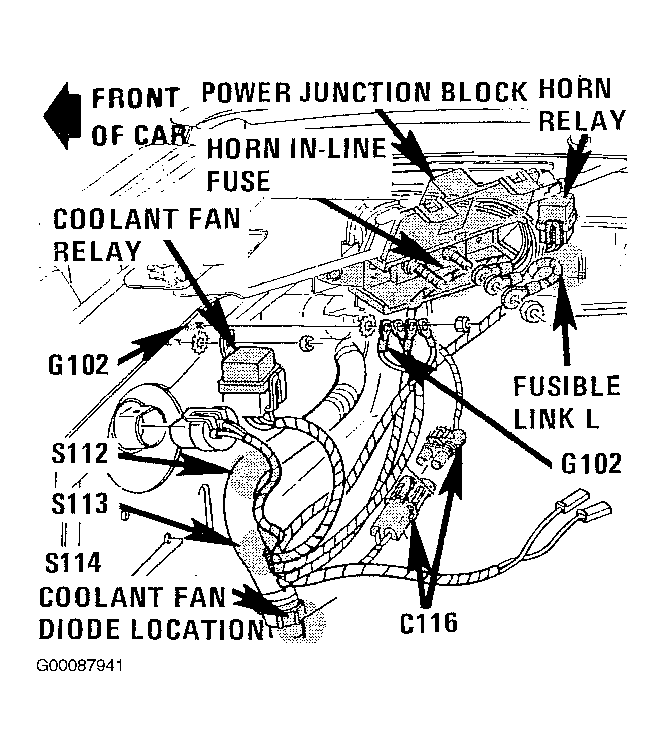

Fig 11: Right Front Of Engine Compartment (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

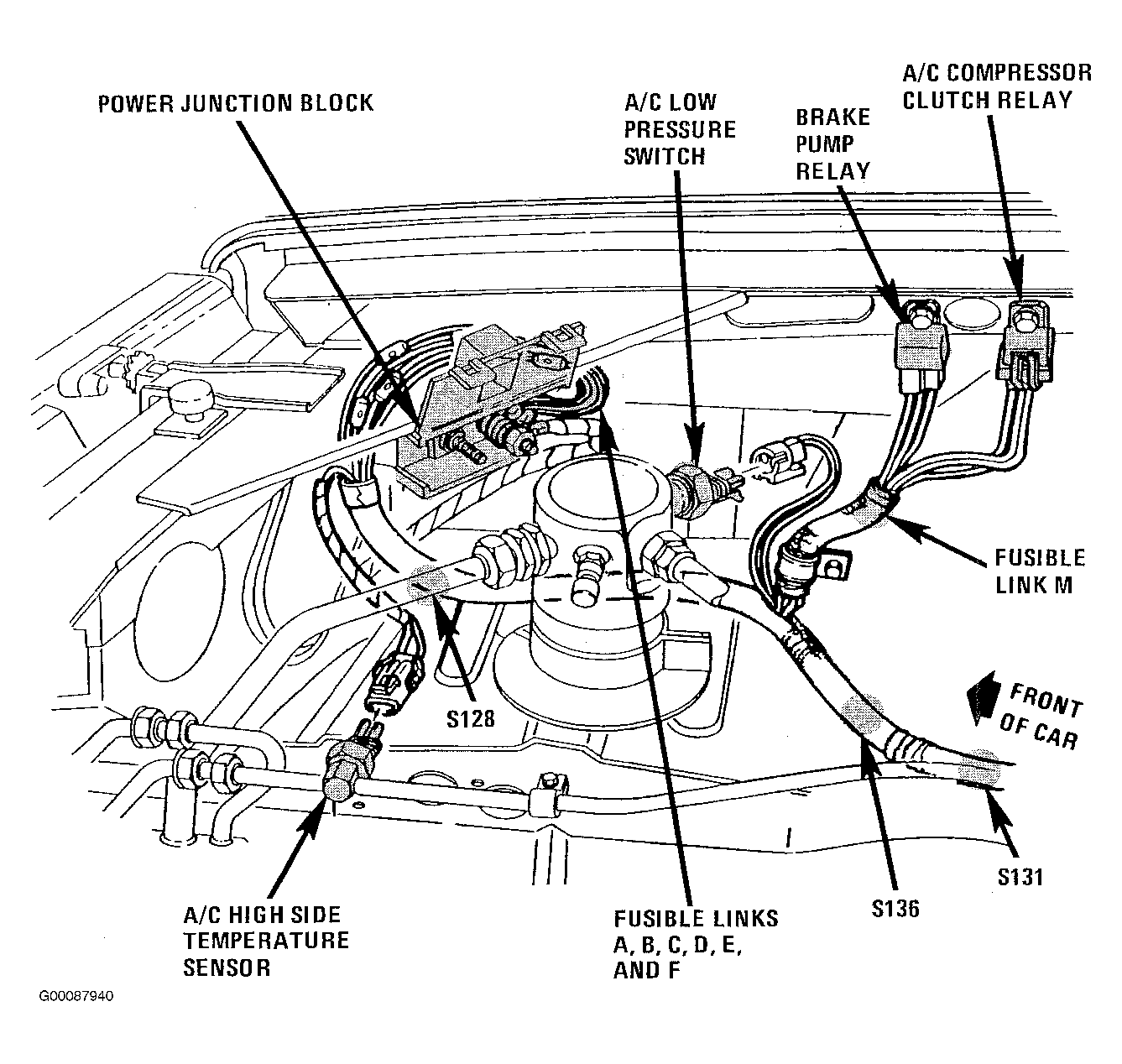

Fig 12: Right Front Of Engine Compartment (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 13: Top Right OF Engine
Courtesy of GENERAL MOTORS CORP.

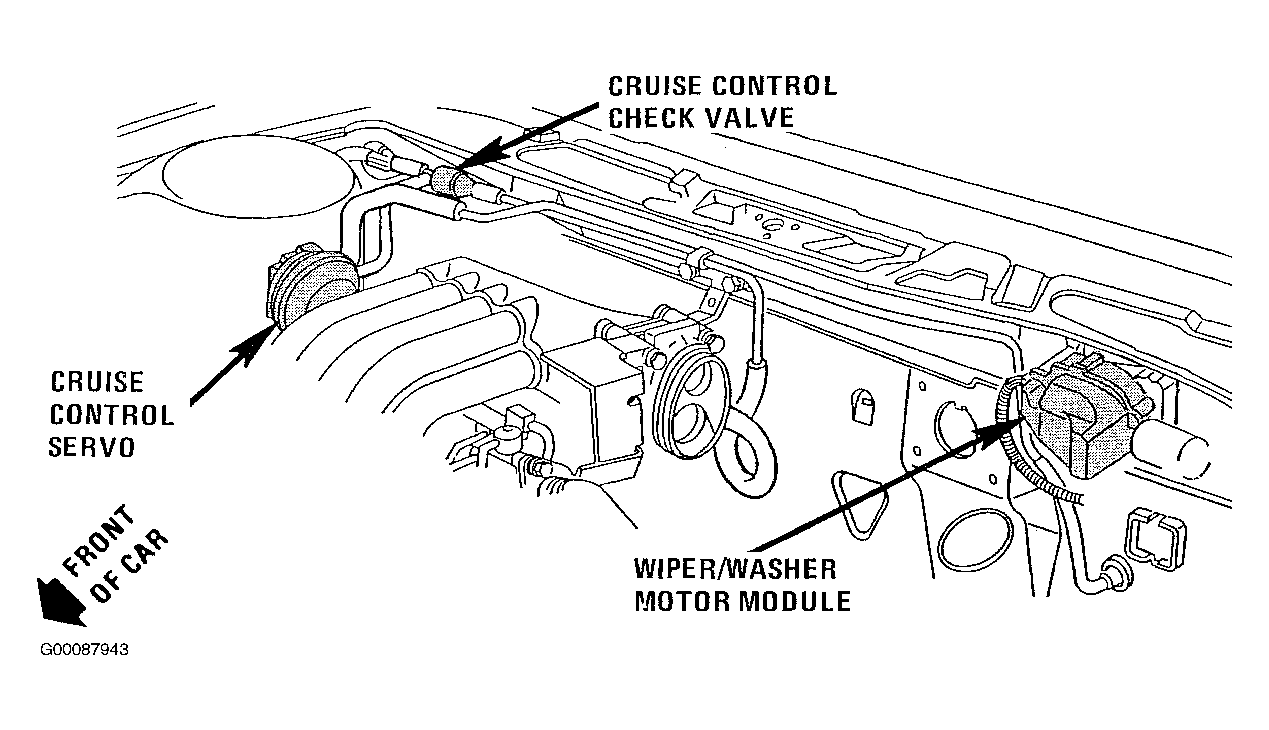

Fig 14: Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

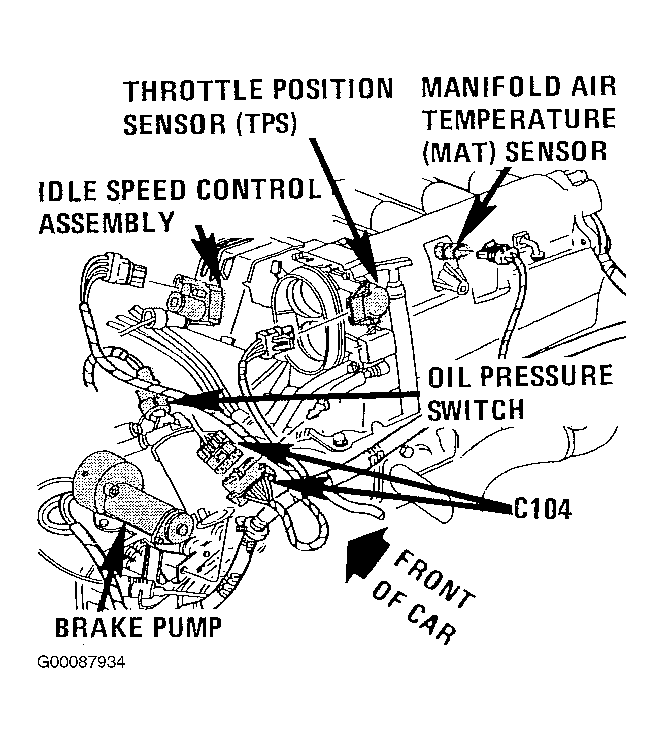

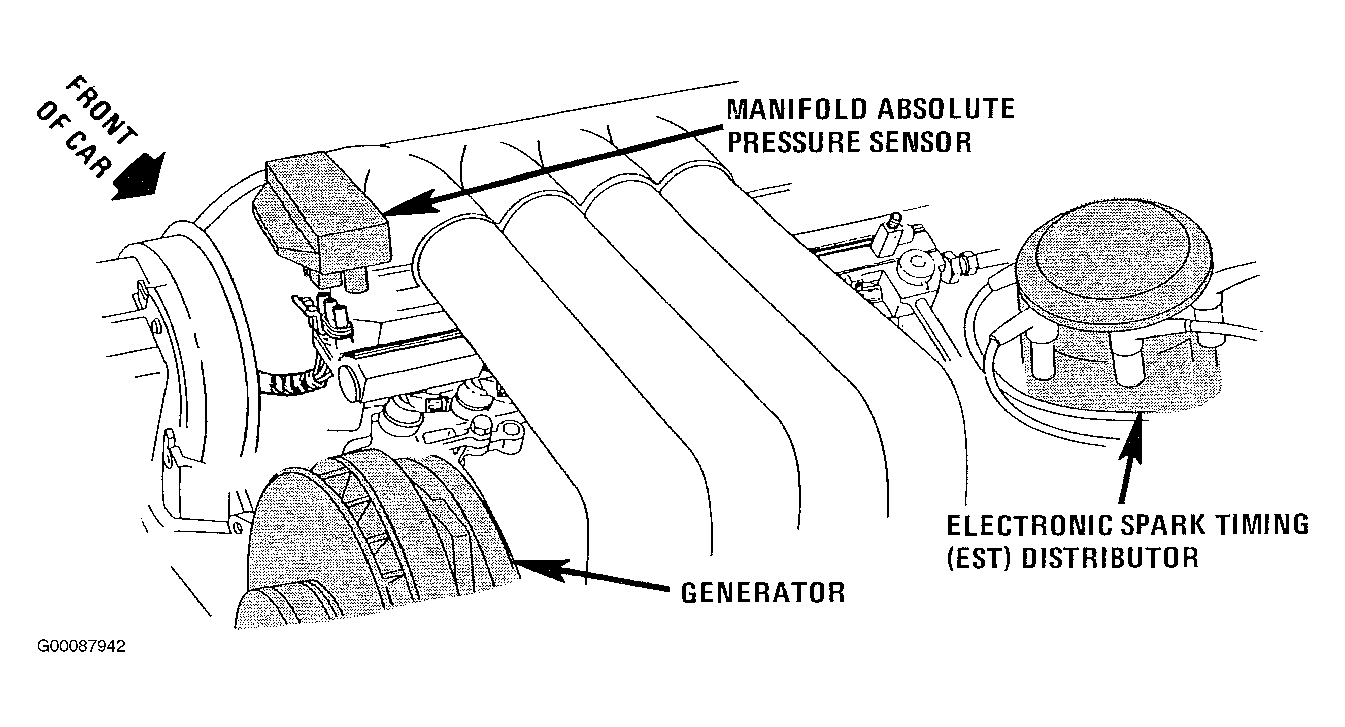

Fig 15: Top Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 16: Left Corner Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

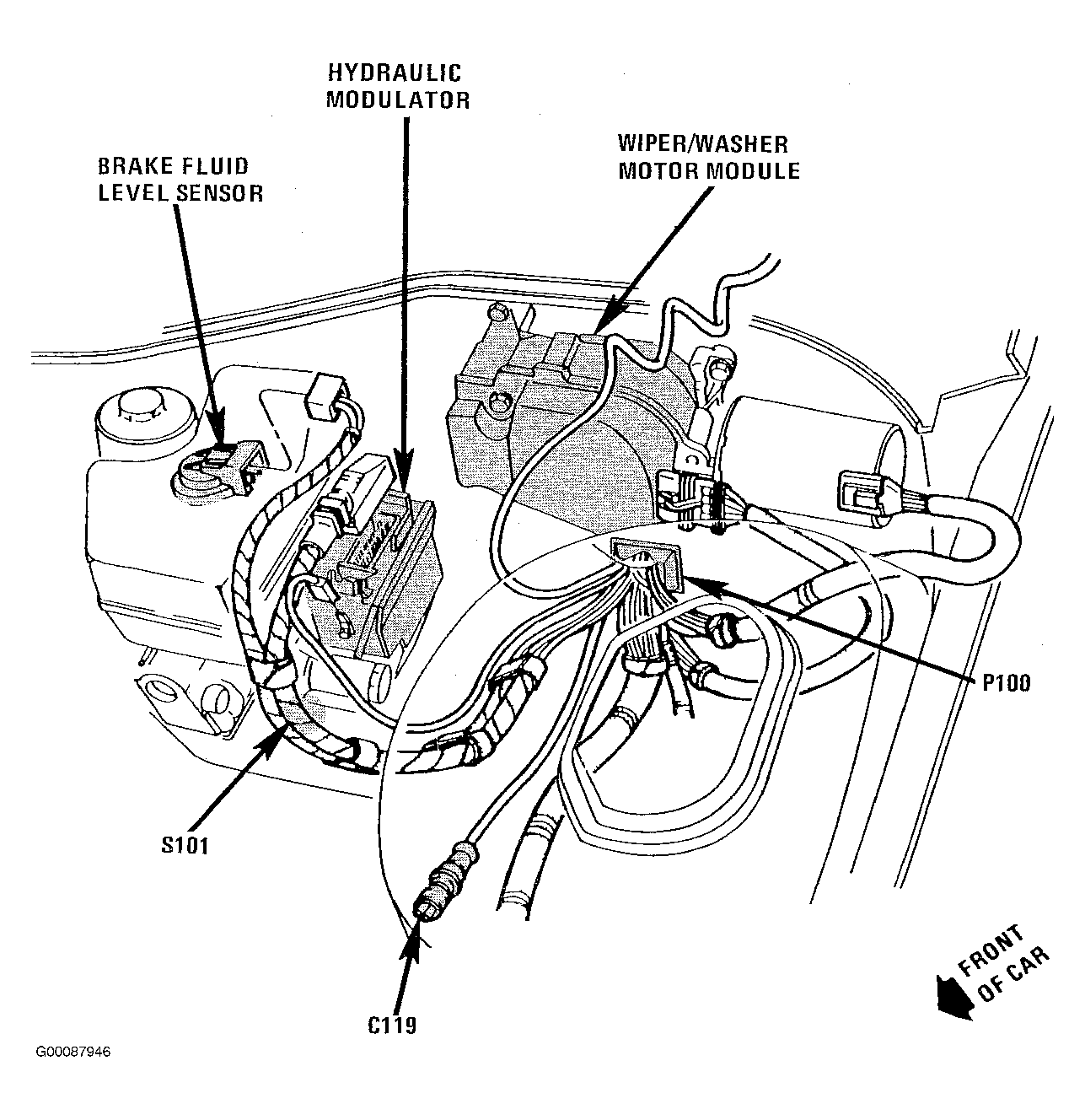

Fig 17: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 18: Left Rear Corner Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 19: Left Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

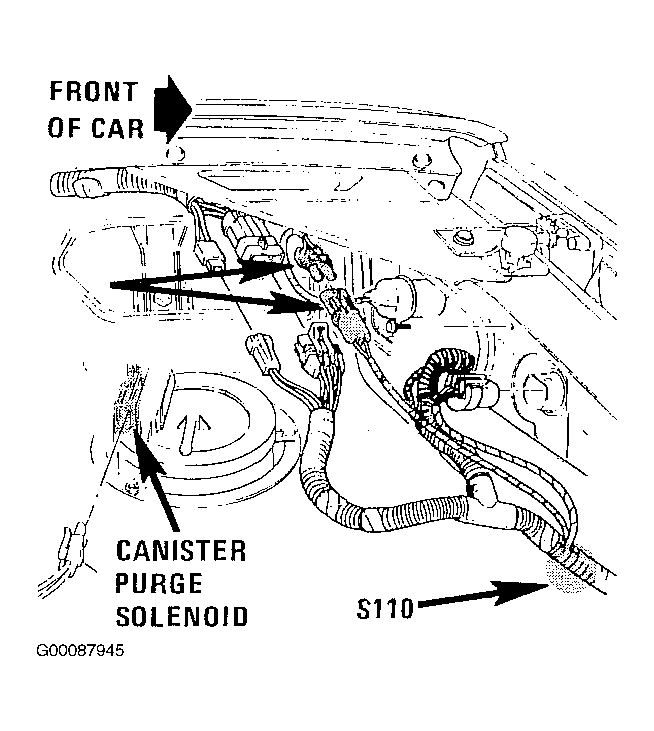

Fig 20: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

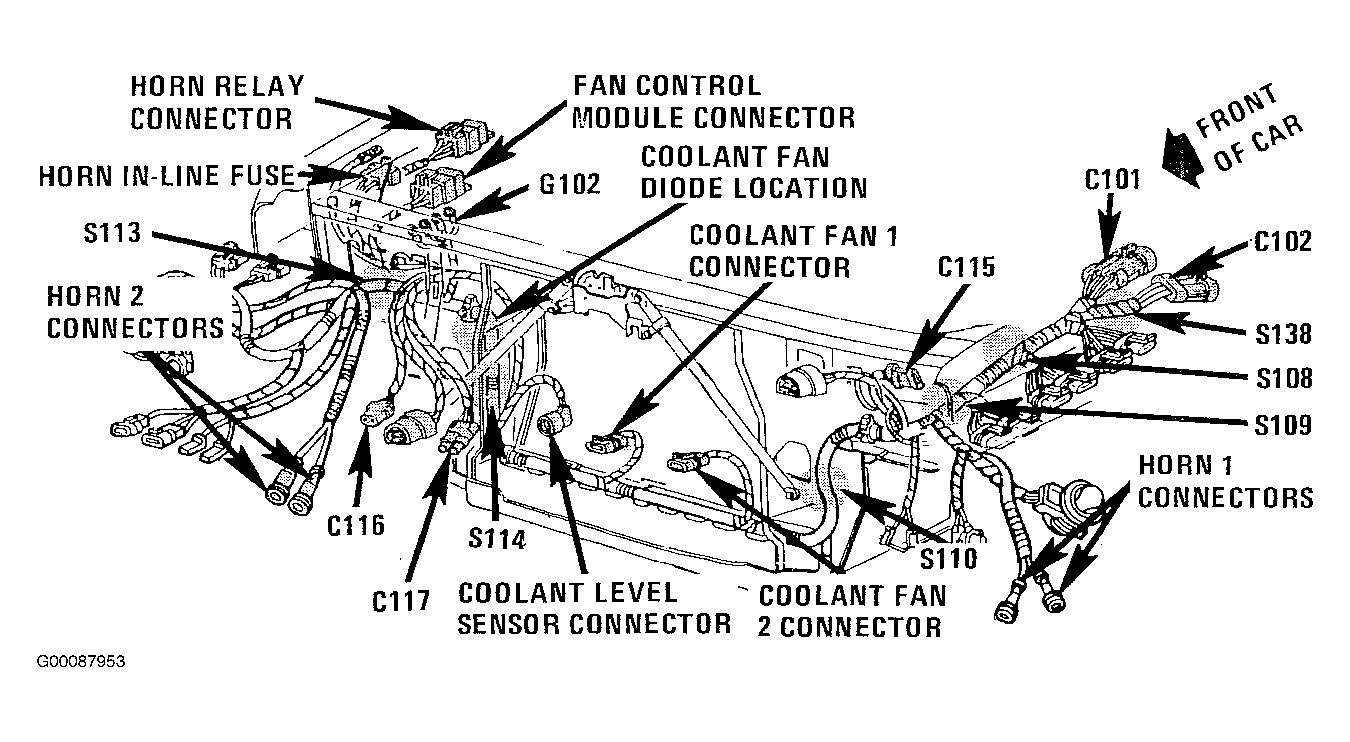

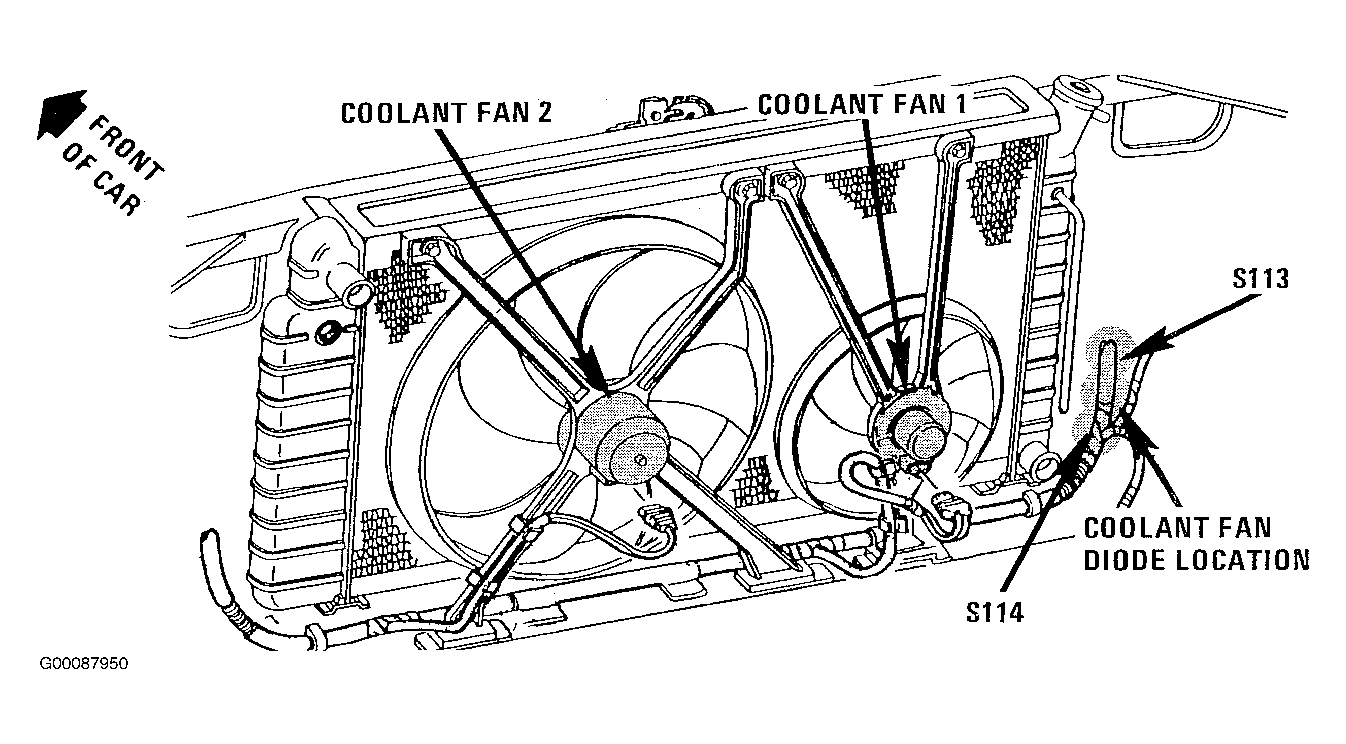

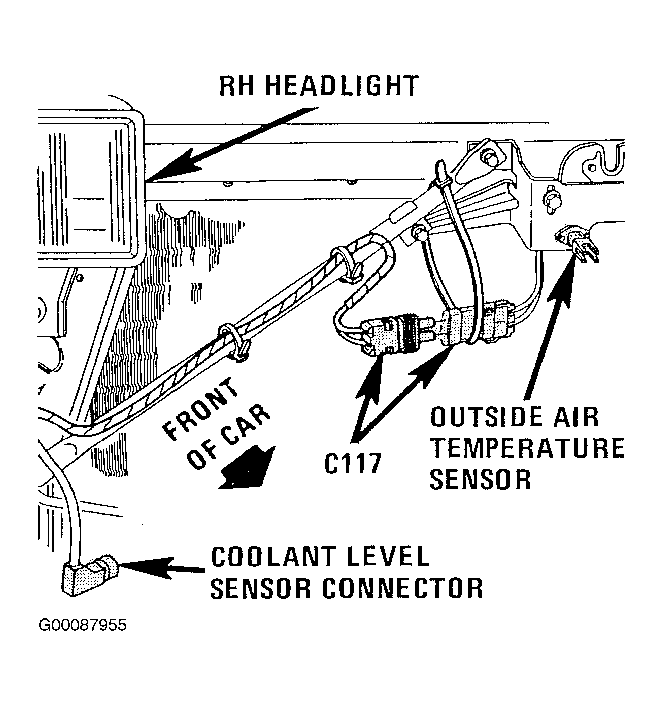

Fig 21: Front Of Engine Compartment, Rear Of Radiator
Courtesy of GENERAL MOTORS CORP.
Fig 22: Under Right Front Of Car
Courtesy of GENERAL MOTORS CORP.

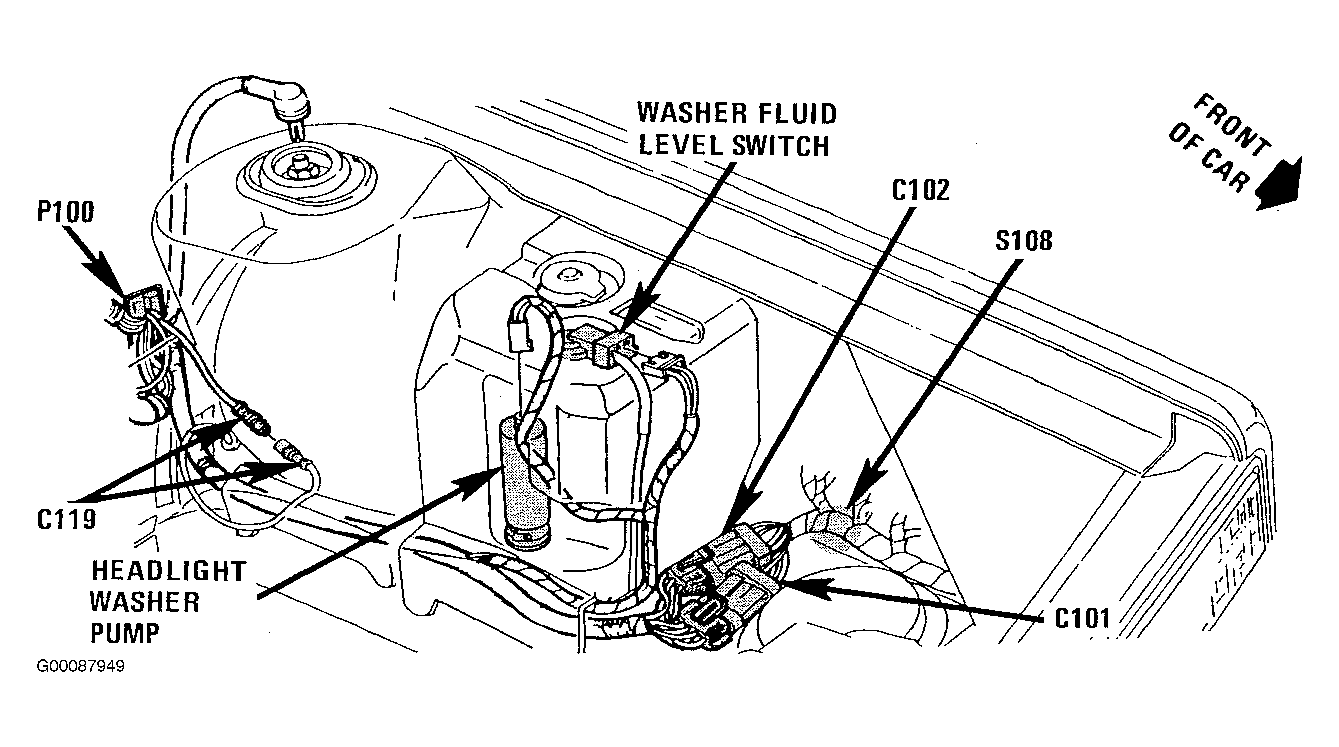

Fig 23: Right Front Fender
Courtesy of GENERAL MOTORS CORP.
Fig 24: Front Of Car
Courtesy of GENERAL MOTORS CORP.

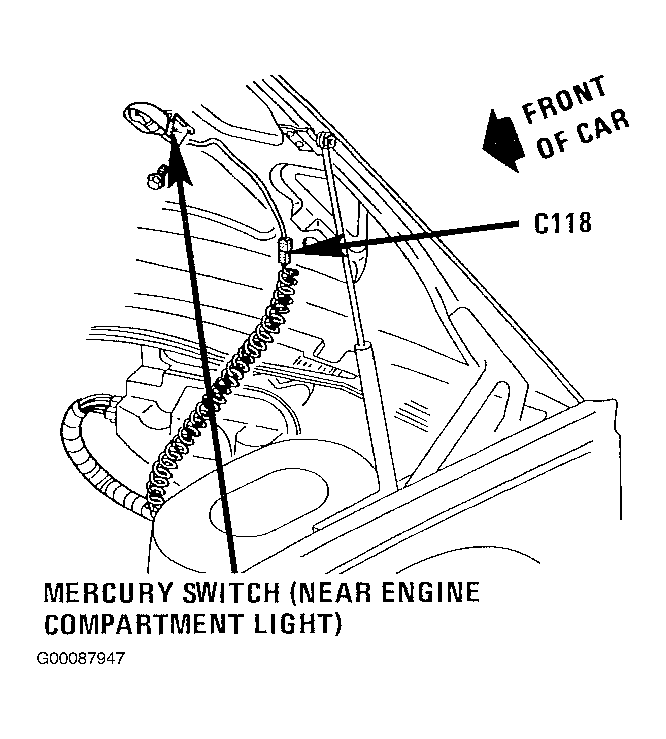

Fig 25: Right Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

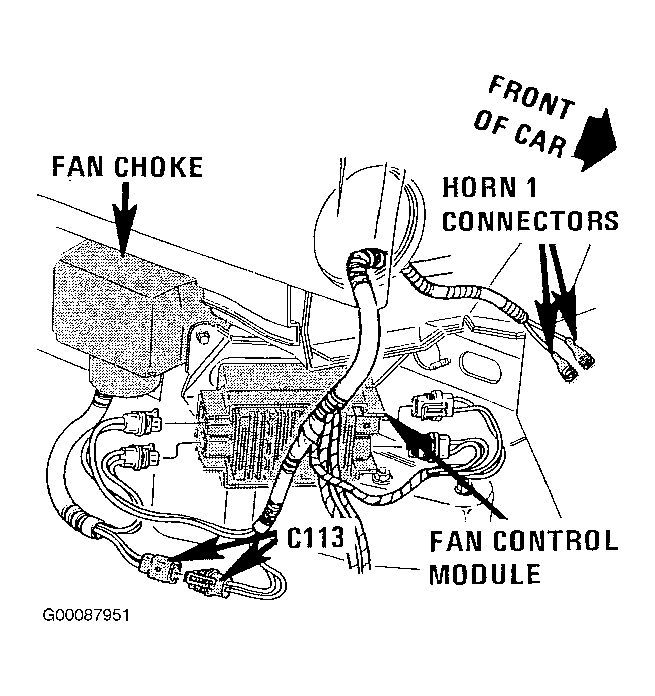

Fig 26: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

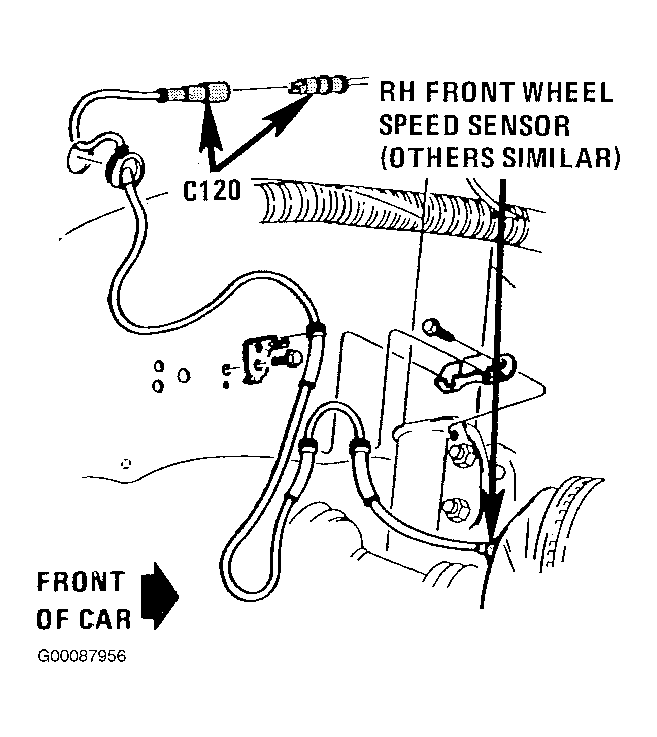

Fig 27: Right Front Wheelhouse
Courtesy of GENERAL MOTORS CORP.
Fig 28: Behind Left Side Of Instrument Panel (1 Of 5)
Courtesy of GENERAL MOTORS CORP.
Fig 29: Behind Left Side Of Instrument Panel (2 Of 5)
Courtesy of GENERAL MOTORS CORP.
Fig 30: Behind Left Side Of Instrument Panel (3 Of 5)
Courtesy of GENERAL MOTORS CORP.
Fig 31: Behind Left Side Of Instrument Panel (4 Of 5)
Courtesy of GENERAL MOTORS CORP.
Fig 32: Behind Left Side Of Instrument Panel (5 Of 5)
Courtesy of GENERAL MOTORS CORP.
Fig 33: Below Left Side Of Instrument Panel
Courtesy of GENERAL MOTORS CORP.

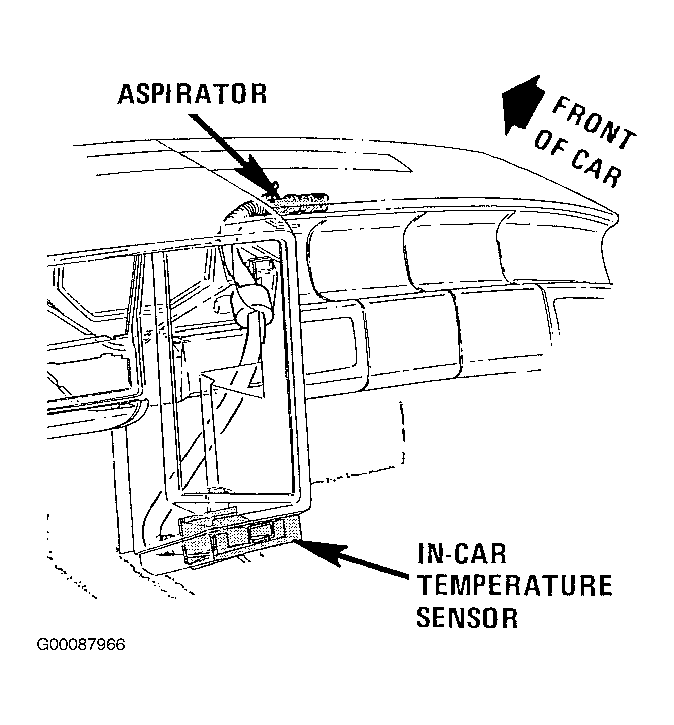

Fig 34: Left Side Of Instrument Panel
Courtesy of GENERAL MOTORS CORP.

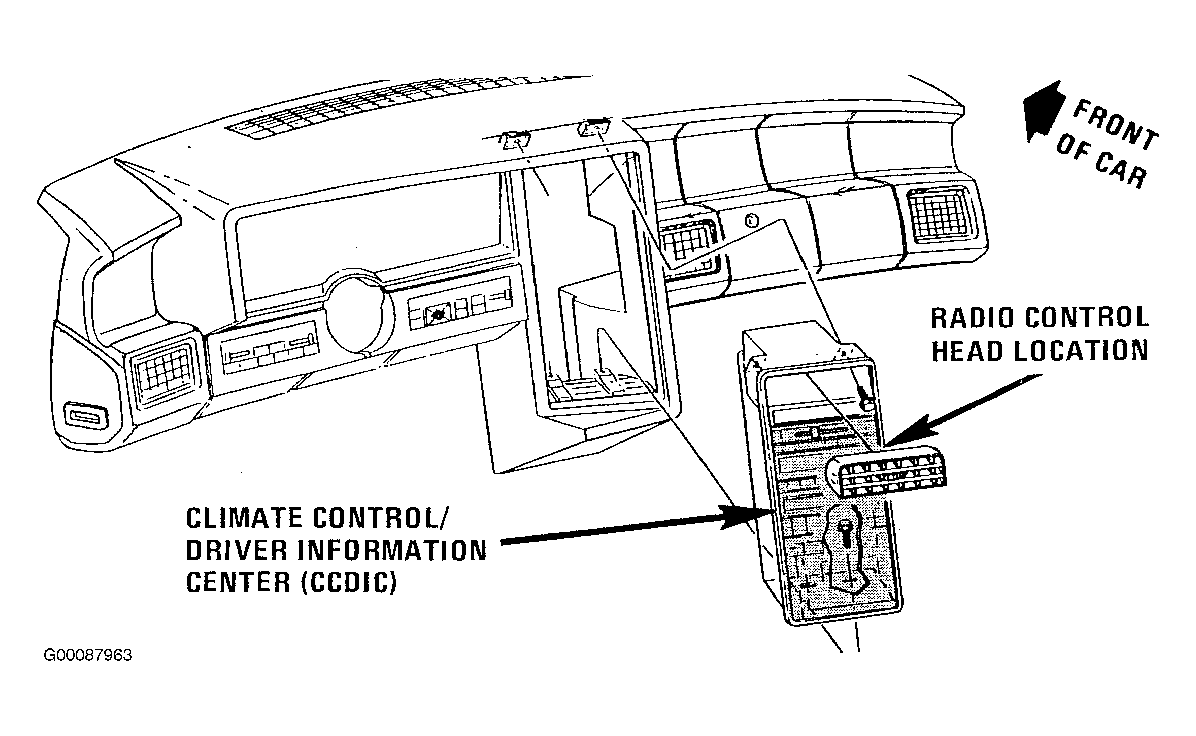

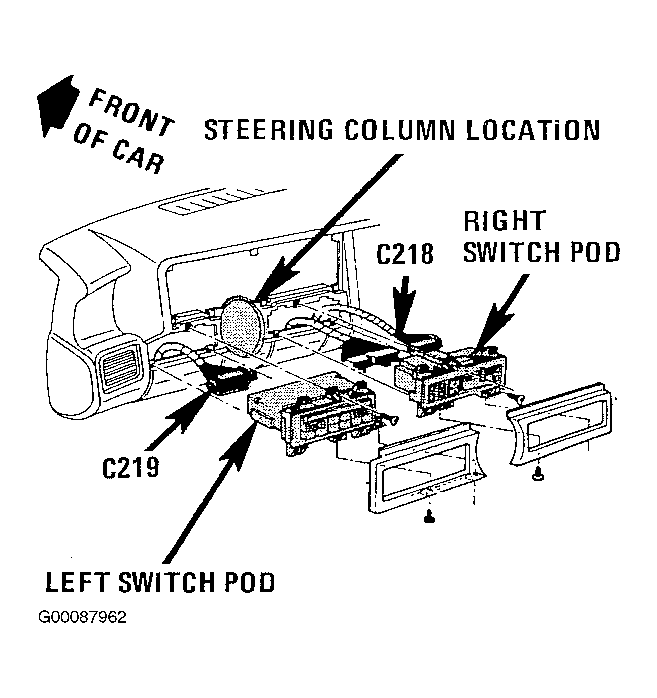

Fig 35: Instrument Panel
Courtesy of GENERAL MOTORS CORP.

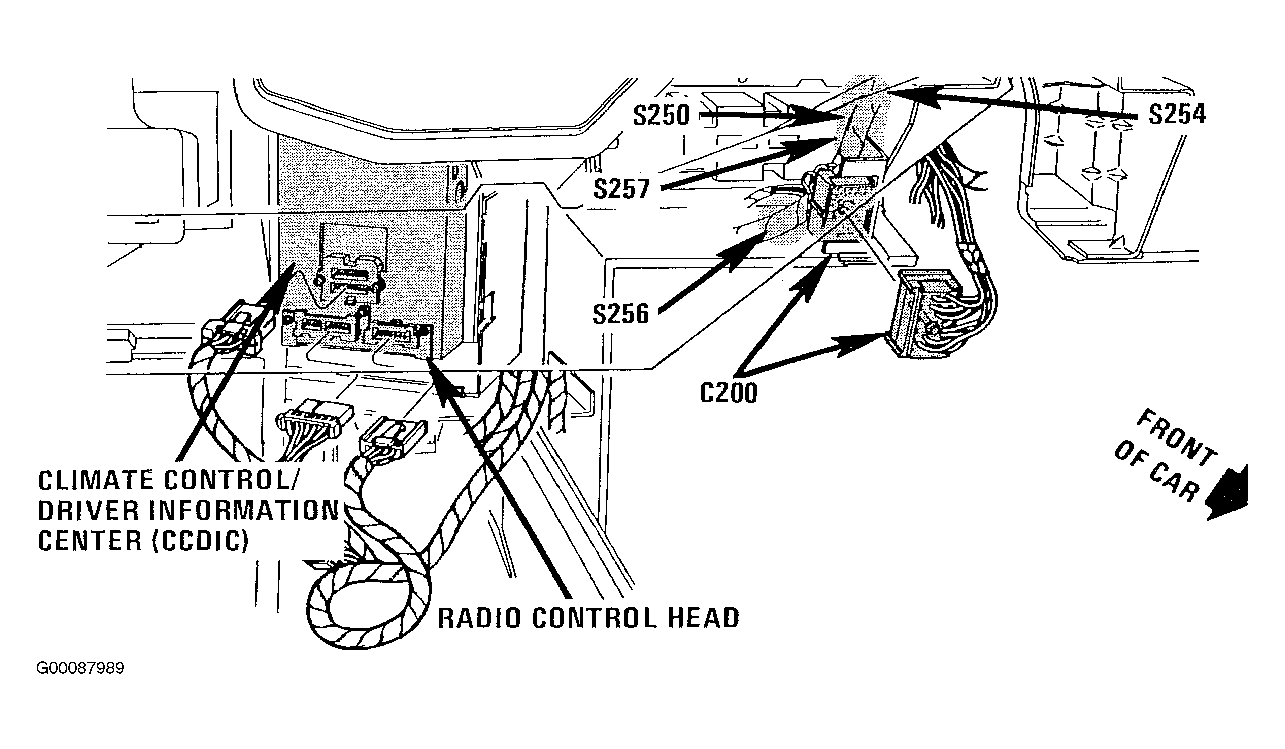

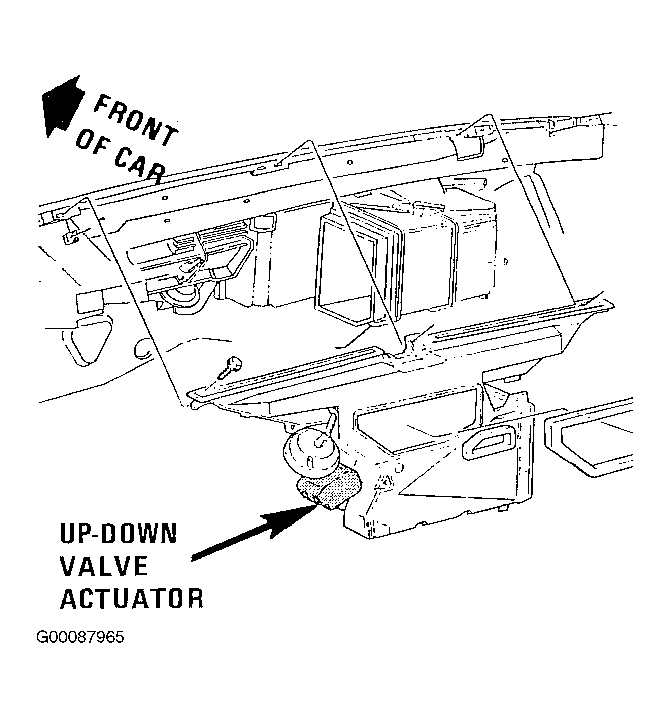

Fig 36: Behind Center Of Instrument Panel (1 Of 4)
Courtesy of GENERAL MOTORS CORP.
Fig 37: Behind Center Of Instrument Panel (2 Of 4)
Courtesy of GENERAL MOTORS CORP.
Fig 38: Behind Center Of Instrument Panel (3 Of 4)
Courtesy of GENERAL MOTORS CORP.
Fig 39: Behind Center Of Instrument Panel (4 Of 4)
Courtesy of GENERAL MOTORS CORP.

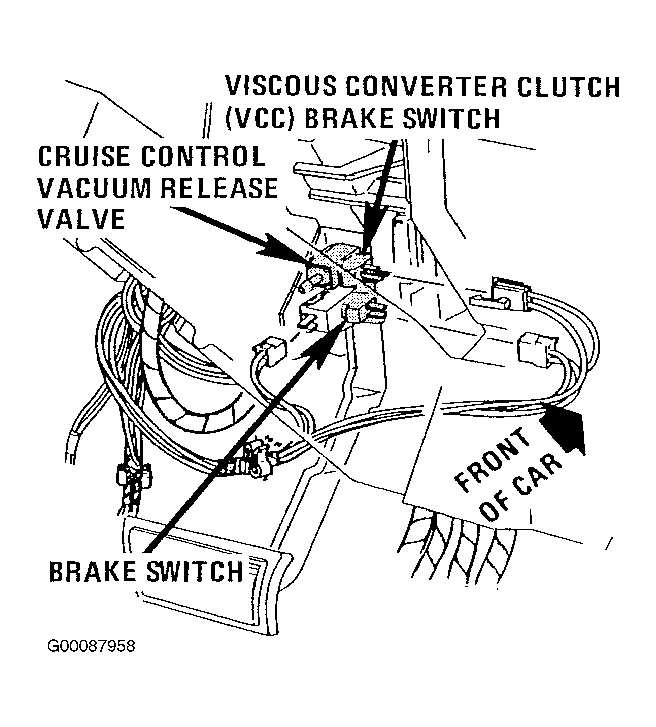

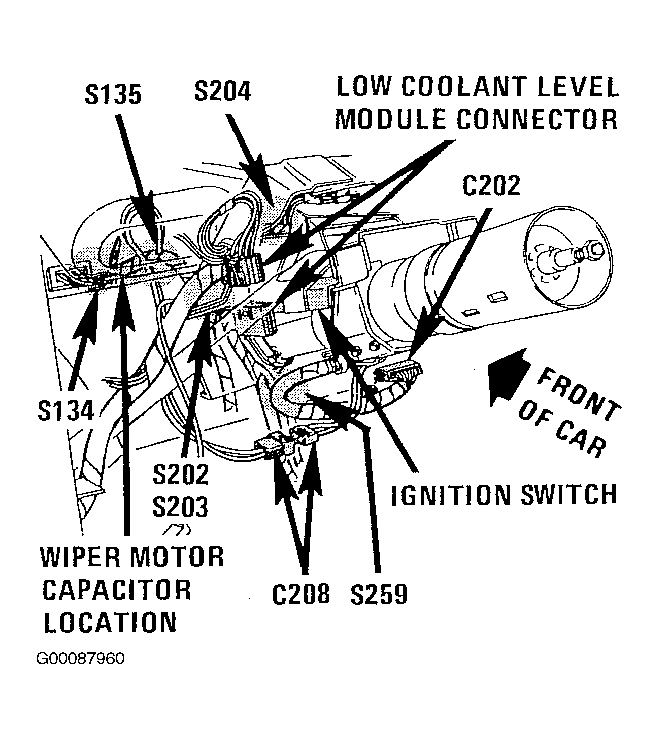

Fig 40: Top Of Steering Column
Courtesy of GENERAL MOTORS CORP.

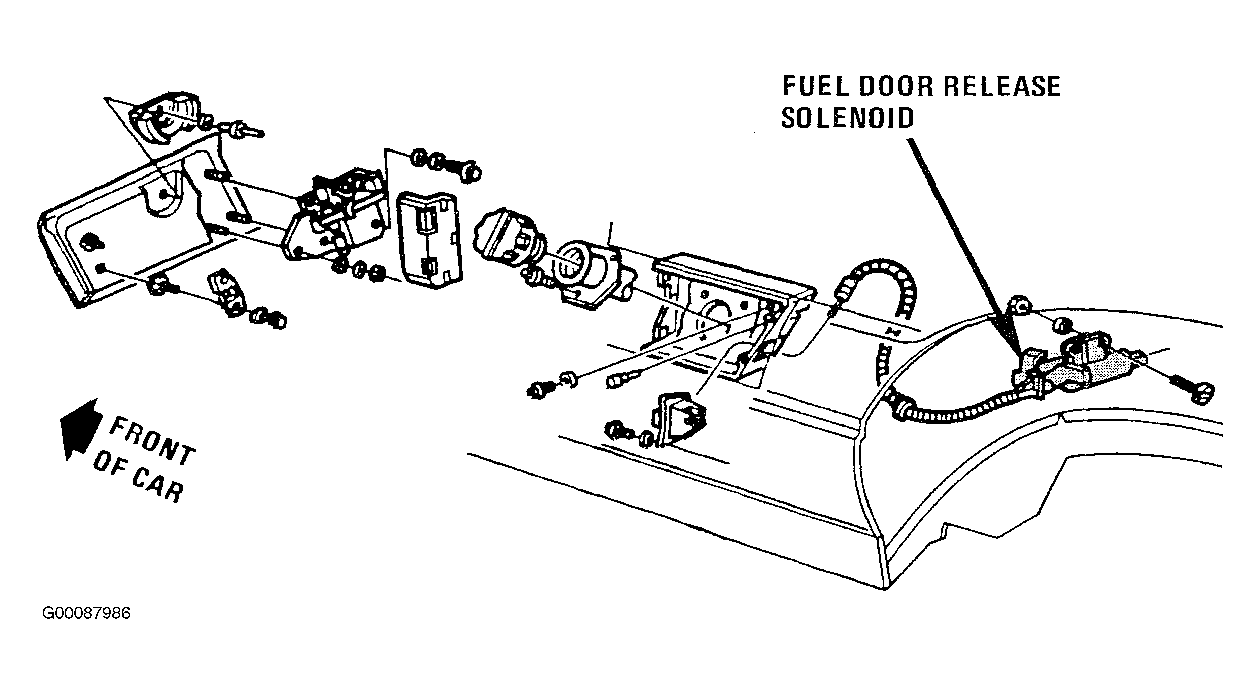

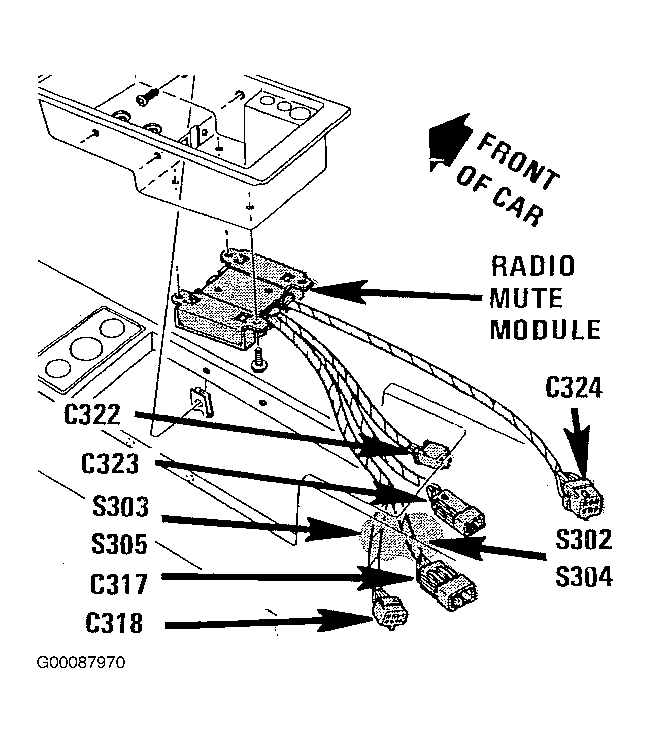

Fig 41: Center Console (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 42: Center Console (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

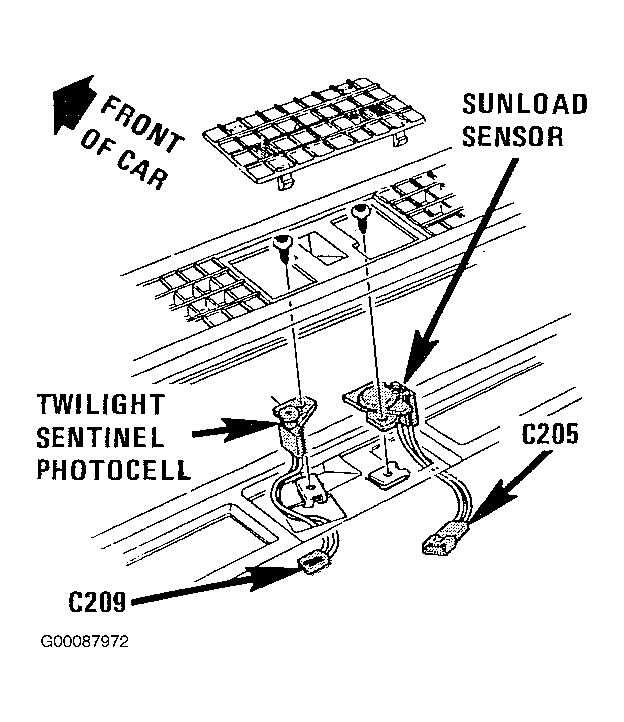

Fig 43: Center Of Windshield Header
Courtesy of GENERAL MOTORS CORP.
Fig 44: Below Center Of Windshield
Courtesy of GENERAL MOTORS CORP.

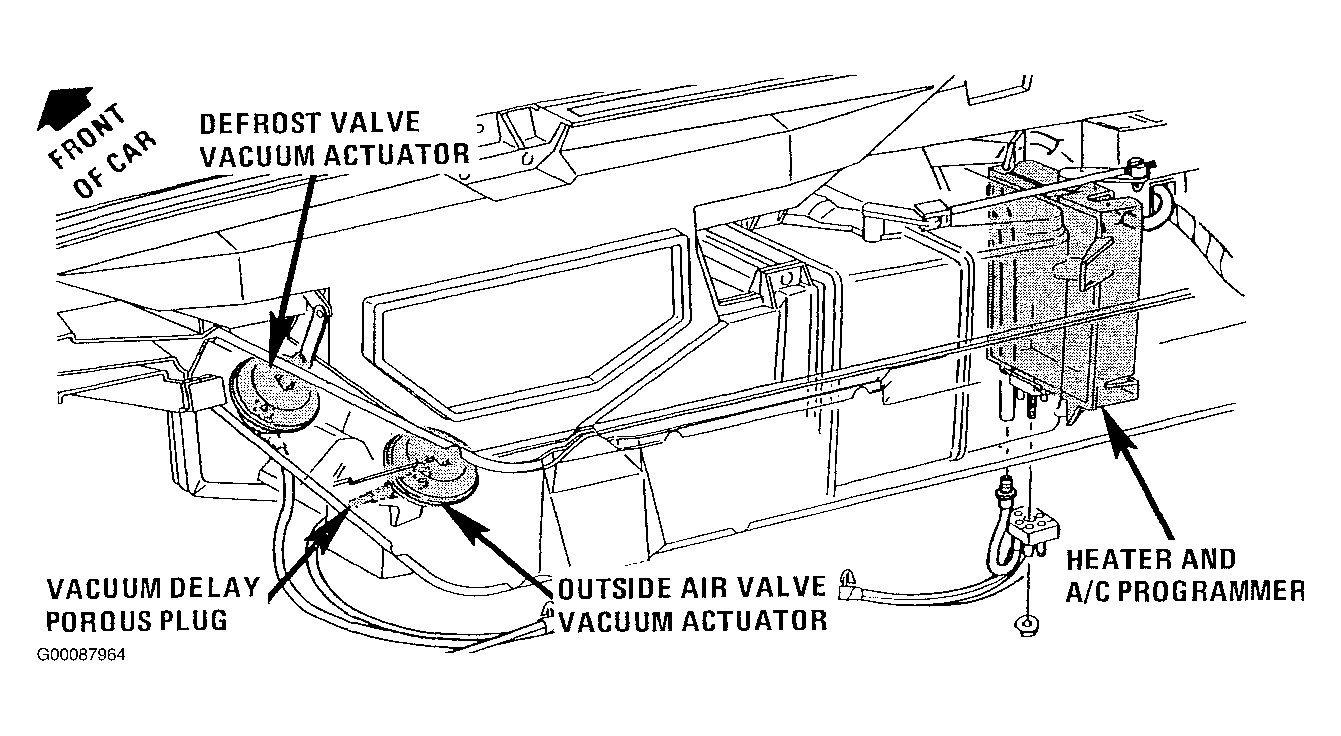

Fig 45: Behind Right Side Of Instrument Panel (1 Of 3)
Courtesy of GENERAL MOTORS CORP.
Fig 46: Behind Right Side Of Instrument Panel (2 Of 3)
Courtesy of GENERAL MOTORS CORP.
Fig 47: Behind Right Side Of Instrument Panel (3 Of 3)
Courtesy of GENERAL MOTORS CORP.

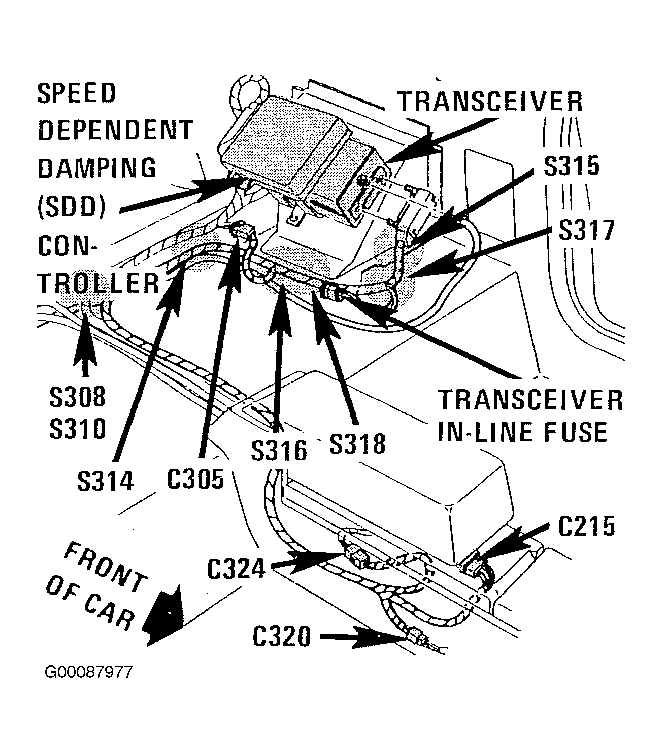

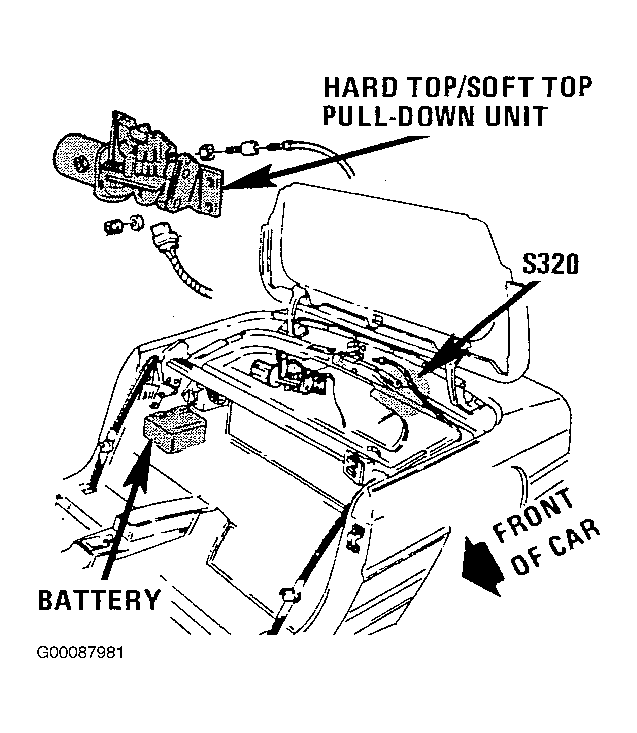

Fig 48: Behind Right Seat
Courtesy of GENERAL MOTORS CORP.
Fig 49: Left Rear Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.

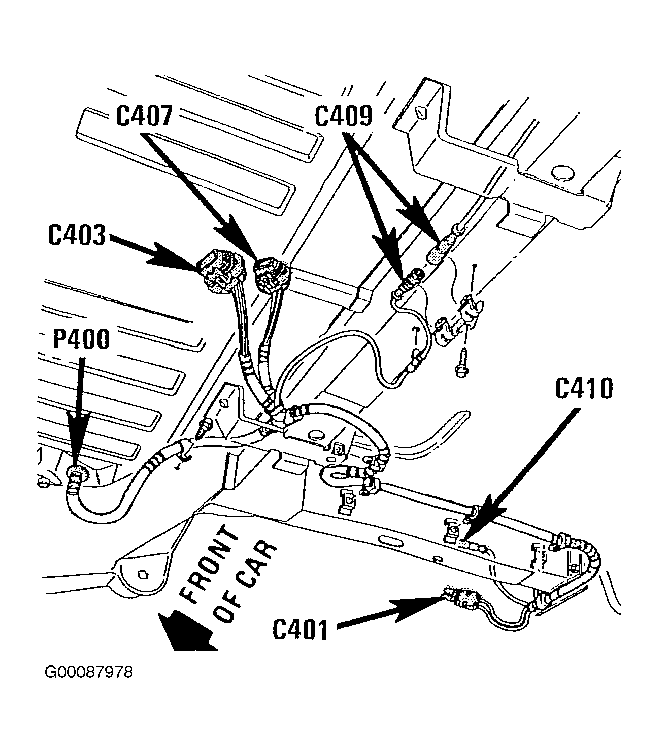

Fig 50: Under Rear Of Car
Courtesy of GENERAL MOTORS CORP.

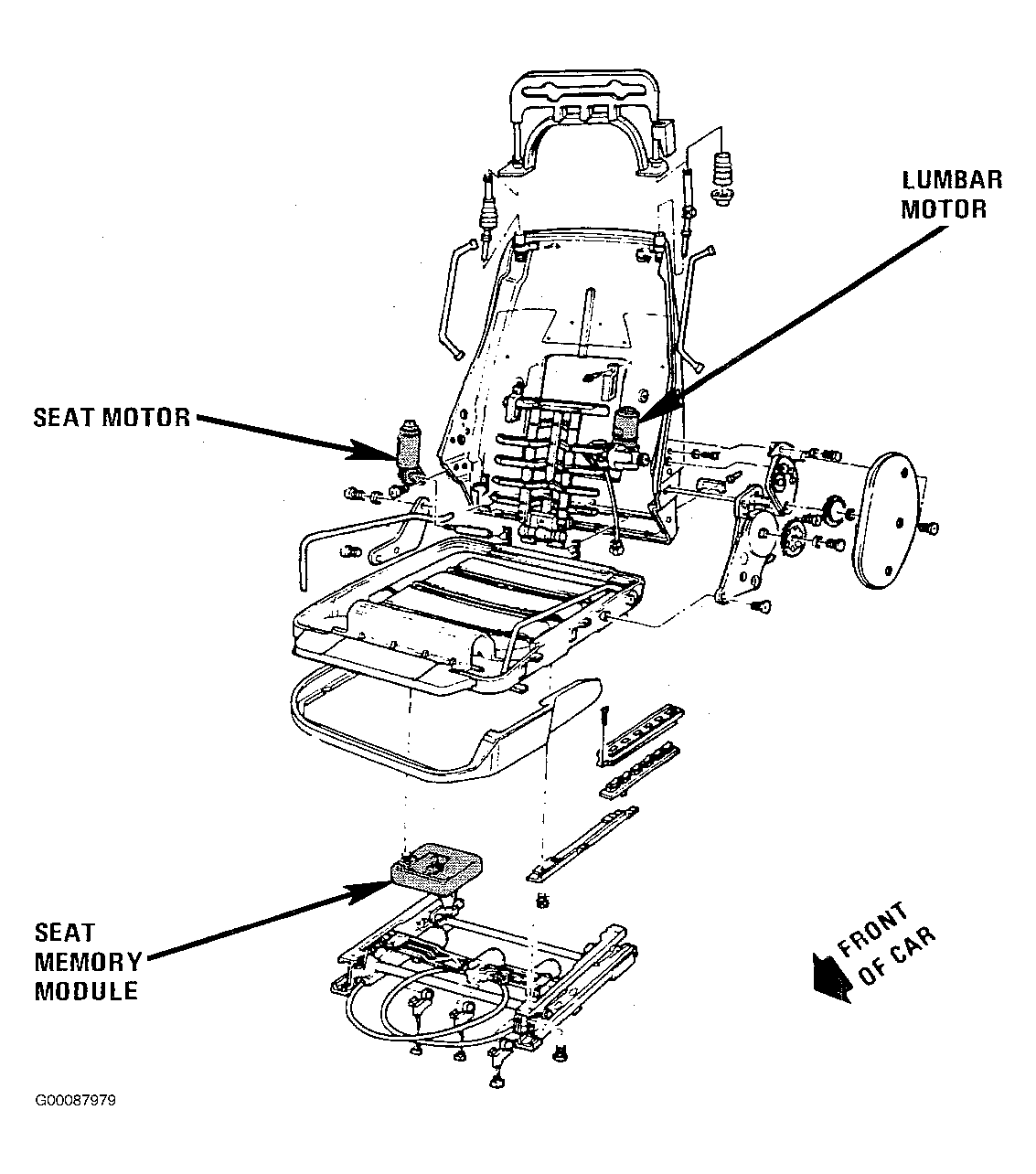

Fig 51: Front Seat
Courtesy of GENERAL MOTORS CORP.
Fig 52: Rear Of Car (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 53: Rear Of Car (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 54: Right Rear Of Trunk (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 55: Right Rear Of Trunk (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 56: Left Rear Of Trunk
Courtesy of GENERAL MOTORS CORP.
Fig 57: Right Rear Corner Of Trunk
Courtesy of GENERAL MOTORS CORP.
Fig 58: Left Rear Of Trunk Compartment
Courtesy of GENERAL MOTORS CORP.

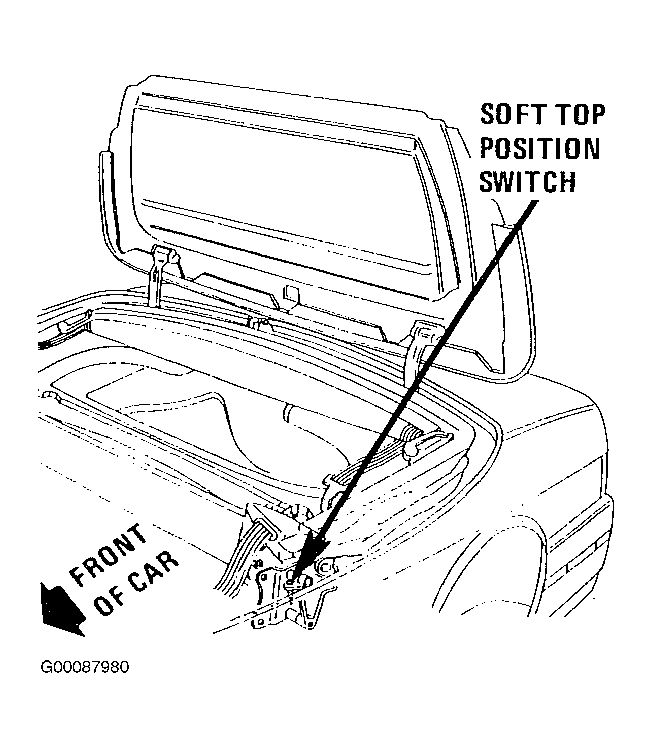

Fig 59: Rear Of Trunk Lid
Courtesy of GENERAL MOTORS CORP.
Fig 60: Under Rear Of Car
Courtesy of GENERAL MOTORS CORP.

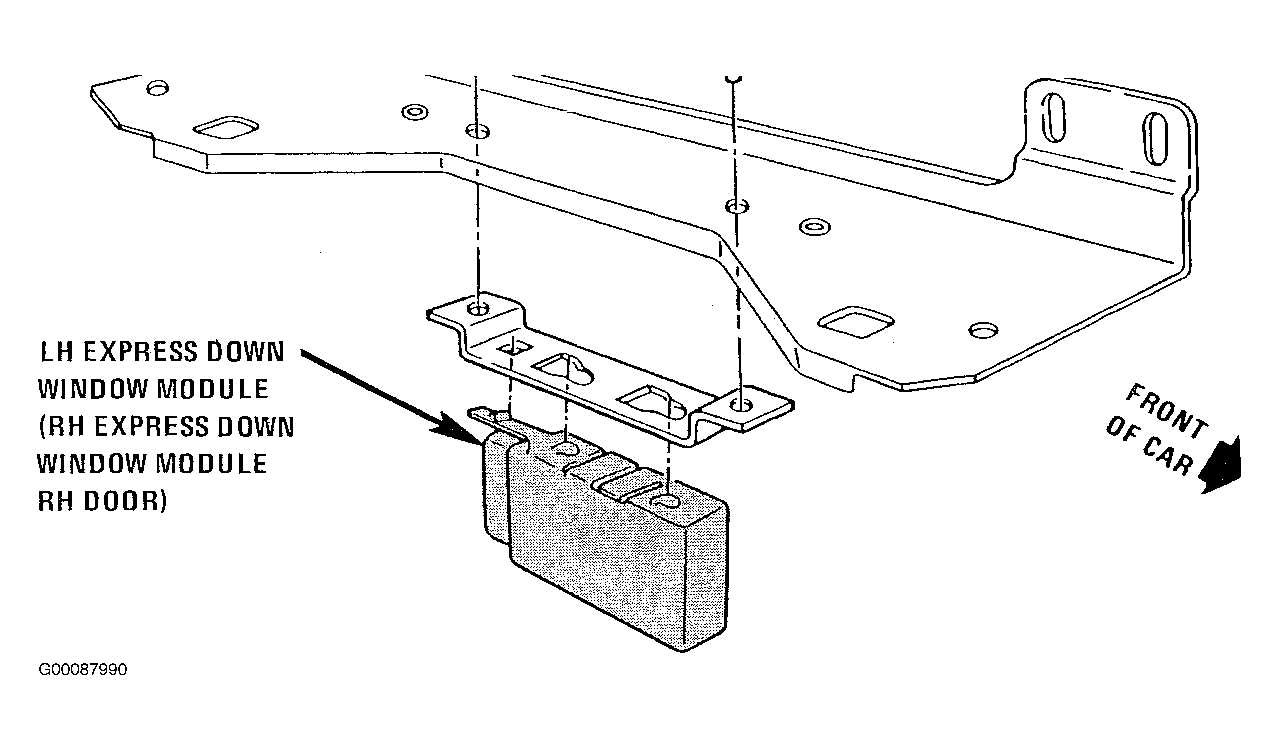

Fig 61: Left Door, Below Armrest (Right Similar)
Courtesy of GENERAL MOTORS CORP.

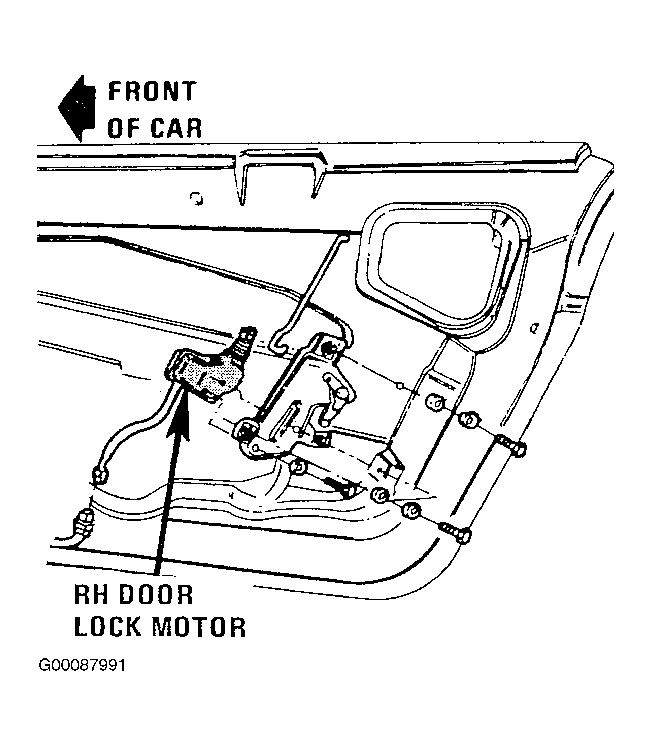

Fig 62: Rear Of Right Door (Left Similar)
Courtesy of GENERAL MOTORS CORP.

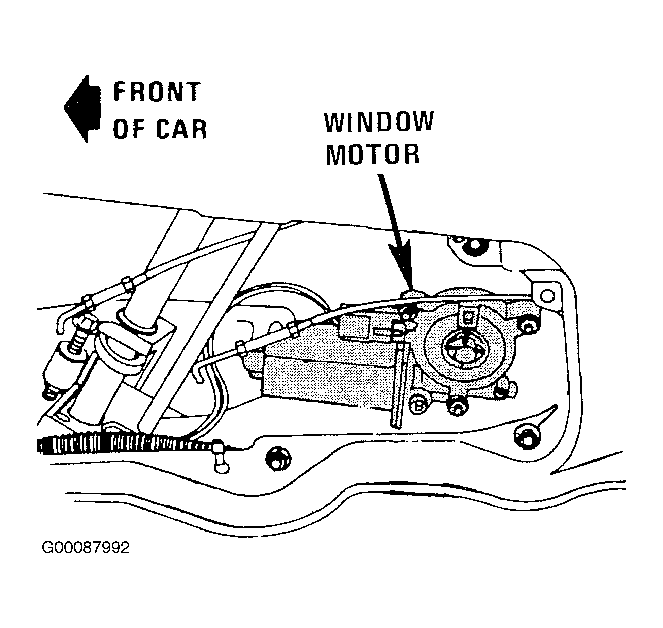

Fig 63: Lower Center Of Right Door (Left Similar)
Courtesy of GENERAL MOTORS CORP.
