Home >> Cadillac >> 1989 >> Allante F7/ME9 >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock >> Removal & Installation >> Electronic Brake Control Module >> Removal

Electronic Brake Control Module: Removal

  1. Remove driver's side sound insulator panel.

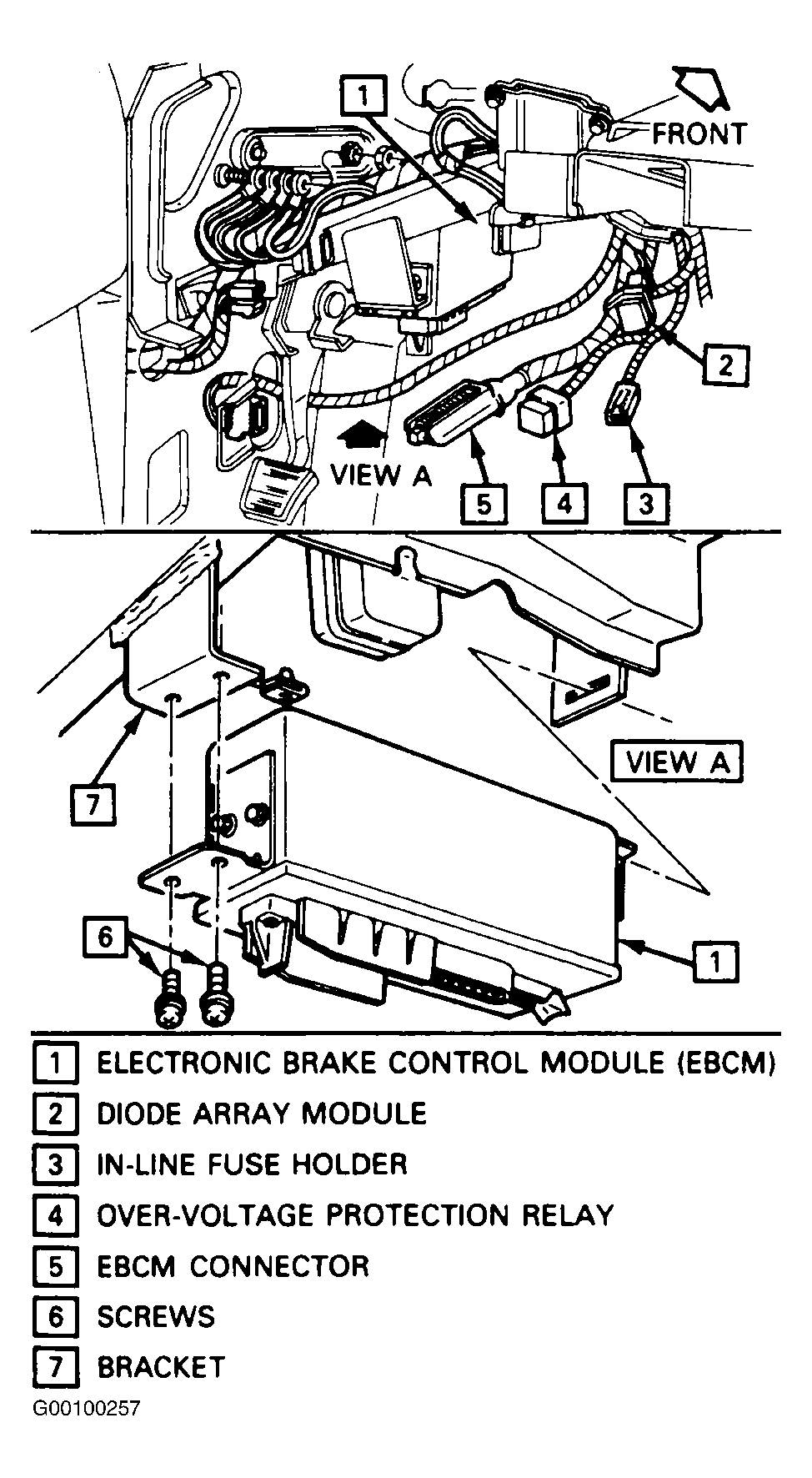

  2. EBCM connector by disengaging retainer and rotating connector toward the driver's seat. See Figure .
  3. EBCM retaining bolts.
  4. Disengage EBCM from mounting bracket and remove from car.
