Control Pressure Switch: Installation

  1. Install control pressure switch on booster/master assembly. Tighten to 30 N.m (22 ft. lbs.).
  2. Connect control pressure switch connector at sensor block. See Fig 1 .

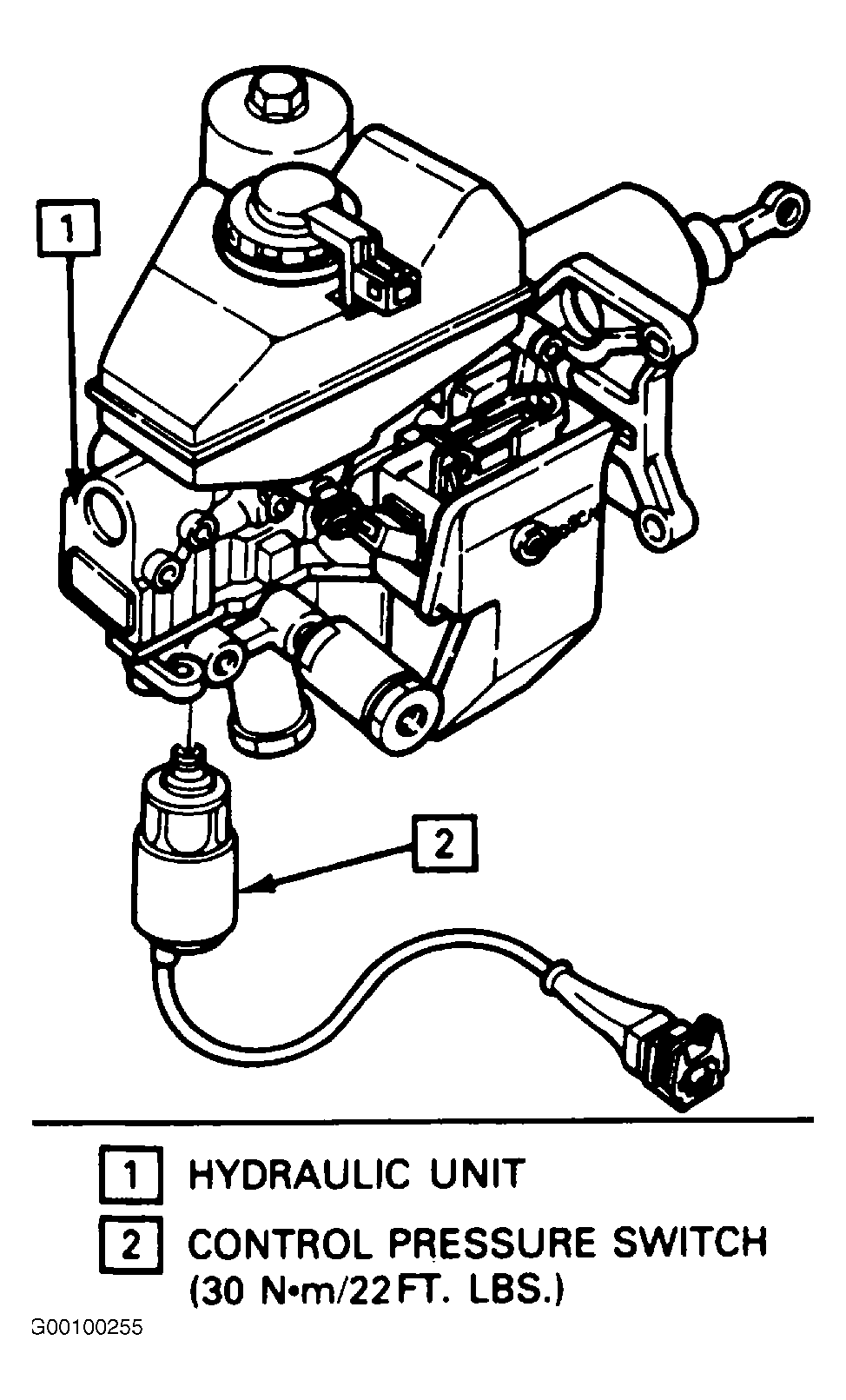

Fig 1: Locating Control Pressure Switch
G00100255Courtesy of GENERAL MOTORS CORP.
