Connector Identification

Select connector graph from table. See CONNECTOR FACES .

CONNECTOR FACES

Connector Face

See Figure

Brake Pump

⁽¹⁾

Control Pressure Switch

⁽²⁾

Electronic Brake Control Module (ECBM)

⁽¹⁾

Fluid Level Sensor

⁽¹⁾

Over-Voltage Protection Relay

⁽³⁾

Over-Voltage Protection Relay Terminals

⁽³⁾

Pump Motor Relay

⁽³⁾

Pump Motor Relay Terminals

⁽³⁾

Reed Block

⁽²⁾ & ⁽⁴⁾

Sensor Block

⁽¹⁾ , ⁽²⁾ & ⁽⁴⁾

Sensor Block Ground Pin

⁽²⁾

Stop Lamp Switch

⁽¹⁾⁽²⁾

Valve Block Connector

⁽²⁾

Wheel Speed Sensor

⁽³⁾

⁽¹⁾

See Fig 1

⁽²⁾

See Fig 2

⁽³⁾

See Fig 3

⁽⁴⁾

See Fig 4

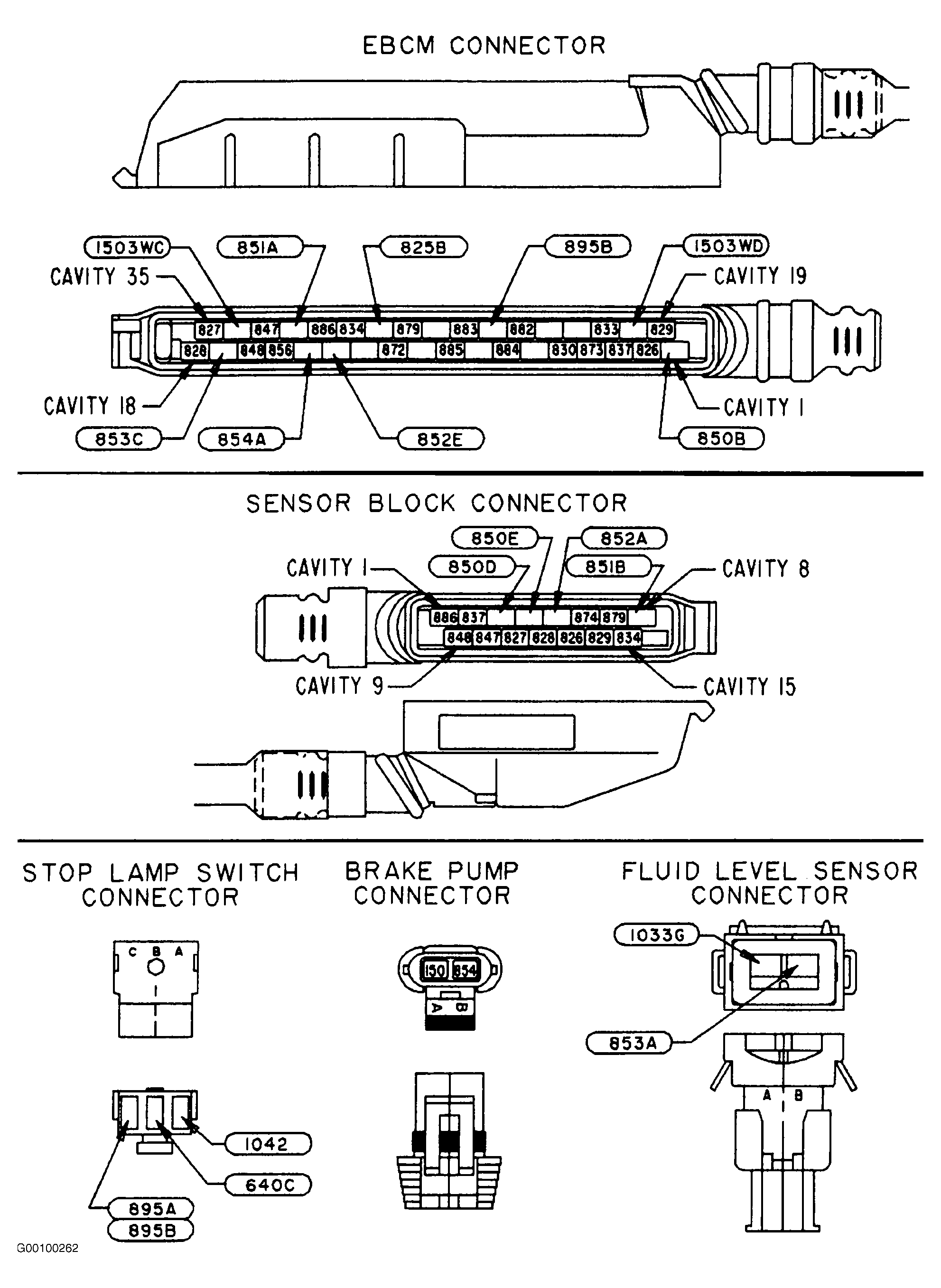

Fig 1: Identifying EBCM, Sensor Block, Stop Lamp Switch, Brake Pump & Fluid Level Sensor Connector Faces

Courtesy of GENERAL MOTORS CORP.

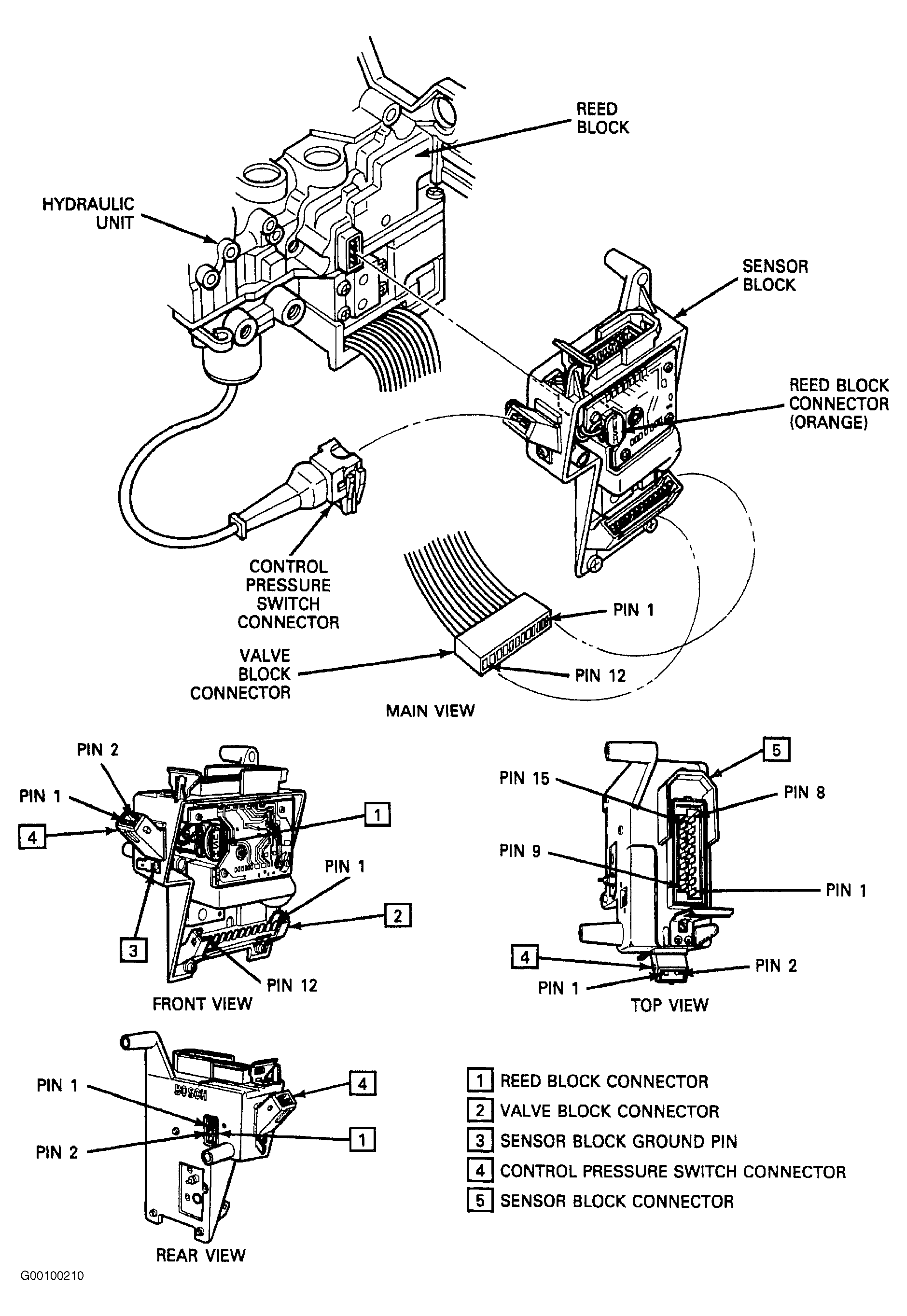

Fig 2: Identifying Reed Block, Valve Block, Sensor Block, Sensor Block Ground Pin & Control Pressure Switch Connector Faces

Courtesy of GENERAL MOTORS CORP.

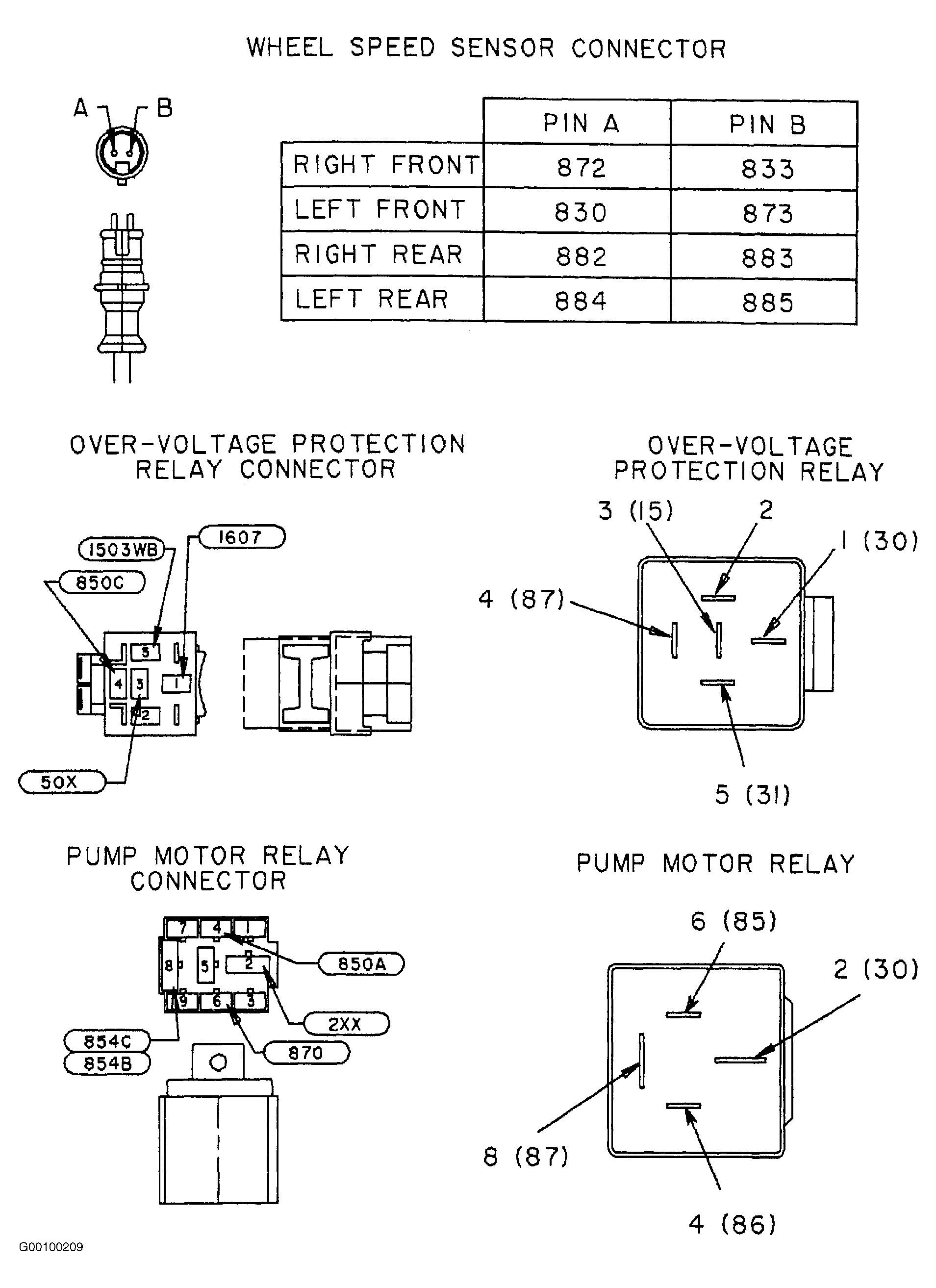

Fig 3: Locating Wheel Speed Sensor, Over-Voltage Protection Relay & Pump Motor Relay Connector Faces & Over-Voltage Protection & Pump Motor Relay Terminals

Courtesy of GENERAL MOTORS CORP.

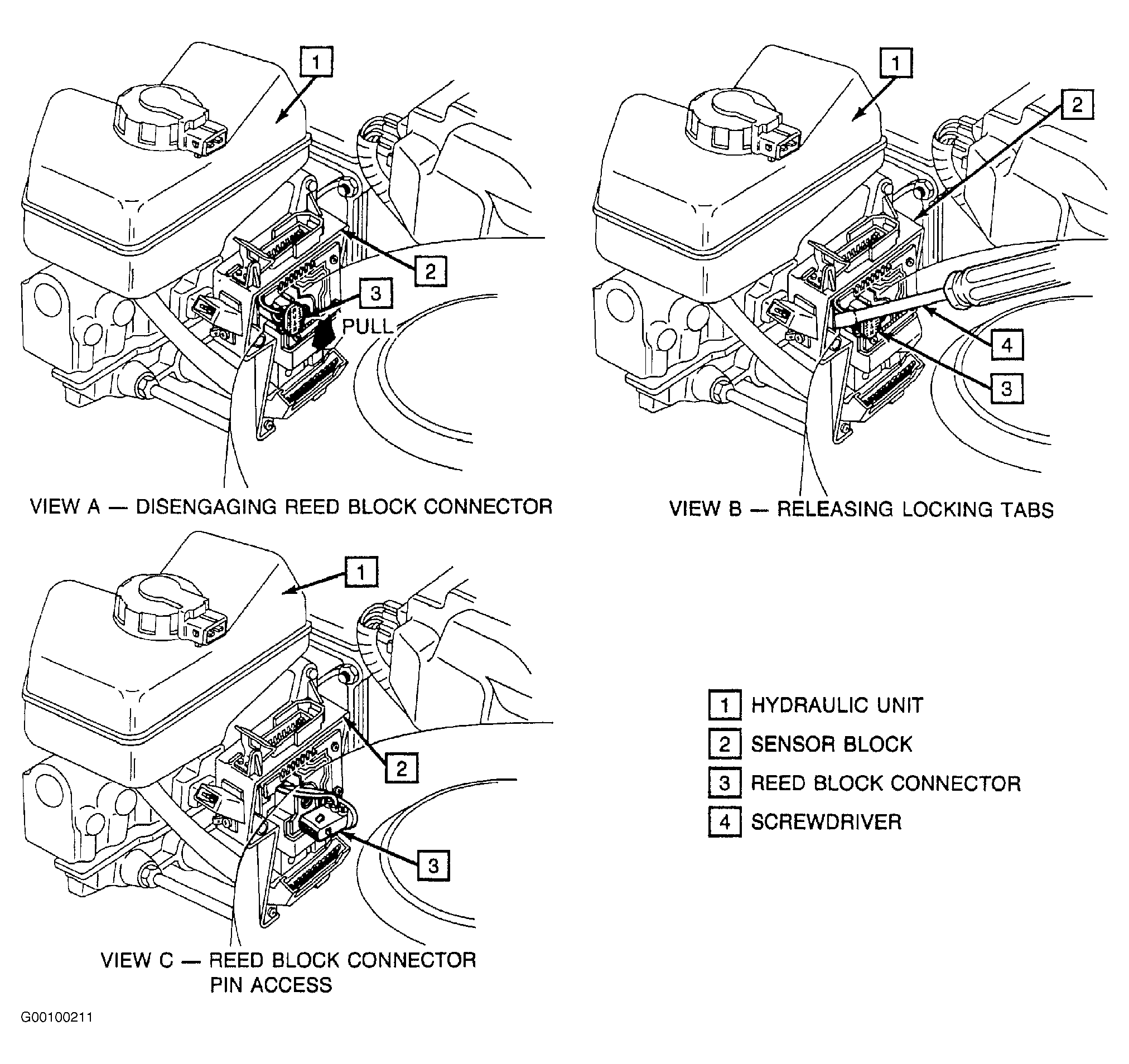

Fig 4: Reed Block & Sensor Block Pin Access

Courtesy of GENERAL MOTORS CORP.
