Home >> Cadillac >> 1988 >> Seville STS >> Repair and Diagnosis >> Engine Performance >> System >> DFI ECM Tests W/Codes >> Wiring Diagram

DFI ECM Tests W/Codes: Wiring Diagram

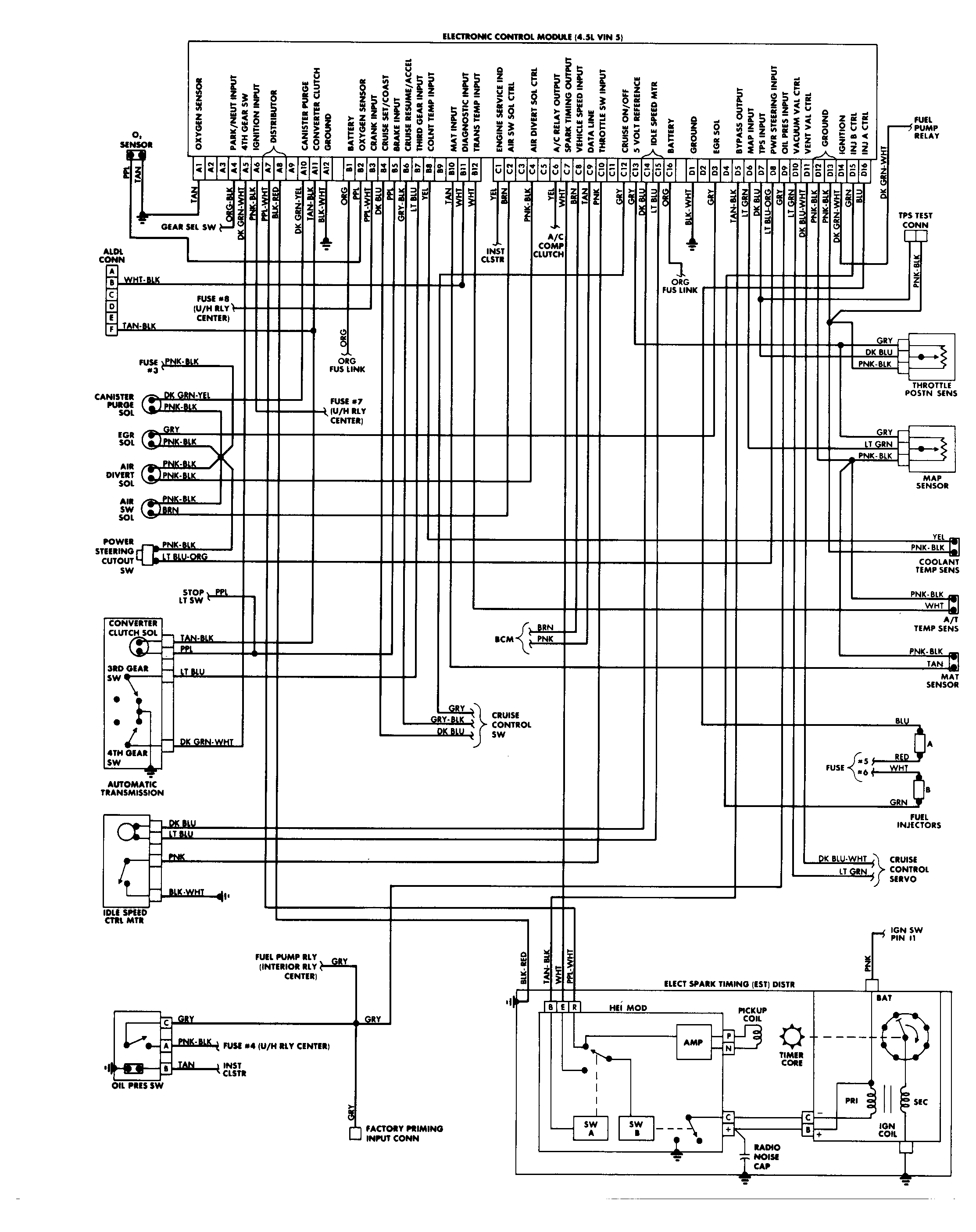

Fig 1: DFI Fuel System/ECM Wiring Diagram

G57444
