Notes On INTERMITTENTS

If intermittent code B120 is being set, manipulate related wiring while observing BCM data code BD43. If failure is induced, reading will jump from its normal value to a reading outside the range of 6-94 percent

Fig 1: Code B120 Schematic, Twilight Delay Pot Circuit

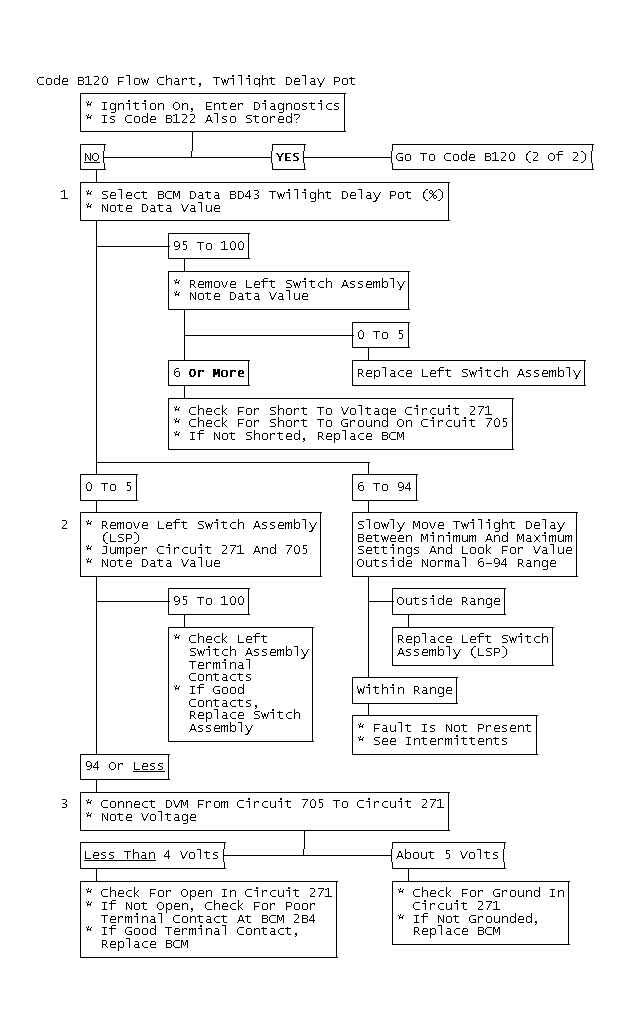

Fig 2: Code B120 Flow Chart, Twilight Delay Pot Circuit

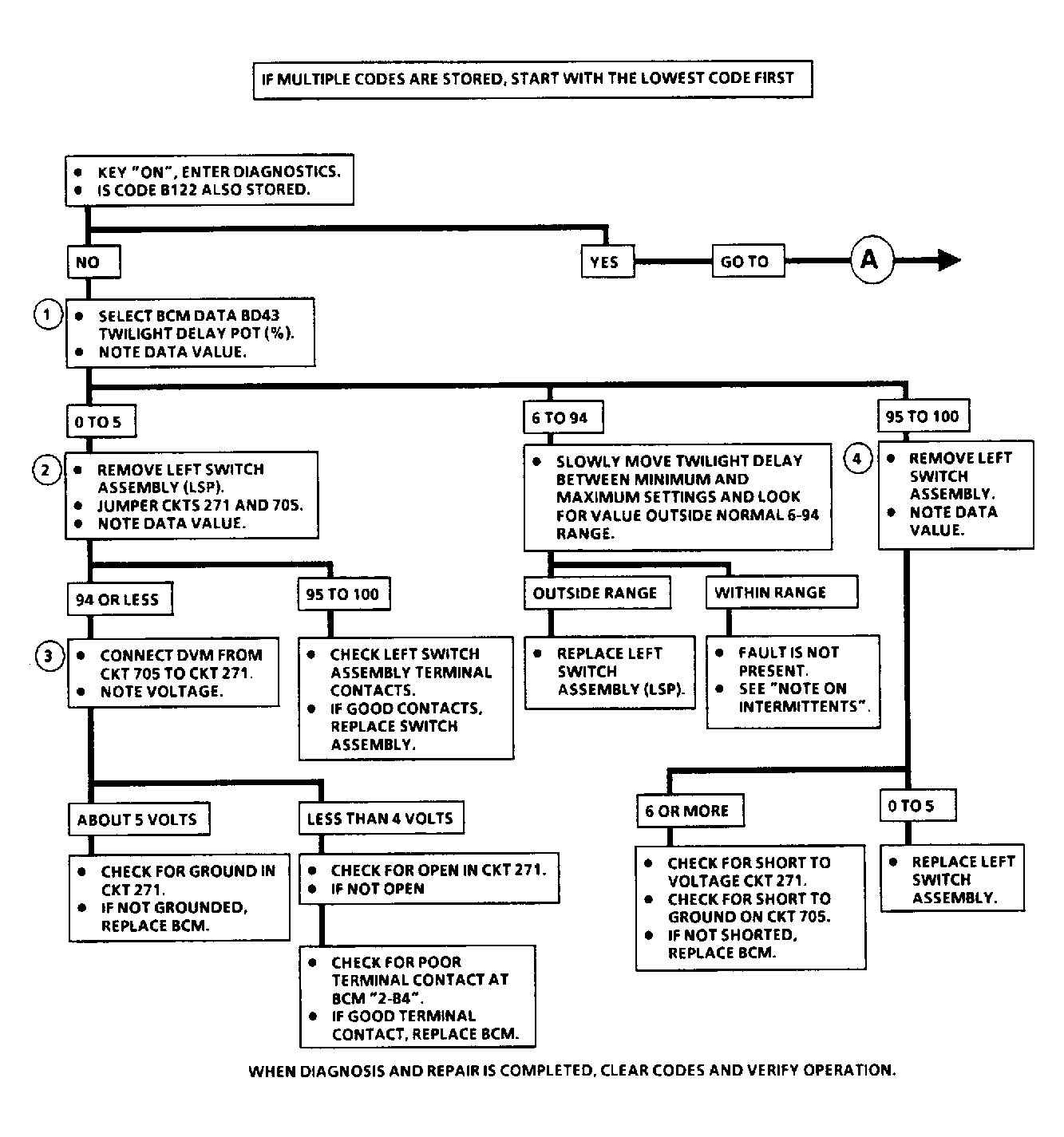

Fig 3: Code B120 Flow Chart, Twilight Delay Pot Circuit
