Notes On INTERMITTENTS

If intermittent code B119 is being set, manipulate related wiring while observing BCM data code BD44. If failure is induced, reading will jump from its normal value to a reading outside the range of 6-94 percent. Ensure owner is advised not to cover sensor.

Fig 1: Code B119 Schematic, Twilight Photocell Circuit

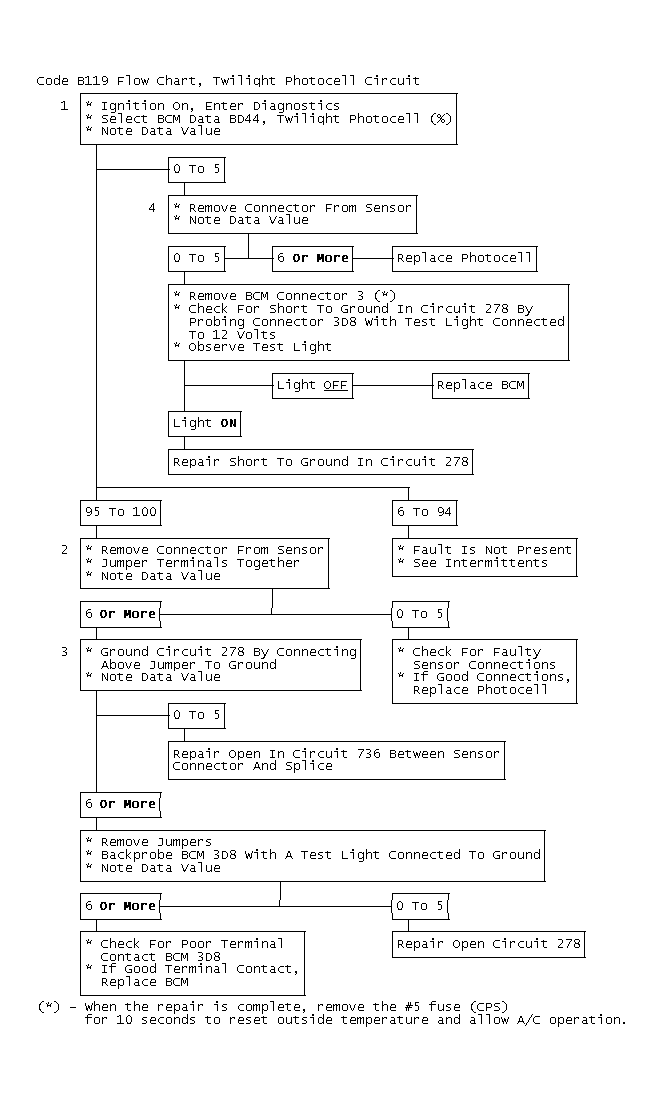

Fig 2: Code B119 Flow Chart, Twilight Photocell Circuit

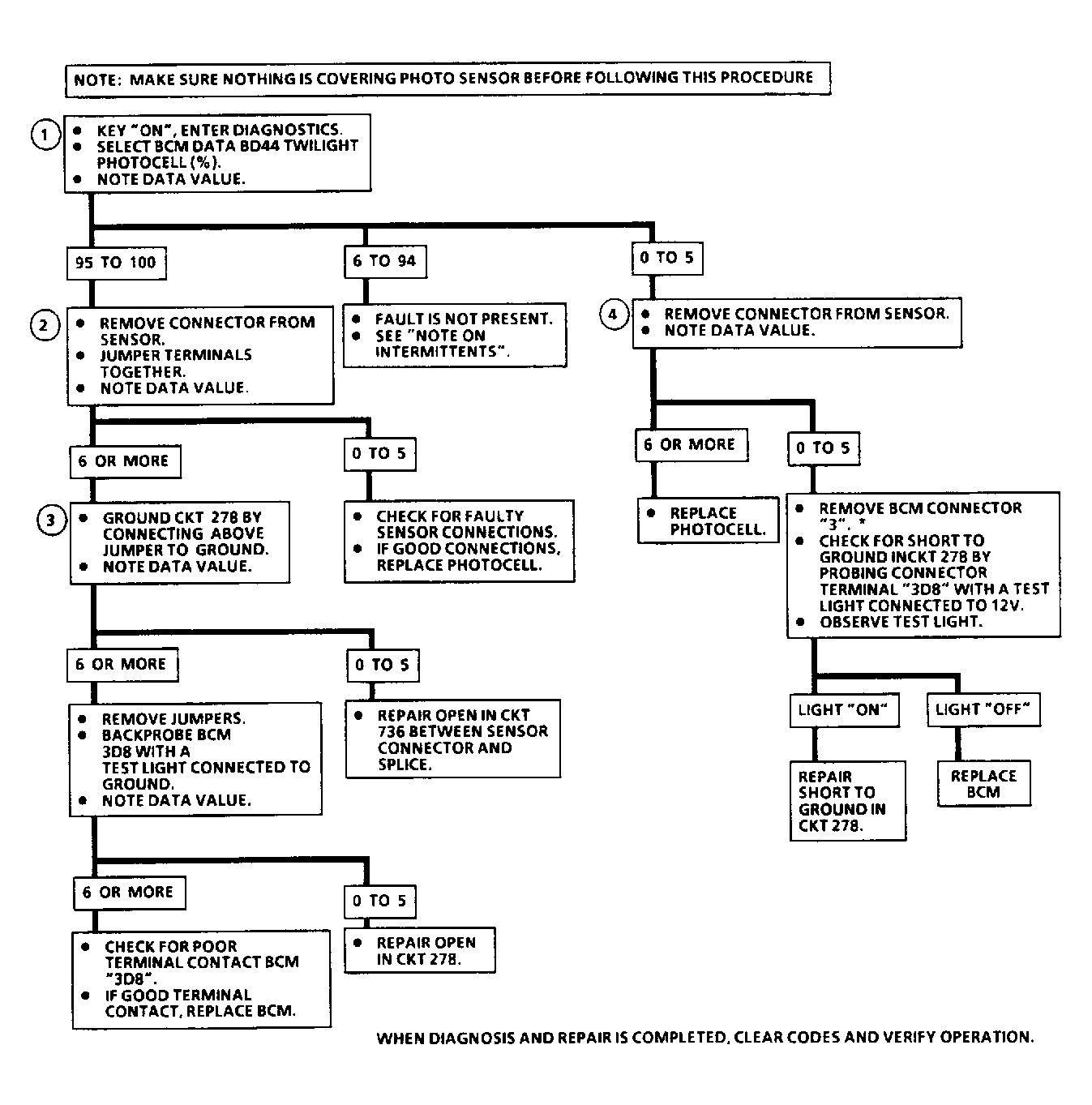

Fig 3: Code B119 Flow Chart, Twilight Photocell Circuit
