Distributor Pick-Up Coil Short & Resistance Checks

1. Disconnect pick-up coil leads from HEI/EST module terminals "N" and "P". Set ohmmeter to middle scale and connect one lead to either pick-up coil lead and the other lead to distributor housing. Flex pick-up coil leads by hand to check for intermittent shorts to ground. Reading should be infinity at all times. If not, replace pick-up coil.
2. Connect ohmmeter between both pick-up coil leads. Check for intermittent opens by flexing wires and connectors. Resistance should be 500-1500 ohms. If not, replace pick-up coil.

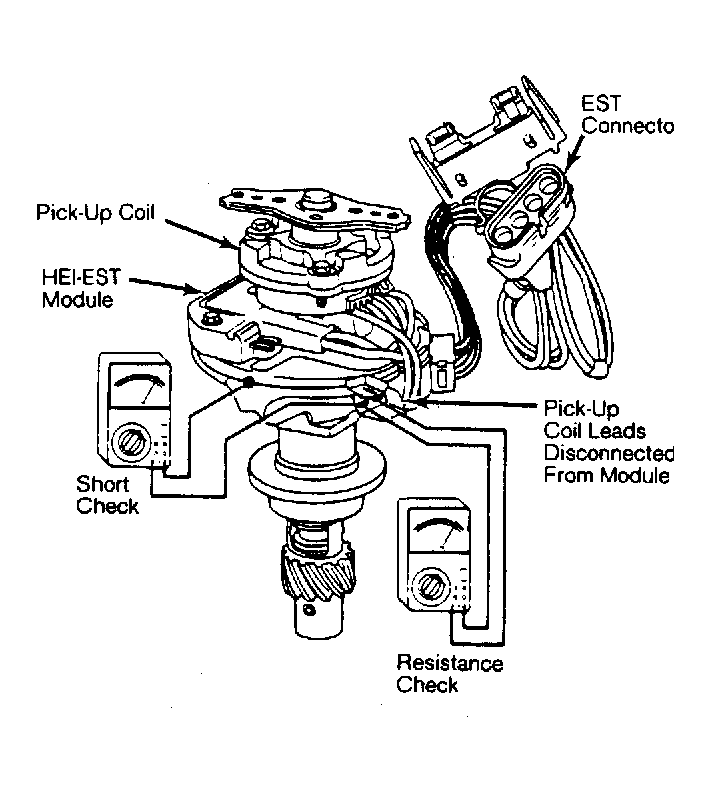

Fig 1: Checking Distributor Pick-Up Coil Integral coil system is shown.External coil testing is similar.
