Note On Intermittents

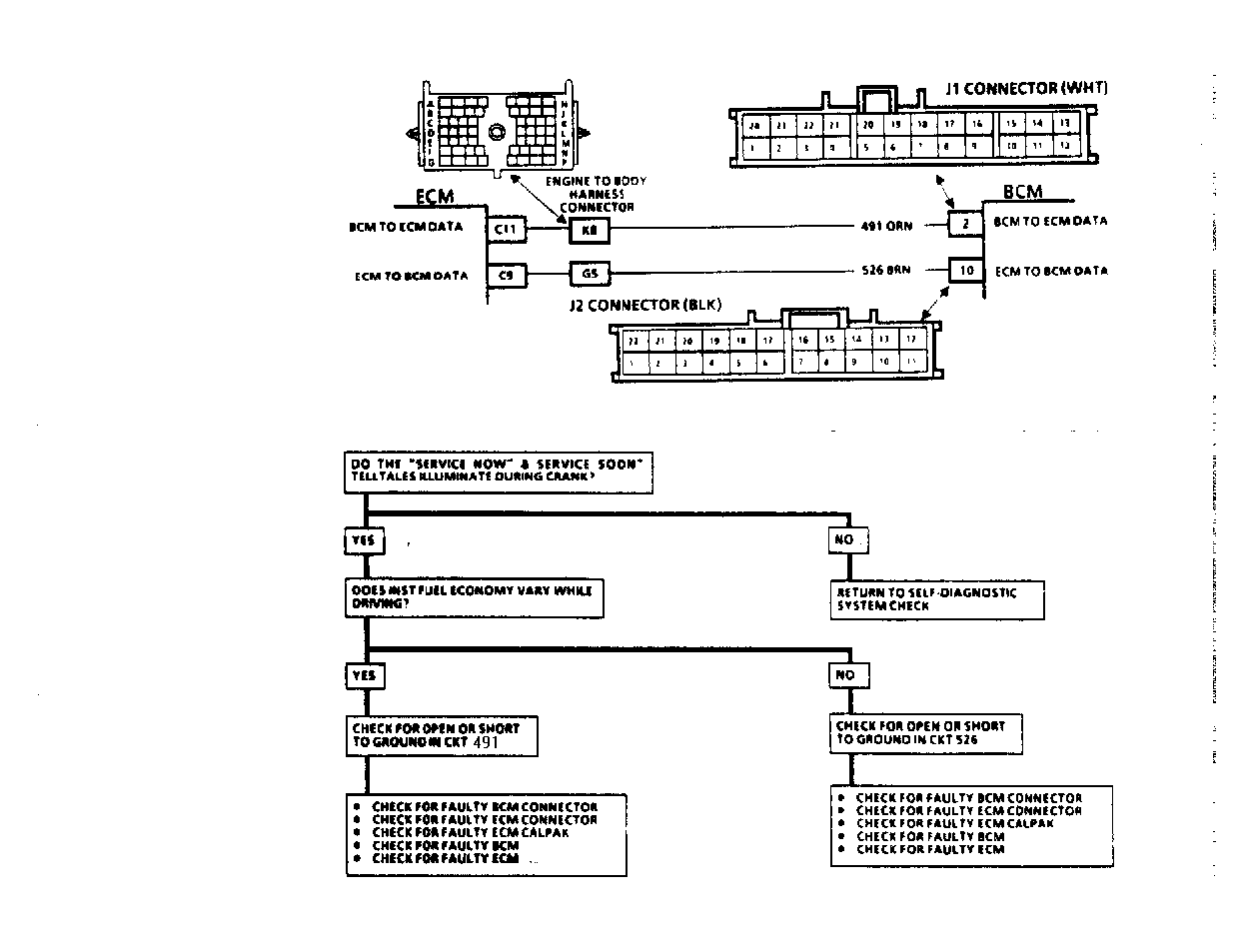

The following conditions will result in intermittent BCM code "F32" and/or ECM code "E47": Momentary open or short in circuit No. 526 results in both code "F32" and "E47". Momentary open or short in circuit No. 491 results in code "E47" only.
Momentary loss of ignition (circuit No. 50), battery (circuit No. 849), or ground (circuit No. 751A) to the BCM results in code "E47" and intermittent display panel operation. Momentary loss of ignition (circuit No. 439) to ECM results in code "F32" and intermittent engine operation.
Momentary loss of battery (circuit No. 480) or ground(circuit No. 450) to ECM results in codes "F32", "E52, and intermittent engine operation. Momentary BCM PROM problem results in codes "E47", "F51", and intermittent display of "-151" on climate control panel.
