Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|
| Defogger In-Line Fuse | Under left side of dash, near fuse block. | |

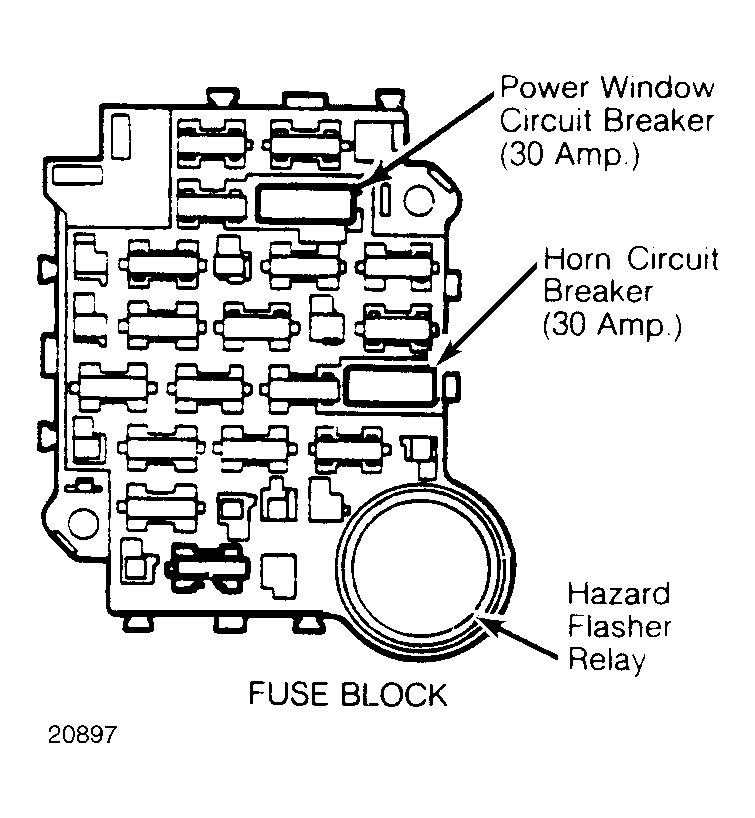

| Fuse Block | Under left side of dash, to left of steering column. See Figure . | |
| Fusible Links | ||
| A (Black) Elect. Climate Control | In harness, next to junction block, on top of left fender panel. | |
| B (Dark Green) Ignition Switch | In harness, next to junction block, on top of left fender panel. | |
| C (Dark Green) Light Switch | In harness, next to junction block, on top of left fender panel. | |
| D (Orange) Accessory Relay Panel | In harness, next to junction block, on top of left fender panel. | |
| E (Orange) A/C Blower Motor | On right side of firewall, in engine compartment, above plenum. | |
| Horn Circuit Breaker | In lower right side of fuse block. See Figure . | |
| Power Seat Circuit Breaker | On each seat motor. | |
| Power Window Circuit Breaker | In upper right side of fuse block. See Figure . | |
| Theft Deterrent In-Line Fuses A & B | Under dash, above steering column. | |
| Trunk Pull-Down In-Line Fuse | Near latch, at center of trunk lid. | |
