Chart A-2: Control Pressure Switch
Chart A-2: Control Pressure Switch

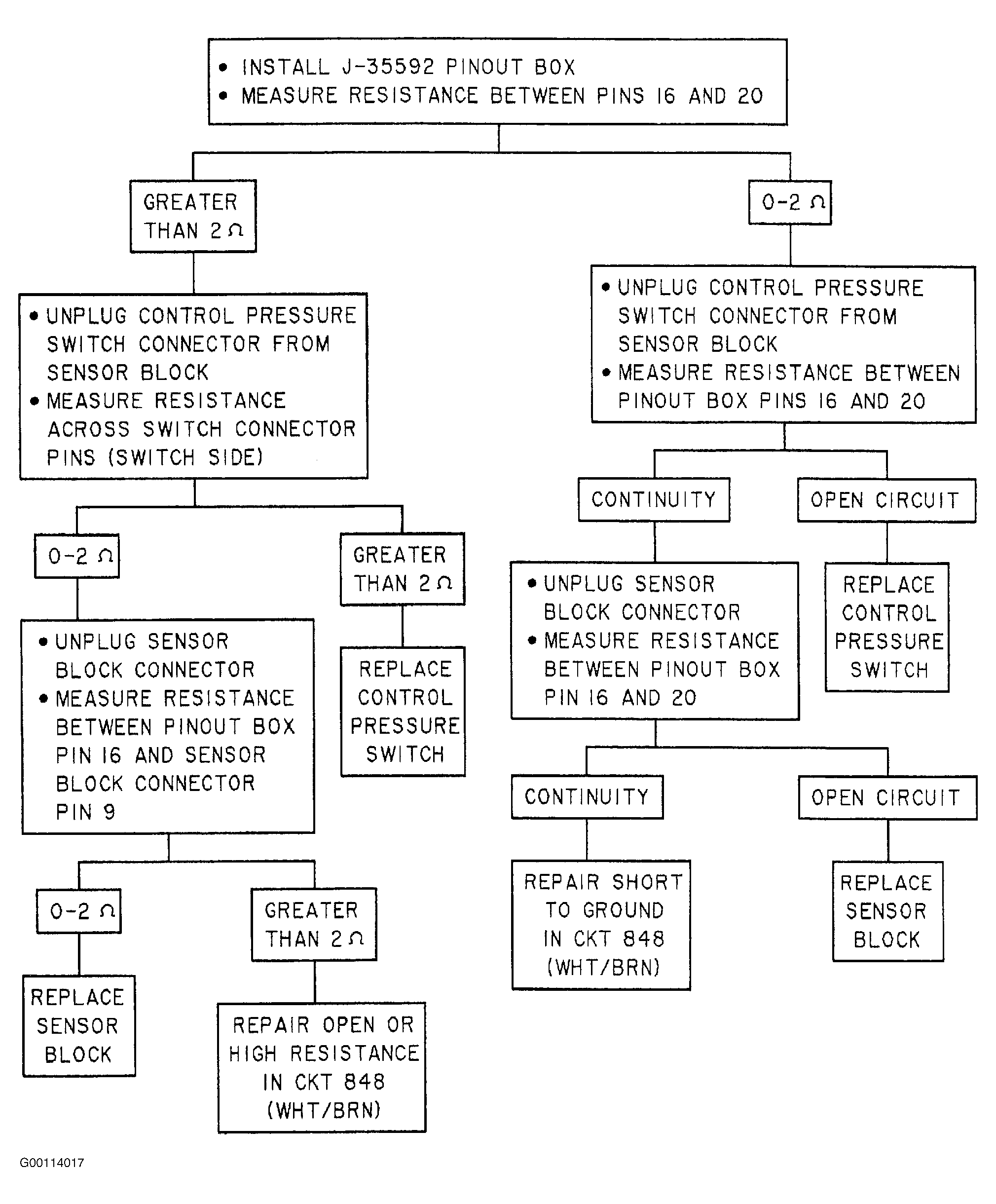

Fig 1: Chart A-2: Control Pressure Switch Diagnostic Flow Chart
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
